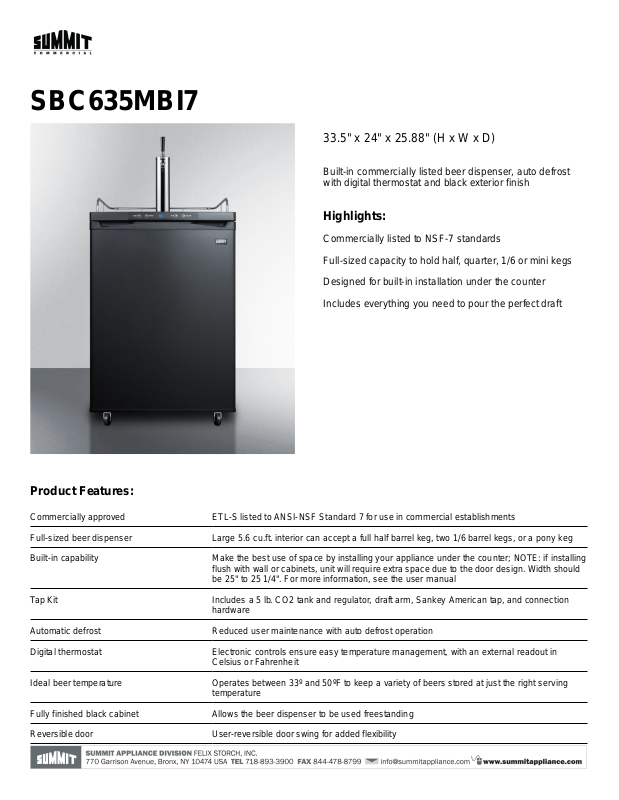

Summit SBC635MBI7 Instruction Manual

SBC635MBI7

33.5" x 24" x 25.88" (H x W x D)

Built-in commercially listed beer dispenser, auto defrost
with digital thermostat and black exterior finish

Highlights:

Commercially listed to NSF-7 standards
Full-sized capacity to hold half, quarter, 1/6 or mini kegs
Designed for built-in installation under the counter
Includes everything you need to pour the perfect draft

Product Features:

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Full-sized beer dispenser Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg
Built-in capability Make the best use of space by installing your appliance under the counter; NOTE: if installing

flush with wall or cabinets, unit will require extra space due to the door design. Width should
be 25" to 25 1/4". For more information, see the user manual

Tap Kit Includes a 5 lb. CO2 tank and regulator, draft arm, Sankey American tap, and connection

hardware
Automatic defrost Reduced user maintenance with auto defrost operation
Digital thermostat Electronic controls ensure easy temperature management, with an external readout in

Celsius or Fahrenheit
Ideal beer temperature Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving

temperature
Fully finished black cabinet Allows the beer dispenser to be used freestanding
Reversible door User-reversible door swing for added flexibility

SBC635MBI7 Specifications:

Overview

Height 33.5"
Width 24.0"
Width with Door Open 25.0"
Depth 25.88"
Depth with door at 90° 47.5"
Capacity 5.6 cu.ft.
Defrost Type Automatic
Door Black
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 0.86
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs.
Shipping Weight 130.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Beer Dispenser

Door Swing RHD
Reversible Yes
Tap Kit Yes
Number of Taps 1
Thermostat Type Digital
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 1.13 oz.
High Side PSI 250.0
Low Side PSI 110.0
Inter Height 28.0"
Interior Width 20.5"
Interior Depth 19.0"
Compressor Step Height 8.25"
Level Legs Qty 4
Wheel Qty 4
Temperature Range 33º to 50º F

ETL-C
