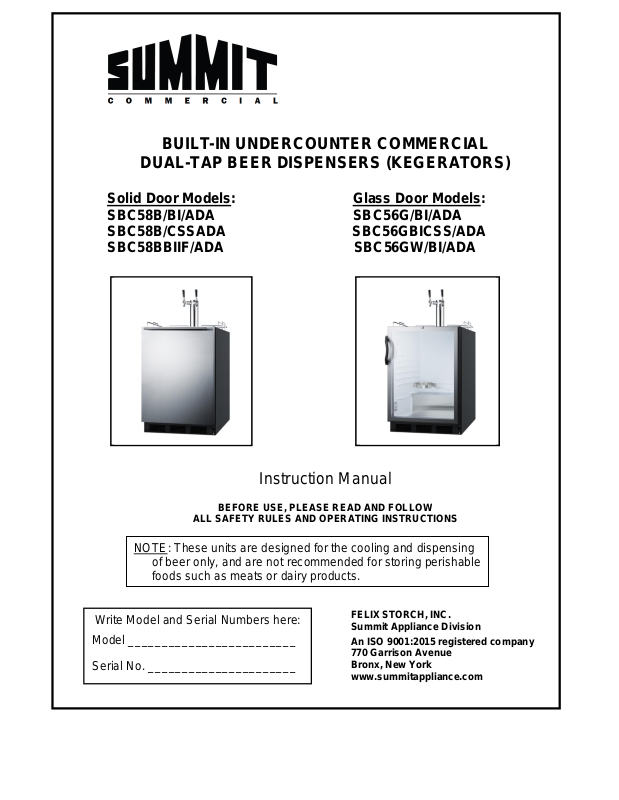

Summit SBC56GBIADA, SBC58BBINKCSSADA, SBC58BBINKADA Maintance Manual

Write Model and Serial Numbers here:

Model _________________________ Serial No. ______________________

FELIX STORCH, INC. Summit Appliance Division

An ISO 9001:2015 registered company 770 Garrison Avenue Bronx, New York www.summitappliance.com

NOTE: These units are designed for the cooling and dispensing

of beer only, and are not recommended for storing perishable foods such as meats or dairy products.

BUILT-IN UNDERCOUNTER COMMERCIAL

DUAL-TAP BEER DISPENSERS (KEGERATORS)

Solid Door Models: Glass Door Models: SBC58B/BI/ADA SBC56G/BI/ADA SBC58B/CSSADA SBC56GBICSS/ADA SBC58BBIIF/ADA SBC56GW/BI/ADA

Instruction Manual

BEFORE USE, PLEASE READ AND FOLLOW

ALL SAFETY RULES AND OPERATING INSTRUCTIONS

IMPORTANT SAFEGUARDS

DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE RFRIGERANT USED. TO BE REPAIRED BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words DANGER or WARNING.

DANGER means that failure to heed this safety statement may result in severe personal injury or death.

WARNING means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

Safety messages will alert you to what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

Before the kegerator is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precautions, including the following:

 Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter, and do not use an

extension cord.

 It is recommended that a separate circuit, serving only your kegerator, be provided. Use receptacles that cannot

be turned off by a switch or pull chain.

 Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do

not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

 Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is

disconnected.

 Do not connect or disconnect the electric plug when your hands are wet.  Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so can result in

electrical shock or death.

 Do not attempt to repair or replace any part of your kegerator unless it is specifically recommended in this

material. All other servicing should be referred to a qualified technician.

 These appliances are CFC- and HFC-free and contain a small quantity of Isobutane (R600a) which is

environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect. Care must be taken during transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can ignite and may damage the eyes.

In the event of any damage:

- Avoid open flames and anything that creates a spark,

- Disconnect from the electrical power line,

- Air the room in which the appliance is located for several minutes and

- Contact the Service Department for advice.

 The more coolant there is in an appliance, the larger the room it should be installed in. In the event of a leakage,

if the appliance is in a small room, there is the danger of combustible gases building up. For every ounce of coolant at least 325 cubic feet of room space is required. The amount of coolant in the appliance is stated on the rating label. It is hazardous for anyone other than an Authorized Service Person to carry out servicing or repairs to this appliance.

 Take serious care when handling, moving, and using the appliance to avoid either damaging the refrigerant

tubing or increasing the risk of a leak.

 Replacing component parts and servicing shall be done by factory authorized service personnel so as to

minimize the risk of possible ignition due to incorrect parts or improper service.

 Use two or more people to move and install the appliance. Failure to do so can result in back or other injury.  To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a

well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C). This unit must be installed in an area protected from the elements, such as wind, rain, water spray or drips.

 The appliance should not be located next to ovens, radiators or other sources of high heat.  The appliance must be installed with all electrical connections in accordance with state and local codes. A

standard electrical supply (115V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required.

 Do not kink or pinch the power supply cord of the appliance.  The fuse (or circuit breaker) size should be 15 amperes.  It is important for the kegerator to be leveled in order to work properly. You may need to make several

adjustments to level it.

 Never allow children to operate, play with or crawl inside the kegerator.  Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or discolor

the interior.

 Do not use this apparatus for other than its intended purpose.

THESE MODELS ARE DESIGNED FOR COMMERCIAL USE.

Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators and freezers are still dangerous, even if they will “just sit in the garage a few days.”

 Before you throw away your old refrigerator or freezer: Take off the doors. Leave the shelves or

drawers in place so that children may not easily climb inside.

 Never allow children to operate, play with, or crawl inside the refrigerator/freezer.

THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERSONS UNLESS THEY HAVE BEEN ADEQUATELY SUPERVISED BY A RESPONSIBLE PERSON TO ENSURE THAT THEY CAN USE THE APPLIANCE SAFELY. YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

– SAVE THESE INSTRUCTIONS –

Table of Contents

Important Safeguards .................................................................................................... 1 - 2

Location of Parts ................................................................................................................ 4

Technical Information ........................................................................................................ 5

Installation Instructions .............................................................................................. 6 – 12

Parts List ....................................................................................................................... 6

Before Using Your Appliance ......................................................................................... 6

Installing the Kegerator .................................................................................................. 6

Electrical Connection ..................................................................................................... 7

Extension Cord .............................................................................................................. 7

Reversing the Door Swing ........................................................................................8 – 9

Adjusting the Tilt .......................................................................................................... 10

Draft Arm Assembly ..................................................................................................... 10

Beer Kegs and Keg Tappers ........................................................................................ 10

CO2 Regulator and CO2 Cylinder ................................................................................. 11

Installation of Accessories ...................................................................................... 11-12

A Note about Freestanding Installation ........................................................................ 12

Operating Your Kegerator ................................................................................................ 13

Temperature Control Defrosting

Care and Maintenance ...................................................................................................... 14

Cleaning Your Appliance / Power Failure / Vacations / Moving your Appliance / Energy-Saving Tips

Draft Beer Troubleshooting ...................................................................................... 15 – 16

General Troubleshooting ................................................................................................. 17

Limited Warranty ................................ ................................................................ .............. 19

Location of Parts

Temperature control dial (thermostat) and interior light

Stainless steel door

Front ventilation slots (kick plate)

Leveling legs

Compressor step

CO2 canister

holder

Models SBC58B and SBC58W Series

Models SBC56G and SBC56GW Series

Temperature control dial (thermostat), light switch and interior light

Glass door

Front ventilation slots (kick plate)

Leveling legs

Compressor step

Handle

Lock

Twin taps

Railing

CO2 canister

holder

Technical Information

Model Numbers and Descriptions

SBC58BBIADA (reversible stainless steel door with horizontal

handle, black cabinet)

SBC58BCSSADA (stainless steel cabinet and door [factory-

reversible only], SS towel bar handle)

SBC58BBIIFADA (panel-ready door, factory-reversible only;

handle provided by customer) SBC56GBIADA (reversible glass door, black cabinet) SBC56GBICSSADA (stainless steel-wrapped cabinet, SS towel

bar handle, factory-reversible door only)

Capacity

Two 1/6 kegs

Electrical Input

115V AC/60Hz

Rated Current

SBC58B models:1.3A SBC56G models: 1.8A

Defrost

Automatic

Refrigerant

SBC58B models: R134a (1.8 oz.)* SBC56G models: R600a (0.67 oz.)**

Installation

Built-in or free-standing

Unit Dimensions (W x D x H)

23.63" x 23.5" x 32” (32.25" to hinge cap)

CALIFORNIA CARB/SNAP DISCLOSURE For products manufactured after January, 1, 2019:

Retail food refrigeration equipment manufactured after January 1, 2019, designed to store and display chilled goods for commercial sale, and that use HFC-134a/R134a refrigerant are not for sale in California.

*This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited

Substances' for that specific end-use, in accordance with California Code of Regulations, title 17, section 95374. This disclosure statement has been reviewed and approved by Felix Storch, Inc. and Felix Storch, Inc. attests, under penalty of perjury, that these statements are true and accurate.

**This product uses eco-friendly hydrocarbon refrigerant and fully complies with California CARB

regulations. However, we are required by California Law to provide the previous disclosure statement in every product sold in California.

This product does not use any refrigerants on the “List of Prohibited Substances.”

NOTES: Models with “NK” in the suffix do not include tapping equipment.

All models are ETL-S listed to NSF-7 standards for commercial use.

Specifications are subject to change without notice.
