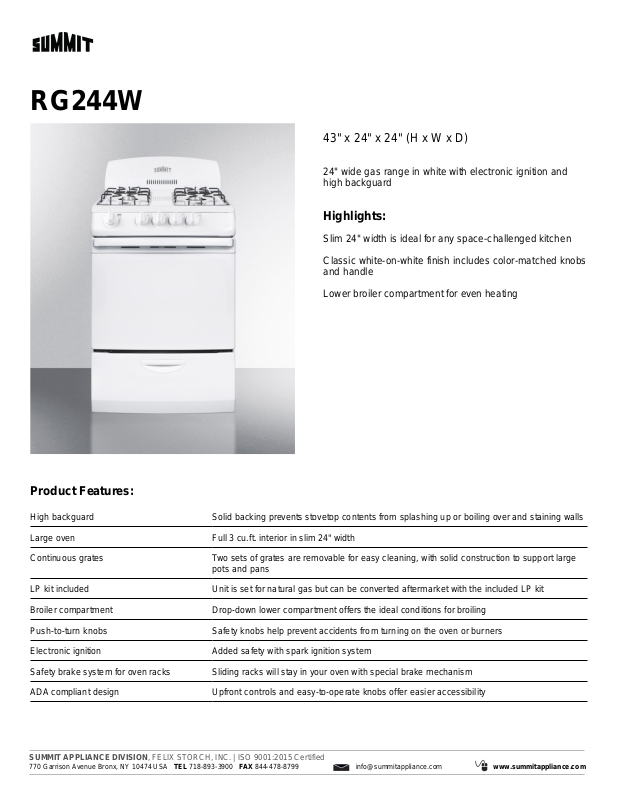

Summit RG244W Specification Sheet

RG244W

43" x 24" x 24" (H x W x D)

24" wide gas range in white with electronic ignition and
high backguard

Highlights:

Slim 24" width is ideal for any space-challenged kitchen
Classic white-on-white finish includes color-matched knobs

and handle
Lower broiler compartment for even heating

Product Features:

High backguard Solid backing prevents stovetop contents from splashing up or boiling over and staining walls
Large oven Full 3 cu.ft. interior in slim 24" width
Continuous grates Two sets of grates are removable for easy cleaning, with solid construction to support large

pots and pans
LP kit included Unit is set for natural gas but can be converted aftermarket with the included LP kit
Broiler compartment Drop-down lower compartment offers the ideal conditions for broiling
Push-to-turn knobs Safety knobs help prevent accidents from turning on the oven or burners
Electronic ignition Added safety with spark ignition system
Safety brake system for oven racks Sliding racks will stay in your oven with special brake mechanism
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

RG244W Specifications:

Overview

Height of Cabinet 43.0" (109 cm)
Width 24.0" (61 cm)
Depth 24.0" (61 cm)
Depth with Handle 26.13" (66 cm)
Depth with door at 90° 40.25" (102 cm)
Door White
Cabinet White
US Electrical Safety CSA
Canadian Electrical

Safety
Amps 5.0
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 155.0 lbs. (70 kg)
Parts & Labor Warranty 1 Year

Gas Range

Ignition Spark
LP Convertible Yes
Oven Capacity 3.0 cu.ft
Cooktop Surface Metal
Burner Type Open
Number of Burners 4
Burner #1 BTU 9100.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 9100.0
Burner Controls Dial
Oven Controls Dial
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Interior Height 15.0" (38 cm)
Oven Interior Width 20.0" (51 cm)
Oven Interior Depth 17.5" (44 cm)
Broiler Location Below Oven

CSA-C
