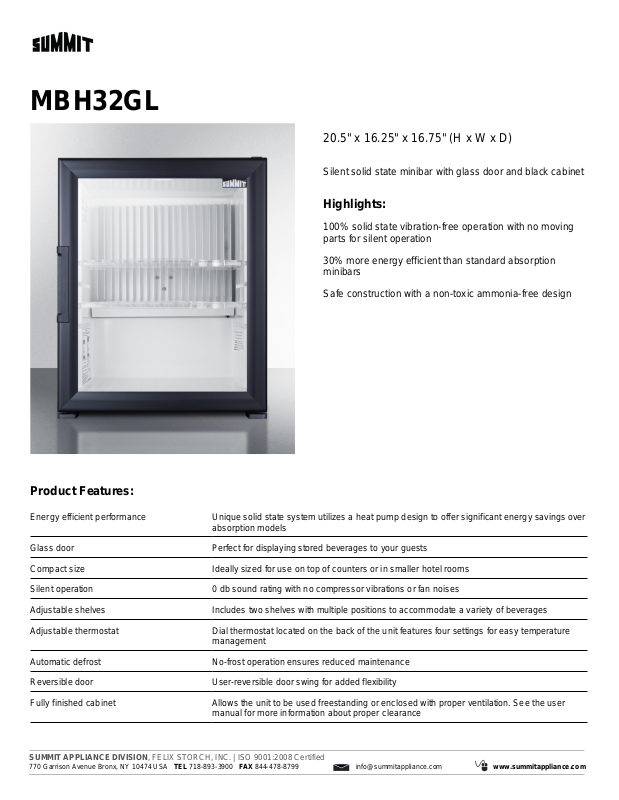

Summit MBH32GL Brochure

MBH32GL

20.5" x 16.25" x 16.75" (H x W x D)

Silent solid state minibar with glass door and black cabinet

Highlights:

100% solid state vibration-free operation with no moving
parts for silent operation

30% more energy efficient than standard absorption
minibars

Safe construction with a non-toxic ammonia-free design

Product Features:

Energy efficient performance Unique solid state system utilizes a heat pump design to offer significant energy savings over

absorption models
Glass door Perfect for displaying stored beverages to your guests
Compact size Ideally sized for use on top of counters or in smaller hotel rooms
Silent operation 0 db sound rating with no compressor vibrations or fan noises
Adjustable shelves Includes two shelves with multiple positions to accommodate a variety of beverages
Adjustable thermostat Dial thermostat located on the back of the unit features four settings for easy temperature

management
Automatic defrost No-frost operation ensures reduced maintenance
Reversible door User-reversible door swing for added flexibility
Fully finished cabinet Allows the unit to be used freestanding or enclosed with proper ventilation. See the user

manual for more information about proper clearance

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

MBH32GL Specifications:

Overview

Height of Cabinet 20.25" (51 cm)
Height to Hinge Cap 20.5" (52 cm)
Width 16.25" (41 cm)
Depth 16.75" (43 cm)
Depth with door at 90° 31.38" (80 cm)
Capacity 1.06 cu.ft. (30 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety UL
Canadian Electrical

Safety
Amps 0.6
Voltage/Frequency 115 V AC/60 Hz
Weight 28.0 lbs. (13 kg)
Shipping Weight 40.0 lbs. (18 kg)
Parts & Labor Warranty 1 Year

Refrigerator Features

Door Swing RHD
Reversible Yes
Shelf Type Plastic
Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.3oz.
High Side PSI 234.0
Low Side PSI 233.0
Level Legs Qty 2
Temperature Range 46.4°F to 57.2°F

Dimensions

Interior Height 16.63" (42 cm)
Interior Width 13.0" (33 cm)
Interior Depth 8.38" (21 cm)

ULC
