Page 1

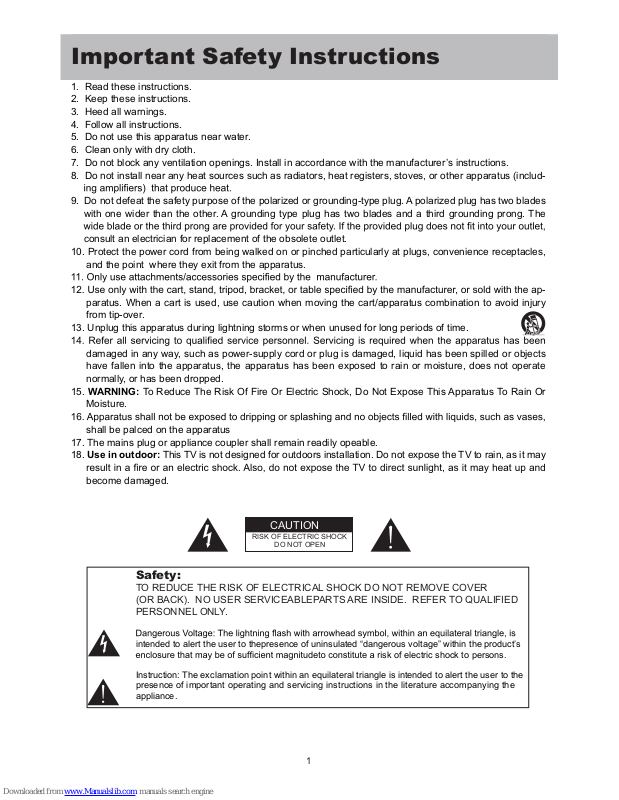

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includ-

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The

consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

paratus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.

shall be palced on the apparatus

17. The mains plug or appliance coupler shall remain readily opeable.

18. Use in outdoor: This TV is not designed for outdoors installation. Do not expose the TV to rain, as it may

become damaged.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Safety:

TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLEPARTS ARE INSIDE. REFER TO QUALIFIED PERSONNEL ONLY.

intended to alert the user to thepresence of uninsulated “dangerous voltage” within the product’s

sk of electric shock to persons.

Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance.

Page 2

Safety Instructions

Important safeguards for you and your new TV

Observing the simple precautions discussed in this booklet will provide you with many years of enjoyment and safe operation. This product complies with all applicable US Federal safety requirements, and those of the Canadian Standards Association.

1. Read & Follow Instructions

All safety and operating instructions should be read and followed before the TV is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the TV and in the operating instructions should be adhered to.

4. Cleaning

Unplug the TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft and slightly damp cloth for cleaning.

5. Water and Moisture

Do not use this TV near water, for example, near a bathtub,wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

6. Accessories Carts and Stands

Do not place this TV on a slippery or tilted surface, or on an unstable cart, stand, or table. The TV may slide or fall, causing serious injury to a child or adult, and serious damage to the TV.

7. Transporting the Television

A TV and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the TV and cart combination to overturn.

8. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. The TV should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided.

9. Power Sources

This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your electronics retailer or local power company.

10. Power-Cord Polarization

This TV is equipped with a three-wire grounding type plug,a plug with a third (grounding) pin. This plug will only ﬁt into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, the contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

11. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs,convenience receptacles, and the point where they exit from the TV.

12. Lightning

For added protection for the TV during a lightning storm, or when it is left unattended and unused for long periods of time,unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV from lightning and power-line surges.

Page 3

Safety Instructions

13. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the TV be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code (U.S.A.), ANSI / NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connect on to grounding electrodes, and requirements for the grounding electrode.

Example of Grounding According to National Electrical Code Instructions

NEC - National Electrical Code

14. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall on to power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

15. Overloading

Do not overload wall outlets and extension cords as this can result in a risk of ﬁre or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁre or electric shock. Never spill liquid of any kind on or inside the TV.

17. Servicing

Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualiﬁed service personnel.

18. Damage Requiring Service

Unplug from the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions: a. If the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the product. c. If the TV has been exposed to rain or water. d. If the TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to restore the product to its normal operation. e. If the TV has been dropped or the cabinet has been damaged. f. If the TV exhibits a distinct change in performance.

Ground Clamp

Antenna Lead in Wire

Antenna Discharge Unit (NEC Section 810-20)

Grounding Conductor (NEC Section 810-21)

Ground Clamps

Electric Service

Equipment

Power Service Grounding Electrode System (NEC Art 250, Part H)

Page 4

Safety Instructions

19. Replacement Parts

When replacement parts are required, be sure that only an authorized service technician has used replacement parts speciﬁed by Apex Digital or have the same characteristics as the original part. Unauthorized substitutions may result in ﬁre, electric shock, or other hazards and void any warranty.

20. Safety Check

Upon completion of any service or repairs to this TV, ask the service technician to perform safety checks to determine whether the product is in proper operating condition.

21. Wall Mounting

The TV should be mounted to a wall only by a professional. The TV may slide or fall, causing serious injury to a child or adult, and serious damage to the product. Warranty shall be voided.

22. Heat

The TV should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including) ampliﬁers) that produce heat.

NOTE TO CABLE / TV INSTALLER:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code(U.S.A.). The code provides guidelines for proper grounding and, in particular, speciﬁes that the cable ground should be connected to the grounding system of the building, as close to the point of the cable entry as practical.

FCC REGULATORY INFORMATION:

This television has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This television generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this television does cause interference to other electronic equipment, which can be determined by turning the television off and on, then the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and television.

- Connect the equipment into an outlet on a circuit different from that to which the television is connected.

- Consult your dealer or an experienced radio / TV technician for assistance.

Any changes or modiﬁcations not expressly approved by the party responsible for compliance may void the user’s authority to operate the equipment.

Page 5

Table of Contents

Important Safety Instructions .........................................................................................................................................1

Table of Contents ..........................................................................................................................................................5

Introduction ....................................................................................................................................................................6

Remote Control

Battery Install .................................................................................................................................................................7

Overview .......................................................................................................................................................................8

TV Overview

Front Panel ................................................................................................................................................................ 10

Rear Panel & Pedestal Removal ................................................................................................................................. 11

Installation

Connection to Antenna & Cable / Satellite Box ...........................................................................................................12

Connection to HDMI Input ...........................................................................................................................................13

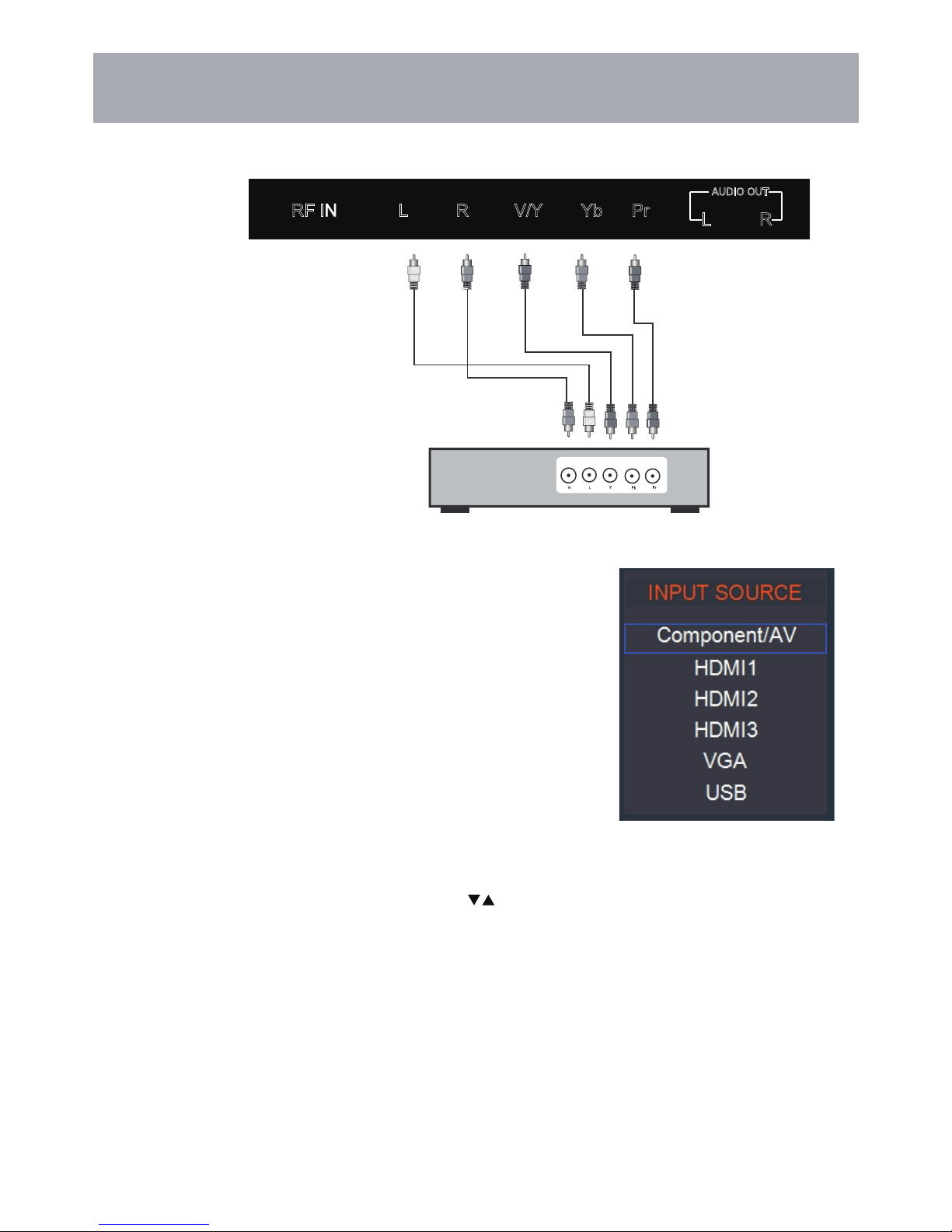

Connection to Component YPbPr Input ......................................................................................................................14

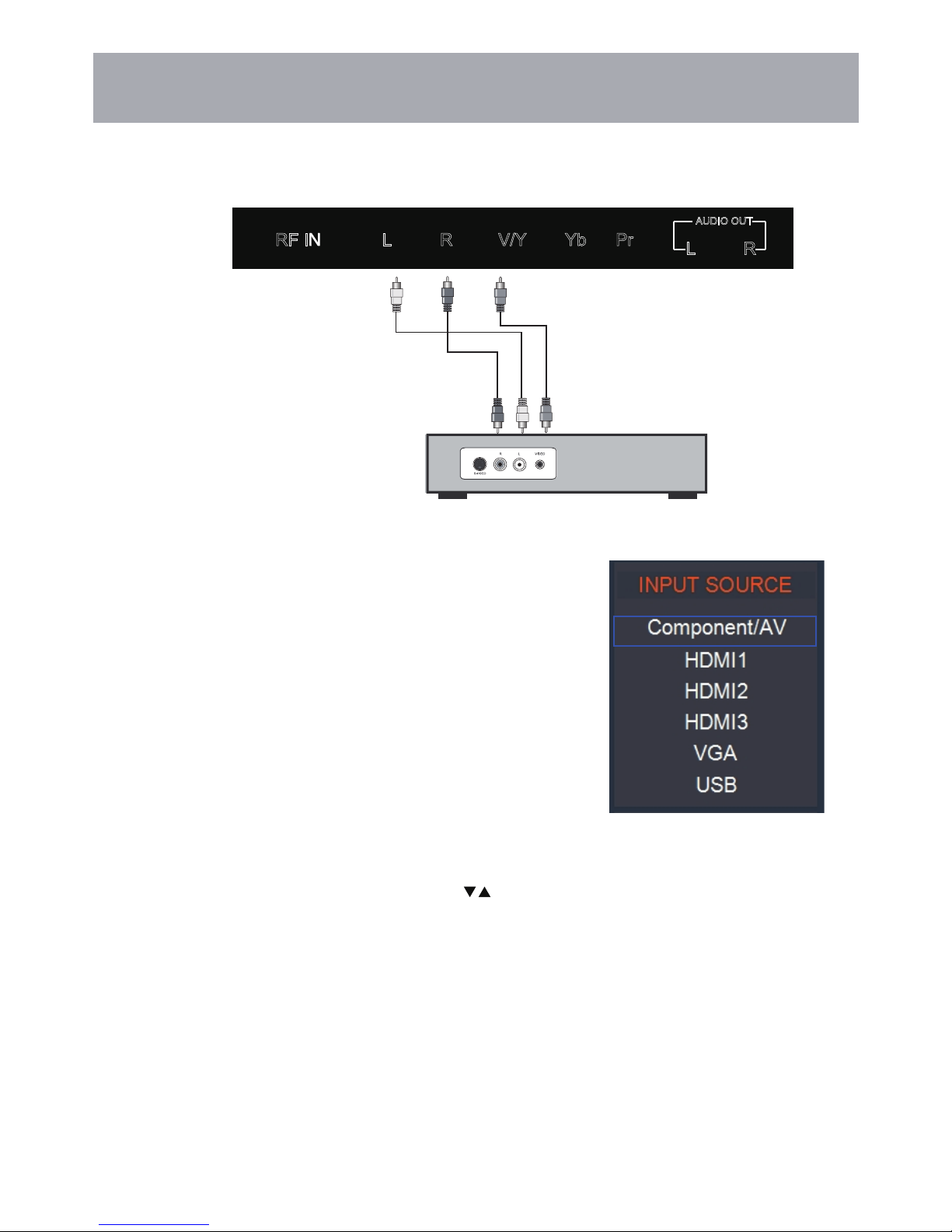

Connection to Composite Input ...................................................................................................................................15

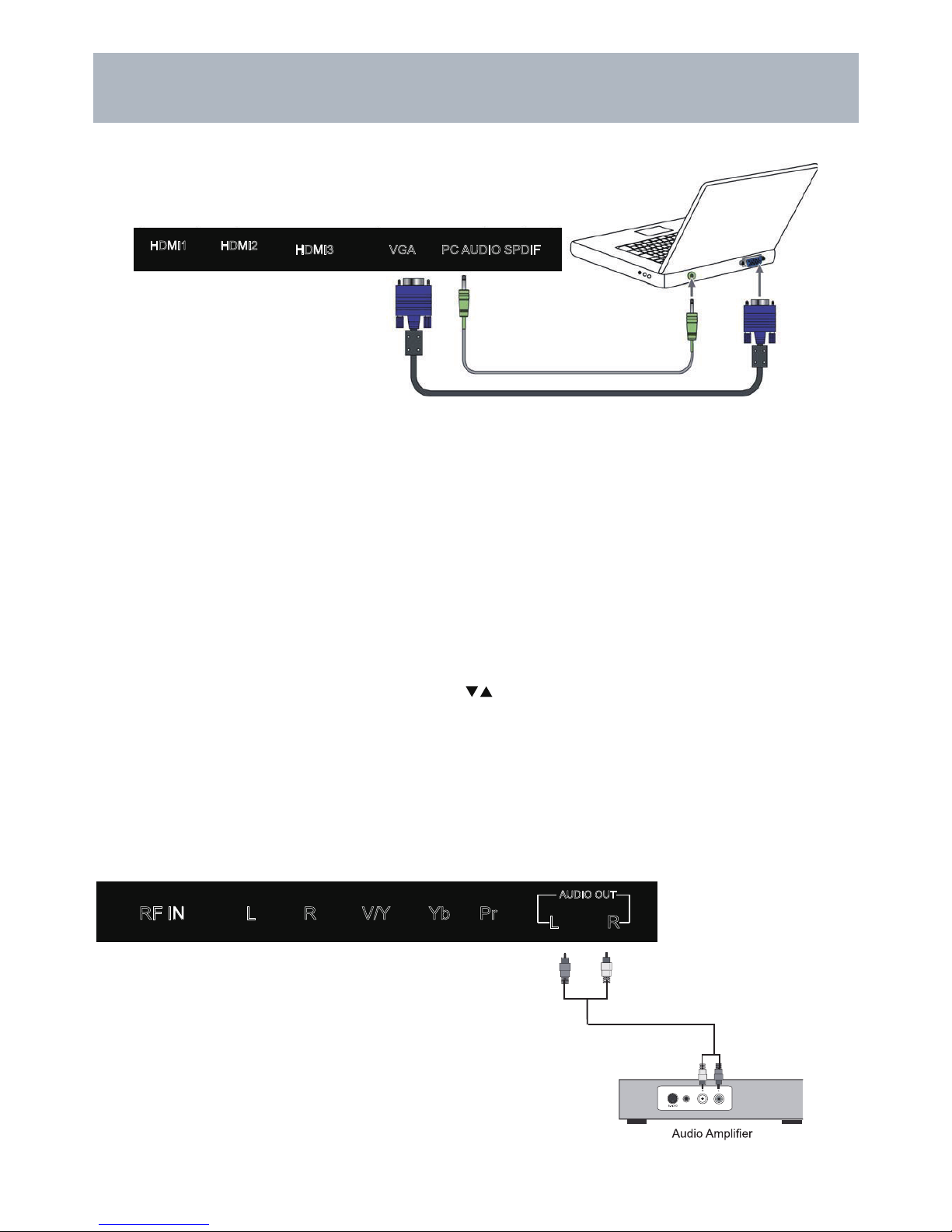

Connection to a Personal Computer ...........................................................................................................................16

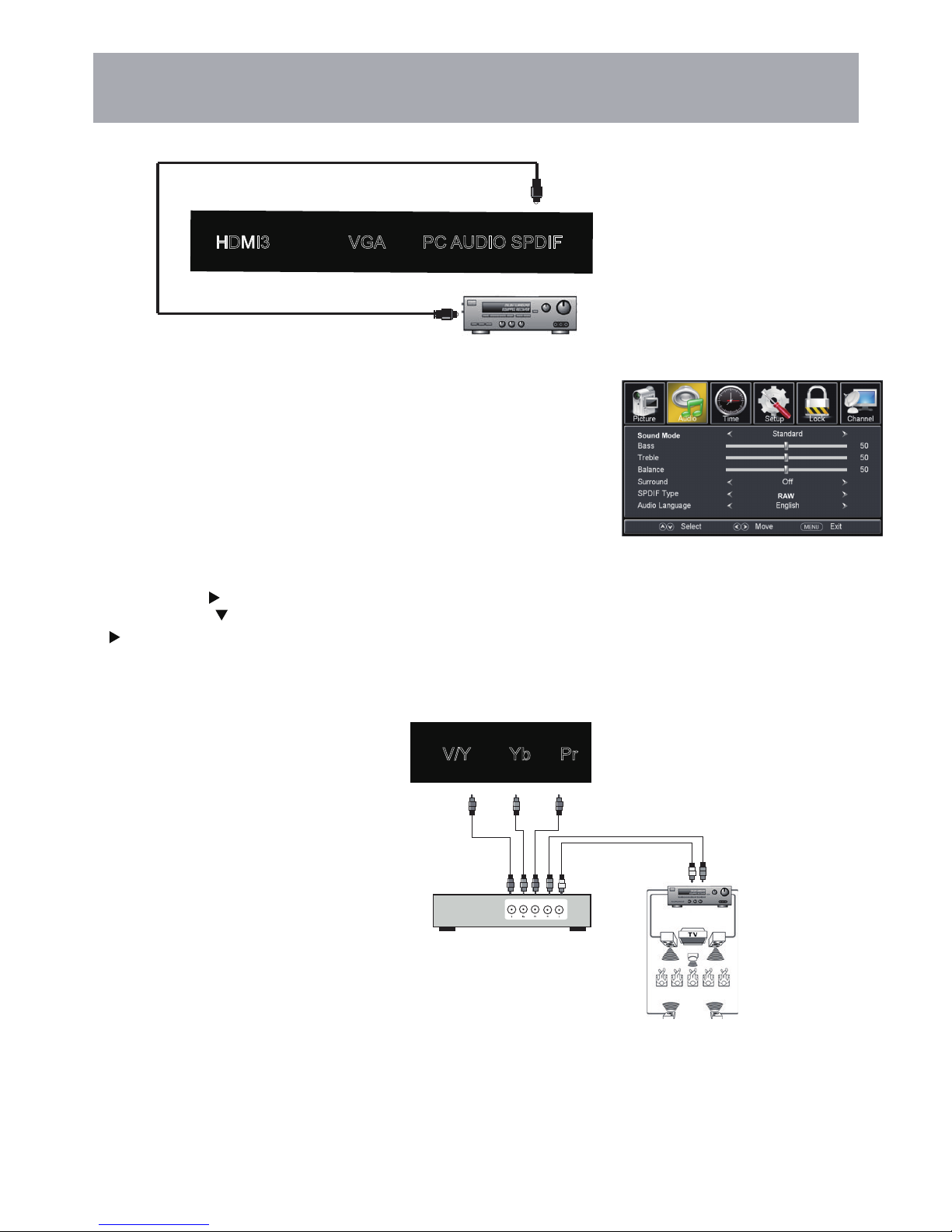

Connection to a Home Theater System ......................................................................................................................17

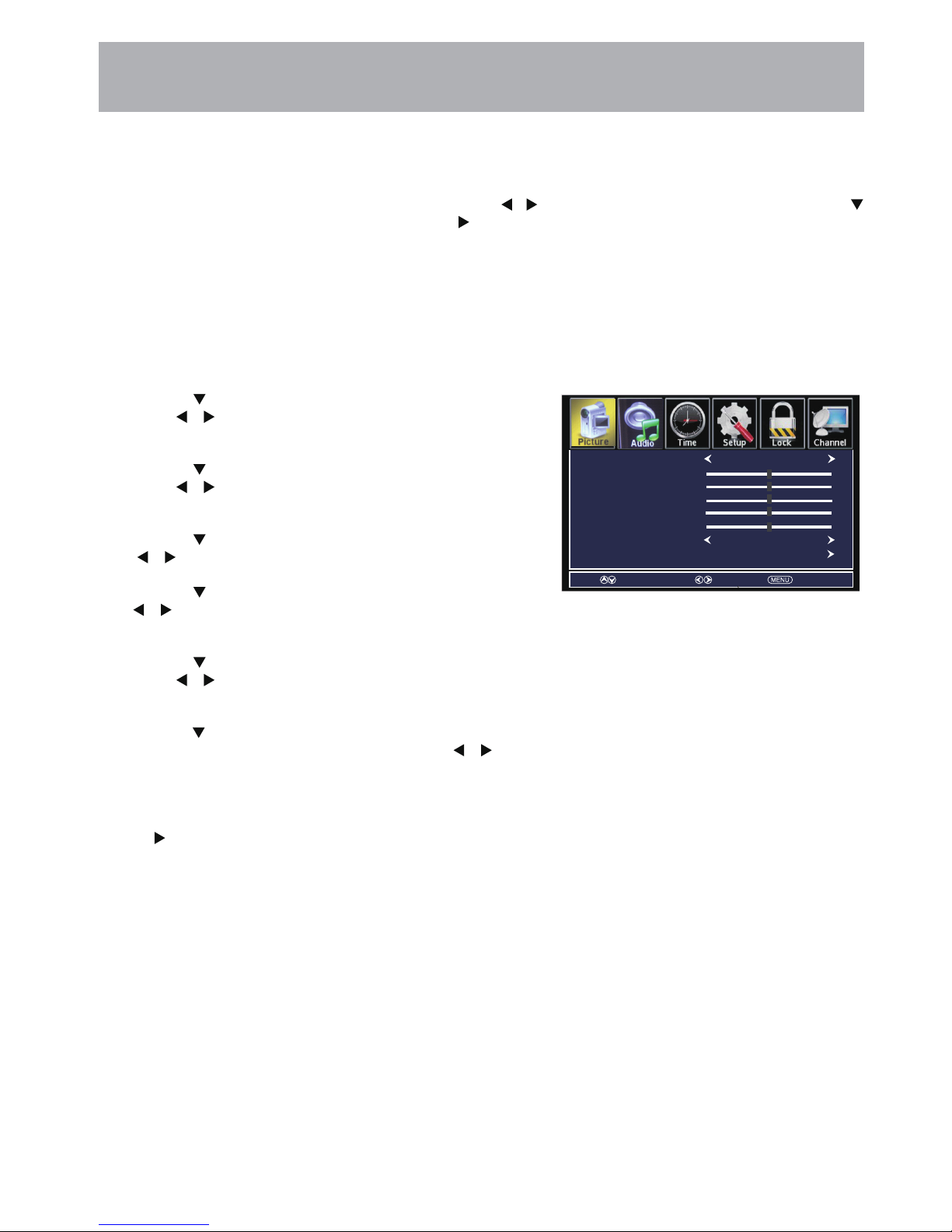

Picture Setting .........................................................................................................................................................18

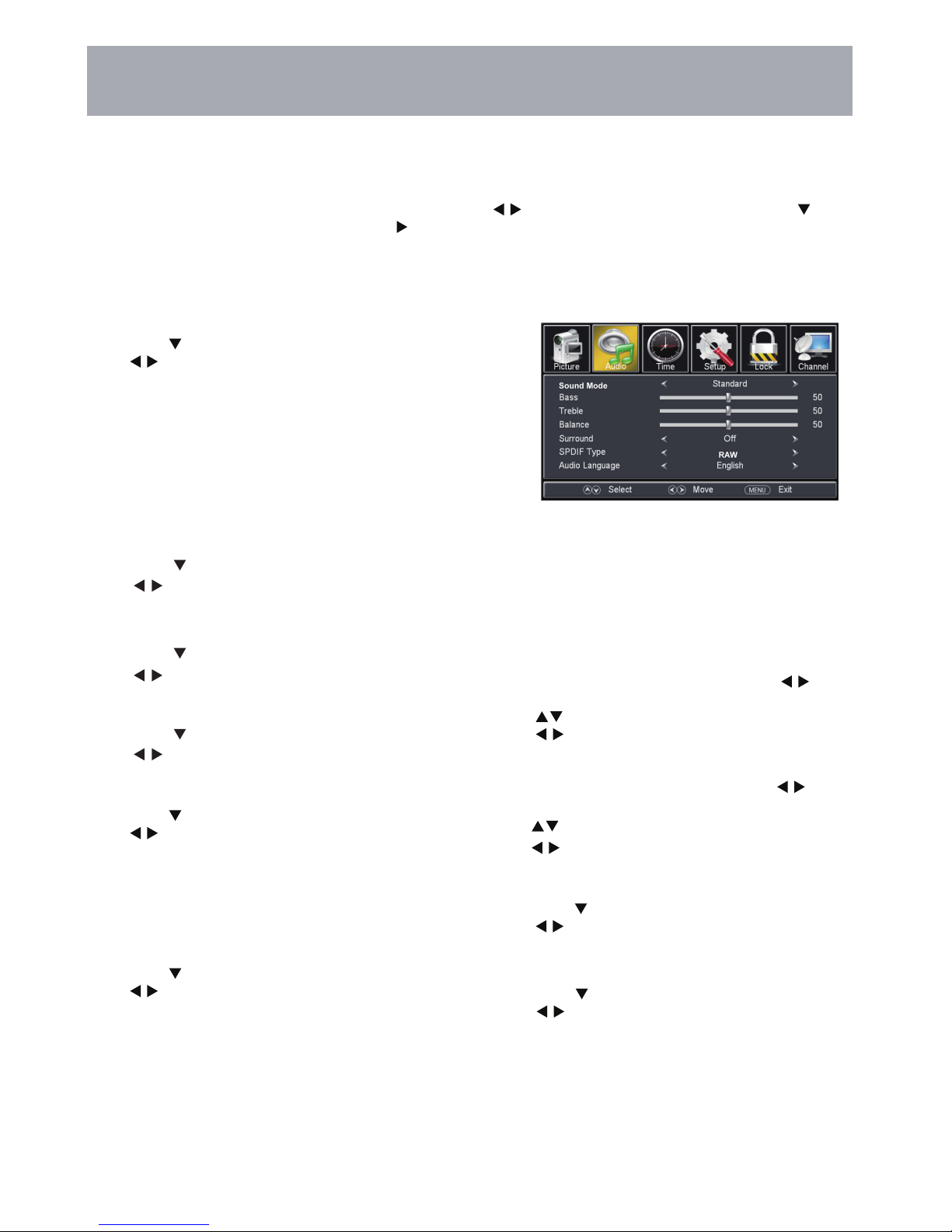

Audio Settings

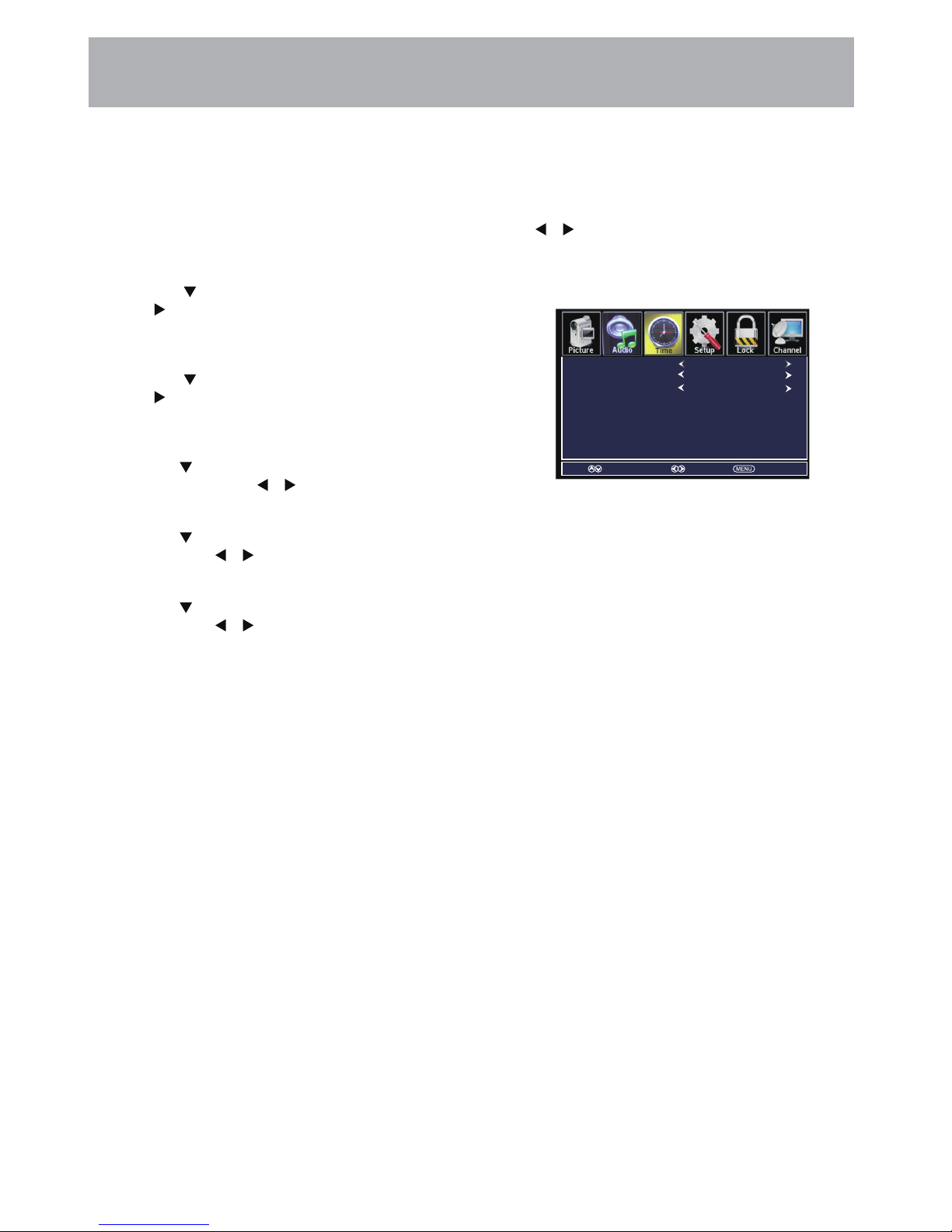

Time Settings

.........................................................................................................................................................19

.........................................................................................................................................................20

Setup Settings .........................................................................................................................................................21

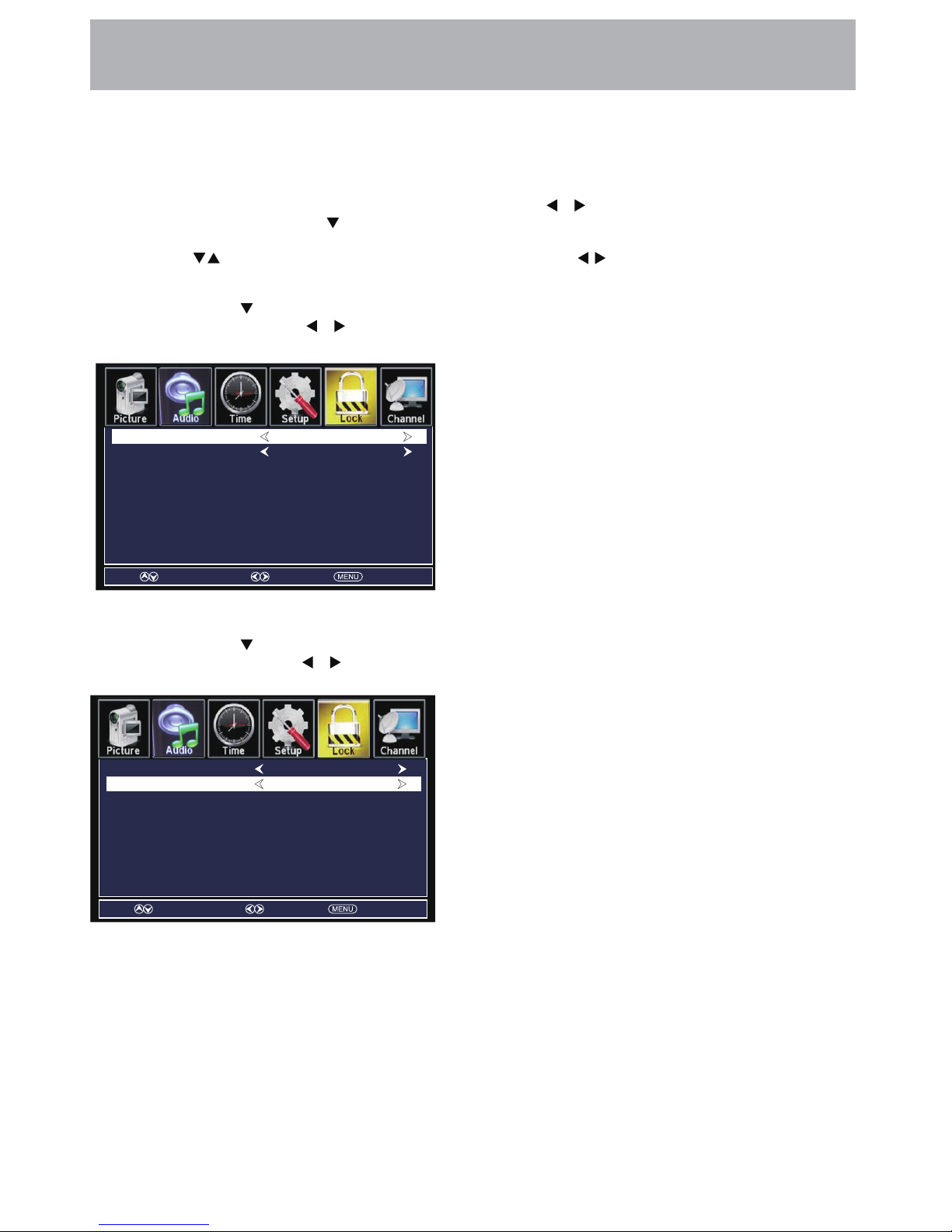

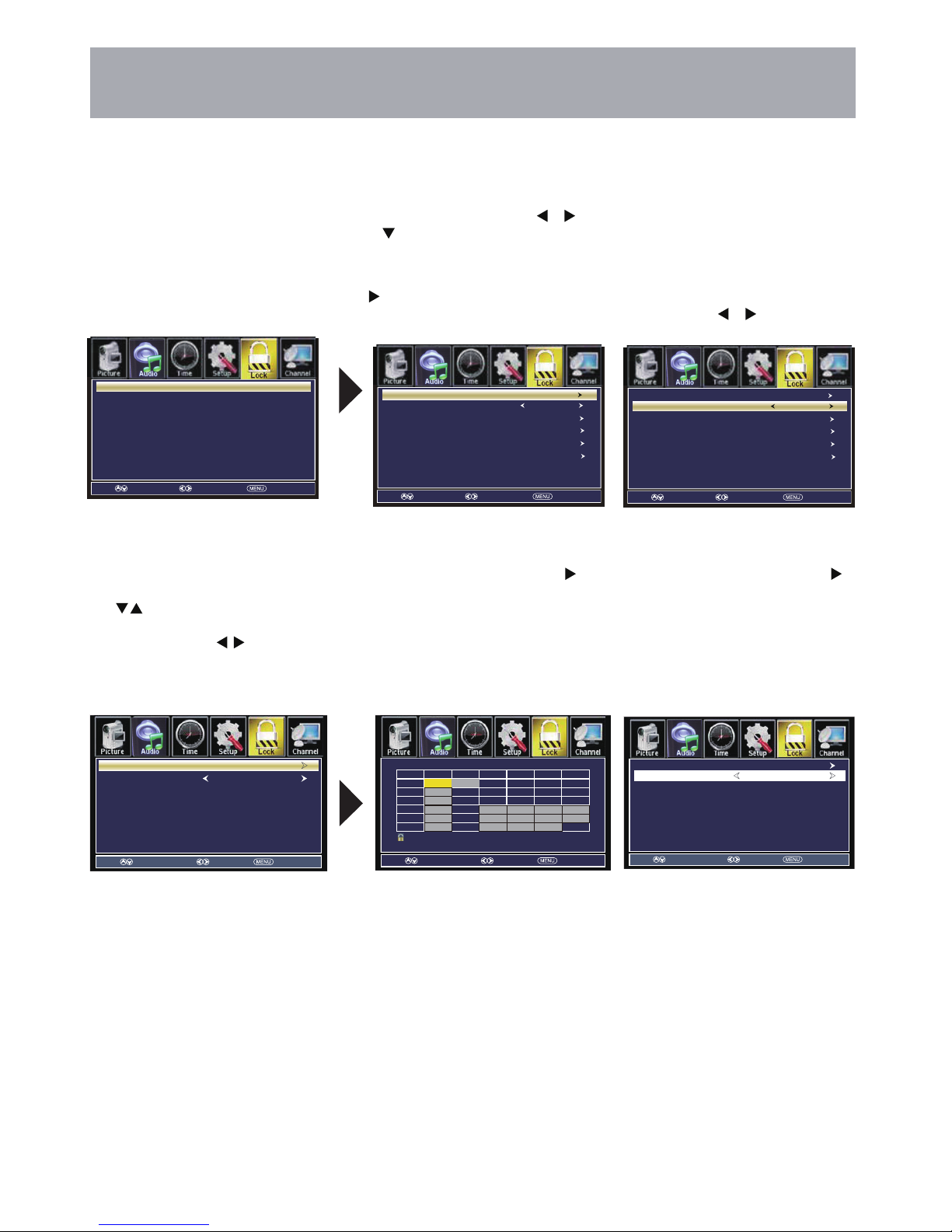

Panrental Control.......................................................................................................................................................24

TV Setting...................................................................................................................................................................31

Page 6

Introduction

What’s In The Box

Thank you for purchasing the energy efﬁcient LE5835 t elevision. It has been designed to enjoy today’s high deﬁnition

television experience. With a display resolution of 58”1920 X 1080 you are assured of one of the ﬁnest quality televisions

available today.

Your television provides both analog and digital inputs including one (1) High Deﬁnition Multimedia Interface (HDMI)

interconnects for the purest audio and video digital signal when connected to compatible HD sources (ie: HD set-top box, high deﬁnition DVD player or gaming console).

We recommend that you read the user manual thoroughly before use to familiarize yourself with the installation and adjustment options available to you; thereby, enjoying all the features of the LE5835 for many years to come.

The LE5835 package includes the following items. Save the carton & packing for future shipping

• Pedestal Base / Hardware

• Remote Control

• AAA Batteries (2)

• Quick Start Guide

• User Manual

• Warranty Card

• AV Cable

Page 7

Battery Install

Remote Control

Your remote control handset is powered by two (2) AAA type batteries

• To insert the batteries, turn the remote control over and remove the battery over.

• Place two (2) “AAA” batteries into the battery compartment with the “+” and ““ ends facing the correct way as shown

in the battery compartment.

• Replace the cover

•

When pointed towards the television, the effective range of the remote is approximately 16 feet from the front of the TV IR receiver and at an angle of no greater than 30° to the left / right or 20° up / down.

•

To avoid possible damage from battery chemical leakage, remove the batteries if you do not plan to use the remote control for an extended period of time. Do not mix batteries of different age and / or type. Always discard used batteries safely.

•

Do not expose the remote control to liquids, direct sunlight or sources of excessive heat.

•

The IR receiver on the TV will not work properly if the set is in direct sunlight or an object is in the path between the remote control and the IR receiver on the front of the TV.

NOTE: Improper use of batteries can result in a chemical leakage or explosion.

30 30

IR Receiver

Universal Remote Code:

To operate this TV using the remote control provided by your Cable / Satellite provider, follow the programming instructions included with the providers’ remote control and input the following codes when prompted;

• For Comcast or DirecTV remote controls, input the code- 10030.

• For AT & T (U-verse) remote controls, input the code- 1043.

•• For RCA Universal Remote Controls, input the code- 0030.

Remote Code: DISH 21.0 IR/UHF PRO(506).

Page 8

Remote Control

Notes:

1. If direct sunlight shine directly on the remote sensor, the remote control’s operation may be unstable, and the effective range will be reduced.

2. Do not hit or violently shake the remote control.

3. Never expose the remote control to high temperature or humidity.

4. If the remote is not used for an extended period of time, remove the batteries to prevent damage or injury from possible battery leakage.

Overview

Page 9

Remote Control

Overview

29. NUMBER KEYS Press number keys to enter channel numbers.

User > Standard > Music > Movie > Sports.

Dynamic > Standard > Soft > Power Saving > User.

Page 10

TV Overview

Input - After connecting your DVD, cable box, etc., select the appropriate input source to view. Press the INPUT button to display the input options. Press the CH- / CH+ buttons to highlight the input source and press the VOL+ button to select.

Menu - Press the MENU button to display. Press VOL+ to select from the

6 menu options available. Press the CH- / CH+ buttons to select a feature from the selected menu then press the VOL- / VOL+ buttons to adjust the volume settings.

Channel (CH- / CH+) - Press the CH- / CH+ buttons to select a channel

in the TV mode.

Volume (VOL- / VOL+) - Press the VOL- / VOL+ buttons to adjust the

volume up or down.

Power - Press the POWER button to turn the LED display ON / OFF

(standby). When the power is on, the blue LED illuminates. The screen image will appear within a few seconds.

Front Panel

IR Receiver

A soft blue light illuminates when the

television power is on.

INPUT

CH+

CH-

VOL+

VOL-

POWER

Page 11

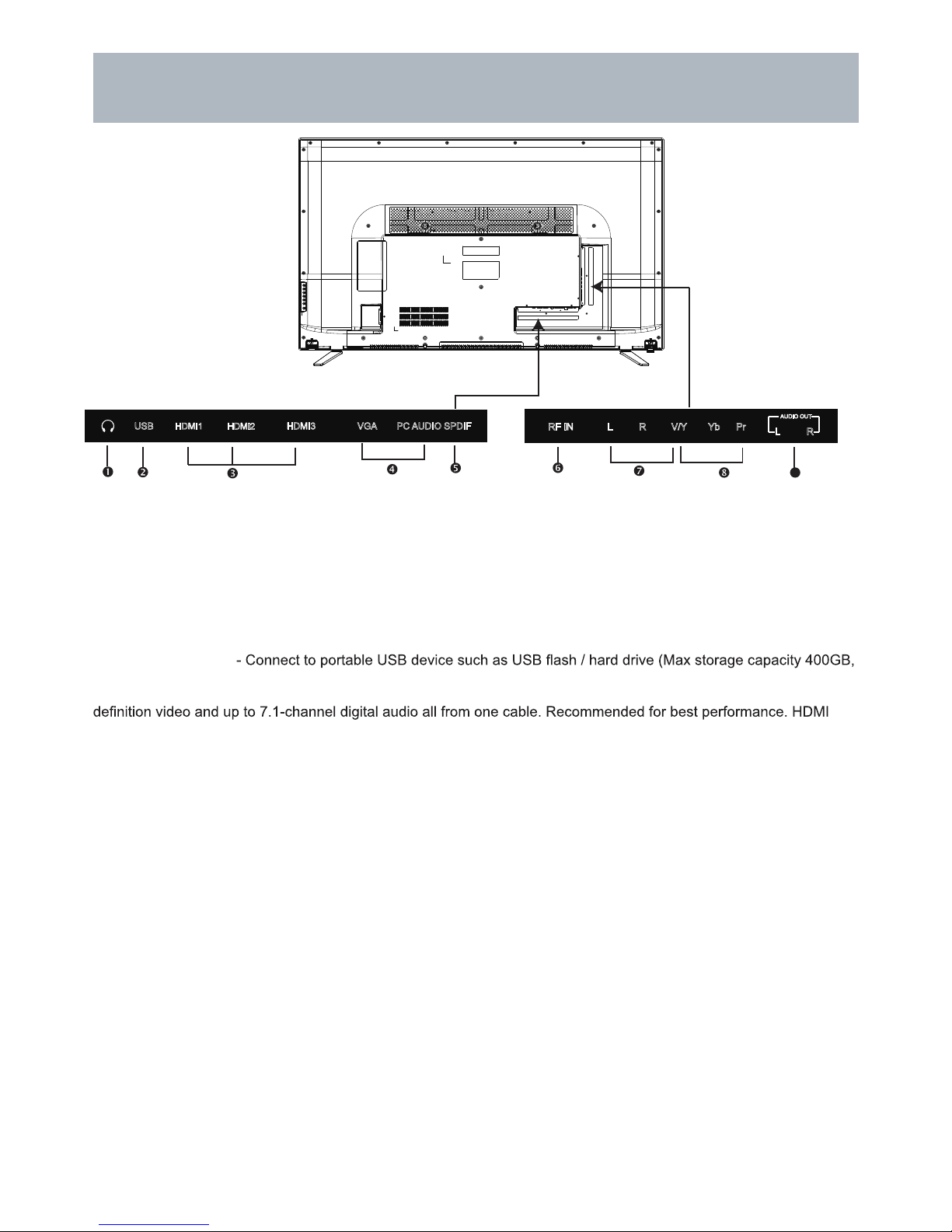

TV Overview

2. USB Input Port

supports MP3 and JPEG.

3. HDMI Input - Connects to digital AV equipment that feature HDMI connectivity. HDMI supports enhanced high

cable not included.

4. PC IN - VGA Input - Connect an optional VGA cable (not included) from your personal computer.

PC Audio Input (3.5mm) - 3.5mm audio cable (not included) for sound.

8. Component Y Pb Pr Input - Connect to an AV device that features component (Y Pb Pr) video and audio output

jacks.

6. RF Input - Connect an antenna or cable connection for television reception. Note: Use an outdoor antenna, cable or satellite for best reception.

1. Headphone Jack - Connect a stereo headphone (3.5mm – not included) for private listening.

5. SPDIF - Connect an optional coaxial digital cable (not included) through a compatible amp / receiver to enjoy

superior audio sound.

7. AV Input - Connect an external device to the composite VIDEO(Y) and AUDIO (L / R) out jacks found on most video equipment.

9. Audio Out - Connect to audio receiver.

NOTE: You must remove the

pedestal before wall mounting.

Rear Panel & Pedestal Removal

Wall Mounting

It is recommended that you consult a professional before mounting this TV a wall. Use VESA 400 x 400 wall mount hardware.

SPDIFPC AUDIOVGAHDMI3USB

RF IN L R V/Y Yb Pr

L R

AUDIO OUT

HDMI2

(MHL)

HDMI1 (ARC)

Page 12

Coaxial / RF Cable (not included)

Ant. / Cable

Wall Outlet

Installation

Connection to Antenna & Cable / Satellite Box

Roof Antenna / Cable Outlet Installation

It is strongly recommended that the installation of a high quality roof top antenna, digital cable, or satellite set top box be used in conjunction with your television for best broadcast reception. For indoor use, we recommend an Apex Digital ampliﬁed HDTV antenna. Note: reception is determined by your regional location, geographical terrain, distance from the local broadcast transmitter and strength of antenna.

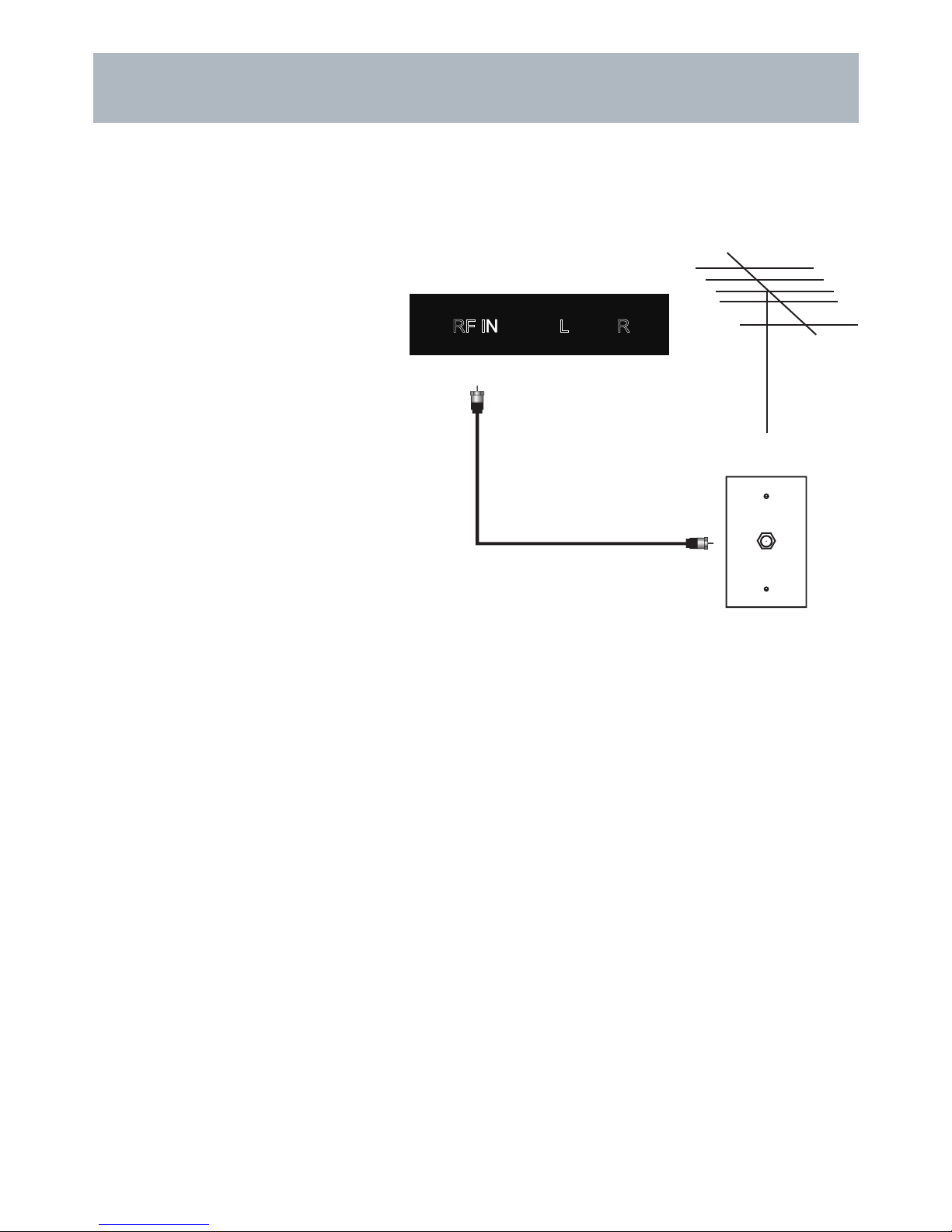

How to connect with an indoor or rooftop antenna

• Connect the RF coaxial (75 ohm) cable from

your existing roof top / in door antenna, or wall outlet. Finger tighten the Coaxial / RF Cable end to the TV input on the panel.

•

Tune to TV programming directly from the television tuner.

RF IN L R

Page 13

HDMI

Installation

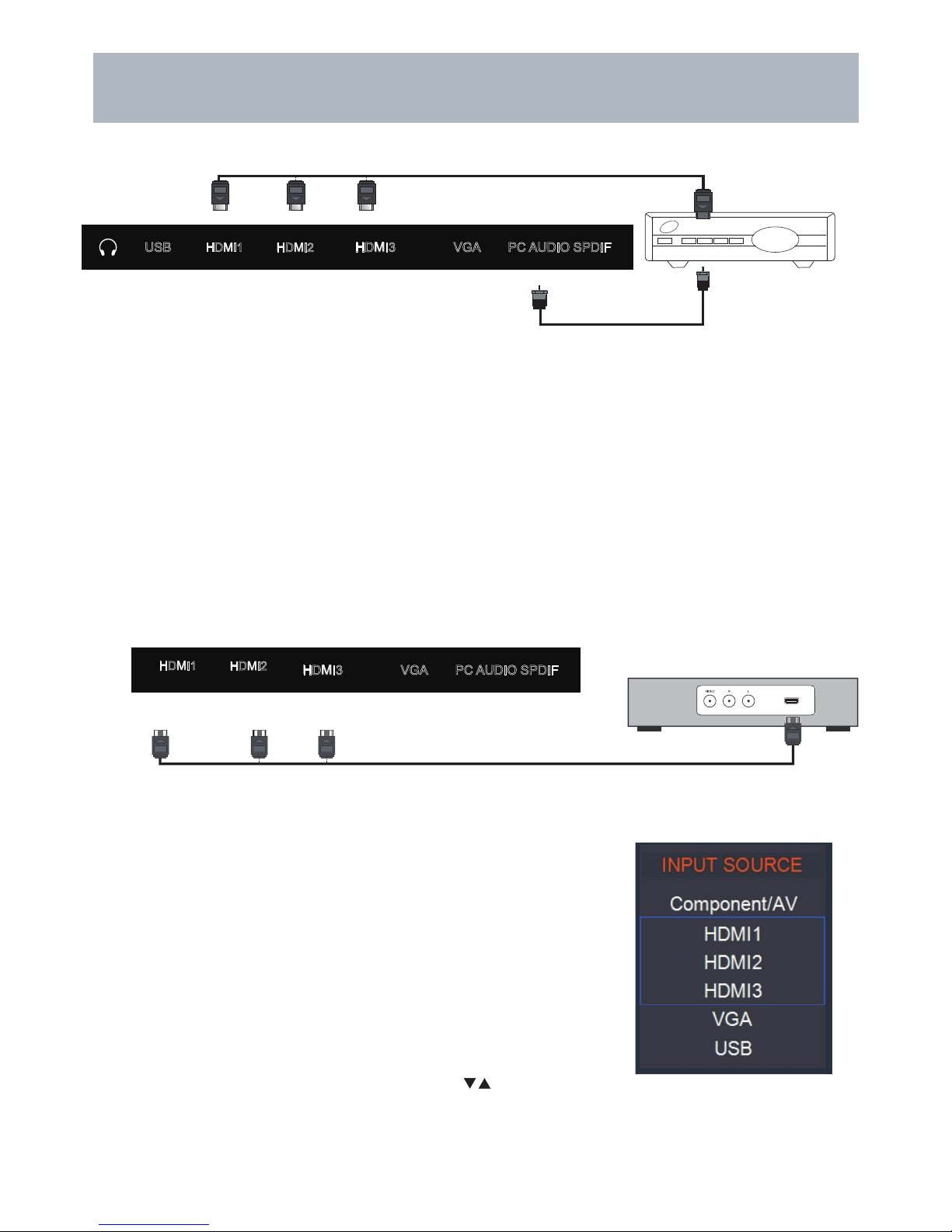

Connection to HDMI Input

Connecting to an HD Set-Top Box or High Deﬁnition DVD Player Using HDMI

For BEST video performance

Connect to external equipment that offers HDMI, an uncompressed, all digital video / audio interface found on today’s HD digital set top boxes and Blu-ray players. Use of this pure digital technology offers enhanced

high deﬁnition video and digital audio all via a single cable.

There are three (3) HDMI inputs available for use with HD set top boxes, gaming consoles and HD DVD / Blu-ray players.

How to Connect HDMI

•

From your external digital equipment, connect an HDMI cable from the HDMI output to the HDMI input on the TV’s panel.

How To Use

• Press the INPUT button on the remote control. Use arrow

buttons to highlight the input to view (HDMI1,2,3 ) then press ENTER .

Coaxial / RF Cable

(not included)

Optional HDMI cable ( not included )

Cable / Satellite set top box

Optional HDMI cable ( not included )

Digital set top box, gaming console,or

Blu-ray w / HDMI interface

Digital Cable / Satellite Set Top Box

How to connect with Digital Cable / Satellite Set Top Box

• Connect the RF coaxial (75 ohm) cable from the video outlet of your cable / Satellite box to the RF input on the TV’s

panel. Select Ch. 3 or 4 on the TV and select a channel.

• For greater performance, if possible, use component or an HDMI installation(shown). Refer to your set top box user

manual.

SPDIFPC AUDIOVGAHDMI3USB

SPDIFPC AUDIOVGAHDMI3

HDMI2 (MHL)

HDMI1 (ARC)

HDMI2 (MHL)

HDMI1

(ARC)

Page 14

Installation

Connection to Component YPbPr Input

For BETTER video performance

Connect to external equipment that features component video output jacks for better performance. Use the Component Y Pb Pr video and audio inputs with a set top box, gaming console or DVD player.

How to Connect Component

• When connecting external equipment to your television, match the

colors of the connecting jacks (Video: Blue, Green, Red; Audio: White / Red ).

• Connect the optional component video cables (blue, green, red) (not

included) from the video output jacks (Y, Pb, Pr) on your external equipment to the Component Y Pb Pr input on the TV’s panel.

• Connect white / red audio cables for sound from the audio (L / R)

output jacks on your external equipment to the AV L / R input jacks on the TV’s panel.

How to Use

• Press the INPUT button on the TV remote control. Use arrow

buttons to highlight the input to view(Component) then press ENTER.

Connecting External Equipment to Component Video IN (Y Pb Pr)

Optional Component cables (not included)

Digital set top box, gaming console or DVD

RF IN L R V/Y Yb Pr

L R

AUDIO OUT

Page 15

Installation

Connection to Composite Input

Connecting External Equipment to AV Composite IN on your television

For GOOD video performance

Connect to external equipment using optional video and audio cables. Composite output jacks are available on most set top cable / satellite boxes and DVD players. (HDMI and Component connections are recommended for the best performance.)

How to Connect Composite AV

• When connecting external equipment to your television, match the

colors of the connecting jacks (Video: Yellow Audio: White & Red).

• Connect the yellow video cable from the video output jack on your

external A / V equipment (i.e.: DVD player, set top box) to AV input on the TV’s panel.

• Connect the white / red audio cables for sound from the audio (L /

R) output jacks on your external equipment ( i.e.: DVD Player, set top box) to the AV (L / R) jacks on the TV’s panel.

How to Use

• Press the INPUT button on the remote control. Use arrow

buttons to highlight the input to view (AV) then press ENTER.

Audio Video Cable (included)

Digital set top box, gaming console or DVD

RF IN L R V/Y Yb Pr

L R

AUDIO OUT

Page 16

VGA & Audio Cable (not included)

Installation

Connection to a Personal Computer

Connecting a Personal Computer with VGA to your television

Recommended computer display resolution:1920x1080@60 Hz

How to Connect a PC

• Connect using an optional male to male VGA cable (not included) from

your PC to the VGA input on the TV’s panel.

How to Connect Audio sound

• Connect an optional 3.5mm audio cable (not included) from the

computer’s mini audio output jack to the audio input on the TV’s panel.

How to Use

• Press the INPUT button on the remote control. Use the buttons

to highlight the VGA input and press the ENTER button.

NOTE: If your PC uses a standard signal mode, the screen will adjust automatically .

Connecting to an amplifer or home theater system

How to Connect a AUDIO OUT

• Connect the TV’S Audio output jacks to an Audio Ampliﬁer

using an audio patch cable with RCA cable ends (not included).

NOTE: The speakers of this TV still will output audio at this time.

Audio Cable (not included)

SPDIFPC AUDIOVGAHDMI3

RF IN L R V/Y Yb Pr

L R

AUDIO OUT

HDMI2 (MHL)

HDMI1 (ARC)

Page 17

How to Use (Video)

Press the appropriate INPUT button on the remote. Use ▼ ▲ arrow buttons to highlight the input source to view and then press ENTER.

How to Use (Audio)

Select the appropriate input from your audio equipment.

*NOTE: Refer to the User Manual from your home theater equipment for recommended audio settings.

Optional digital cable (not included)

Installation

Connection to a Home Theater System

Connection to a Home Theater Audio System

For BEST audio performance

Connecting to a Home Theater System

Digital audio can deliver optimal 2 - channel stereo or 5.1 surround sound with Five discrete full range channels plus a separate channel for a subwoofer.

Enjoy optimal sound reproduction from your system with a Dolby Digital ampliﬁer that incorporates a digital coaxial input.

Connect an optional digital cable directly to the television’s SPDIF audio output to listen through all inputs except VGA. (VGA does not support digital audio)

How To Setup Digital Output*

• Press the LED MENU button on the remote control.

• Press the right arrow button to select sound.

• Press the down arrow button to highlight Digital Audio output type.Press

to select Off, Raw or PCM*.

Connecting to a Stereo Receiver / Ampliﬁer

Enjoy realistic sound from your home theater system through a stereo / receiver ampliﬁer or Prologic sound system when connected to your AV equipment.

NOTE: When audio cables are connected to a stereo / receiver ampliﬁer, no audio sound will be heard from the TV’s built-in speakers.

Example: The diagram illustrates the connection of audio cables directly from your AV equipment (like a cable box) to a stereo receiver instead of using the audio (L / R) jacks on the TV’s panel.

Front Left

Speaker

Front Right

Speaker

Center Channel

Dolby Surround

Connection Illustration

Optional cables

(not included)

Surround Left

Speaker

Surround Right

Speaker

Digital set top box, gaming console or DVD

Dolby Prologic

Surround Receiver

SPDIFPC AUDIOVGAHDMI3

V/Y Yb Pr

Page 18

TV Setup

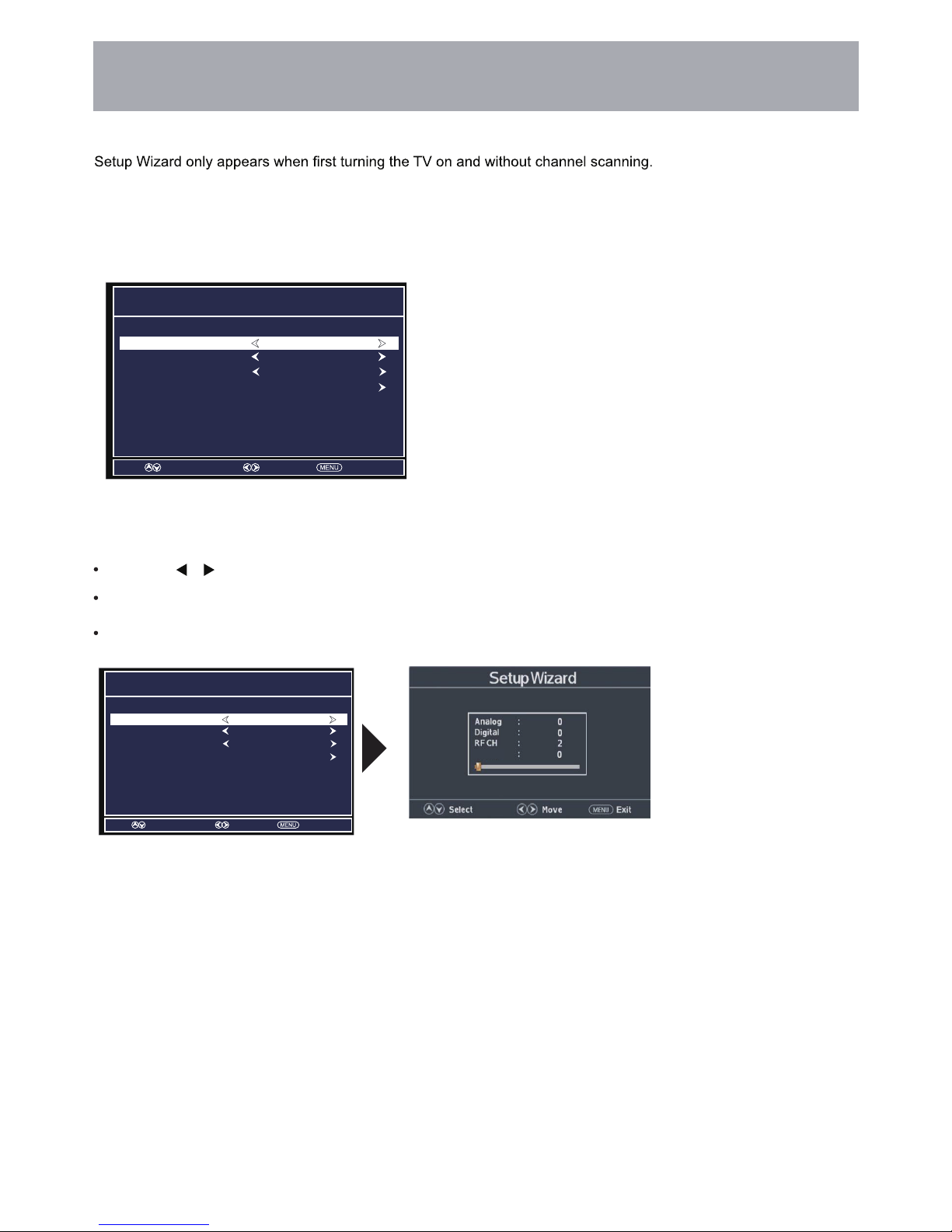

Initial Setup Wizard

After connecting your TV antenna or cable wire, turn the television ON. The quick setup wizard will display on-screen. Select your preferred Picture setting followed by antenna options and performing Auto Scan to receive local broadcast channels that will be stored in the TV tuner memory.

The wizard will direct you to the TV menu to select antenna options and perform Channel Auto Scan. Channels found will be stored into the TV tuner memory.

How to Navigate:

Press the arrow button to highlight AIR / CABLE based on your antenna connection.

Highlight Start to Scan and press ENTER.

Channel Auto Scan may take several minutes to complete.

Total Found

Menu Language

Cable Air/Cable

English

Move Select Return

Setup Wizard

AUTOCable System

Auto Scan

Menu Language

Cable Air/Cable

English

Move Select Return

Setup Wizard

AUTOCable System

Auto Scan

Page 19

TV Settings

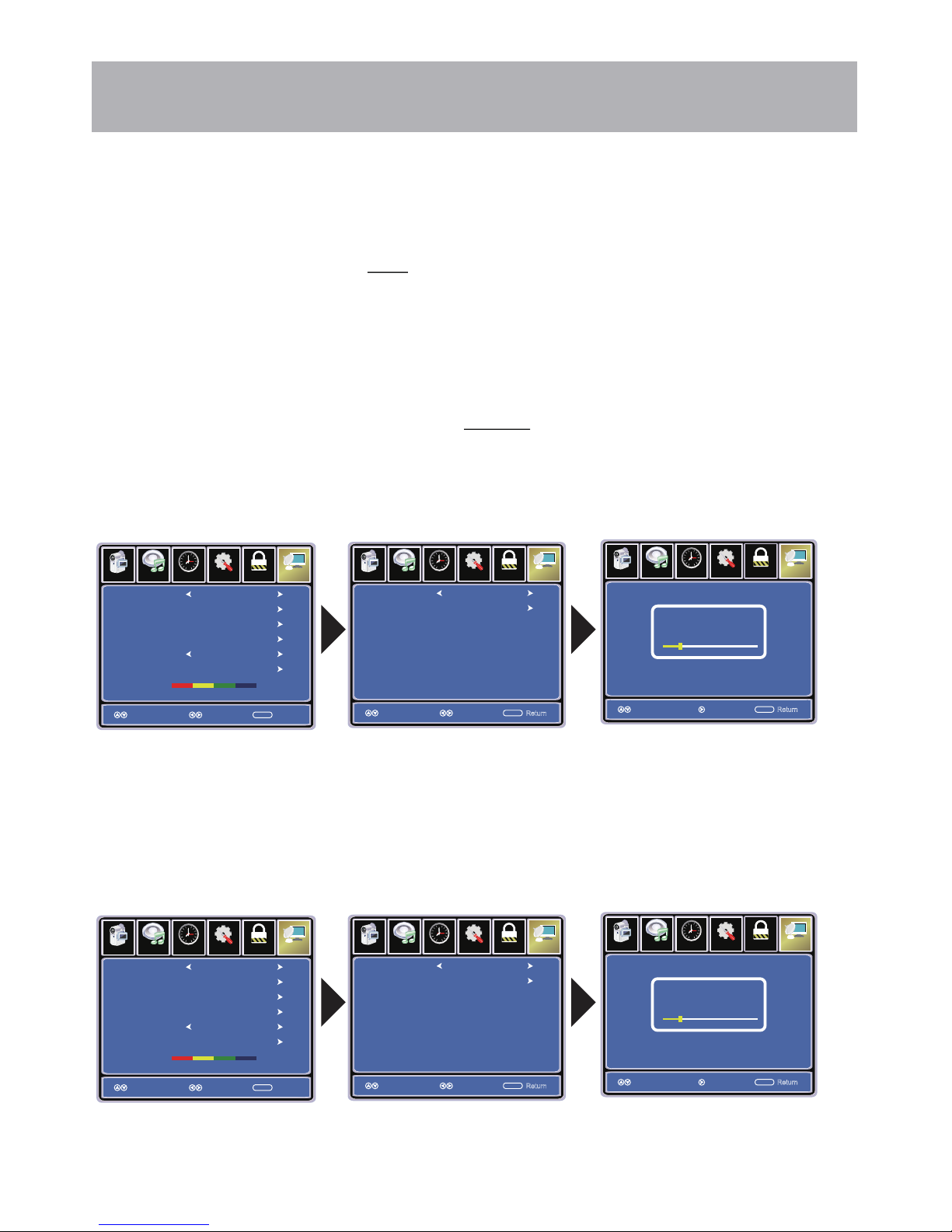

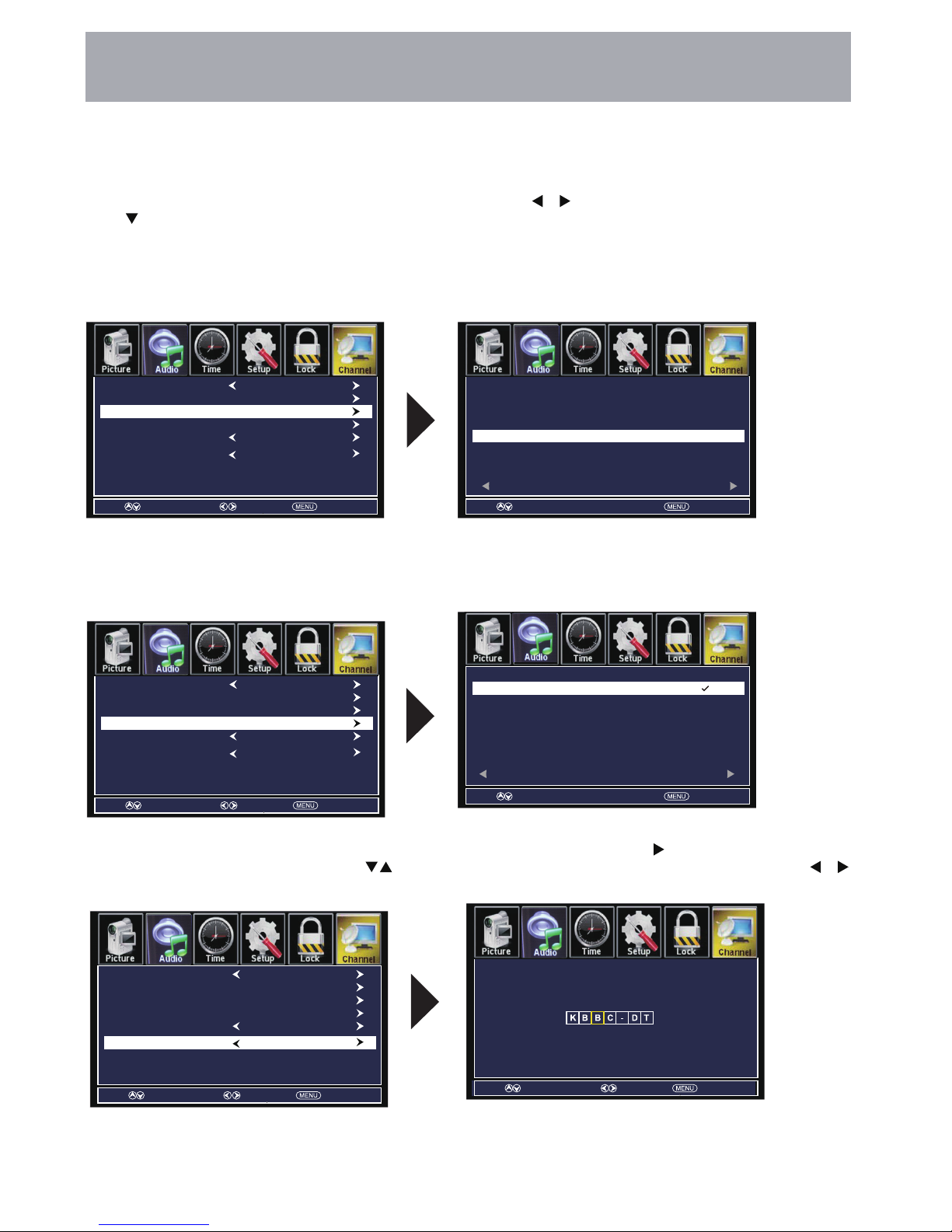

TV Provider Setup & Channel Auto Scan

To enter the Channel Menu:

• Press the MENU button

• Using the   arrow buttons; scroll to highlight Channel

• Press the down  arrow buttons to highlight Air / Cable

Select Cable if you subscribe to a pay television service WITHOUT a set top box.

• Press the   arrow buttons to highlight Cable.

•

NOTE: Channel Auto Scan may take several minutes to complete.

Cable Mode

Air Mode

Select Air when TV is connected to an indoor / outdoor antenna.

• Press the   arrow button to highlight Air.

•

NOTE: Channel Auto Scan may take several minutes to complete.

NOTE: For Cable or Satellite users WITH a set-top box, there is no need to run Channel Auto Scan. Connect your cable or

satellite set top box to one of the available inputs on the TV for

viewing.

Press the  arrow button to highlight Auto Scan and press ENTER. Press ENTER to begin Auto Scan.

Press the  arrow button to highlight Auto Scan and press ENTER.

Setu p

Lock

Time

Pict ure

Chan nel

Aut o S can

Fav orit e

Sho w H ide

Cha nnel N o

Cha nnel L abel

DTV Sig nal

Cable

Sel ect Mov e Exi t

50 3

KOC E

Goo d

Air/Cable

Audio

Setu p

Lock

Time

Pict ure

Chan nel

Cab le Sys tem

Sta rt to S can

Aut o

Sel ectMov e

Audio

Return

Mov e

Setu p

Chan nel

Pict ure

Time Lock

RF CH

Fou nd

Mov e

Audio

Return

Setu p

Lock

Time

Pict ure

Chan nel

Aut o S can

Fav orit e

Sho w H ide

Cha nnel N o

Cha nnel L abel

DTV Sig nal

Air

Sel ect Mov e Exi t

50 3

KOC E

Goo d

Air/Cable

Audio

Setu p

Lock

Time

Pict ure

Chan nel

Cab le Sys tem

Sta rt to S can

Aut o

Sel ectMov e

Audio

Return

Mov e

Setu p

Chan nel

Pict ure

Time Lock

RF CH

Fou nd

Mov e

Audio

Return

Press ENTER to begin Auto Scan.

After the Setup Wizard has been completed, please skip this page as your Cable/Antenna is already set up. The following instructions on this page are provided if you need to make changes at a later time.

Page 20

Menu Adjustments

The Picture menu offers options to enhance and reﬁne the picture displayed on your TV based on ambient room light and personal preferences. Adjustment options include contrast, brightness, color, sharpness and color temperature.

How to Navigate:

Press the MENU button on the remote control. Navigate using arrow buttons to select Picture. Press the down arrow button to highlight Picture Mode, then press the arrow button to select your viewing preference from 5 factory options: Standard > Dynamic > soft > User >Power Saving*. The Standard setting is recommended for most brightly lit viewing environments. Depending on the ambient light level in the room, you may ﬁnd one of the other Picture settings more pleasing.

To make more critical adjustments based on your own preferences in User.

*The Power Saving feature adjusts the brightness of the TV in order to save energy and reduce power consumption.

Note: When adjustments are completed, you may select another menu by pressing the Menu button.

• Brightness

• Contrast

Press down

arrow button to highlight Brightness. Navigate using the arrow buttons to increase or decrease overall brightness.

Press down arrow button to highlight Contrast. Navigate using the arrow buttons to increase or decrease contrast intensity.

Press down arrow button to highlight Color. Navigate using the arrow buttons to increase or decrease color intensity.

Press down arrow button to highlight Tint. Navigate using the arrow buttons to adjust colors toward green or reddish tint.

Press down arrow button to highlight Sharpness. Navigate using the arrow buttons to soften or view crisper edges in the picture.

Press down arrow button to highlight your Color Temperature. preference. Navigate using the ar- row buttons to select Cool(more bluish tone), Normal or Warm setting.

• Advanced Settings

Adjust advanced video features to ﬁne tune the picture.

Press button to enter.

• Color

• Tint

• Sharpness

• Color Temperature.

Picture Setting

Picture Mode Contrast Brightness

Color Tint

Sharpness

Standard

Color Temp

Select Move Exit

Normal

HDMI CEC

Page 21

Menu Adjustments

The Audio menu offers options to make sound enhancements while listening through the built-in speakers or to select digital audio options when connected to a Dolby Digital receiver though a (SPDIF) coaxial digital output.

How to Navigate:

Press the MENU button on the remote control. Navigate using arrow buttons to select Sound. Press the arrow button to highlight Sound Mode, then press the arrow button to select your sound preference from 5 factory options: Music > Movie > Sports > User > Standard .

To make more critical adjustments based on your own preferences in User

Press down

arrow button to highlight Sound Mode.

Press

button to select Music > Movie > Sports > User >

Standard .

Music Preserves the original sound. Good for musical programs. Movie Enhances treble and bass for a rich sound experience . Sports Enhances vocals for TV audio. User Select to customize audio settings. Standard Produces a balanced sound in all environments.

• MTS

Press down arrow button to highlight MTS. Press button to select Mono>Stereo>SAP. Mono Sets the sound to mono. Stereo Sets the sound to stereo when stereo is not available. The sound is automatically switched to mono. SAP Sets the sound to the second audio program.

• Audio Language

Press down arrow button to highlight Audio Language. Press button to select English > Francais > Español.

• Digital Audio Output

Press MENU to enter the main menu, press button to select Sound. Press button to select among Digital Audio Output. Press button to select(Raw / Off / PCM)

• Surround Sound

Press MENU to enter the main menu, press button to select Sound.

Press

button to select among Surround Sound.

Press

button to select(Off / On)

• AVL

Press down arrow button to highlight AVL. Press button to select On>Off.

Note: When adjustments are completed, you may select another menu by pressing the Menu button.

• Audio Mode

• Bass

• Treble

• Balance

Audio Settings

Press down

arrow button to highlight Bass.

Press down

arrow button to highlight Treble.

Press down

arrow button to highlight Treble.

Press

buttons to increase or decrease low frequency

Press

buttons to increase or decrease high frequency

intensity.

buttons to adjust sound towards the left or right

speaker.

•

SPEAKER

Press down arrow button to highlight SPEAKER. Press button to select On>Off.

Page 22

Menu Adjustments

Date & Time Settings

The Time menu includes adjustment of settings for your local time zone and daylight savings time. The clock will adjust automatically after the initial Channel Auto Scan of available broadcast channels in your area (see page 19 for TV

Setup).

How to Navigate:

Press the MENU button on the remote control. Navigate using arrow buttons to select Time.

• Press down

arrow button to highlight Sleep Timer then press the arrow button to select time to view before the television timer turns the set off: 5 Min > 10 Min > 15 Min > 30 Min > 60 Min > 90 Min > 120Min > 180 Min > 240 Min > OFF.

• Press down arrow button to highlight Time Zone then press the arrow button to select between: Eastern > Central > Mountain > Paciﬁc > Alaska > Hawaii > Samoa > Newfoundland >Atlantic.

• Press down arrow button to highlight Daylight Savings Time. Navigate using the arrow buttons to turn this

feature on or off.

• Press down arrow button to highlight Time Format. Navigate using the arrow buttons to turn this feature

12-hour or 24-hour.

• Press down arrow button to highlight Auto Clock. Navigate using the arrow buttons to turn this feature

on or off.

• Clock and Date are automatically set the ﬁrst time the tuner

receives a broadcast channel.

Note: When adjustments are completed, you may select another menu by pressing the Menu button.

Sleep Timer

Time Zone

Off

Select Move Return

Daylight Saving Time

Pacific

Off

Page 23

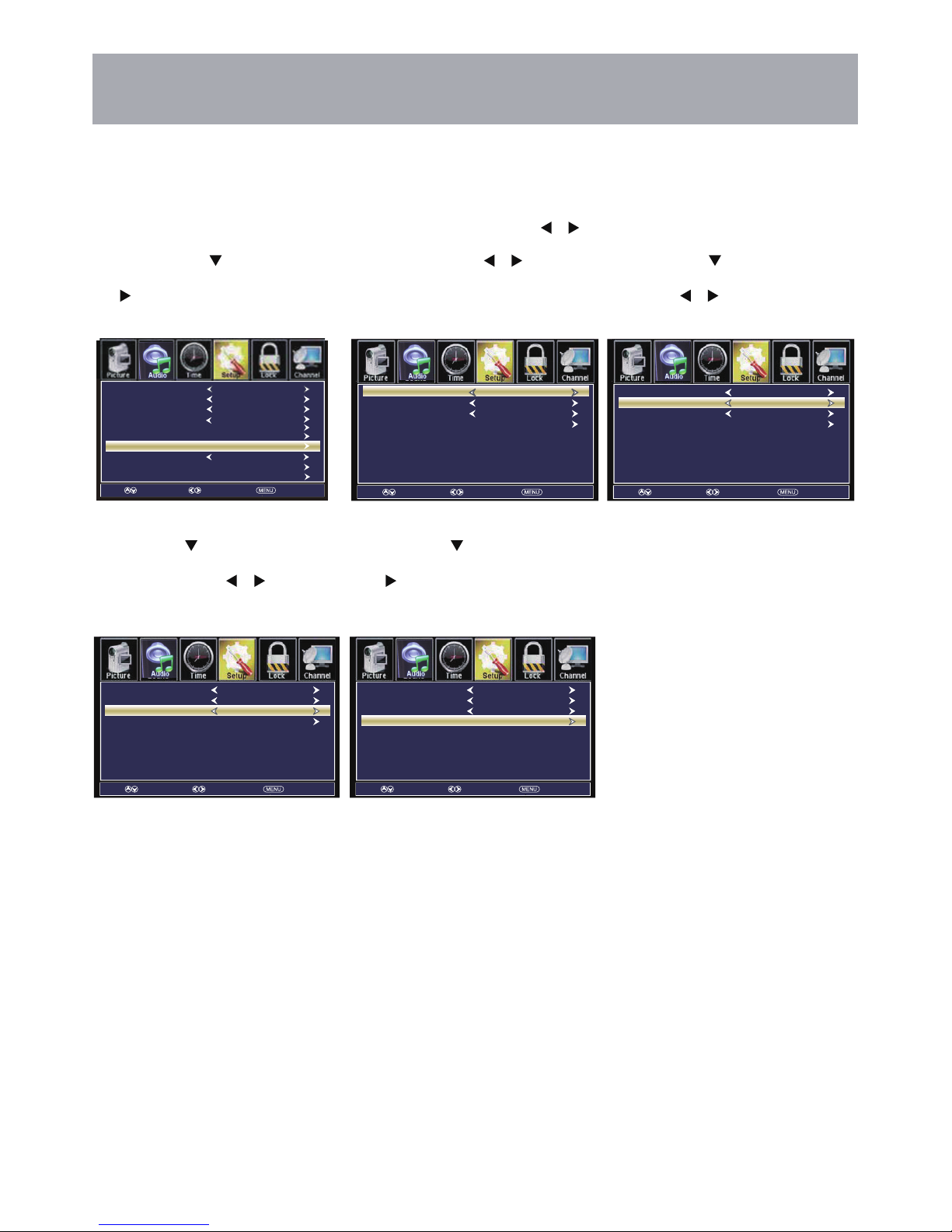

Menu Adjustments

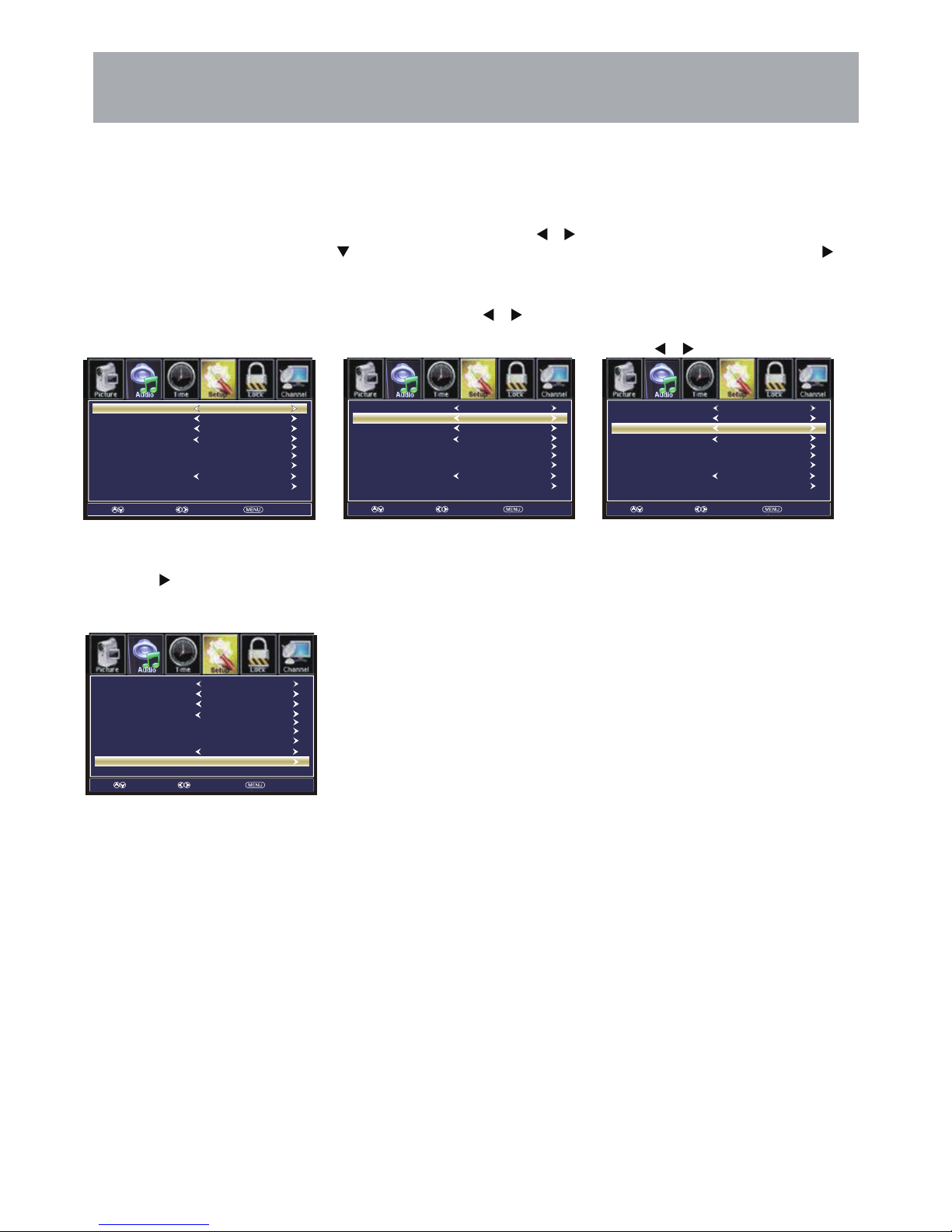

In the Setup menu you may change the initial set up of preferences that include settings for language, menu display, computer monitoring,closed captions, enhancement of black detail in the picture and resetting your TV back to its factory default status.

Setup Settings

How to Navigate:

Press the MENU button on the remote control. Navigate using arrow buttons to select Setup. Gain access to display options by pressing the down arrow button to highlight Menu Language or other options, then press arrow button on your remote to select.

NOTE: Closed Caption and Advanced are features described on the following pages.

Pres s th e arro w bu tt on t o automatically reset all adjustments back to their original factory settings.

tluafeD erotseR •

Other languages include English, Français, Español.

Navigate using the

arrow but-

tons to turn ON/OFF

Adjust the duration of the Zoom Mode menu. Press

button to select.

Zoom Mode •tnerapsnarT •segaugnaL uneM •

30Sec.

Move Select Return

Menu Language

Transparent

Closed Caption

Noise Reduction

Zoom Mode

Advanced

DLC Restore Default

English

Wide

Middle

Move Select Return

Menu Language

Transparent

Closed Caption

Noise Reduction

Zoom Mode

Advanced

DLC Restore Default

English

Wide

Middle

Move Select Return

Menu Language Transparent

Closed Caption

Noise Reduction

Zoom Mode

Advanced

DLC Restore Default

English

Wide

Middle

Move Select Return

Menu Language Transparent

Closed Caption

Noise Reduction

Zoom Mode

Advanced

DLC

Restore Default

English

Wide

Middle

Page 24

Menu Adjustments

The Setup menu includes adjustments for activating the Closed Caption text feature for display on-screen and customiz- ing CC display types and font styles.

Note: When adjustments are completed, you may select another menu by pressing the Menu button.

Closed Captions

How to Navigate:

Press the MENU button on the remote control. Navigate using arrow buttons to select Setup.

• Press the down

arrow button to highlight Closed Caption then press the arrow button to highlight CC Mode.

• Navigate using the arrow buttons to select CC Off > CC On > CC on Mute.

• Press down arrow button to highlight Basic Sdection. Navigate using the arrow buttons to select CC1-4, TEXT1-4.

• Press down

arrow button to highlight Advanced Selection. Navigate using the arrow buttons to select Off,Service 1-6.

• Press down arrow button to highlight Option. Press the arrow button to enter a menu with options to customize text fonts, colors and opacities.

Move Select Return

CC Mode

Basic Sdection

Option

Advanced Selection

Off

CC1

Service1

Move Select Return

CC Mode

Basic Sdection

Option

Advanced Selection

Off

CC1

Service1

Move Select Return

CC Mode

Basic Sdection

Option

Advanced Selection

CC Off

CC1

Service1

Move Select Return

CC Mode

Basic Sdection

Option

Advanced Selection

Off

CC1

Service1

Move Select Return

Menu Language Transparent

Closed Caption

Noise Reduction

Zoom Mode

Advanced

DLC Restore Default

English

Wide

Middle

Basic Sdection

Page 25

Move Select Return

Enter New Password

Confirm Password

----

Menu Adjustments

In the Lock menu, you may block television and movie programming based on TV ratings and Motion Picture Association guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV.

How to Navigate:

Press the MENU button on the remote control. Navigate using arrow buttons to select Lock. Gain access to parental rating options by pressing the down arrow button to highlight Enter Password. Enter your 4 digit code (factory default code is “0000”) unless previously changed.

• To change the password, press arrow button to display a screen

to enter your new password, then

conﬁrm again. (not illustrated)

• To make changes to parental

controls, highlight System Lock then press the arrow button

• To set parental controls for television programming or DVD movies, press the arrow buttons to highlight

Navigate using the

buttons to

highlight TV / MPAA menu.

• Highlight TV, then press the

arrow button to enter the TV Ratings menu and select your preference.

• Highlight MPAA, then press the arrow button repeatedly to select your movie rating preference.

TV-Y Appropriate for all children TV-Y7 Appropriate for all children over 7 TV-G General Audience TV-PG Parental Guidance Suggested TV-14 Parents Strongly Cautioned TV-MA Mature Audience Only

G General Audience PG Parental Guidance Suggested PG-13 Parents Strongly Cautioned R Restricted NC-17 No One Under 17 Permitted X Adults Only

Off Not applicable

NOTE: RRT Setting and Reset RRT are not user adjustable settings.

Parental Control

TV RATING

Press ENTER to Lock or Unlock: BLock

ALL FV VS LD TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA

GAAPM

MPAA

Move

US Rating.

Off

Move Select Return

Change Password

System Lock

Canada

RRT Setting

Reset RRT

Move Select Return

Change Password

System Lock

Canada

RRT Setting

Reset RRT

Select Return

Move

Select Return

Move

Select Return

Page 26

Menu Adjustments

Parental Control

In the Lock menu, you may block television and movie programming based on Canadian TV and movie rating guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV.

How to Navigate:

Press the MENU button on the remote control. Navigate using arrow buttons to select Lock. Gain access to rating options by pressing the down arrow button to highlight Enter Password. Enter your 4 digit code (factory default code is “0000”) unless previously changed. See page 26 for information on how to change your password. Then press the arrow buttons to highlight Canada. Navigate using the buttons to highlight Canada English.

• Navigate using down

arrow button to highlight Canada English then press the arrow button repeatedly to select your ratings preference.

• Navigate using down

arrow button to highlight Canada French then press the arrow button repeatedly to select your ratings preference.

Note: When adjustments are completed, you may select another menu by pressing the Menu button.

Canada English

ffOhcnerF adanaC

Off

Canada English

ffOhcnerF adanaC

Off

Move Select Return

Off Turn off C Appropriate for all children C8+ Appropriate for everyone 8 years old and up G General Audience PG Parental Guidance 14+ Appropriate for Children over 14 years old 18+ Mature Audience Only

Off Turn off G General Audience 8 ans+ Appropriate for Children 8 years old and up 13 ans+ Appropriate for Children 13 years old and up 16 ans+ Appropriate for Children 16 years old and up 18 ans+ Mature Audience Only

Page 27

Menu Adjustments

The Channel provides the setup / changes of your television to receive broadcast channels, store your favorite channels, add or skip channels in memory and label or name channels.(For antenna and Auto Channel Scan setup, please refer to page 19.)

How to Navigate:

Press the MENU button on the remote control. Navigate using arrow buttons to select Channel. Press the down button to highlight your preferences.

• Highlight Favorite to add channels to your Favorites List. Navigate using the ◄►▼▲ arrow buttons to select channels to be added or deleted from your list. Press ENTER to add or delete a channel. A checkmark indicates a channel has been added. You may also display your list of Favorite channels by pressing the FAV button on the remote control

• Highlight Show / Hide to select or skip channels already in memory. Navigate using the ◄►▼▲ arrow buttons to access the list of available channels. Press ENTER to change the channels status. A checkmark indicates a channel has been added.

• Highlight Channel Label to name or rename a broadcast channel. Navigate using the

arrow button to enter the screen menu to relabel a channel. Use the arrow buttons to spell out each letter, number or character. Use arrow buttons to advance to the next space.

• Favorite

• Show / Hide

• Channel Label

TV Settings

Air/Cable Auto Scan

Favorite

Show/Hide Channel No.

Channel Label

Air

7-2

KABC-SD

Move Press ENTER change Return

Channel Channel Label

46-1 50-0 50-1

50-2

50-3

Favorite

Move Press ENTER change Return

Channel Channel Label

7-0

7-1

7-2

7-3

9-0

KABC-DT

KABC-SD

KABC-WN

KCAL-DT

Hide

txeNverP 1/1

DTV Signal

Move Select Return

Air/Cable Auto Scan Favorite

Show/Hide

Channel No.

Channel Label

Air

7-2

KABC-SD

DTV Signal

Move Select Return

Air/Cable Auto Scan Favorite

Show/Hide Channel No.

Channel Label

Air

7-2

KABC-SD

DTV Signal

Move Select Return

Page 28

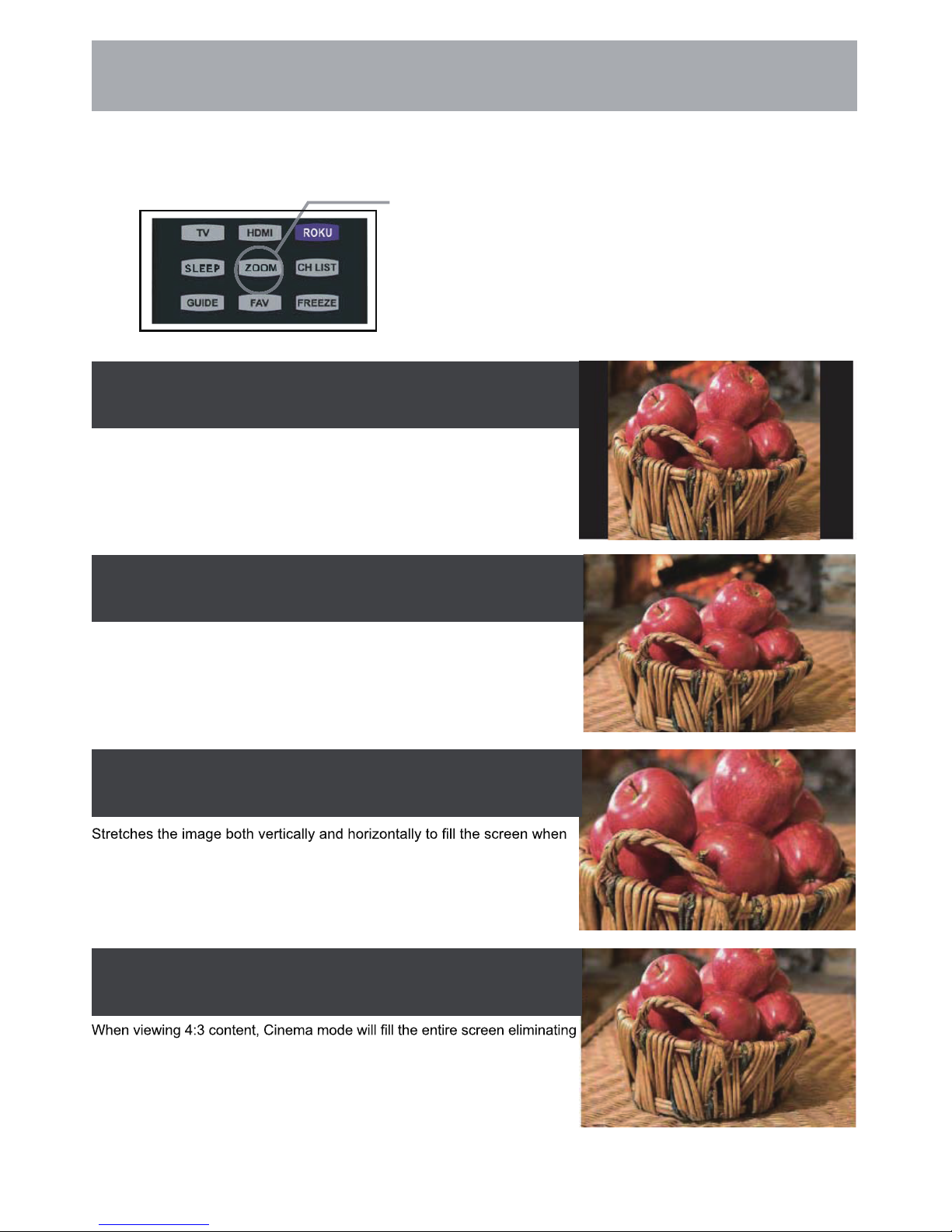

ZOOM Modes

1. NORMAL

Recommended for viewing native widescreen content and undistorted 4:3 images (with black bars).

2. WIDE

Stretches certain 4:3 content and may reduce visible black bars.

3. ZOOM

viewing widescreen content. The Zoom effect will crop images somewhat.

4. CINEMA

visible side black bars. It may also eliminate or reduce black bars on certain widescreen movies.

The ZOOM function offers several viewing display options on the 16:9 screen. Press the ZOOM button to cycle through the following widescreen settings.

Press ZOOM to cycle through the following widescreen settings.

Page 29

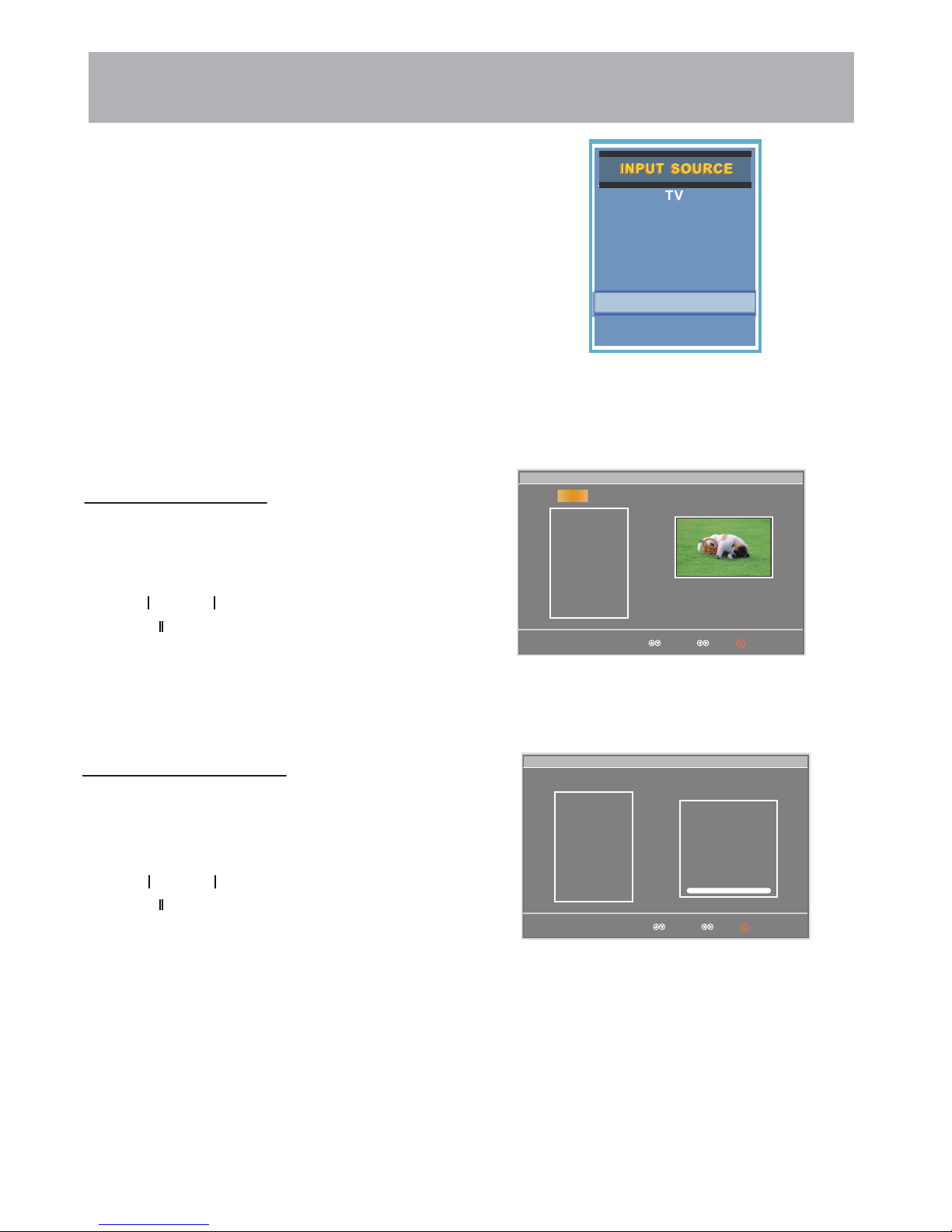

USB Modes

1. Press the INPUT button on the remote control to display the Input Menu.

Press the ▲▼ buttons to select USB in the

Source menu, and then press

the ENTER button.

USB

VGA

HDMI1 HDMI2 HDMI3

Sel ect Mov e


Play File:1

Total size:2.0GB Unused size:1.8GB

001/001 534 x 800 34.3KB

Repeat


Music

C:\

USB


To view Photos on the TV:

Press the

Press the button to return main menu.

Press the or button to view the next photo.

Press the buttons to select Photo.

▲

or ▼▼ button to highlight the photo you want to view.

Sel ect Mov e


LOVE.mp3

Play File:1

Total size:2.0GB Unused size:1.8GB

002/002

Repeat


Title:

Artist:

Album:

Year

Pause 00:00 02:38

Music

C:\

USB

▲▲▲

▲

Component / AV

Press ENTER to view the photo.

To Listen to Music on the TV:

Press the

Press the button to stop playback.

Press the or button to skip to the next/previous song.

Press the buttons to select Music.

▲

or ▼▼ button to highlight the song you want to hear.

▲

Press ENTER to start playing the song.

▲ ▲

Page 30

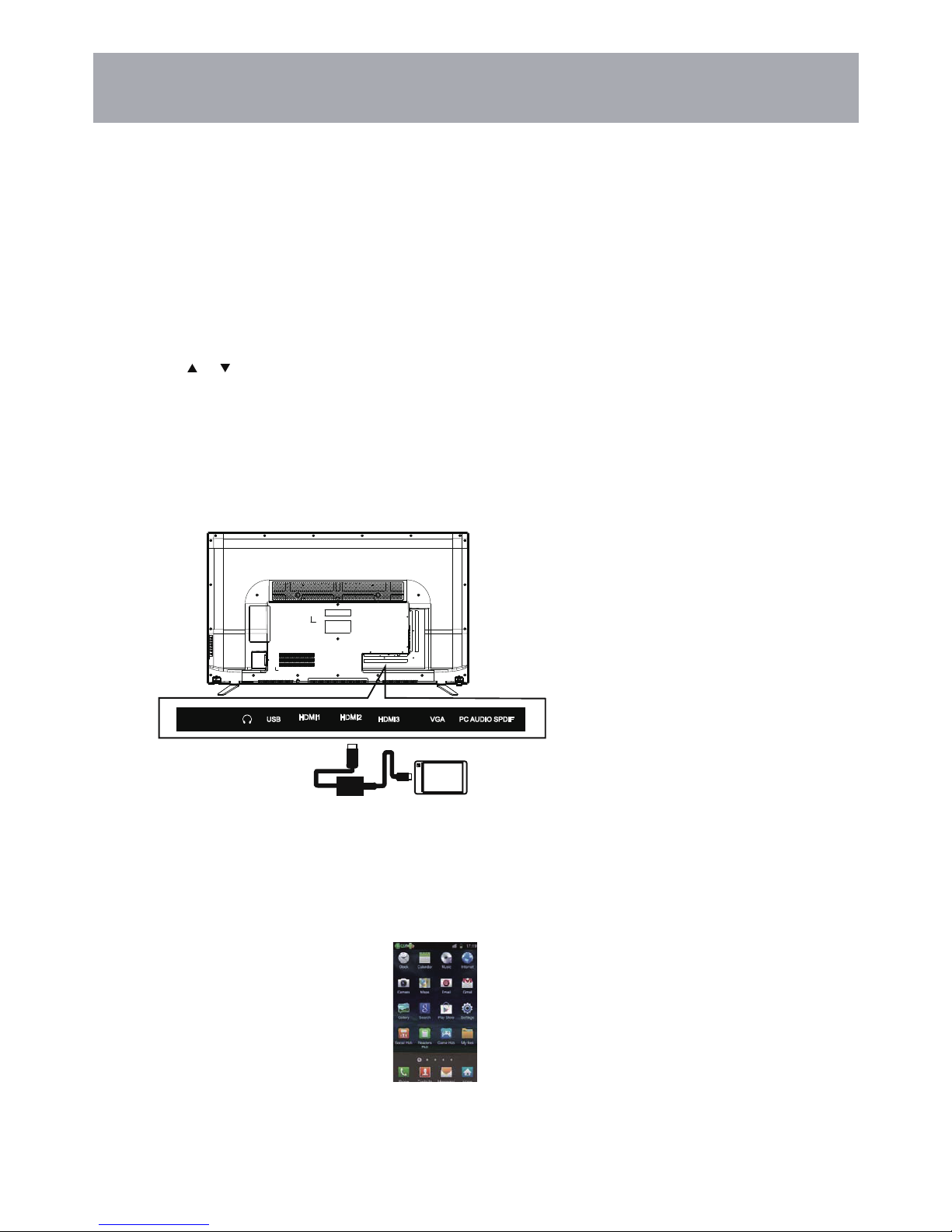

MHL Setting

Connecting an MHL-enabled device

You can connect an MHL-enabled device, such as a cell phone, and view your device’s screen on your TV.

To connect an MHL-enabled device:

34Connect an MHL cable (not provided) to the micro USB port on the device, then connect the other end

of the cable to the HDMI /MHL jack on the side of your TV.

1 Press INPUT to open the Input Source list.

2 Press or to select HDMI2,then press ENTER.

Your device’s menu will vary depending on the device and the apps you have loaded on the device.

HDMI cable w ith HDMI -to- MHL adap ter

MHL-e nabled device

SPDIFPC AUDIOVGAHDMI3USB

HDMI2 (MHL)

HDMI1 (ARC)

Page 31

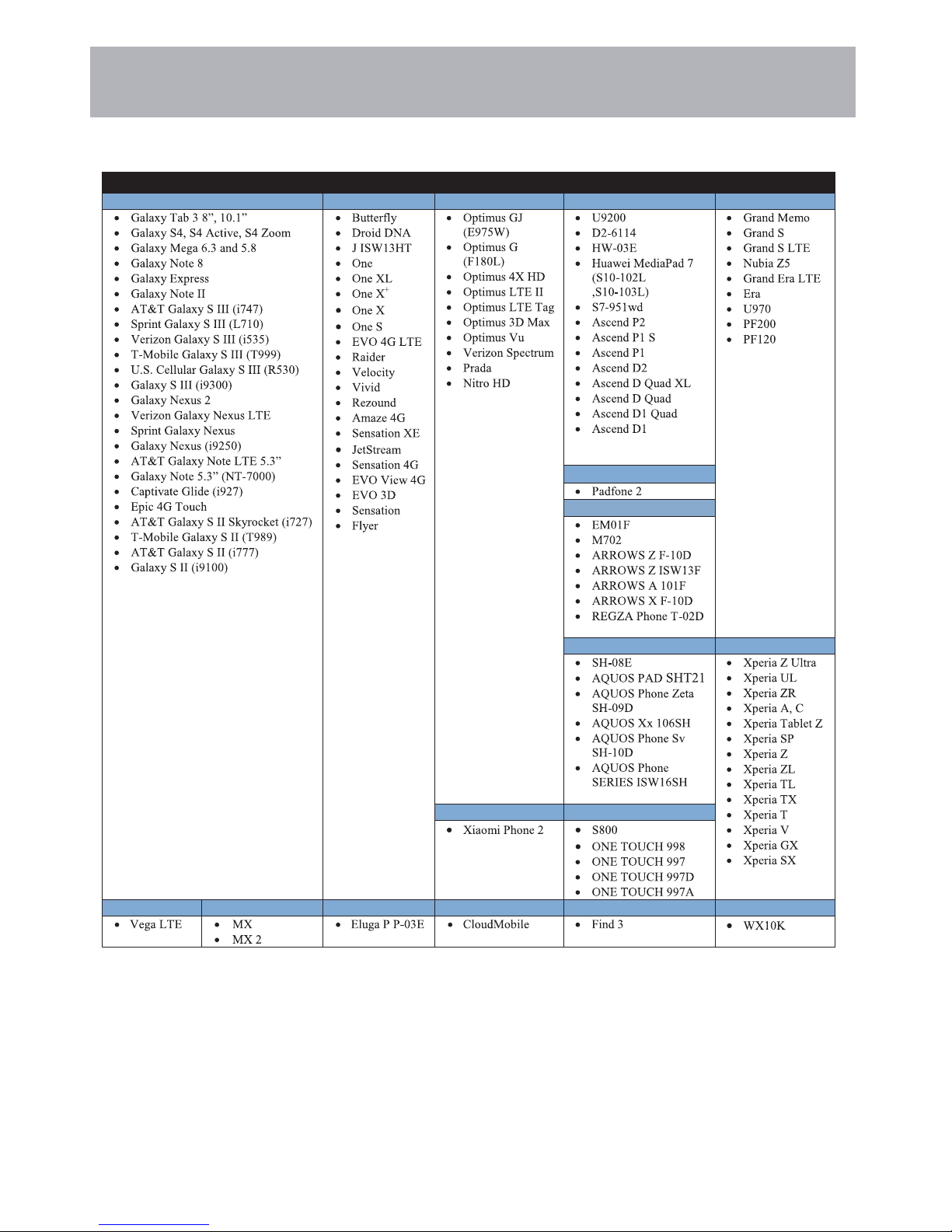

MHL Setting

Mobile Devices

Samsung HTC LG Huawei ZTE

Asus

Fujitsu

Sharp Sony

Xiaomi TCL

Pantech Meizu Panasonic Acer OPPO Kyocera

The mobile phone match with MHL model list:

Page 32

Speciﬁcations

Display LED

Size (inch) 58

Aspect Ratio 16:9

Digital Compatibility 480i / 480p / 720p /1080i /1080p

Resolution 1920x1080

Brightness (cd / m2) 200

Dynamic Contrast Ratio 3000:1

Vertical Viewing Angle (degrees) 160°

Horizontal Viewing Angle (degrees) 170°

Maximum Colors (millions) 16.7M

Power Consumption 110Watts

Audio Power 2 X 8W

Dimension without Pedestal Installed 1301.1” (W) x 757.3” (H) x 74.6” (D)

Weight without Pedestal 30.1 lbs

Input Connections

)1(oediV etisopmoC

)1(rP bP Y

)3(IMDH

)1(FR

SPDIF Digital Audio Output (1)

)1(AGV / CP

)1()mm5.3( NI oiduA CP

Headphone Jack (3.5mm) (1)

)1(BSU

)1( tuO oiduA

Page 33

Troubleshooting

Check for a possible solution to a symptom before contacting a customer service representative.

Symptom Possible Solutions

Cannot receive certain channels through the antenna

• Perform Channel Scan to add channels into the TV tuner memory. See page

19.

• Readjust your antenna and retry Auto Channel Scan.

• Signal from the TV station may be weak in your area.

No color • Check the video installation of your external A / V equipment.

See pages

13-15.

Video noise or choppy picture • Readjust antenna. Keep TV away from noise sources, neon lights,

and microwave appliances.

TV blocked on certain channels • Perform Channel Scan to add channels into the TV tuner memory.

See page 19.

• Check whether the channel was deleted. See page 28.

• Check parental control settings. See pages 26, 27.

• Restore default settings. See page 23.

Cannot use certain functions • If the item chosen in a menu is shown in gray text, that item cannot be

selected in the current input.

No sound • Check that connected audio cables are completely inserted.

• Verify you have selected the correct audio source from your ampliﬁer. See page

17.

• Mute function may be enabled, press mute on the remote.

Black box on screen • The “Text” option is enabled and no text is available.

• Press the CCD button on the remote control to turn off.

No power • Batteries in the remote control may need replacing.

• Re-attach AC plug to wall outlet.

No picture • Digital TV channel signal maybe weak, try another channel.

• Press INPUT button to verify the desired input selected.

• Re-connect the antenna or cable wiring.

• Restore default settings. See page

23.

Remote control does not function • Replace batteries with new ones.

• Check that battery polarity is correct.

• Point remote directly at the TV’s IR receiver. See page
