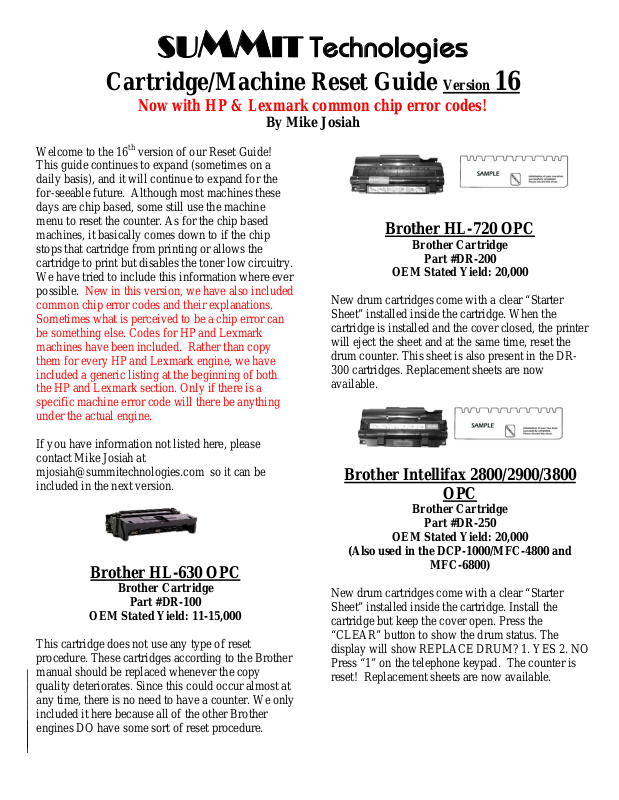

SUMMIT Technologies
Cartridge/Machine Reset Guide Version 16
Now with HP & Lexmark common chip error codes!
By Mike Josiah
Welcome to the 16th version of our Reset Guide!
This guide continues to expand (sometimes on a
daily basis), and it will continue to expand for the
for-seeable future. Although most machines these
days are chip based, some still use the machine
menu to reset the counter. As for the chip based
machines, it basically comes down to if the chip
stops that cartridge from printing or allows the
cartridge to print but disables the toner low circuitry.
We have tried to include this information where ever
possible. New in this version, we have also included
common chip error codes and their explanations.
Sometimes what is perceived to be a chip error can
be something else. Codes for HP and Lexmark
machines have been included. Rather than copy
them for every HP and Lexmark engine, we have
included a generic listing at the beginning of both
the HP and Lexmark section. Only if there is a
specific machine error code will there be anything
under the actual engine.
If you have information not listed here, please
contact Mike Josiah at
mjosiah@summitechnologies.com so it can be
included in the next version.
Brother HL-630 OPC
Brother Cartridge
Part #DR-100
OEM Stated Yield: 11-15,000
This cartridge does not use any type of reset
procedure. These cartridges according to the Brother
manual should be replaced whenever the copy
quality deteriorates. Since this could occur almost at
any time, there is no need to have a counter. We only
included it here because all of the other Brother
engines DO have some sort of reset procedure.
Brother HL-720 OPC
Brother Cartridge
Part #DR-200
OEM Stated Yield: 20,000
New drum cartridges come with a clear “Starter
Sheet” installed inside the cartridge. When the
cartridge is installed and the cover closed, the printer
will eject the sheet and at the same time, reset the
drum counter. This sheet is also present in the DR300 cartridges. Replacement sheets are now
available.
Brother Intellifax 2800/2900/3800
OPC
Brother Cartridge
Part #DR-250
OEM Stated Yield: 20,000
(Also used in the DCP-1000/MFC-4800 and
MFC-6800)
New drum cartridges come with a clear “Starter
Sheet” installed inside the cartridge. Install the
cartridge but keep the cover open. Press the
“CLEAR” button to show the drum status. The
display will show REPLACE DRUM? 1. YES 2. NO
Press “1” on the telephone keypad. The counter is
reset! Replacement sheets are now available.
Brother HL-1040 OPC
Brother Cartridge
Part #DR-300
OEM Stated Yield: 20,000
New drum cartridges come with a clear “Starter
Sheet” installed inside the cartridge. When the
cartridge is installed and the cover closed, the printer
will eject the sheet and at the same time, reset the
drum counter. This sheet is also present in the DR200 cartridges. Replacement sheets are now
available.
Brother HL-1240 OPC
Brother Cartridge
Part #DR-400 (DR-6000)
OEM Stated Yield: 20,000
Fax Machines (DCP Machines also)
After replacing the drum unit, keep the front cover
open and press “Clear”. The display will show
“Replace Drum? 1.Yes 2.No” Press “1” the display
will show “Accepted”, close the front cover. The
counter is reset!
MFC9700 Only: After replacing the drum unit,
keep the front cover open and press “Right Arrow”
key. The display will show “Replace Drum? 1.Yes
2.No” Press “1”. Close the front cover. The counter
is reset!
Laser Printers
Open the front cover. Locate the black button under
the LED lights on the left side. Press and hold in the
button until all the lights are lit. Release the button.
The counter is reset!
Brother HL-1650 OPC
Brother Cartridge
Part #DR-500 (DR-7000)
OEM Stated Yield: 20,000
After replacing the drum unit, keep the front cover
open (make sure the power is on). Press and hold the
"GO" button for four seconds, the display will then
show "DRUM CLEAR". Close the front cover. The
counter is reset!
Brother HL-2040 OPC
Brother Cartridge
Part #DR-350 (DR-3000)
OEM Stated Yield: 12,000
Laser Printers: make sure the machine is turned on
and the Drum LED is blinking. Press and hold the
GO button for 4 seconds until all the LEDs light up.
Once all the LEDs are lit, release the GO button.
The counter is Reset!
Fax machines: After replacing the drum unit, keep
the front cover open (make sure the power is on).
Press OPTIONS on the display panel. When
REPLACE DRUM? Appears on the display, press
“1”, when ACCEPTED appears, close the front
cover. The counter is reset!
2
Brother HL-3260N OPC
Brother Cartridge
Part #DR-1200
OEM Stated Yield: 60,000
The HL-3260 is Brothers first high speed printer.
The drum cartridge comes with three RED sheets
and two pieces of tape installed on the cartridge.
There is a possibility that there is developer inside
the drum cartridge. Removal of these is what seems
to reset the counter, or there may not be a counter
that has to be reset. These cartridges are still being
investigated.
Brother HL-5150 OPC
Brother Cartridge
Part #DR-510 (DR-3000)
OEM Stated Yield: 20,000
Laser Printers: After replacing the drum unit, keep
the front cover open (make sure the power is on).
Press and hold the "GO" button until all four LED’s
are lit. Once the four LED’s light up, close the front
cover. Make sure the drum LED is off. The counter
is reset!
Fax Machines: Open the front cover. Press the
CLEAR/BACK button. Press 1, when the display
shows Accepted, close the front cover. The counter
is reset!
Brother HL-5200 OPC
Brother Cartridge
Part #DR-520 (DR-3100)
OEM Stated Yield: 25,000
Laser Printers: make sure the machine is turned on
and the Drum LED is blinking. Open the front cover.
Press and hold the GO button for 4 seconds until all
the LEDs light up. Once all the LEDs are lit, release
the GO button. Close the front cover. The counter is
Reset!
Fax Machines: Open the front cover. Press the
CLEAR/BACK button. Press 1, when the display
shows Accepted, close the front cover. The counter
is reset!
Brother HL-6050 Toner
Brother Cartridge
Part #TN-670 (TN-4100)
OEM Stated Yield: 7,500
These cartridges have a gear-driven reset lever that
must be reset. To Reset the cartridge, set the black
reset gear as shown in the picture
Brother HL-6050 OPC
Brother Cartridge
Part #DR-600 (DR-4000)
OEM Stated Yield: 20,000
After replacing the drum unit, keep the front cover
open (make sure the power is on). Press and hold the
"GO" button for four seconds, the display will then
show "DRUM CLEAR". Close the front cover. The
counter is reset!
3
Brother HL-7050 Toner
Brother Cartridge
Part #TN-700 (TN-5500)
OEM Stated Yield: 12,000
Located inside the cartridge handle is a small fuse
that looks similar to a resistor. It is a 1/8A, 250V fast
acting fuse, and must be replaced each cycle.
Brother HL-7050 OPC
Brother Cartridge
Part #DR-700 (DR-5500)
OEM Stated Yield: 40,000
The HL-7050 is a variation on the 460/560
cartridges. After replacing the drum unit, keep the
top cover open (make sure the power is on). Press
and hold the "GO" button for four seconds, the
display will then show "DRUM CLEAR". Close the
top cover. The counter is reset
Canon LBP-CX
HP Cartridge
Part # (92285A)
OEM Stated Yield: 2,500
These cartridges have a color wheel that indicates
the approximate amount of toner left in the cartridge.
This wheel does not actually stop the machine it
only gives the user a visual indication. The wheel
Assy. consists of a small gear train that drives a
geared color wheel. The gear assembly is calibrated
for 5% pages, so it is very possible that you have an
empty cartridge with a green wheel showing, or a
half full cartridge with a red wheel showing. It all
depends on how much toner is used per page.
To reset the counter, remove the clear cover from the
counter by releasing the 4 tabs. Carefully remove the
small gear next to the color wheel and turn the wheel
so that the notched area is up. Insert the small gear
so that the teeth of both the small gear and the wheel
just start to engage. Carefully snap the cover back
on. If you slip and the small gears jump out of place,
just alternate them from the middle to one side. The
opposite side is empty. It doesn’t matter which side
you choose.
Canon NP-1010/1020/C-100 OPC
Canon Cartridge Part # F43-2101-700
OEM Stated Yield: 15-20,000
The copier will show “Replace Drum” when the
waste chamber fills up with toner. The cartridge
must be taken apart, cleaned thoroughly, drum and
wiper blade replaced (uses A-30 parts). Make sure
that the waste chamber is cleaned thoroughly as the
machine will not reset if there is toner left inside.
Canon NP-6012/C-120/6412 OPC
Canon Cartridge
Part # F43-5411-700 (NPG-11)
OEM Stated Yield: 30,000
To reset the counter in the NP-6012/6412/C-120
OPC cartridges the connector on the rear of the
cartridge must be replaced. New replacement chips
are available with the housing. Unscrew the old
connector and replace with the new. These drums
are rated for 30,000 pages.
4
Canon NP-6016/C-160 OPC
Canon Cartridge
Part # F43-4921-700 (NPG-9)
OEM Stated Yield: 40,000
The drum unit for these cartridges is rated for 40,000
pages. The machine will show “Replace Drum” at
40,000 pages or when the waste toner section is full.
These cartridges have a reset chip built into the
connector. This connector must be reset before a
rebuilt cartridge will work. Currently no new
replacements are available, but there are some
companies that will reset the OEM chip for you.
Canon NP-6521/C-200 OPC
Canon Cartridge
Part # F43-4921-700 (NPG-9)
OEM Stated Yield: 50,000
These machine use the same cartridge as the NP6016, but the yield is 50,000 not 40,000. Since the
same chip is used, the decision must be made by the
machine not the cartridge.
The drum unit for these cartridges is rated for 50,000
pages. The machine will show “Replace Drum” at
50,000 pages or when the waste toner section is full.
These cartridges have a reset chip built into the
connector. This connector must be reset before a
rebuilt cartridge will work. Currently no new
replacements are available, but there are some
companies that will reset the OEM chip for you.
Canon PC-2000
Canon Cartridge
Part # A-20)
OEM Stated Yield: 2,000
These cartridges have a color wheel that indicates
the approximate amount of toner left in the cartridge.
This wheel does not actually stop the machine; it
only gives the user a visual indication. The wheel
assy. consists of a small gear train that drives a
geared color wheel. The gear assembly is calibrated
for 5% pages, so it is very possible that you have an
empty cartridge with a green wheel showing, or a
half full cartridge with a red wheel showing. It all
depends on how much toner is used per page.
To reset the counter, remove the clear cover from the
counter by releasing the 4 tabs. Carefully remove the
small gear next to the color wheel and turn the wheel
so that the notched area is up. Insert the small gear
so that the teeth of both the small gear and the wheel
just start to engage. Carefully snap the cover back
on. If you slip and the small gears jump out of place,
just alternate them from the middle to one side. The
opposite side is empty. It doesn’t matter which side
you choose.
Canon PC-Mini
Canon Cartridge
Part # (A-30)
OEM Stated Yield: 3,000
These cartridges have a color wheel that indicates
the approximate amount of toner left in the cartridge.
This wheel does not actually stop the machine it
only gives the user a visual indication. The wheel
Assy. consists of a small gear train that drives a
geared color wheel. The gear assembly is calibrated
5
for 5% pages, so it is very possible that you have an
empty cartridge with a green wheel showing, or a
half full cartridge with a red wheel showing. It all
depends on how much toner is used per page.
To reset the counter, grasp the color wheel in your
right hand, the gear assembly in your left. While
bending the wheel down, turn the wheel away from
you until it stops. You will hear a slight grinding.
That is fine as long as the wheel turns fairly easily. If
the wheel is hard to turn, you are not bending the
wheel down far enough and may damage the gears.
This can also be done by removing the cover,
removing the gear next to the wheel, and resetting
the wheel gear
Canon PC-850
Canon Cartridge
Part # F100 (F41-9921)
OEM Stated Yield: 10,000
If the "Replace Cartridge" light is still lit in the
display after replacing the cartridge, the customer
can follow the steps below to reset the copier. This
procedure should be done every time the cartridge is
replaced:
Hold down the "A" (Automatic Exposure) key for
approximately four (4) seconds or longer.
After approximately four (4) seconds have elapsed,
"UC" appears in the Copy quantity/Copy ratio
display. Press the "Start" key. "UC" will flash for
about 20 seconds in the Copy quantity/Copy ratio
display. The copier will automatically perform a
toner distribution operation, and then you will return
to the normal copying mode.
NOTE: - Be sure to press the "A" key after
replacing each cartridge. If you do not, your first
few copies will not be clear copy images or the
Replace Cartridge indicator may light. If either of
these two problems occurs, press the main unit
power switch to OFF and then to ON again.
Afterwards, perform the above steps.
If copies are too dark or too light after you have
replaced the cartridge, open the front door and adjust
the copy exposure using the exposure re-calibration
slide control switch.
DEX 625 (Samsung SF-5500)
Dex Cartridge
Part # 6950
OEM Stated Yield: 12,000
This cartridge is actually two separate cartridges, a
toner and a drum cartridge. They are sold as one unit
under part # 6950.
NOTE: It is very easy to ruin the sensor on these
cartridges when cleaning. They are very static
sensitive. We highly recommend that the sensor be
removed before cleaning and replaced before the
cartridge is filled. (There is a hole in the chamber
that will leak if not replaced.
There are two reset procedures that must be followed
in order to have this cartridge operate properly. On
the drum unit there is a glass fuse that must be
replaced. The fuse is a 125V,100mA, 5x20mm fast
acting glass type. Once the cartridge(s) have been
installed, you must perform the toner initialization.
Press FUNCTION, 7, YES, NO, YES, YES. The
machine is reset!
Fuji-Xerox XP-11 Toner & OPC
(Xerox 4030)
Xerox Part #’s 6R281/13R32
OEM Stated Yield: 20,000
With the printer off, press and hold the reset button
located next to the power cord. While still holding
the reset button in, turn the power on. The reset
procedure is the same for both the toner and drum
cartridges.
6
Goldstar GL-660
(Xerox W.C. Pro 610)
6R00833 Toner, 13R00532 OPC
Toner: 5,000 pages, OPC: 10,000 Pages
Toner
With the Machine on, open the access cover.
Press “MENU”, Press “6”, Press “3”
Press “CLEAR”, Press “ENTER”
OPC
With the Machine on, open the access cover.
Press “MENU”, Press “6”, Press “4”
Press “CLEAR”, Press “ENTER.
Common HP Chip/Machine Error Codes
“10.00.00” If this is displayed, it means the
printer is having problems communicating with
the chip on the cartridge. This could be for the
following reasons:
9 No chip is installed
9 The printer did not make electrical
connection with the chip
9 The wrong chip type is on the cartridge
9 The chip is defective and must be
replaced
“10.10.00” If this is displayed, it means the
printer is not happy with the information from
the chip on the cartridge. This can be caused by:
9 The printer lost electrical connection
with the chip
9 The chip is defective and must be
replaced
HP Color LaserJet 1500/2500
HP Black # C9700A, Cyan C9701A, Magenta
C9703A, Yellow C9702A
OEM Stated Toner Yield: 5000 Black, 4000 Color
These cartridges have what HP now calls “Smart
Chips” Similar to other HP chips, these chips
monitor toner usage, Internet supplies ordering, and
a new feature, remote troubleshooting. Unlike the
4100, the chips need to be replaced every cycle.
There are separate chips for each color. These
cartridges are toner only, there is a separate drum
unit part number C9704A that is rated for 20,000
pages black, or 5,000 pages color.. Toner and chips
are available.
HP Color LaserJet 2550/2840
HP Black # Q3960A, Cyan Q3961A, Magenta
Q3962A, Yellow Q3963A
OEM Stated Toner Yield: 5000 Black, 4000 Color
HP Cyan Q3971A, Magenta Q3972A,
Yellow Q3973A
OEM Stated Toner Yield: 2000 Color
These cartridges have what HP now calls “Smart
Chips” Similar to other HP chips, these chips
monitor toner usage, Internet supplies ordering, and
a new feature, remote troubleshooting. Unlike the
4100, the chips need to be replaced every cycle.
There are separate chips for each color. These
cartridges are toner only, there is a separate drum
unit part number Q3964A that is rated for 20,000
pages black, or 5,000 pages color.. Toner and chips
are available.
7
HP Color LaserJet 2600
HP Black # Q6000A, Cyan Q6001A, Magenta
Q6003A, Yellow Q6002A
OEM Stated Toner Yield: 2500 Black, 2000 Color
These cartridges have what HP now calls “Smart
Print Technology Chips”. These are the latest in HP
chips, they are very small, and contain all new code.
As with most HP chips, these chips monitor toner
usage. The chip does not need to be replaced, but if
it is not, “Unauthorized cartridge” will show on the
display. New chips are now available. These
cartridges are “all in one” where the drums included
with the toner. New toner and chips are available.
HP Color LaserJet 3000
HP Black # Q7560A, Cyan Q7561A, Magenta
Q7563A, Yellow Q7562A
OEM Stated Toner Yield: 6500 Black, 3500 Color
These cartridges have what HP now calls “Smart
Print Technology Chips”. These are the latest in HP
chips, they are very small, and contain all new code.
As with most HP chips, these chips monitor toner
usage. The chip does not need to be replaced, but if
it is not, “Unauthorized cartridge” will show on the
display. New chips are now available. These
cartridges are “all in one” where the drums included
with the toner. New toner and chips are available.
HP Color LaserJet 3500/3550
HP Black # Q2670A, Cyan Q2671A, Yellow
Q2672A, Magenta Q2673A
OEM Stated Toner Yield: 6000 Black, 4000 Color
These cartridges have what HP now calls “Smart
Chips” Similar to other HP chips, these chips
monitor toner usage, Internet supplies ordering, and
a new feature, remote troubleshooting. Unlike the
4100, the chips need to be replaced every cycle.
There are separate chips for each color. These
cartridges are “all in one” where the toner, drum, and
waste are all contained in one cartridge. Toner and
chips are in development.
HP Color LaserJet 3600
HP Black # Q6470A, Cyan Q6471A, Magenta
Q6473A, Yellow Q6472A
OEM Stated Toner Yield: 6000 Black, 4000 Color
These cartridges have what HP now calls “Smart
Print Technology Chips”. These are the latest in HP
chips, they are very small, and contain all new code.
As with most HP chips, these chips monitor toner
usage. The chip does not need to be replaced, but if
it is not, “Unauthorized cartridge” will show on the
display. New chips are now available. These
cartridges are “all in one” where the drums included
with the toner. New toner and chips are available.
8
HP Color LaserJet 3700
HP Black # Q2670A, Cyan Q2681A, Yellow
Q2682A, Magenta Q2683A
OEM Stated Toner Yield: 6000 Black, 6000 Color
These cartridges have what HP now calls “Smart
Chips” Similar to other HP chips, these chips
monitor toner usage, Internet supplies ordering, and
a new feature, remote troubleshooting. Unlike the
4100, the chips need to be replaced every cycle.
There are separate chips for each color. These
cartridges are “all in one” where the toner, drum, and
waste are all contained in one cartridge. These
machines share the same black cartridge as the CLJ
3500. The colors are not interchangeable. Toner and
chips are in development.
HP Color LaserJet 3800
HP Black # Q6470A, Cyan Q7581A, Magenta
Q7583A, Yellow Q7582A
OEM Stated Toner Yield: 6000 Black, 6000 Color
These cartridges have what HP now calls “Smart
Print Technology Chips”. These are the latest in HP
chips, they are very small, and contain all new code.
As with most HP chips, these chips monitor toner
usage. The chip does not need to be replaced, but if
it is not, “Unauthorized cartridge” will show on the
display. New chips are now available. These
cartridges are “all in one” where the drums included
with the toner. New toner and chips are available.
HP Color LaserJet 4500 (Canon
LBP-83X)
HP-4500 General Note: If the transfer belt kit or
Fuser is replaced before the change fuser/transfer
messages are displayed, placing a new part in the
machine may not reset the counter. Reset procedures
for these parts are included here.
OPC Cartridge
HP OPC Part # C4195A
OEM Stated Yield: 25,000
These cartridges have an ARD installed on the left
side of the cartridge. The chip is actually just an IC
plugged into a socket on the back of the electrical
connector, which can easily be changed. It would
seem that HP or Canon has plans to recycle these
cartridges. Even though they look the same, the
programming on these chips is different from the
HP-8500.
New reset chips are now available to reset these
cartridges. Drums and chips should be sold as a set
as the chip contains information about the drum
sensitivity. These cartridges also have windows that
work with an optical sensor inside the printer that
determines if the waste chamber is full or not. It is
more than likely that if the waste chamber fills up,
the machine will shut down. We are not sure if the
cartridge waste chamber is cleaned out, it will
continue to run until the chip finishes its page count.
The Canon version of this printer is the CLBP460PS. The chip also contains information on the
characteristics of the drum that is used during the
calibration sequence.
9
HP Color LaserJet 4500 Transfer Belt
HP OPC Part # C4196A
OEM Stated Yield: 100,000 Black, 25,000 Color
Press the menu button until “RESET MENU” is
displayed. Press the “ITEM” button until “NEW
TRANSFER KIT, SELECT IF DONE” is displayed.
Press the “SELECT” button. Press the “ITEM”
button until the “INFORMATION” menu is
displayed. The display should show “TRANSFER
KIT = 100% LIFE REMAINING. The counter is
reset!
HP Color LaserJet 4500 Fuser
HP OPC Part # C4197A
OEM Stated Yield: 100,000 Black, 50,000 Color
Press the menu button until “RESET MENU” is
displayed. Press the “ITEM” button until “NEW
FUSER KIT, SELECT IF DONE” is displayed.
Press the “SELECT” button. Press the “ITEM”
button until the “INFORMATION” menu is
displayed. The display should show “FUSER =
100% LIFE REMAINING. The counter is reset
HP Color LaserJet 4600/4610/4650
HP Black # C9720A, Cyan C9721A, Magenta
C9723A, Yellow C9722A
OEM Stated Yield: 9000
These cartridges have what HP now calls “Smart
Chips” Similar to other HP chips, these chips
monitor toner usage, Internet supplies ordering, and
a new feature, remote troubleshooting. These
cartridges are “all in one” type cartridges where each
color is self contained (Toner, drum etc.). An
interesting change is that if the chips are removed
from the cartridge mid cycle, the machine will not
accept the cartridge and will not print. Further
testing is needed to see if once a cartridge actually
runs out, if it can be refilled with the old chip. Toner
and chips are available.
HP Color LaserJet 4700
HP Black # Q5950A, Cyan Q5951A, Magenta
Q5953A, Yellow Q5952A
OEM Stated Toner Yield: 11,000 Black, 10,000
Color
These cartridges have what HP now calls “Smart
Print Technology Chips”. These are the latest in HP
chips, they are very small, and contain all new code.
As with most HP chips, these chips monitor toner
usage. The chip does not need to be replaced, but if
it is not, “Unauthorized cartridge” will show on the
display. New chips are now available. These
cartridges are “all in one” where the drums included
with the toner. New toner and chips are available.
HP Color LaserJet 4730mfp
HP Black # Q6460A, Cyan Q6461A, Magenta
Q6463A, Yellow Q6462A
OEM Stated Toner Yield: 12,000 Black, 12,000
Color
These cartridges have what HP now calls “Smart
Print Technology Chips”. These are the latest in HP
chips, they are very small, and contain all new code.
As with most HP chips, these chips monitor toner
usage. The chip does not need to be replaced, but if
it is not, “Unauthorized cartridge” will show on the
display. New chips are now available. These
cartridges are “all in one” where the drums included
with the toner. New toner and chips are available.
10
HP Color LaserJet 5500/5550
HP Black # C9730A, Cyan C9731A, Magenta
C9733A, Yellow C9732A
OEM Stated Yield: 13,000 Black, 12,000 Color
These cartridges have what HP now calls “Smart
Chips. Similar to the HP-4100, these chips monitor
toner usage, Internet supplies ordering, and a new
feature, remote troubleshooting. These cartridges
are “all in one” type cartridges where each color is
self contained (Toner, drum etc). These machines
also use a Transfer unit Part Number C9734A rated
for 120,000 pages. New toner and chips are
available.
HP Color LaserJet 8500/8550 OPC
(Canon LBP-82X)
HP OPC Part # C4153A
OEM Stated Yield: 50,000
These cartridges have an ARD installed on the left
side of the cartridge. The chip is actually just an IC
plugged into a socket on the back of the electrical
connector, which can easily be changed. It would
seem that HP or Canon has plans to recycle these
cartridges. Even though they look the same, the
programming on these chips is different from the
HP-4500.
New reset chips are now available to reset these
cartridges. Drums and chips should be sold as a set
as the chip contains info. about the drum sensitivity.
These cartridges also have windows that work with
an optical sensor inside the printer that determines if
the waste chamber is full or not. It is more than
likely that if the waste chamber fills up, the machine
will shut down. We are not sure if the cartridge
waste chamber is cleaned out, it will continue to run
until the chip finishes its page count. The chip also
contains information on the characteristics of the
drum that is used during the calibration sequence.
HP Color LaserJet 9500
HP Black Toner C8550A, Cyan C8551A,
Magenta C8552A, Yellow C8553A
OEM Stated Toner Yield: 25,000 Black, 25,000
Color
HP Black Drum C8560A, Cyan Drum C8561A,
Yellow Drum C8562A
Magenta Drum C8563A,
OEM Stated Drum Yield: 40,000 Black/Color
This machine is based on a Konica engine. It uses
separate toner and drum units. Chips must be
replaced each cycle. Toner and chips are in
development.
HP Color LaserJet CP-4005
HP Black # CB400A, Cyan CB401A, Magenta
CB403A, Yellow CB402A
OEM Stated Yield: 7,500 Black, 7,500 Color
This series was just released as of this writing. No
information is available yet on the chips, or resets if
needed. Check with your supplier for more
information.
HP LaserJet 1160
HP Part # Q5949A
OEM Stated Yield: 2,500
**See HP LaserJet 1320**
11
HP LaserJet 1300
HP Part # Q2613A/X
OEM Stated Yield: 2,500/4,000
The HP-1300 uses the second generation black toner
cartridge ARD’s. These chips (ARD’s) only
monitor toner usage not page counts. Each chip also
has its own serial number which in effect gives the
cartridge a serial number. After the OEM toner has
been used up, the “toner low reached” code will be
set to YES on the cartridge chip. Even after the
cartridge is refilled, the printer display will still
show “Toner Low” for the supplies status section of
the menu. Since these machines do not have a
display, only the supplies status page will show
“Non HP Toner cartridge”. If the chip is removed,
the toner low sensors will be disabled, and will not
work again until a new HP cartridge is installed.
Replacement chips are available
HP LaserJet 1320/1160
HP Part # Q5949A/X
OEM Stated Yield: 2,500/6,000
The HP-1320/1160 uses the second generation black
toner cartridge ARD’s. These chips (ARD’s) only
monitor toner usage not page counts. Each chip also
has its own serial number which in effect gives the
cartridge a serial number. After the OEM toner has
been used up, the “toner low reached” code will be
set to YES on the cartridge chip. Even after the
cartridge is refilled, the printer display will still
show “Toner Low” for the supplies status section of
the menu. Since these machines do not have a
display, only the supplies status page will show
“Non HP Toner cartridge”. If the chip is removed,
the toner low sensors will be disabled, and will not
work again until a new HP cartridge is installed.
Replacement chips are available.
HP LaserJet 2300
HP Part # Q2610A
OEM Stated Yield: 6,000
The HP-2300 uses the second generation black toner
cartridge ARD’s. These chips (ARD’s) only
monitor toner usage not page counts. Each chip also
has its own serial number which in effect gives the
cartridge a serial number. After the OEM toner has
been used up, the “toner low reached” code will be
set to YES on the cartridge chip. Even after the
cartridge is refilled, the printer display will still
show “Toner Low” for the supplies status section of
the menu. Since these machines do not have a
display, only the supplies status page will show
“Non HP Toner cartridge”. If the chip is removed,
the toner low sensors will be disabled, and will not
work again until a new HP cartridge is installed.
Replacement chips are available.
HP LaserJet 2400
HP Part # Q6511A/X
OEM Stated Yield: 6,000,12,000
The HP-2400 uses the second generation black toner
cartridge ARD’s. These chips (ARD’s) only
monitor toner usage not page counts. Each chip also
has its own serial number which in effect gives the
cartridge a serial number. After the OEM toner has
been used up, the “toner low reached” code will be
12
set to YES on the cartridge chip. Even after the
cartridge is refilled, the printer display will still
show “Toner Low” for the supplies status section of
the menu. Since these machines do not have a
display, only the supplies status page will show
“Non HP Toner cartridge”. If the chip is removed,
the toner low sensors will be disabled, and will not
work again until a new HP cartridge is installed..
Replacement chips are available
HP LaserJet 4100
HP Part # C8061X (10K)
HP Part # C8061A (6K)
The HP-4100 was the first HP black toner cartridge
to use an ARD. Unlike other chips, these only
monitor usage not page counts. Each chip also has
its own serial number which in effect gives the
cartridge a serial number. After the OEM toner has
been used up, the “toner low reached” code will be
set to YES on the cartridge chip. Even after the
cartridge is refilled, the printer display will still
show “Toner Low” for the supplies status section of
the menu. The main display will then show “Non HP
Toner cartridge”. If the chip is removed, the toner
low sensors will be disabled, and will not work again
until a new HP cartridge is installed. Further testing
on this is being conducted. Another possible use of
this chip is when warranty repairs are needed. The
machine will have a complete history of all the HP
and non-HP cartridges used! Replacement chips are
available.
HP LaserJet 4200
HP Part # Q1338A
OEM Stated Yield: 12,000
The HP-4200 uses the second generation black toner
cartridge ARD’s. These chips (ARD’s) only
monitor toner usage not page counts. Each chip also
has its own serial number which in effect gives the
cartridge a serial number. After the OEM toner has
been used up, the “toner low reached” code will be
set to YES on the cartridge chip. Even after the
cartridge is refilled, the printer display will still
show “Toner Low” for the supplies status section of
the menu. Since these machines do not have a
display, only the supplies status page will show
“Non HP Toner cartridge”. If the chip is removed,
the toner low sensors will be disabled, and will not
work again until a new HP cartridge is installed.
Replacement chips are available.
HP LaserJet 4250/4350
HP Part # Q5942A/X
OEM Stated Yield: 10,000/20,000
The HP-4250/4350 uses the second generation black
toner cartridge ARD’s. These chips (ARD’s) only
monitor toner usage not page counts. Each chip also
has its own serial number which in effect gives the
cartridge a serial number. After the OEM toner has
been used up, the “toner low reached” code will be
set to YES on the cartridge chip. Even after the
cartridge is refilled, the printer display will still
show “Toner Low” for the supplies status section of
13
the menu. The main display will then show “Non HP
Toner cartridge”. If the chip is removed, the toner
low sensors will be disabled, and will not work again
until a new HP cartridge is installed. Replacement
chips are available.
Specific 4250 Error Codes:
“10.32.00” If it is displayed, it means the printer
senses this is not an HP original cartridge, and
declares the cartridge to be “Unauthorized”. This
does not mean that the chip is faulty, just that it
is not an actual HP cartridge.
9 This occurs on the 4250 Printer only
when the cartridge is first installed
9 Pressing the "Check" button will clear
the message and allow normal
printing
HP LaserJet 4300
HP Part # Q1339A
OEM Stated Yield: 18,000
Like the HP-4200, the HP-4300 uses the second
generation black toner cartridge ARD’s. These
chips (ARD’s) only monitor usage not page counts.
Each chip also has its own serial number which in
effect gives the cartridge a serial number. After the
OEM toner has been used up, the “toner low
reached” code will be set to YES on the cartridge
chip. Even after the cartridge is refilled, the printer
display will still show “Toner Low” for the supplies
status section of the menu. The main display will
then show “Non HP Toner cartridge”. If the chip is
removed, the toner low sensors will be disabled, and
will not work again until a new HP cartridge is
installed. Replacement chips are available.
HP LaserJet 4345MFP
HP Part # Q5945A
OEM Stated Yield: 18,000
The HP-4345MPF uses the second generation black
toner cartridge They are identical in looks and
function to the rest of the 4200/4300 series. The
code however for these cartridges is different from
the others. New replacement chips are available.
HP LaserJet 5200
HP Part # Q7516A
OEM Stated Yield: 12,000
The HP-5200 uses the latest or 3rd generation chip.
They are very small, and the code is all new. As with
other HP chips, they control all toner low functions.
They do not need to be replaced, but if they are not,
“Unauthorized Cartridge will show on the display.
New replacement chips are in development.
14
Loading...
