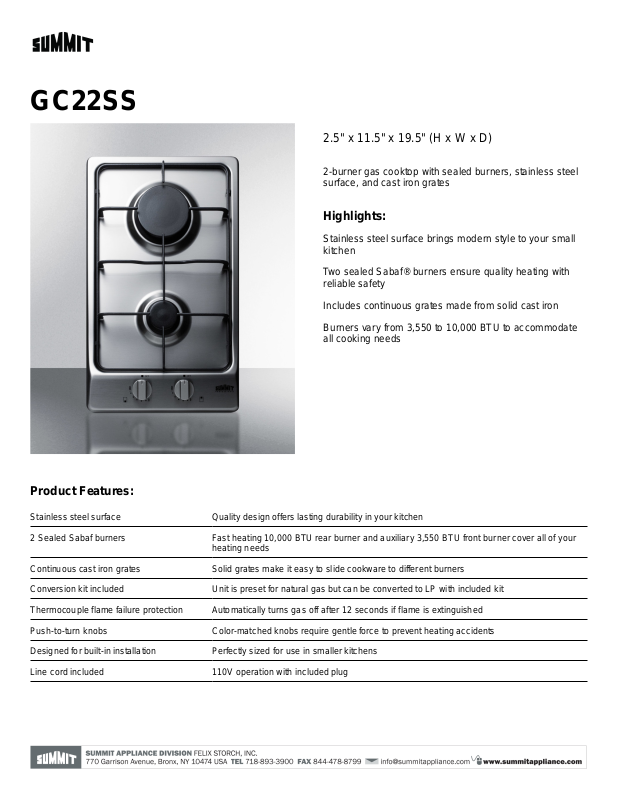

Summit GC22SS Specsheet

GC22SS

2.5" x 11.5" x 19.5" (H x W x D)

2-burner gas cooktop with sealed burners, stainless steel
surface, and cast iron grates

Highlights:

Stainless steel surface brings modern style to your small
kitchen

Two sealed Sabaf® burners ensure quality heating with
reliable safety

Includes continuous grates made from solid cast iron
Burners vary from 3,550 to 10,000 BTU to accommodate

all cooking needs

Product Features:

Stainless steel surface Quality design offers lasting durability in your kitchen
2 Sealed Sabaf burners Fast heating 10,000 BTU rear burner and auxiliary 3,550 BTU front burner cover all of your

heating needs
Continuous cast iron grates Solid grates make it easy to slide cookware to different burners
Conversion kit included Unit is preset for natural gas but can be converted to LP with included kit
Thermocouple flame failure protection Automatically turns gas off after 12 seconds if flame is extinguished
Push-to-turn knobs Color-matched knobs require gentle force to prevent heating accidents
Designed for built-in installation Perfectly sized for use in smaller kitchens
Line cord included 110V operation with included plug

GC22SS Specifications:

Overview

Height 2.5"
Width 11.5"
Depth 19.5"
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical

Safety
Voltage/Frequency 115 V AC/60 Hz
Weight 15.0 lbs.
Shipping Weight 18.0 lbs.
Parts & Labor Warranty 1 Year

Gas Cooktop

Ignition Spark
LP Convertible Yes
Number of Burners 2
Controls Dial
Surface Stainless Steel
Grate Material Cast Iron
Cutout Width 11.25"
Cutout Depth 19.0"
Burner #1 BTU 3550.0
Burner #2 BTU 10000.0

ULC
