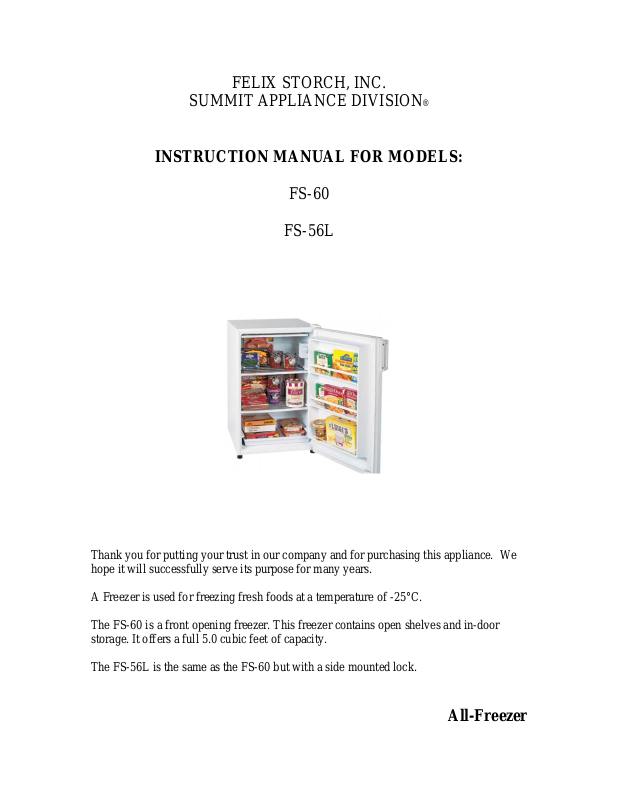

Summit FS-56L, FS-60 User Manual

FELIX STORCH, INC.

SUMMIT APPLIANCE DIVISION

®

INSTRUCTION MANUAL FOR MODELS:

FS-60

FS-56L

Thank you for putting your trust in our company and for purchasing this appliance. We
hope it will successfully serve its purpose for many years.

A Freezer is used for freezing fresh foods at a temperature of -25°C.

The FS-60 is a front opening freezer. This freezer contains open shelves and in-door
storage. It offers a full 5.0 cubic feet of capacity.

The FS-56L is the same as the FS-60 but with a side mounted lock.

All-Freezer

Before Putting Into Use

Before connecting the appliance to the power supply, leave it standing for about 2

hours, which will reduce a possibility of malfunctions in the cooling system due
to transport handling.

Clean the appliance thoroughly; especially in the interior (See Cleaning and

Maintenance).

Instructions for Use

These instructions for use are intended for the user. They describe the appliance and
the correct and safe way to use it. The instructions were prepared for various
types/models of refrigerators therefore you may find in it descriptions of some
accessories and functions that your appliance may not have.

We Care for the Environment

Our appliances are distributed in packaging made of environmental friendly

material which could safely be recycled, disposed of or destroyed without any
effects on the environment whatsoever.

Our instruction manuals are printed either on recycled paper or chlorine free

bleached paper.

Tips for Energy Savings

Try not to open the door too often, especially when the weather is hot and

humid. Once you open the door try to close it as soon as possible.

Every now and then check if the appliance is sufficiently ventilated

(adequate air circulation behind the appliance).

Set thermostat from higher to lower settings as soon as possible

(depending on how loaded the appliance is, the ambient temperature
etc...).

The coils on the rear of the refrigerator should be cleaned and free of dust

or any other impurities.

Ice and frost layer increase energy consumption, so do clean the appliance

as soon as the layer is 1/8” thick.

Always consider instructions stated in sections Positioning and Energy

Saving Tips, otherwise the energy consumption is substantially higher.

Instructions for Use

Important

To reduce the risk of fire, electrical shock,
Warning! or injury when using your appliance,
follow these basic precautions.

Read all instructions before using the appliance
If you bought this appliance to replace an old one equipped with a lock

that cannot be opened from inside (lock, bolt), make sure that the lock is
broken. This will make it impossible for children to lock themselves
inside the appliance and suffocate.

The appliance must be correctly connected to the power supply.
If the food has a strange smell or color throw it away because it is very

likely that it is spoiled and therefore dangerous to eat.

Disconnect the appliance from the power supply before repairing and

cleaning it (only a qualified technician should repair it).

Use only enclosed tools or tools recommended by the manufacturer.
For the sake of environmental protection be careful not to damage the rear

wall of the appliance (the condenser unit or the tubes when moving the
refrigerator) or any part of the freezing system inside the appliance. Use
only enclosed tools or tools recommended by the manufacturer.

DANGER: Risk of child entrapment.
Before throwing away your old freezer please remove the doors and leave

the shelves in place so that children may not easily climb inside.

The rating plate is inside the appliance or outside on the rear wall.

Disposing of the Worn Out Appliance

When your appliance finally wears out, dispose of it. If the appliance has

a lock, break it to prevent eventual accidents (danger of children getting
locked inside the appliance).

Instructions for Use

Placing and Installation

Choosing the Right Place

Place the appliance in a strong dry and regularly ventilated room. Allowed
ambient Temperature depends on the model (class) of the appliance and is stated

Never place the appliance near heat emitting devices (e.g. cooker, radiator, water
heater or similar devices) and do not expose it to direct sunlight.
The appliance should be positioned at least 3 cm away from the electric or gas
cooker and at least 30 cm away from the oil or coal stove. If this isn’t possible use
an appropriate insulation. Behind the appliance there should be free space at least

“DO NOT USE AN EXTENSION CORD.”
Required nominal voltage and frequency are indicated on the rating plate.

on the rating plate of the appliance.

Class Ambient Temperature

SN (sub-normal) from + 56°F to + 90°F
N (normal) from + 62°F to + 90°F
ST (sub-tropical) from + 64°F to +100°F
T (tropical) from + 64°F to +120°F

The appliance may be exposed to lower or higher temperatures but only for
shorter period of time and the temperature should never be lower than 41°F.

200 cm² wide. And above the appliance the high kitchen units should be at least
five cm above the appliance in order to assure adequate ventilation of the
condenser unit.

Placing the Self-Standing Appliance

It is important to make sure the appliance is leveled evenly to prevent falling.
Two spacers attached to the appliance must be fitted onto the upper edge of the

condenser, thus preventing the appliance from being installed too close to the
wall. Spacers are manufactured for all-purpose functions depending on the
distance of the condenser from the wall. Therefore turn spacers correspondingly
and adjust them accordingly to the appliance.

Connection to Power Supply

Connect the appliance with the cable and plug to the power supply socket outlet
with a ground terminal (safety socket).

The connection to the power supply and grounding has to be made according to
current standards and regulations. The appliance resists temporary voltage
tolerance up to -15 to 10%.
