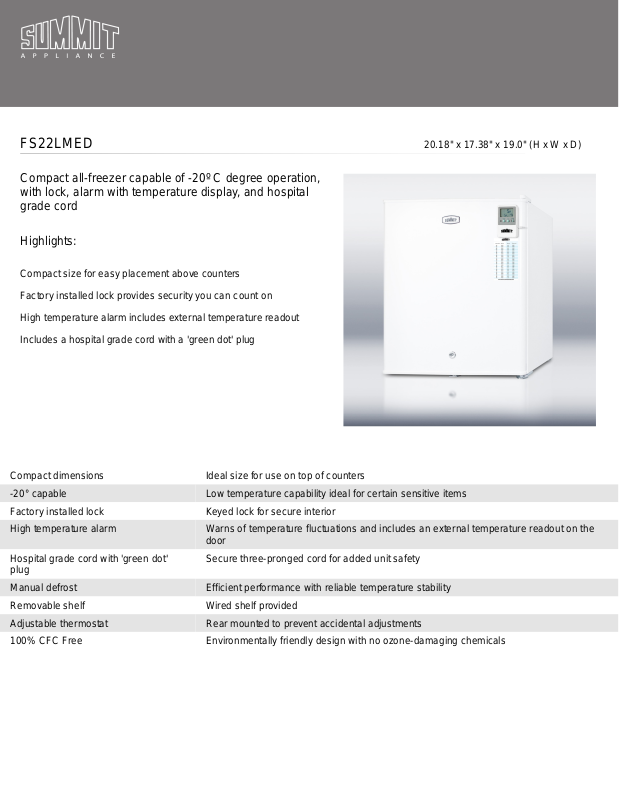

Summit FS22LMED Specification Sheet

FS22LMED 20.18" x 17.38" x 19.0" (H x W x D)

Compact all-freezer capable of -20º C degree operation,
with lock, alarm with temperature display, and hospital
grade cord

Highlights:

Compact size for easy placement above counters
Factory installed lock provides security you can count on
High temperature alarm includes external temperature readout
Includes a hospital grade cord with a 'green dot' plug

Compact dimensions Ideal size for use on top of counters

-20° capable Low temperature capability ideal for certain sensitive items
Factory installed lock Keyed lock for secure interior
High temperature alarm Warns of temperature fluctuations and includes an external temperature readout on the

door

Hospital grade cord with 'green dot'
plug

Manual defrost Efficient performance with reliable temperature stability
Removable shelf Wired shelf provided
Adjustable thermostat Rear mounted to prevent accidental adjustments
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

Secure three-pronged cord for added unit safety

Specifications:

Height 20.18"
Width 17.38"
Depth 19.0"
Capacity 1.42 cu.ft.
Interior Height 1 14.63"
Interior Width 1 12.38"
Interior Depth 1 14.5"
Comp Step Height 7.0"
Comp Step Width 12.38"
Comp Step Depth 6.0"
Shipping Weight 55.0 lbs.
Weight 40.0 lbs.
Voltage/Frequency 115 V AC/60 Hz
Amps 1.2
US Electrical Safety CSA
Canadian Electrical Safety CSA
Reversible Factory Reversible
Door Swing RHD
Shelf Quantity 1
Shelf Type Wire
Defrost Type Manual
Height to Hinge Cap 20.5"
Thermostat Type Dial
High Side PSI 270.0
Freon Oz 1.67
Low Side PSI 103.0
Level Legs Quantity 2
Freon Type R134a
Parts/Labor Warranty 1 Year
Compressor Warranty 5 Years
