Summit FRBW51, FRBW52D, RFBW64, RFBW62D, RFBW61G Installation manual

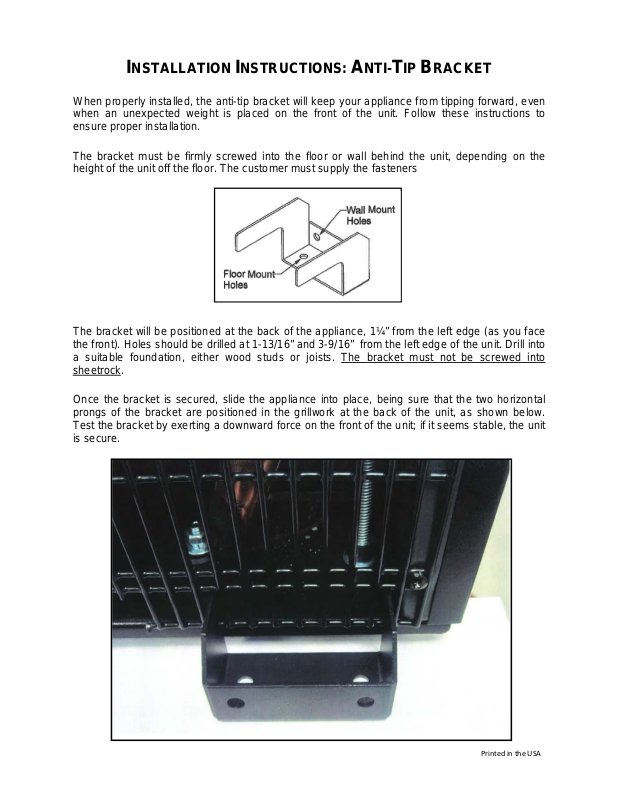

INSTALLATION INSTRUCTIONS: ANTI-TIP BRACKET

When properly installed, the anti-tip bracket will keep your appliance from tipping forward, even
when an unexpected weight is placed on the front of the unit. Follow these instructions to
ensure proper installation.

The bracket must be firmly screwed into the floor or wall behind the unit, depending on the
height of the unit off the floor. The customer must supply the fasteners

The bracket will be positioned at the back of the appliance, 1¼” from the left edge (as you face
the front). Holes should be drilled at 1-13/16” and 3-9/16” from the left edge of the unit. Drill into
a suitable foundation, either wood studs or joists.
sheetrock

Once the bracket is secured, slide the appliance into place, being sure that the two horizontal
prongs of the bracket are positioned in the grillwork at the back of the unit, as shown below.
Test the bracket by exerting a downward force on the front of the unit; if it seems stable, the unit
is secure.

.

The bracket must not be screwed into

Printed in the USA
