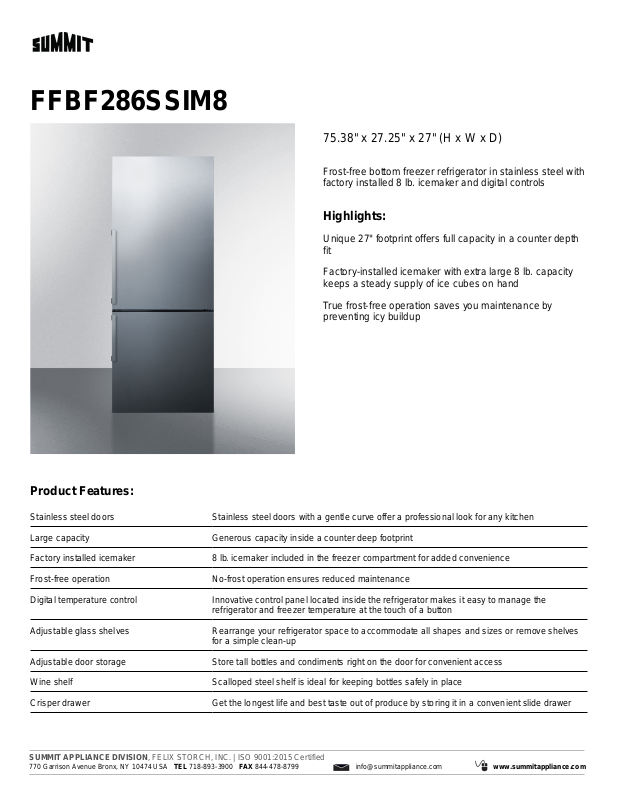

Summit FFBF286SSIM8 Specification Sheet

FFBF286SSIM8

75.38" x 27.25" x 27" (H x W x D)

Frost-free bottom freezer refrigerator in stainless steel with
factory installed 8 lb. icemaker and digital controls

Highlights:

Unique 27" footprint offers full capacity in a counter depth
fit

Factory-installed icemaker with extra large 8 lb. capacity
keeps a steady supply of ice cubes on hand

True frost-free operation saves you maintenance by
preventing icy buildup

Product Features:

Stainless steel doors Stainless steel doors with a gentle curve offer a professional look for any kitchen
Large capacity Generous capacity inside a counter deep footprint
Factory installed icemaker 8 lb. icemaker included in the freezer compartment for added convenience
Frost-free operation No-frost operation ensures reduced maintenance
Digital temperature control Innovative control panel located inside the refrigerator makes it easy to manage the

refrigerator and freezer temperature at the touch of a button

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves

for a simple clean-up
Adjustable door storage Store tall bottles and condiments right on the door for convenient access
Wine shelf Scalloped steel shelf is ideal for keeping bottles safely in place
Crisper drawer Get the longest life and best taste out of produce by storing it in a convenient slide drawer

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FFBF286SSIM8 Specifications:

Overview

Height of Cabinet 75.38" (191 cm)
Width 27.25" (69 cm)
Width with Door Open 28.25" (72 cm)
Depth 27.0" (69 cm)
Depth with Handle 28.75" (73 cm)
Depth with door at 90° 53.0" (135 cm)
Capacity 16.8 cu.ft. (476 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Platinum
US Electrical Safety UL
Energy Usage/Year 529.0kWh/year
Amps 2.4
Voltage/Frequency 115 V AC/60 Hz
Weight 210.0 lbs. (95 kg)
Shipping Weight 220.0 lbs. (100

Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Interior Drawers Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior

Height
Refrigerator - Interior

Width
Refrigerator - Interior

Depth
Refrigerator - Capacity 11.88 cu.ft
Refrigerator - Shelf Type Glass and

Refrigerator - Shelf Qty 3

40.63" (103 cm)

23.38" (59 cm)

20.63" (52 cm)

kg)

Scalloped

Refrigerator - Full Door
Shelves

Freezer - Interior Height 24.0" (61 cm)
Freezer - Interior Width 21.75" (55 cm)
Freezer - Interior Depth 18.5" (47 cm)
Freezer - Capacity 4.91 cu.ft
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.83 oz.
High Side PSI 261.0
Low Side PSI 65.0
Level Legs 2
Compressor Step Height 8.38" (21 cm)
Compressor Step Width 21.75" (55 cm)
Compressor Step Depth 5.0" (13 cm)

4
