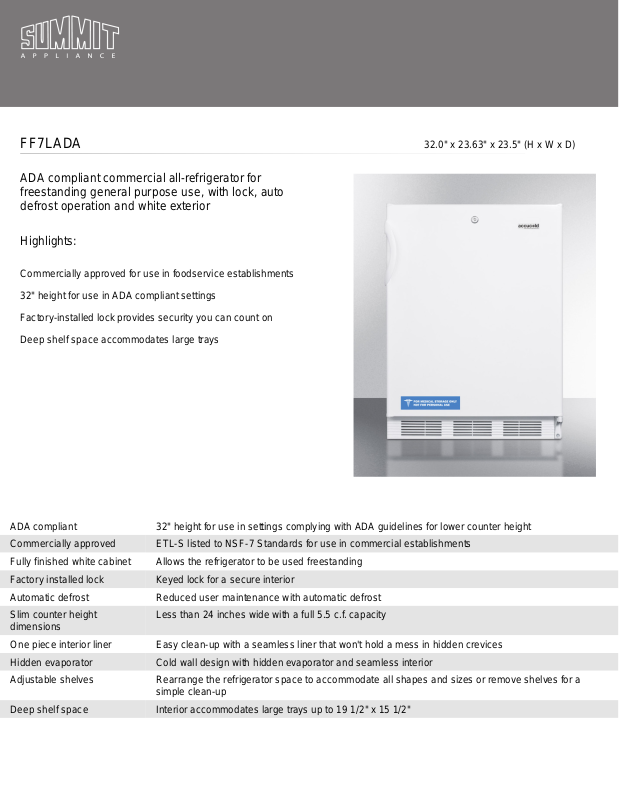

Summit FF7LADA Specifications

FF7LADA 32.0" x 23.63" x 23.5" (H x W x D)

ADA compliant commercial all-refrigerator for
freestanding general purpose use, with lock, auto
defrost operation and white exterior

Highlights:

Commercially approved for use in foodservice establishments
32" height for use in ADA compliant settings
Factory-installed lock provides security you can count on
Deep shelf space accommodates large trays

ADA compliant 32" height for use in settings complying with ADA guidelines for lower counter height
Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments
Fully finished white cabinet Allows the refrigerator to be used freestanding
Factory installed lock Keyed lock for a secure interior
Automatic defrost Reduced user maintenance with automatic defrost
Slim counter height

dimensions
One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator Cold wall design with hidden evaporator and seamless interior
Adjustable shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a

Deep shelf space Interior accommodates large trays up to 19 1/2" x 15 1/2"

Less than 24 inches wide with a full 5.5 c.f. capacity

simple clean-up

FF7LADA Specifications:

Height 32.0"
Width 23.63"
Depth 23.5"
Capacity 5.5 cu.ft.
Ext Depth with Handle 24.0"
Interior Height 1 26.25"
Interior Width 1 21.0"
Interior Depth 1 17.75"
Comp Step Height 5.5"
Comp Step Width 21.0"
Comp Step Depth 5.5"
Shipping Weight 102.0 lbs.
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Canadian Electrical Safety ULC
US Electrical Safety UL
Reversible Yes
Door Swing RHD
Shelf Quantity 3
Adjustable Shelf true
Shelf Type Wire
Defrost Type Automatic
Height to Hinge Cap 32.25"
Depth with door at 90° 45.13"
Light true
Thermostat Type Dial
Fan Type Exterior
Low Side PSI 88.0
Freon Oz 1.8
High Side PSI 285.0
Refrigerant Type R134a
Level Legs Quantity 4
Parts/Labor Warranty 1 Year
Compressor Warranty 5 Years
