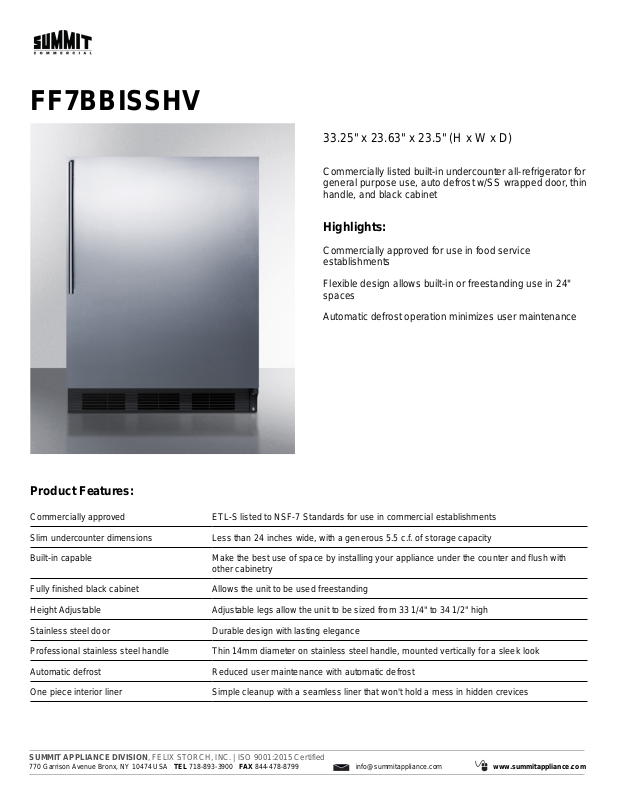

Summit FF7BBISSHV Specification Sheet

FF7BBISSHV

33.25" x 23.63" x 23.5" (H x W x D)

Commercially listed built-in undercounter all-refrigerator for
general purpose use, auto defrost w/SS wrapped door, thin
handle, and black cabinet

Highlights:

Commercially approved for use in food service
establishments

Flexible design allows built-in or freestanding use in 24"
spaces

Automatic defrost operation minimizes user maintenance

Product Features:

Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments
Slim undercounter dimensions Less than 24 inches wide, with a generous 5.5 c.f. of storage capacity
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinetry
Fully finished black cabinet Allows the unit to be used freestanding
Height Adjustable Adjustable legs allow the unit to be sized from 33 1/4" to 34 1/2" high
Stainless steel door Durable design with lasting elegance
Professional stainless steel handle Thin 14mm diameter on stainless steel handle, mounted vertically for a sleek look
Automatic defrost Reduced user maintenance with automatic defrost
One piece interior liner Simple cleanup with a seamless liner that won't hold a mess in hidden crevices

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FF7BBISSHV Specifications:

Overview

Height of Cabinet 32.63" (83 cm)
Height to Hinge Cap 33.25" (84 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Factory Reversible
Height Adjustable 1
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 4
Interior Light Yes

Dimensions

Interior Height 27.75" (70 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)

ULC

Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 6.0" (15 cm)
