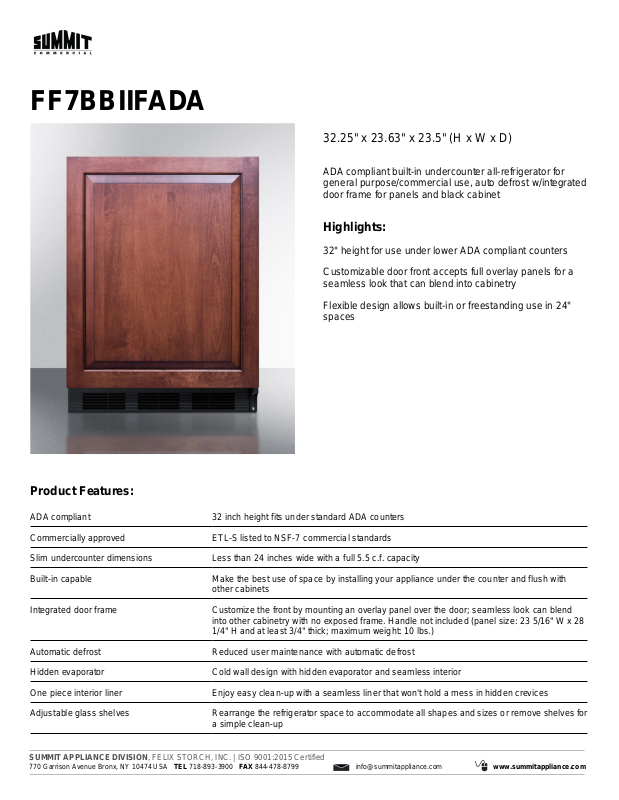

Summit FF7BBIIFADA Specification Sheet

FF7BBIIFADA

32.25" x 23.63" x 23.5" (H x W x D)

ADA compliant built-in undercounter all-refrigerator for
general purpose/commercial use, auto defrost w/integrated
door frame for panels and black cabinet

Highlights:

32" height for use under lower ADA compliant counters
Customizable door front accepts full overlay panels for a

seamless look that can blend into cabinetry
Flexible design allows built-in or freestanding use in 24"

spaces

Product Features:

ADA compliant 32 inch height fits under standard ADA counters
Commercially approved ETL-S listed to NSF-7 commercial standards
Slim undercounter dimensions Less than 24 inches wide with a full 5.5 c.f. capacity
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets

Integrated door frame Customize the front by mounting an overlay panel over the door; seamless look can blend

into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28

1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Automatic defrost Reduced user maintenance with automatic defrost
Hidden evaporator Cold wall design with hidden evaporator and seamless interior
One piece interior liner Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Adjustable glass shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for

a simple clean-up

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FF7BBIIFADA Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Factory Reversible
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 88.0
Level Legs Qty 4
Interior Light Yes

Dimensions

Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)

ULC

Compressor Step Depth 5.5" (14 cm)
