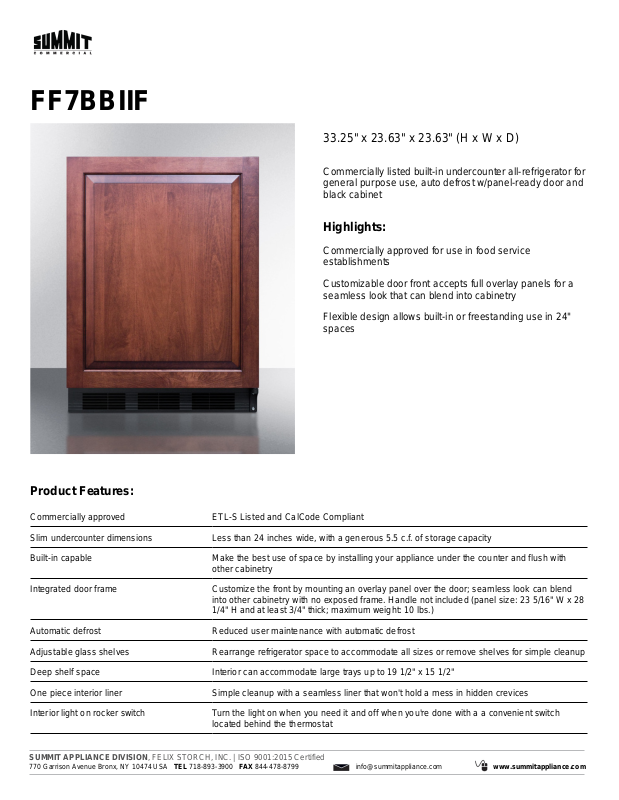

Summit FF7BBIIF Specification Sheet

FF7BBIIF

33.25" x 23.63" x 23.63" (H x W x D)

Commercially listed built-in undercounter all-refrigerator for
general purpose use, auto defrost w/panel-ready door and
black cabinet

Highlights:

Commercially approved for use in food service
establishments

Customizable door front accepts full overlay panels for a
seamless look that can blend into cabinetry

Flexible design allows built-in or freestanding use in 24"
spaces

Product Features:

Commercially approved ETL-S Listed and CalCode Compliant
Slim undercounter dimensions Less than 24 inches wide, with a generous 5.5 c.f. of storage capacity
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinetry

Integrated door frame Customize the front by mounting an overlay panel over the door; seamless look can blend

into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28

1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Automatic defrost Reduced user maintenance with automatic defrost
Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Deep shelf space Interior can accommodate large trays up to 19 1/2" x 15 1/2"
One piece interior liner Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
Interior light on rocker switch Turn the light on when you need it and off when you're done with a a convenient switch

located behind the thermostat

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FF7BBIIF Specifications:

Overview

Height of Cabinet 32.63" (83 cm)
Height to Hinge Cap 33.25" (84 cm)
Width 23.63" (60 cm)
Depth 23.63" (60 cm)
Depth with door at 90° 46.0" (117 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 106.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Factory Reversible
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 4
Interior Light Yes

Dimensions

Interior Height 27.75" (70 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.0" (51 cm)

ULC

Compressor Step Depth 6.0" (15 cm)
