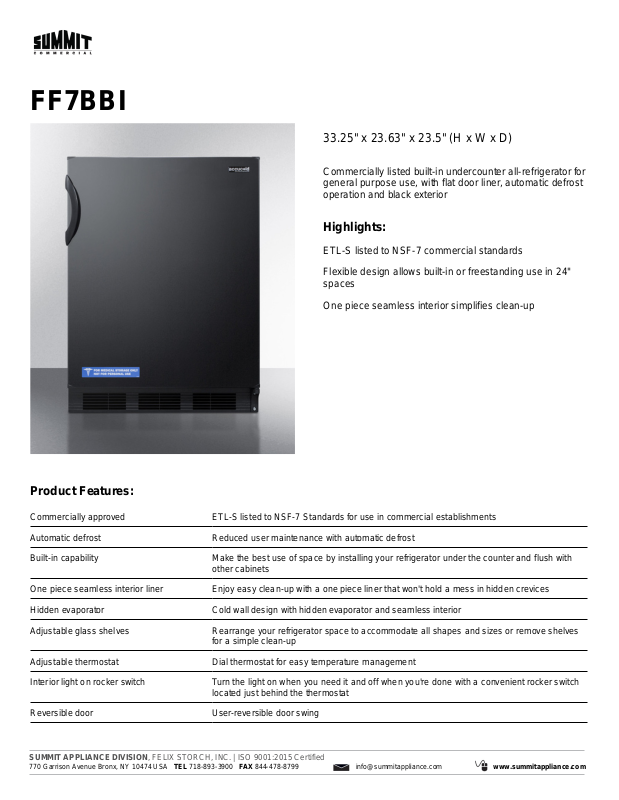

Summit FF7BBI Specification Sheet

FF7BBI

33.25" x 23.63" x 23.5" (H x W x D)

Commercially listed built-in undercounter all-refrigerator for
general purpose use, with flat door liner, automatic defrost
operation and black exterior

Highlights:

ETL-S listed to NSF-7 commercial standards
Flexible design allows built-in or freestanding use in 24"

spaces
One piece seamless interior simplifies clean-up

Product Features:

Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments
Automatic defrost Reduced user maintenance with automatic defrost
Built-in capability Make the best use of space by installing your refrigerator under the counter and flush with

other cabinets
One piece seamless interior liner Enjoy easy clean-up with a one piece liner that won't hold a mess in hidden crevices
Hidden evaporator Cold wall design with hidden evaporator and seamless interior
Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves

for a simple clean-up
Adjustable thermostat Dial thermostat for easy temperature management
Interior light on rocker switch Turn the light on when you need it and off when you're done with a convenient rocker switch

located just behind the thermostat
Reversible door User-reversible door swing

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FF7BBI Specifications:

Overview

Height of Cabinet 32.63" (83 cm)
Height to Hinge Cap 33.25" (84 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Black
Cabinet Black
US Electrical Safety UL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 109.0 lbs. (49 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Yes
Height Adjustable 1
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 4
Interior Light Yes

Dimensions

Interior Height 27.75" (70 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)

ULC

Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 6.0" (15 cm)
