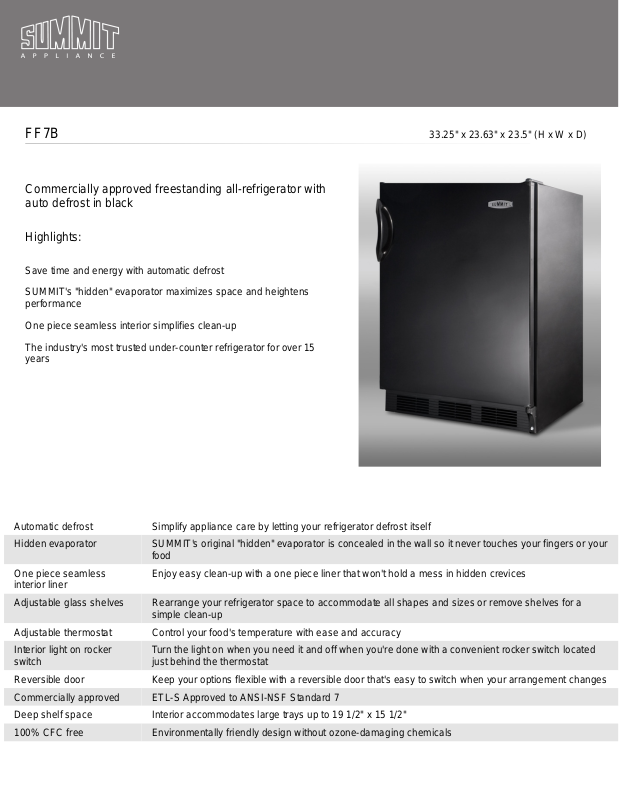

Summit FF7B User Manual

FF7B 33.25" x 23.63" x 23.5" (H x W x D)

Commercially approved freestanding all-refrigerator with
auto defrost in black

Highlights:

Save time and energy with automatic defrost
SUMMIT's "hidden" evaporator maximizes space and heightens

performance
One piece seamless interior simplifies clean-up
The industry's most trusted under-counter refrigerator for over 15

years

Automatic defrost Simplify appliance care by letting your refrigerator defrost itself
Hidden evaporator SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or your

food

One piece seamless
interior liner

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a

Adjustable thermostat Control your food's temperature with ease and accuracy
Interior light on rocker

switch
Reversible door Keep your options flexible with a reversible door that's easy to switch when your arrangement changes
Commercially approved ETL-S Approved to ANSI-NSF Standard 7
Deep shelf space Interior accommodates large trays up to 19 1/2" x 15 1/2"
100% CFC free Environmentally friendly design without ozone-damaging chemicals

Enjoy easy clean-up with a one piece liner that won't hold a mess in hidden crevices

simple clean-up

Turn the light on when you need it and off when you're done with a convenient rocker switch located
just behind the thermostat

Specifications:

Height 33.25"
Width 23.63"
Depth 23.5"
Capacity 5.5 cu.ft.
Ext Depth with Handle 24.63"
Interior Height 1 27.75"
Interior Width 1 20.0"
Interior Depth 1 17.5"
Comp Step Height 7.0"
Comp Step Width 20.0"
Comp Step Depth 6.0"
Shipping Weight 107.0 lbs.
Voltage/Frequency 115 V AC/60 Hz
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Reversible Yes
Door Swing RHD
Shelf Quantity 3
Adjustable Shelf true
Shelf Type Glass
Defrost Type Automatic
Height to Hinge Cap 33.25"
Depth with door at 90° 45.13"
Thermostat Type Dial
Light true
Condensor Location Rear of Unit
Level Legs Quantity 2
High Side PSI 285.0
Freon Type R134a
Low Side PSI 70.0
Freon Oz 1.8
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
Sanitation ETL-S
