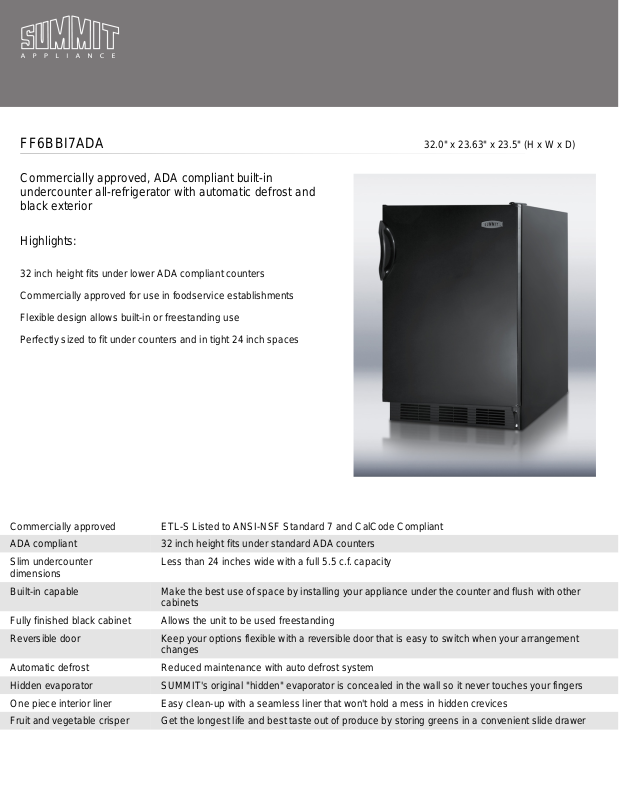

Summit FF6BBI7ADA User Manual

FF6BBI7ADA 32.0" x 23.63" x 23.5" (H x W x D)

Commercially approved, ADA compliant built-in
undercounter all-refrigerator with automatic defrost and
black exterior

Highlights:

32 inch height fits under lower ADA compliant counters
Commercially approved for use in foodservice establishments
Flexible design allows built-in or freestanding use
Perfectly sized to fit under counters and in tight 24 inch spaces

Commercially approved ETL-S Listed to ANSI-NSF Standard 7 and CalCode Compliant
ADA compliant 32 inch height fits under standard ADA counters
Slim undercounter

dimensions
Built-in capable Make the best use of space by installing your appliance under the counter and flush with other

Fully finished black cabinet Allows the unit to be used freestanding
Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement

Automatic defrost Reduced maintenance with auto defrost system
Hidden evaporator SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers
One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Fruit and vegetable crisper Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Less than 24 inches wide with a full 5.5 c.f. capacity

cabinets

changes

Specifications:

Height 32.0"
Width 23.63"
Depth 23.5"
Capacity 5.5 cu.ft.
Ext Depth with Handle 25.13"
Interior Height 1 27.75"
Interior Width 1 20.0"
Interior Depth 1 17.5"
Comp Step Height 7.0"
Comp Step Width 20.0"
Comp Step Depth 6.0"
Shipping Weight 104.0 lbs.
US Electrical Safety UL
Amps 1.3
Canadian Electrical Safety ULC
Energy Usage/Year 405.0 kWh/year
Reversible Yes
Door Swing RHD
Crisper Quantity 1
Shelf Quantity 3
Adjustable Shelf true
Shelf Type Glass
Crisper Cover Type Glass
Crisper Finish Opaque
Full Door Shelf Quantity 3
Defrost Type Automatic
Depth with door at 90° 46.13"
Height to Hinge Cap 32.25"
Light true
Fan Type Exterior
Thermostat Type Dial
Freon Type R134a
Level Legs Quantity 4
Freon Oz 1.8
High Side PSI 285.0
Low Side PSI 70.0
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
Sanitation ETL-S
