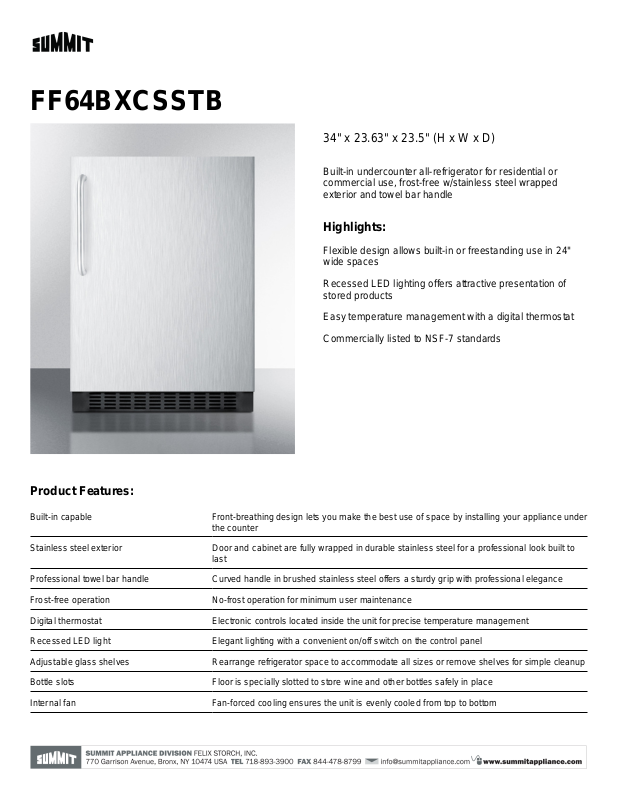

Summit FF64BXCSSTB Instruction Manual

FF64BXCSSTB

34" x 23.63" x 23.5" (H x W x D)

Built-in undercounter all-refrigerator for residential or
commercial use, frost-free w/stainless steel wrapped
exterior and towel bar handle

Highlights:

Flexible design allows built-in or freestanding use in 24"
wide spaces

Recessed LED lighting offers attractive presentation of
stored products

Easy temperature management with a digital thermostat
Commercially listed to NSF-7 standards

Product Features:

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under

the counter

Stainless steel exterior Door and cabinet are fully wrapped in durable stainless steel for a professional look built to

last
Professional towel bar handle Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
Frost-free operation No-frost operation for minimum user maintenance
Digital thermostat Electronic controls located inside the unit for precise temperature management
Recessed LED light Elegant lighting with a convenient on/off switch on the control panel
Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Bottle slots Floor is specially slotted to store wine and other bottles safely in place
Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

FF64BXCSSTB Specifications:

Overview

Height 34.0"
Width 23.63"
Depth 23.5"
Depth with Handle 25.38"
Depth with door at 90° 45.63"
Capacity 4.6 cu.ft.
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs.
Shipping Weight 120.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Factory

Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and

Refrigerant Type R600a
Refrigerant Amount 0.99
High Side PSI 270.0
Low Side PSI 105.0
Interior Light Yes

Dimensions

Interior Height 24.0"
Interior Width 19.25"
Interior Depth 16.0"

ETL-C

Reversible

Exterior
