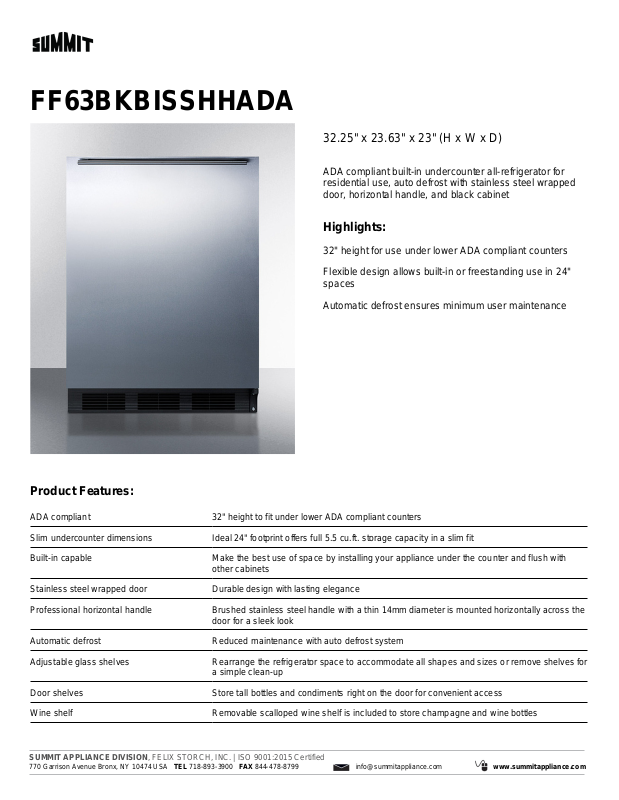

Summit FF63BKBISSHHADA Specifications

FF63BKBISSHHADA

32.25" x 23.63" x 23" (H x W x D)

ADA compliant built-in undercounter all-refrigerator for
residential use, auto defrost with stainless steel wrapped
door, horizontal handle, and black cabinet

Highlights:

32" height for use under lower ADA compliant counters
Flexible design allows built-in or freestanding use in 24"

spaces
Automatic defrost ensures minimum user maintenance

Product Features:

ADA compliant 32" height to fit under lower ADA compliant counters
Slim undercounter dimensions Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Stainless steel wrapped door Durable design with lasting elegance
Professional horizontal handle Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the

door for a sleek look
Automatic defrost Reduced maintenance with auto defrost system
Adjustable glass shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for

a simple clean-up
Door shelves Store tall bottles and condiments right on the door for convenient access
Wine shelf Removable scalloped wine shelf is included to store champagne and wine bottles

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FF63BKBISSHHADA Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Energy Usage/Year 307.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Factory Reversible
Crisper Qty 1
Crisper Finish Opaque
Crisper Cover Glass
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Adjustable Shelves Yes
Wine Bottle Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Interior Light Yes

ETL-C

Dimensions

Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
