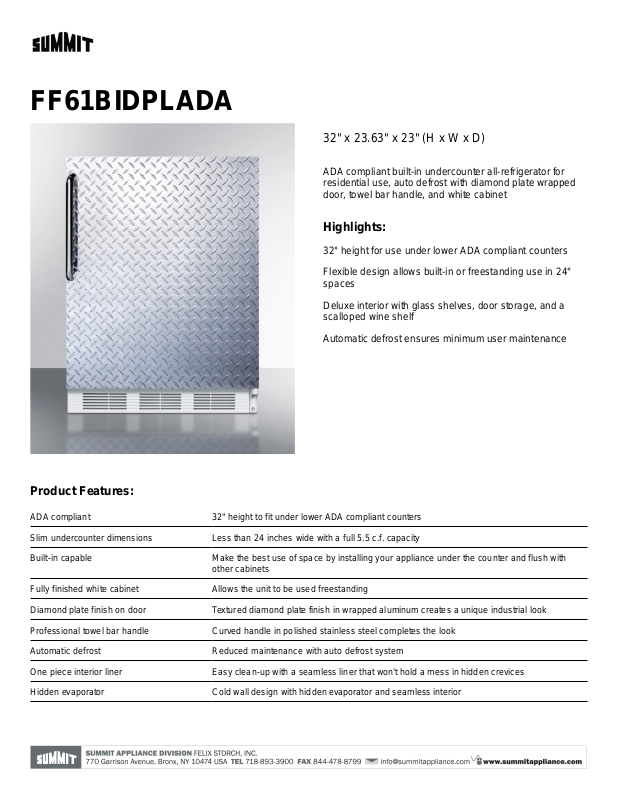

Summit FF61BIDPLADA Instruction Manual

FF61BIDPLADA

32" x 23.63" x 23" (H x W x D)

ADA compliant built-in undercounter all-refrigerator for
residential use, auto defrost with diamond plate wrapped
door, towel bar handle, and white cabinet

Highlights:

32" height for use under lower ADA compliant counters
Flexible design allows built-in or freestanding use in 24"

spaces
Deluxe interior with glass shelves, door storage, and a

scalloped wine shelf
Automatic defrost ensures minimum user maintenance

Product Features:

ADA compliant 32" height to fit under lower ADA compliant counters
Slim undercounter dimensions Less than 24 inches wide with a full 5.5 c.f. capacity
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Fully finished white cabinet Allows the unit to be used freestanding
Diamond plate finish on door Textured diamond plate finish in wrapped aluminum creates a unique industrial look
Professional towel bar handle Curved handle in polished stainless steel completes the look
Automatic defrost Reduced maintenance with auto defrost system
One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator Cold wall design with hidden evaporator and seamless interior

FF61BIDPLADA Specifications:

Overview

Height 32.0"
Height to Hinge Cap 32.25"
Width 23.63"
Depth 23.0"
Depth with door at 90° 45.38"
Capacity 5.5 cu.ft.
Defrost Type Automatic
Door Diamond Plate
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Energy Usage/Year 307.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs.
Shipping Weight 115.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Factory

Crisper Qty 1
Crisper Finish Opaque
Crisper Cover Glass
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Adjustable Shelves Yes
Wine Bottle Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.7
High Side PSI 285.0
Low Side PSI 70.0
Interior Light Yes

Dimensions

ULC

Reversible

Interior Height 26.25"
Interior Width 21.0"
Interior Depth 18.0"
Compressor Step

Height
Compressor Step Width 21.0"
Compressor Step Depth 6.0"

5.5"
