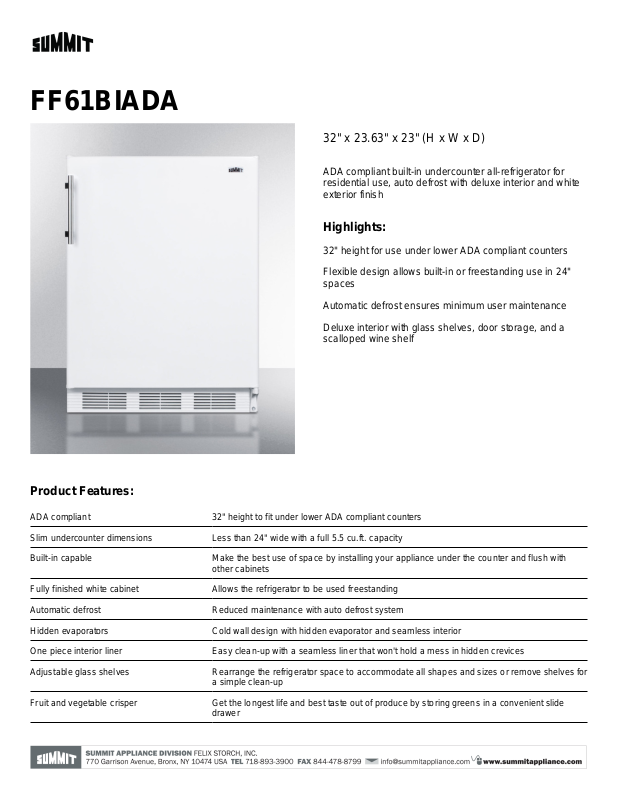

FF61BIADA

32" x 23.63" x 23" (H x W x D)

ADA compliant built-in undercounter all-refrigerator for
residential use, auto defrost with deluxe interior and white
exterior finish

Highlights:

32" height for use under lower ADA compliant counters
Flexible design allows built-in or freestanding use in 24"

spaces
Automatic defrost ensures minimum user maintenance
Deluxe interior with glass shelves, door storage, and a

scalloped wine shelf

Product Features:

ADA compliant 32" height to fit under lower ADA compliant counters
Slim undercounter dimensions Less than 24" wide with a full 5.5 cu.ft. capacity
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Fully finished white cabinet Allows the refrigerator to be used freestanding
Automatic defrost Reduced maintenance with auto defrost system
Hidden evaporators Cold wall design with hidden evaporator and seamless interior
One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Adjustable glass shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for

a simple clean-up
Fruit and vegetable crisper Get the longest life and best taste out of produce by storing greens in a convenient slide

drawer

FF61BIADA Specifications:

Overview

Height 32.0"
Height to Hinge Cap 32.25"
Width 23.63"
Depth 23.0"
Depth with Handle 24.63"
Depth with door at 90° 45.38"
Capacity 5.5 cu.ft.
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Energy Usage/Year 307.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs.
Shipping Weight 110.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Opaque
Crisper Cover Glass
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Adjustable Shelves Yes
Wine Bottle Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.7
High Side PSI 285.0
Low Side PSI 70.0
Interior Light Yes

ULC

Dimensions

Interior Height 26.25"
Interior Width 21.0"
Interior Depth 18.0"
Compressor Step Height 5.5"
Compressor Step Width 21.0"
Compressor Step Depth 6.0"
