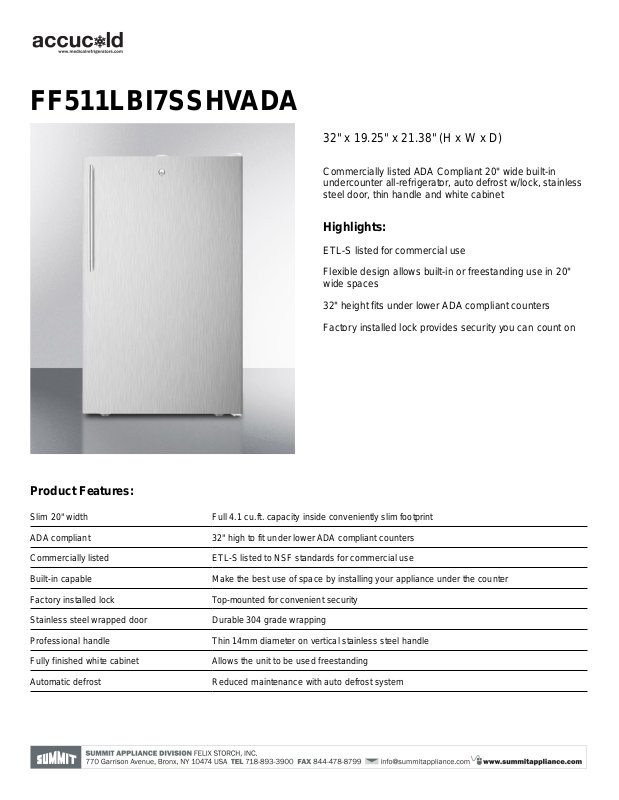

Summit FF511LBI7SSHVADA Instruction Manual

FF511LBI7SSHVADA

32" x 19.25" x 21.38" (H x W x D)

Commercially listed ADA Compliant 20" wide built-in
undercounter all-refrigerator, auto defrost w/lock, stainless
steel door, thin handle and white cabinet

Highlights:

ETL-S listed for commercial use
Flexible design allows built-in or freestanding use in 20"

wide spaces
32" height fits under lower ADA compliant counters
Factory installed lock provides security you can count on

Product Features:

Slim 20" width Full 4.1 cu.ft. capacity inside conveniently slim footprint
ADA compliant 32" high to fit under lower ADA compliant counters
Commercially listed ETL-S listed to NSF standards for commercial use
Built-in capable Make the best use of space by installing your appliance under the counter
Factory installed lock Top-mounted for convenient security
Stainless steel wrapped door Durable 304 grade wrapping
Professional handle Thin 14mm diameter on vertical stainless steel handle
Fully finished white cabinet Allows the unit to be used freestanding
Automatic defrost Reduced maintenance with auto defrost system

FF511LBI7SSHVADA Specifications:

Overview

Height 32.0"
Height to Hinge Cap 32.5"
Width 19.25"
Depth 21.38"
Depth with door at 90° 39.5"
Capacity 4.1 cu.ft.
Defrost Type Automatic
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Energy Usage/Year 406.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs.
Shipping Weight 85.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Factory

Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Shelf Type Wire
Shelf Qty 2
Full Door Shelf Qty 1
Half Door Shelf Qty 2
Adjustable Shelves Yes
Can Storage Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.9oz.
High Side PSI 250.0
Low Side PSI 110.0
Level Legs Qty 2

ETL-C

Reversible

Interior Light Yes

Dimensions

Interior Height 28.5"
Interior Width 15.75"
Interior Depth 18.0"
Compressor Step

Height
Compressor Step Width 16.5"
Compressor Step Depth 5.5"

8.0"
