Page 1
MODEL: FF43BADA
Page 2
Important Safety Instructions
.................
3- 5
Installation Instructions
Product Overview & Accessories
Food Storage
Temperature Adjustment Instructions
Defrost Timer
Daily Maintenance for Refrigerator
Troubles
CARB Disclosure

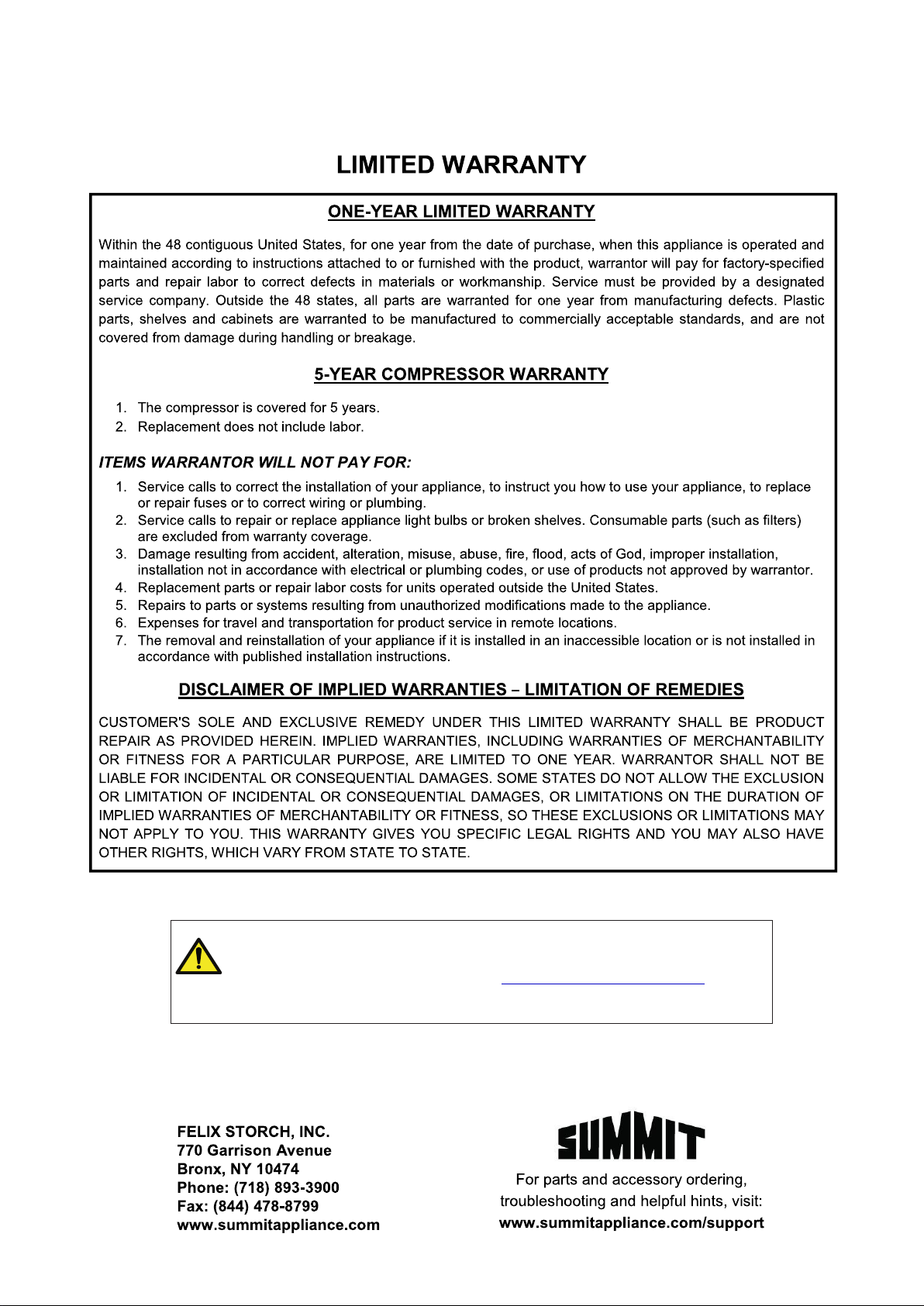

Limited Warranty
.....................
..................
hooting
...................
...............
....................
....................
....................
..............
..............
6 - 7
8
9
10
11
12-13
14
15
18
Page 3
Important Safety Instructions
Dear customer:
Thanks for choosing our products. In order to guarantee the proper use
of refrigerator and avoid personal injury, please carefully read the
contents with below symbols in this manual:
Mistaken operation may
result in personal injury
Caution
RECOMMENDATIONS
appliance is intended to be used in household and similar applications such as staff kitchen
areas in shops, offices and other working environments; farm houses and by clients in hotels, motels
and other residential type environments; bed and breakfast type environments; catering and similar
non-retail applications.
the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
appliance has to be unplugged after use and before carrying out user maintenance on the
appliance.
clear of obstruction.
process, other than those recommended by the manufacturer.
appliance, unless they are of the type recommended by the manufacturer.
blowing gas and refrigerant.
damaged.
rear of the appliance.
Mistaken operation may
result in property loss
risk of fire / flammable materials
Keep ventilation openings, in the appliance enclosure or in the built-in structure,
Do not use mechanical devices or other means to accelerate the defrosting
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the
Please abandon the appliance according to local regulators for it use flammable
When positioning the appliance, ensure the supply cord is not trapped or
Do not locate multiple portable socket-outlets or portable power supplies at the
Strictly forbidden behavior
or operation
Behavior or operation that
must be abided by
3
Page 4
Important Safety Instructions
not use extension cords or ungrounded (two prong) adapters.
Risk of child entrapment. Before you throw away the appliance:
Take off the doors.
Leave the shelves in place so that children may not easily climb inside.
appliance must be disconnected from the source of electrical supply before attempting the
installation of accessory
Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by
a special recovering company with corresponding qualification other than be disposed by combustion, so as
to prevent damage to the environment or any other harm.
For
EN standard: This appliance can be used by children aged from 8 years and above and persons
with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
For
IEC standard: This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for their safety.)
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.)
appliance is not intended for use by persons (including children) with reduced physical, sensory
and cyclopentane foaming material used for the appliance are flammable.
should be supervised to ensure that they do not play with the appliance.
Power supply
Alternating current of this refrigerator is115V/60Hz, if voltage fluctuates too large, the
refrigerator may not start to work, the thermostat or compressor will burn out and
compressor may sound abnormally.
Grounding
The refrigerator has to be powered with a special independent socket and reliably grounded.
The power cord of this appliance is equipped with a 3-prong(grounding) plug which mates
with a standard 3-prong (grounding) outlet. At any circumstance, don't cut off the third prong
(grounding).When the refrigerator is installed, the plug should be reachable to use.
The plug of the power cord should firmly contact with the socket; otherwise, it may cause
fire disaster.
Power cord and plug
Please do not pull out the plug with jerk. Hold the power plug tightly, then pull it straight
out from socket . Make sure the power cord is not squeezed by the refrigerator or user.
Please be cautious to avoid damaging the power cord when moving refrigerator away
from the wall.
Do not use the damaged power cord or worn power plug. Please contact the authorized
repairer to replace the damaged power cord.
Leakage of flammable gas
In case of leakage of flammable gas, please close the valves of gas, open the doors and
windows, do not plug or unplug the power plug.
4
Page 5
Important Safety Instructions
This is household refrigerator which can only be used for food storage, please do
not store blood, medicine or biological products in refrigerator.
The flammable and explosive dangerous products, highly corrosive acid or alkali
shall not be stored in refrigerator.
When the refrigerator is running, do not touch the freezing surface in freezer
compartment with wet hands to avoid the skin adhering to the freezing surface.
The refrigerator shall be placed away from heat source and avoid direct sunshine to
guarantee the performance.
Do not expose the refrigerator to freezing environment, outdoors or rain.
Do not place the refrigerator in moisture, if the refrigerator is splashed with water, wipe
the water out immediately in order to avoid rusting or damaging of electrical insulation
performance.
Do not place the heavy or container filled with water on top of refrigerator in order to
avoid the personal injury or leakage of electricity caused by falling of the heavy goods
or container.
Do not place or use electrical appliances such as power plug, stabilized voltage supply,
microwave on top of or inside refrigerator to avoid electromagnetic interference.
Do not store or use gasoline or other flammable substances near to refrigerator to avoid
fire disaster.
Cleaning
Do not use water to spray the refrigerator, make sure the refrigerator is not placed in
wet environment to avoid damage of electrical insulation performance.
When clean the refrigerator, please pull out the power plug. Make sure the refrigerator
is powered off for at least 5 minutes before connecting to power supply again, or else
the compressor may breakdown due to consecutive operation.
Repairing
The refrigerator can only be disassembled or repaired by qualified serviceman.
Danger:
Risk of child entrapment. Before you throw away your old refrigerator or freezer:
Keep the refrigerator clear of fi
Take off doors and leave the shelves in right place so that children may not easily climb
inside.
Do not let children play on the refrigerator door, in case the toppling of refrigerator which
may result in personal injury.
res, when discard it.
5
Page 6
Installation Instructions
Before Installing Refrigerator
Remove all the packaging.
Including the foam base and any tape attached to the accessories. Do not remove any
warning labels.
Ensure all the correct accessories are included with your refrigerator.
Contact seller if the items are incomplete or damaged.
Choose a proper location for the refrigerator.
See page 7 for further instructions.
Clean the refrigerator thoroughly.
See page 12 for further instructions.
Allow the appliance to sit before plugging it in.
Wait at least 2 hours before connecting.
Remove the protection film.
In order to save energy and ensure the dissipation of heat.
Tips on First Time Use
Connecting the
power supply
It will take several hours for
the refrigerator to reach
default temperature setting.
The default temperature
setting for the refrigerator
compartment is
41°F (5°C).
Note: After adjusting the temperature setting, it will take time before the cabinet
temperature reaches stability. The time will vary depending on ambient temperature, frequency
of opening refrigerator doors and the food stored in refrigerator.
Storing food
Food can be put into
refrigerator 2- 3 hours after
connecting to power supply.
Do not overstock the
refrigerator compartment.
Each shelf holds up to 53lbs
(24kg).
Adjusting the
temperature
Allow the refrigerator
to run for 24 hours
once stocked.
Adjusting the
temperature after
the 24 hour period.
6
Page 7
Installation Instructions
Power Supply
• The power plug must be easily accessible when the refrigerator is installed.
• The power plug should be inserted into a special socket to avoid the unexpected power
outage. Do not use extension cord or porous adapter.
• To understand the requirement for power supply please refer to the nameplate in left side of
refrigerator.
• The refrigerator must be grounded.
Positioning the Refrigerator
• Keep away from direct sunlight and heat producing appliances, such as cooktops, ovens, and
dishwashers.
• There should be appropriate spacing around the refrigerator, to save energy and maintain good
ventilation.
• There should be at least 4" (100mm) of space from its sides to the wall, 2" (50mm) from the back
to the wall, and 12" (300mm) from the top. (See figure below)
Dimensions and Clearances
See figure below on the clearance space required for easy installation and air circulation.
12" (300mm)
4" (100mm)
2" (50mm)
The ground should be stable. Select a sturdy and flat area on the ground (floor), rotate
the adjustable feet to keep the refrigerator stable. Unbalanced placement can cause
vibration and noise. When placing carpets, grass mats, and polyvinyl chloride flooring
materials, place a sturdy pad under the refrigerator to prevent discoloration of the carpet
caused by heat dissipation from the refrigerator.
7
Page 8
Product Overview & Accessories
4
2
1
5 6 7
3
8
9
1. Freezer
2. Water Tray
3. Thermostat
4. Fridge Shelf
5. Adjustable Feet
6. Crisper Cover
7. Crisper
8. Refrigerator Door Rack
9. Defrost Timer
Note:
Refer to the actual product when reviewing as some accessories are subject to change.
8
Page 9
Food Storage
Important Notes on Storing Food
• Although temperatures in the refrigerator compartment can range between 32 - 50°F and can
prevent bacteria from forming, refrigerator compartment is not suitable for long term food
storage.
• Place food into a sealed bag before putting it in the refrigerator.
• To save energy, organize and label foods to minimize the time the door is opened.
• Do not put hot foods in the refrigerator and/or freezer. Allow cooked food to cool down to room
temperature first.
• Do not place food to close to the outlet or inlet of the airflow. It may affect the air circulation.
• Do not store perishable food in the crisper bin. The crisper bin is ideal for storing water bottles.
• Do not store glass containers filled with liquid in the freezer. This may cause the glass to break.
9
Page 10
Temperature Adjustment Instructions
The temperature of the refrigerator and freezer compartments is controlled by the control knob.
3
2
4
1
0
5
Control Knob:
Note:
The temperature control settings on the knob are indicated by a scale of 0-5, and not by
temperature in degrees.
• Setting the control knob to "0" will stop cooling.
• Setting the control knob to "3" will maintain a normal temperature.
• Setting the control knob to "5" is the coldest setting.
• Setting the control knob to "1" is the warmest setting.
Adjust the temperature:
1.
Locate the control knob on the right side of the refrigerator compartment.
2.
Turn the control knob to adjust the temperature inside the refrigerator.
10
Page 11
Defrost Timer Instructions
Automatic Mode Instructions:
Defrosting:
Note:
To operate this refrigerator-freezer in automatic defrost mode, you must set the timer to
"Automatic Mode" before use.
Note: FOR INDOOR USE ONLY.
For this option, the appliance will power off the same times every day
user's preference. It is recommended the defrost cycle be programmed for 2-3 hours.
(1) Ensure the timer is disconnected from mains.
(2) Turn the clock dial until the black arrow aligns with the current local time.
(3) Push the pins down in line with each time of day you want the refrigerator to power ON.
(4) Push the pins up in line with each time of day you want the refrigerator to power OFF.
o Each pin is an interval of 15 minutes.
o The light will turn red when the timer is switched ON.
(5) Ensure the timer is set to automatic mode by moving the red switch to the clock symbol. ( )
(6) Plug the appliance into the timer.
(7) Plug the timer into a 115-volt electrical power outlet.
Manual Mode Instructions:
For this option, the timer will remain ON and frost will accumulate over time.
(1) Set the timer to manual mode by moving the red switch up to the normal
(2) Defrost the freezer compartment as needed, generally if ice builds up to 1/4" thickness.
CONTACT AN ELECTRICIAN FOR ASSISTANCE IF NEEDED.
11
according to the
( I )
position.
Page 12
Daily Maintenance for Refrigerator
Cleaning:
Cleaning the refrigerator regularly will help prevent odor produced by food.
Instructions on Cleaning:
1) Unplug the refrigerator from the power supply.
2) Clean the freezer with soft tissue or sponge saturated with warm water or neutral detergent.
Do not use hard brush, steel wire brush, organic solvent such as decontamination
powder, gasoline, banana oil, acetone, hot water, or acid, soda to clean the refrigerator.
3) Use a dry cloth to remove any water on surface of refrigerator.
To avoid leakage do not spray water over refrigerator. Use a dry cloth to clean
the electrical components such as the switch and LED light.
Note: Remember to clean the gasket.
Manual defrosting, maintenance and/or cleaning, may shorten the shelf life of food
due to rise in temperature.
Do not use mechanical devices or other methods to accelerate the defrosting process,
except those recommended by the manufacturer.
Transporting:
1) Press power button for 3 seconds to cut off the power supply, then pull the power plug out of socket.
2) Remove all foods from the refrigerator.
3) Use adhesive tapes to fix the moving parts such as drawer, s helves, crisper boxes, etc.
4) Close refrigerator door and fix it down with adhesive tapes to avoid door from opening during
transportation.
5) The inclination during transportation should be less than 45 degrees to ensure no damage to the
cooling system.
Do not lay the refrigerator on its side.
12
Page 13
Daily Maintenance for Refrigerator
Out of Service
Power Outage
• Food can remain stored in the refrigerator for up to 10 hours after power outage.
• Do not put any new food in after a power cut.
• Keep the door closed as long as possible.
• If you know you are going to lose power, you can make more ice with a watertight
container and place it on top inside of the freezer.
On Holiday
• For short holidays, remove perishable foods. Adjust the temperature to a proper
setting and confirm before closing the door.
• For long holidays, cut off the power and remove food. Then defrost, clean, and dry the
inside of refrigerator. Leave the door open.
Not in Use
• If the refrigerator is not in use for an extended period of time, remove the power plug,
cut off the power supply and clean the refrigerator as described above.
• Leave the door open when it is not in use.
• When left unplugged, allow 5 minutes before powering it on again.
• In general, do not stop using the refrigerator, so as not to affect the service life of the
refrigerator.
• When the appliances are scrapped, they should be properly disposed or handled by
professionals and should not be discarded to avoid environmental hazards or other
hazards.
13
Page 14
Troubleshooting
The following simple issues can be handled by the user. Please call the after-sale service department if the
issues are not settled.
Problem
The unit doesn't work
Possible Reasons
Power is not on.
Low voltage.
The control knob is set at “0”
The control knob is set at a low number.
Too much food in the unit.
Hot food in the unit.
Door opened & closed too frequently.
There is a heat source nearby.
The unit is exposed to direct sunlight.
Floor is not flat, and the unit is not placed steadily.
Contents are not placed in the right position.
Control knob set at a high number.
Food may be blocking the air vent.
If you have checked the table above and find that you still need help with your appliance, call our
Customer Service facility at 800-932-4267 between 9:00 AM and 5:00 PM ET or visit us online at
www.summitappliance.com/support at any time. We will do our best to answer your questions.
14
Page 15
CARB Disclosure
CALIFORNIA CARB/SNAP DISCLOSURE
This product uses eco-friendly hydrocarbon refrigerant and
However, we are required by California Law to provide the following disclosure statement in every product sold in
California.
equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited Substances' for
"This
that specific end-use, in accordance with California Code of Regulations, title 17, section 95374. This disclosure
statement has been reviewed and approved by Felix Storch, Inc. and Felix Storch, Inc. attests, under penalty of
perjury, that these statements are true and accurate."
This product does not use any refrigerants on the 'List of Prohibited Substances'"
fully complies with California CARB regulations.
15
Page 16
Notes
16
Page 17
Notes
17
Page 18
WARNING: This product can expose you to chemicals including
Nickel (Metallic) which is known to the State of California to cause
cancer. For more information go to www.P65Warnings.ca.gov
Note: Nickel is a component in all stainless steel and some other metallic
compositions.
18
Loading...
