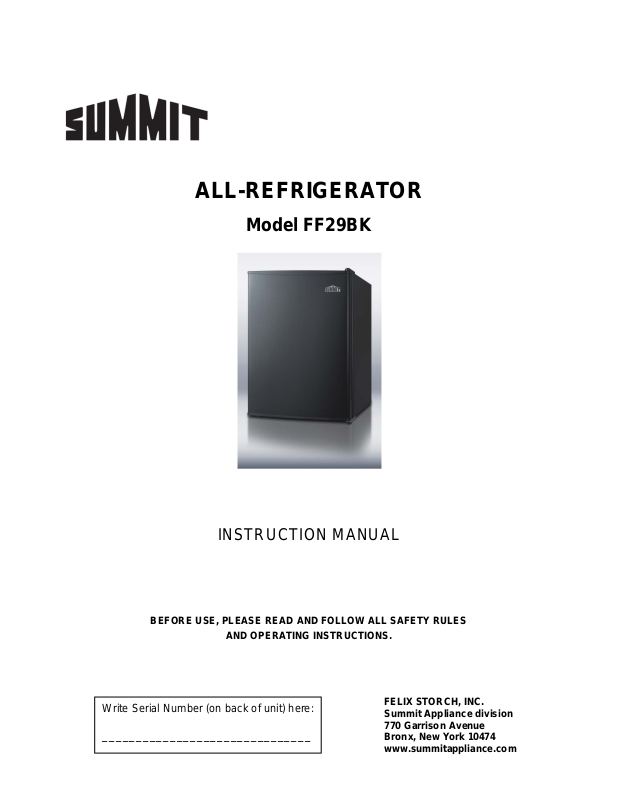

Page 1
FELIX STORCH, INC.
Write Serial Number (on back of unit) here:
ALL-REFRIGERATOR
Model FF29BK
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES
_______________________________
INSTRUCTION MANUAL
AND OPERATING INSTRUCTIONS.
Summit Appliance division
770 Garrison Avenue
Bronx, New York 10474
www.summitappliance.com
Page 2
1
IMPORTANT SAFETY INSTRUCTIONS
Before the refrigerator is use d, it m ust be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury w hen using the refrigerator, follow basic precautions,
including the following:
• Plug into a grounded 3-prong outlet, do not remove groun din g pr ong, do not use an adapter, and
do not use an extension cor d.
• It is recommended that a separat e circuit, serving only y our r efrigerator be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
• Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or
explosion.
• Do not store or use gasoline or ot her f lammable vapors and liquids inside or in the vicinity of this
or any other appliance. The fu me s can create a fire hazard or explosion.
• Do not use inflammable s pr ays in the vicinity of the refrigerator.
• Before proceeding with cl eaning and maintenance operati ons, make sure the power line of t he
unit is disconnected.
• Do not connect or disconnect the electric plug when y our hands ar e w et.
• Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock o r deat h.
• Do not attempt to repair or replace any part of your refriger ator unless it is specifically
recommended in this manual. All other ser vicing should be referred t o a qualified technician.
• Risk of child entrapment!
Child entrapment and suff oca t io n ar e not problems of the past. Junked or abandoned
refrigerators are still dangerous, even if they will "just sit in the garage a few days."
√ Befor e you throw away your old refrigerator: Take off the doors. Leave the shelves in
place so that children may not easi ly climb inside.
√ Never allow children to operate, play with, or cr aw l i nside the refrigerator.
• Use two or more people to move and install the refrigerator. Failure to do so can result in back
or other injury.
• To ensure proper ventilat i on for your refrigerator, the front of the unit must be completely
unobstructed. Choos e a well-ventilated area with t emper atures above 60°F (16°C) and below
90°F (32°C). This unit must be installed in an area protected from th e elements, such as wind,
rain, water spray or drips.
Page 3
2
• The refrigerator should not be located next to ovens, grills or ot her sources of high heat.
• The refrigerator must be installed with all electrical, water and drain co nnections in accordance
with state and local codes. A standard electrical supply ( 115 V A C only, 60 Hz), properly
grounded in accordance w it h t he National Electrical Code and lo cal codes and ordinances is
required.
• Do not kink or pinch the power supply cord of the refrigerator.
• The fuse (or circuit brea ker) size should be 15 amperes.
• It is important for the refriger at or t o be leveled in order to work properly. You may need to make
several adjustments t o level it.
• Check for leaks after connection.
• Never allow children to oper at e, play with or crawl inside the refrigerator.
• This appliance is not intended f or use by persons (including children) with reduced physical,
sensory or mental capabili t ies, or lack of experience and knowledge, unless they have been
given supervision or instr uction concerning use of the app lia nce by a person responsible for their
safety.
• IMPORTANT: Do not use me chanical devices or other means t o accelerate the defrosting
process, other than those r ecommended by the manufacturer .
• IMPORTANT: Do not da m age t he r efrigerant circuit.
• IMPORTANT: Do not use elect rical appliances inside t he food storage compartment of the
appliance, unless they ar e of t he t ype recommended by the manufact urer.
• Do not use solvent-based clea ning agents or abrasives on the int er ior. These cleaners may
damage or discolor the inter ior .
• Do not use this apparatus for other t han its intended purpose.
SAVE THESE INSTRUCTIO NS
Page 4
3
INSTALLATION INSTRUCTIONS
Warning
Before Using Yo ur Refrigerator
• Remove the exterior and int er ior packing.
• Before connecting the refrigerator to the power source, let it stand upright for approximately
2 hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
Installing Your Refri ger a tor
• This appliance is designed to be free sta ndi ng only, and should not be recessed or built-in.
• Place your refrigerator on a floor that is strong enough to support the refrigerator when it is
fully loaded. To level your refri ger at or , adjust the leveling leg at the bott om of the refrigerator.
• Allow about 5” (12 cm) of space between the back and sides of the refrigerator, which allows
the proper air circulation to cool the compressor.
• Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extremely cold ambient temperatures may also cause the refrigerator not to
perform properly.
• Avoid locating the refrigerator in moist areas.
• Plug the refrigerator into an exclusive, properly installed and grounded wall outlet. Do not
under any circumstances cut or remove the third (ground) prong from the power cord. Any
questions concerning power and/or grounding should be directed toward a certified
electrician or an authorized service center.
• After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours
before placing food in the refrigerator compartment.
Electrical Connection
Improper use of the grounded plug can result in the risk of elect r ical shock. If the power cord
is damaged, have it replaced by an authorized servic e cent er.
• This refrigerator should be properly grounded for your safety. The power cord of this
refrigerator is equipped with a three-pin plug which mates with standard three prong wall
outlets to minimize the po ssibility of electrical shock.
• Do not under any circumstances cut or remove the third ground prong from the power cord
supplied.
• This refrigerator requires a standard 115Volts AC
grounded receptacle.
• The cord should be secured behind the refrigerator and not left exposed or dangling to
prevent accidental injury .
• Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull
straight out from the receptacle.
• Do not use an extension cord with this appliance. If the power cord is too short, have a
qualified electrician or service technician install an outlet near the appliance.
~ 60Hz electrical outlet with three-prong
Page 5
4

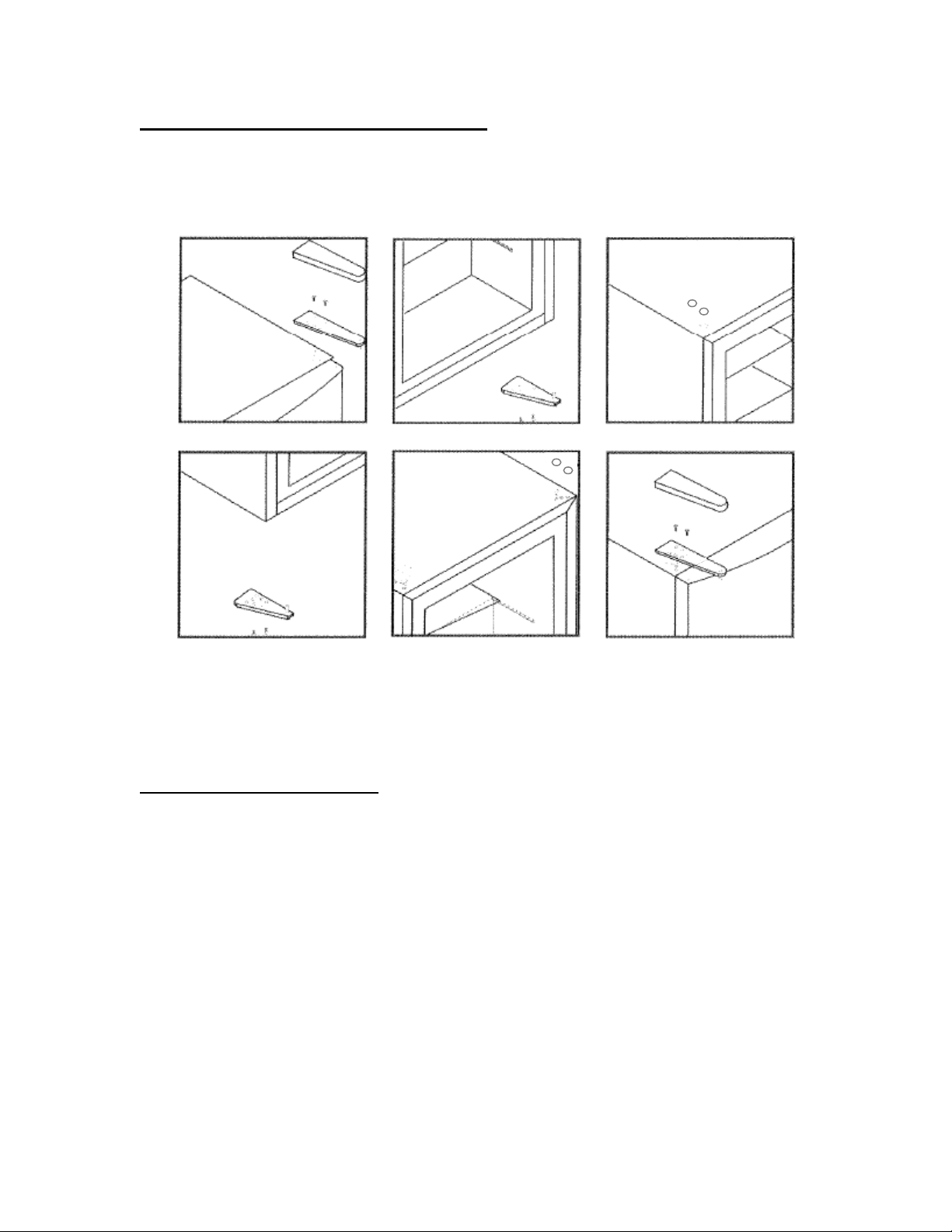

Reversing the Door Swing of Your Appliance
This refrigerator has the capability of the door opening fro m e ither the left or right side. The unit
is delivered to you with the door opening from the left side. Should y ou desire to reverse the
opening direction, you can r efer t o the diagram below. If you have a pr oble m, call SUMMIT
Customer Service at 1-800-932-4267.
OPERATING YOUR REFRIGERATOR
Setting the Temperature Control
• To contr ol the internal temperature, adjust the control dial acc ording to the ambient tem perature
or intended use of the refrigerator.
• The first time you turn the unit on, set the temperature control to “6.”
• The range of the temperature control is fr om position "OFF” to “6”. After 24 to 48 hours , adjust
the temperature co ntrol to the setting that bes t suits your needs. The sett ing of “3” shoul d be
appropriate for home or office refrigerator use.
NOTE:
If the refrigerator is unplu gged, has lost power, or is turned off, you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.
Page 6
5
CARE AND MAINTENANCE
Defrosting Your Refrigerator
This appliance requires no ma nual defrosting. During the operation of the compressor, ic e w il l
build up along the cold rear w all (t he evaporator plate is behind the wall). During the
compressor’s off-cycle, the ice will melt, drip down, and coll ect in a t r ay above the compressor,
where the compressor’s h eat evaporates the water. If you notice excessive ice build-up on the
rear wall, try setting the temp er at ur e slightly higher (i.e., a lower sett ing of the thermostat). Also,
be sure that the door gasket is sea li ng w ell.
Cleaning Your Refrigerator
• Turn t he tem perature c ontrol t o "OFF ", unpl ug the ref ri gerator and r em ove the f ood, shelv es, an d
trays.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should
consist of about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves and trays with a mild detergent solution.
• The outside of the refrigerator should be cleaned with mild detergent and warm water.
• W ring excess water out of the spon ge or cloth before cleaning the area of the controls, or a ny
electrical parts.
• W ash the outside cabinet with warm water and m ild liquid detergent. Rinse well and wipe dry
with a clean soft cloth.
Vacation Time
• Short vacations: Leave the refrigerator operating during vacations of less than three weeks.
• Long vacations: If the ref rigerator will not be used for sever al months, rem ove all food and unpl ug
the power cord. Cl ean and dry the interior thorough ly. To prevent odor and m old growth, leave the
door open slightly, blocking it open if necessary.
Moving Your Refrigerator
• Remove all the food.
• Securely tape down all loose items inside your refrigerator.
• Turn the leveling screw up to the base to avoid damage.
• Tape the door shut.
• Be sure the ref rigerator stays secure in the upright posit ion during transportation. Also protect
the outside of the refrigerator with a blanket or similar item.
Energy Saving Tips
• The refrigerator should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the refrigerator. Overloading the
refrigerator forces the compressor to run longer.
• Be sure t o wrap foods proper ly, and wipe containers dry before pl acing them in the refrigerator.
This cuts down on frost build-up inside the refrigerator.
• Refrigerator storage bin should not be lined with aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulation, making the refrigerator less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.
Page 7
6
PROBLEMS WITH YOUR REFRIGERATOR
PROBLEM
POSSIBLE CAUSE
You can solve many common refrigerator problems easily , saving you the cost of a possible service
call. Try the suggestions below t o se e if you can solve the proble m be fore calling the servicer.
TROUBLESHOOTING GUIDE
Refrigerator does not operate. Not plugged in.
Circuit breaker has trippe d or a fus e has blown.
The refrigerator temper at ure control is set at
"OFF".
Turns on and off frequentl y. The room temperature is warmer than normal.
A large amount of food has been added to the
refrigerator.
The door is opened too often.
The door is not closed completely.
The temperature control i s not set correctly.
The door gasket does not seal pr operly.
The refrigerator does not have the correct
clearances.
Vibrations Check to be sure the refri ger ator is level.
The refrigerator seems to ma ke too much
noise.
The door will not close proper ly. The refrigerator is not level.
If your refrigerator shows ot her symptoms than those describe d above, or if you have checked all
items listed as the cause and t he pr oblem still exists, then call SUMMIT® Customer Service at
1-800-932-4267
A rattling noise may come from the flow of the
refrigerant, which is nor m al.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in
your refrigerator.
Contraction and expansi on of the inside walls
may cause popping and cr ackling noises.
The refrigerator is not level.
The door was reversed and not pr operly
installed.
The gasket is dirty.
The shelves, bins, or baskets ar e out of
position.
Page 8
7
LIMITED WARRANTY
FELIX STORCH, INC.
WARNING! This product may contain chemicals known to the state of California
Printed in China
ONE YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and
maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified
parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated
service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plast ic
parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards, and are not
covered from damage during handling or breaka ge.
5 YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace
or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters)
are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in
accordance with published installat ion in stru ctions.
DISCLAIMER OF IMPLIED WARRANTIES – LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE
OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
to cause cancer or birth defects or other reproductive harm. For more information,
visit: www.summitappliance.com/prop65
Chemicals known by the manufacturer to be pr esent in this product in co ncentrations
higher than threshold limits: NONE.
770 Garrison Avenue
Bronx, NY 10474
Phone: (718) 893-3900
Fax: (718) 842-3093
www.summitappliance.com
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
Loading...
