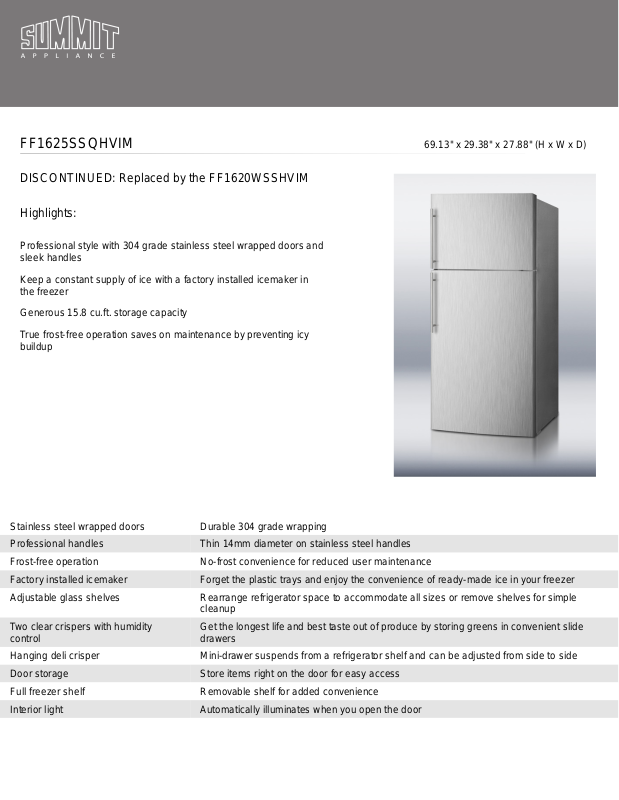

Summit FF1625SSQHVIM Specification Sheet

FF1625SSQHVIM 69.13" x 29.38" x 27.88" (H x W x D)

DISCONTINUED: Replaced by the FF1620WSSHVIM

Highlights:

Professional style with 304 grade stainless steel wrapped doors and
sleek handles

Keep a constant supply of ice with a factory installed icemaker in
the freezer

Generous 15.8 cu.ft. storage capacity
True frost-free operation saves on maintenance by preventing icy

buildup

Stainless steel wrapped doors Durable 304 grade wrapping
Professional handles Thin 14mm diameter on stainless steel handles
Frost-free operation No-frost convenience for reduced user maintenance
Factory installed icemaker Forget the plastic trays and enjoy the convenience of ready-made ice in your freezer
Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple

cleanup

Two clear crispers with humidity
control

Hanging deli crisper Mini-drawer suspends from a refrigerator shelf and can be adjusted from side to side
Door storage Store items right on the door for easy access
Full freezer shelf Removable shelf for added convenience
Interior light Automatically illuminates when you open the door

Get the longest life and best taste out of produce by storing greens in convenient slide
drawers

Specifications:

Height 69.13"
Width 29.38"
Depth 27.88"
Capacity 15.8 cu.ft.
Ext Depth with Handle 29.38"
Interior Height 1 38.75"
Interior Width 1 25.0"
Interior Depth 1 22.25"
Interior Height 2 19.63"
Interior Width 2 24.5"
Interior Depth 2 17.0"
Energy Usage/Year 457.0 kWh/year
US Electrical Safety UL
Amps 3.0
Canadian Electrical Safety ULC
Voltage/Frequency 115 V AC/60 Hz
Reversible Factory Reversible
Door Swing RHD
Crisper Quantity 2
Shelf Quantity 2
Adjustable Shelf true
Shelf Type Glass
Crisper Cover Type Glass
Crisper Finish Transparent
Full Door Shelf Quantity 7
Gallon Storage true
Wheel Quantity 4
Defrost Type Frost-Free
Depth with door at 90° 54.63"
Fan Type Interior
Thermostat Type Dial
Light true
Freon Type R134a
Low Side PSI 140.0
Freon Oz 3.5
Level Legs Quantity 2
High Side PSI 335.0
Parts/Labor Warranty 1 Year
Compressor Warranty 5 Years
