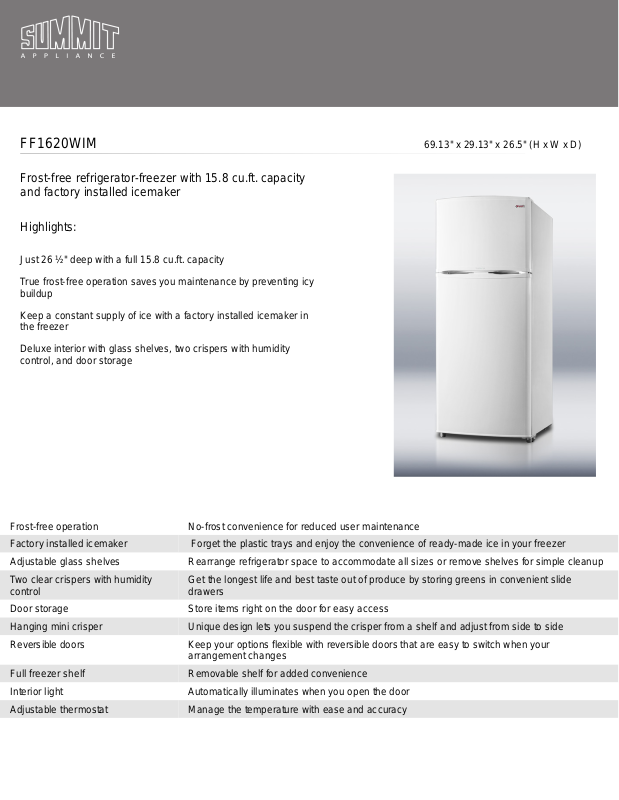

Summit FF1620WIM Specification Sheet

FF1620WIM 69.13" x 29.13" x 26.5" (H x W x D)

Frost-free refrigerator-freezer with 15.8 cu.ft. capacity
and factory installed icemaker

Highlights:

Just 26 ½" deep with a full 15.8 cu.ft. capacity
True frost-free operation saves you maintenance by preventing icy

buildup
Keep a constant supply of ice with a factory installed icemaker in

the freezer
Deluxe interior with glass shelves, two crispers with humidity

control, and door storage

Frost-free operation No-frost convenience for reduced user maintenance
Factory installed icemaker Forget the plastic trays and enjoy the convenience of ready-made ice in your freezer
Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Two clear crispers with humidity

control
Door storage Store items right on the door for easy access
Hanging mini crisper Unique design lets you suspend the crisper from a shelf and adjust from side to side
Reversible doors Keep your options flexible with reversible doors that are easy to switch when your

Full freezer shelf Removable shelf for added convenience
Interior light Automatically illuminates when you open the door
Adjustable thermostat Manage the temperature with ease and accuracy

Get the longest life and best taste out of produce by storing greens in convenient slide
drawers

arrangement changes

Specifications:

Height 69.13"
Width 29.13"
Depth 26.5"
Capacity 15.8 cu.ft.
Interior Height 1 38.75"
Interior Width 1 25.0"
Interior Depth 1 22.25"
Interior Height 2 19.63"
Interior Width 2 24.5"
Interior Depth 2 17.0"
Energy Usage/Year 457.0 kWh/year
US Electrical Safety UL
Amps 3.0
Canadian Electrical Safety ULC
Voltage/Frequency 115 V AC/60 Hz
Reversible Yes
Door Swing RHD
Crisper Quantity 2
Shelf Quantity 2
Adjustable Shelf true
Shelf Type Glass
Crisper Cover Type Glass
Crisper Finish Transparent
Full Door Shelf Quantity 7
Wheel Quantity 4
Defrost Type Frost-Free
Depth with door at 90° 54.63"
Fan Type Interior
Thermostat Type Dial
Light true
Low Side PSI 140.0
Freon Oz 3.5
High Side PSI 335.0
Freon Type R134a
Level Legs Quantity 2
Parts/Labor Warranty 1 Year
Compressor Warranty 5 Years
