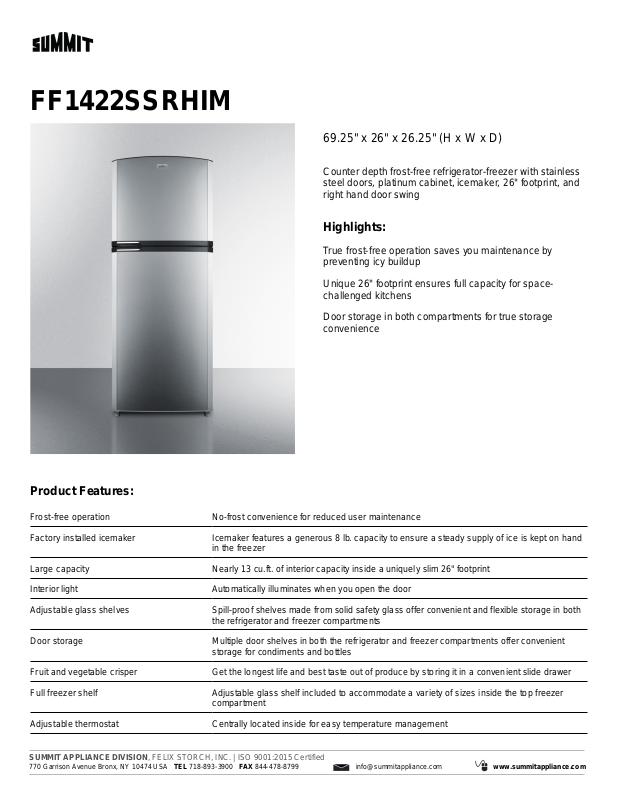

Summit FF1422SSRHIM Instruction Manual

FF1422SSRHIM

69.25" x 26" x 26.25" (H x W x D)

Counter depth frost-free refrigerator-freezer with stainless
steel doors, platinum cabinet, icemaker, 26" footprint, and
right hand door swing

Highlights:

True frost-free operation saves you maintenance by
preventing icy buildup

Unique 26" footprint ensures full capacity for space­challenged kitchens

Door storage in both compartments for true storage
convenience

Product Features:

Frost-free operation No-frost convenience for reduced user maintenance
Factory installed icemaker Icemaker features a generous 8 lb. capacity to ensure a steady supply of ice is kept on hand

in the freezer
Large capacity Nearly 13 cu.ft. of interior capacity inside a uniquely slim 26" footprint
Interior light Automatically illuminates when you open the door
Adjustable glass shelves Spill-proof shelves made from solid safety glass offer convenient and flexible storage in both

the refrigerator and freezer compartments
Door storage Multiple door shelves in both the refrigerator and freezer compartments offer convenient

storage for condiments and bottles
Fruit and vegetable crisper Get the longest life and best taste out of produce by storing it in a convenient slide drawer
Full freezer shelf Adjustable glass shelf included to accommodate a variety of sizes inside the top freezer

compartment
Adjustable thermostat Centrally located inside for easy temperature management

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FF1422SSRHIM Specifications:

Overview

Height of Cabinet 69.25" (176 cm)
Width 26.0" (66 cm)
Width with Door Open 27.5" (70 cm)
Depth 26.25" (67 cm)
Depth with Handle 27.75" (70 cm)
Depth with door at 90° 49.5" (126 cm)
Capacity 12.9 cu.ft. (365

Defrost Type Frost-Free
Door Stainless Steel
Cabinet Platinum
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 445.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 185.0 lbs. (84

Shipping Weight 190.0 lbs. (86

Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible No
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior

Height
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 19.63" (50 cm)
Refrigerator - Capacity 8.97 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door

Shelves
Freezer - Interior Height 18.5" (47 cm)

37.88" (96 cm)

kg)

kg)

Freezer - Interior Width 20.75" (53 cm)
Freezer - Interior Depth 16.0" (41 cm)
Freezer - Capacity 3.92 cu.ft
Freezer - Shelf Type Glass
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 2
Thermostat Type Dial
Fan Type Interior

L)

Refrigerant Type R134a
Refrigerant Amount 3.5 oz.
Level Legs 2
Compressor Step Height 10.5" (27 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 7.0" (18 cm)

3
