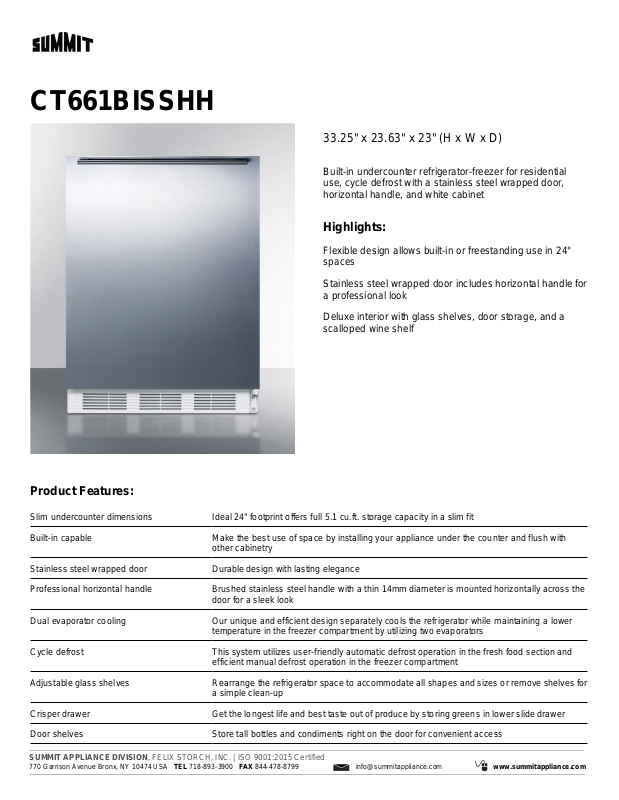

Summit CT661BISSHH Specification Sheet

CT661BISSHH

33.25" x 23.63" x 23" (H x W x D)

Built-in undercounter refrigerator-freezer for residential
use, cycle defrost with a stainless steel wrapped door,
horizontal handle, and white cabinet

Highlights:

Flexible design allows built-in or freestanding use in 24"
spaces

Stainless steel wrapped door includes horizontal handle for
a professional look

Deluxe interior with glass shelves, door storage, and a
scalloped wine shelf

Product Features:

Slim undercounter dimensions Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinetry
Stainless steel wrapped door Durable design with lasting elegance
Professional horizontal handle Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the

door for a sleek look
Dual evaporator cooling Our unique and efficient design separately cools the refrigerator while maintaining a lower

temperature in the freezer compartment by utilizing two evaporators
Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and

efficient manual defrost operation in the freezer compartment
Adjustable glass shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for

a simple clean-up
Crisper drawer Get the longest life and best taste out of produce by storing greens in lower slide drawer
Door shelves Store tall bottles and condiments right on the door for convenient access

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

CT661BISSHH Specifications:

Overview

Height of Cabinet 33.25" (84 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.1 cu.ft. (144

Defrost Type Cycle
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 365.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45

kg)

Shipping Weight 120.0 lbs. (54

kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 18.0" (46 cm)
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 18.0" (46 cm)
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door

Shelves
Freezer - Interior Height 5.25" (13 cm)
Freezer - Interior Width 19.0" (48 cm)

Freezer - Interior Depth 11.5" (29 cm)
Freezer - Capacity 0.6 cu.ft
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.33 oz.

L)

High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)

3
