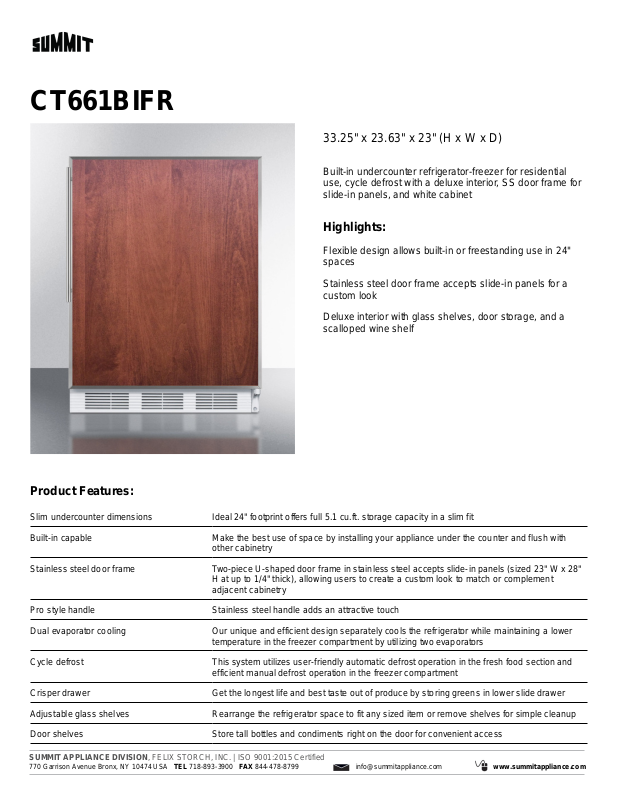

Summit CT661BIFR Specification Sheet

CT661BIFR

33.25" x 23.63" x 23" (H x W x D)

Built-in undercounter refrigerator-freezer for residential
use, cycle defrost with a deluxe interior, SS door frame for
slide-in panels, and white cabinet

Highlights:

Flexible design allows built-in or freestanding use in 24"
spaces

Stainless steel door frame accepts slide-in panels for a
custom look

Deluxe interior with glass shelves, door storage, and a
scalloped wine shelf

Product Features:

Slim undercounter dimensions Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinetry

Stainless steel door frame Two-piece U-shaped door frame in stainless steel accepts slide-in panels (sized 23" W x 28"

H at up to 1/4" thick), allowing users to create a custom look to match or complement

adjacent cabinetry
Pro style handle Stainless steel handle adds an attractive touch
Dual evaporator cooling Our unique and efficient design separately cools the refrigerator while maintaining a lower

temperature in the freezer compartment by utilizing two evaporators
Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and

efficient manual defrost operation in the freezer compartment
Crisper drawer Get the longest life and best taste out of produce by storing greens in lower slide drawer
Adjustable glass shelves Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
Door shelves Store tall bottles and condiments right on the door for convenient access

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

CT661BIFR Specifications:

Overview

Height of Cabinet 33.25" (84 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.1 cu.ft. (144

Defrost Type Cycle
Door Panel-Ready
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 365.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45

kg)

Shipping Weight 120.0 lbs. (54

kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 18.0" (46 cm)
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 18.0" (46 cm)
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door

Shelves
Freezer - Interior Height 5.25" (13 cm)
Freezer - Interior Width 19.0" (48 cm)

Freezer - Interior Depth 11.5" (29 cm)
Freezer - Capacity 0.6 cu.ft
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.33 oz.

L)

High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)

3
