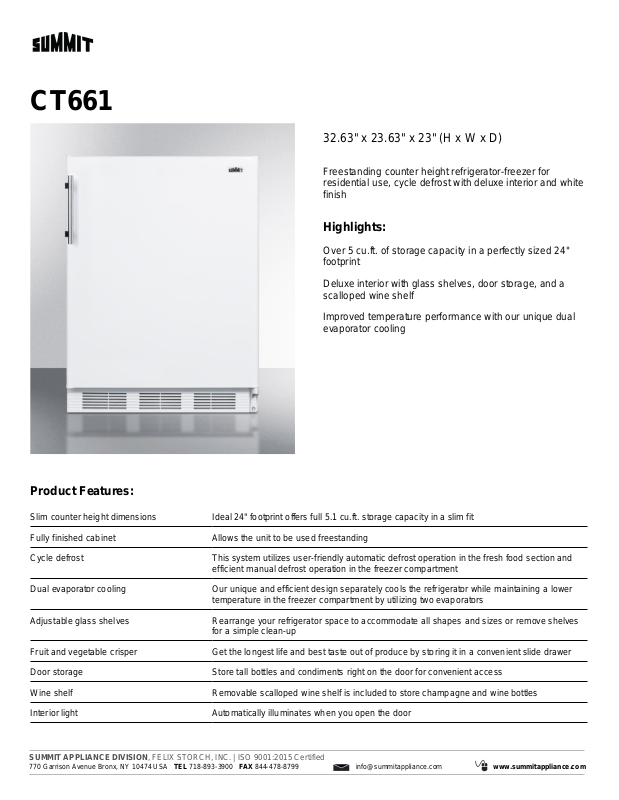

Summit CT661 Specification Sheet

CT661

32.63" x 23.63" x 23" (H x W x D)

Freestanding counter height refrigerator-freezer for
residential use, cycle defrost with deluxe interior and white
finish

Highlights:

Over 5 cu.ft. of storage capacity in a perfectly sized 24"
footprint

Deluxe interior with glass shelves, door storage, and a
scalloped wine shelf

Improved temperature performance with our unique dual
evaporator cooling

Product Features:

Slim counter height dimensions Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
Fully finished cabinet Allows the unit to be used freestanding
Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and

efficient manual defrost operation in the freezer compartment

Dual evaporator cooling Our unique and efficient design separately cools the refrigerator while maintaining a lower

temperature in the freezer compartment by utilizing two evaporators

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves

for a simple clean-up
Fruit and vegetable crisper Get the longest life and best taste out of produce by storing it in a convenient slide drawer
Door storage Store tall bottles and condiments right on the door for convenient access
Wine shelf Removable scalloped wine shelf is included to store champagne and wine bottles
Interior light Automatically illuminates when you open the door

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

CT661 Specifications:

Overview

Height of Cabinet 32.63" (83 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.1 cu.ft. (144

Defrost Type Cycle
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 365.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45

kg)

Shipping Weight 110.0 lbs. (50

kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 18.0" (46 cm)
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 18.0" (46 cm)
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door

Shelves
Freezer - Interior Height 5.25" (13 cm)

Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Freezer - Capacity 0.6 cu.ft
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 2.33 oz.
High Side PSI 285.0

L)

Low Side PSI 70.0
Level Legs 2
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)

3
