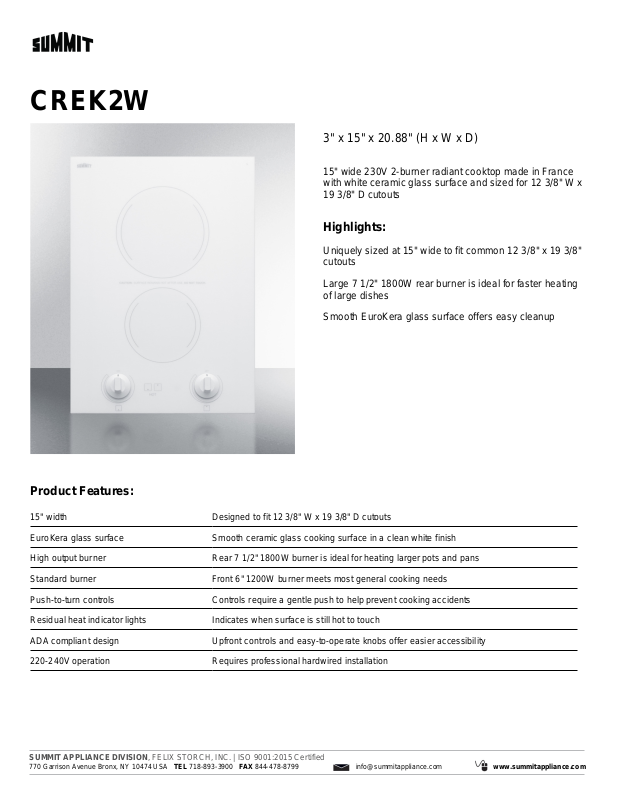

Summit CREK2W Specifications

CREK2W

3" x 15" x 20.88" (H x W x D)

15" wide 230V 2-burner radiant cooktop made in France
with white ceramic glass surface and sized for 12 3/8" W x
19 3/8" D cutouts

Highlights:

Uniquely sized at 15" wide to fit common 12 3/8" x 19 3/8"
cutouts

Large 7 1/2" 1800W rear burner is ideal for faster heating
of large dishes

Smooth EuroKera glass surface offers easy cleanup

Product Features:

15" width Designed to fit 12 3/8" W x 19 3/8" D cutouts
EuroKera glass surface Smooth ceramic glass cooking surface in a clean white finish
High output burner Rear 7 1/2" 1800W burner is ideal for heating larger pots and pans
Standard burner Front 6" 1200W burner meets most general cooking needs
Push-to-turn controls Controls require a gentle push to help prevent cooking accidents
Residual heat indicator lights Indicates when surface is still hot to touch
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility
220-240V operation Requires professional hardwired installation

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

CREK2W Specifications:

Overview

Height of Cabinet 3.0" (8 cm)
Width 15.0" (38 cm)
Depth 20.88" (53 cm)
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Amps 15.0
Voltage/Frequency 230 V AC/60 Hz
Weight 14.0 lbs. (6 kg)
Shipping Weight 15.0 lbs. (7 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year

Electric Cooktop

Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 2
controls Dial
Countertop Cutout Height 3.5" (9 cm)
Countertop Cutout Width 12.38" (31 cm)
Countertop Cutout Depth 19.38" (49 cm)
Power Source 230V
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1200.0
Element #2 Size 7.5" (19 cm)
Element #2 Wattage 1800.0

ULC
