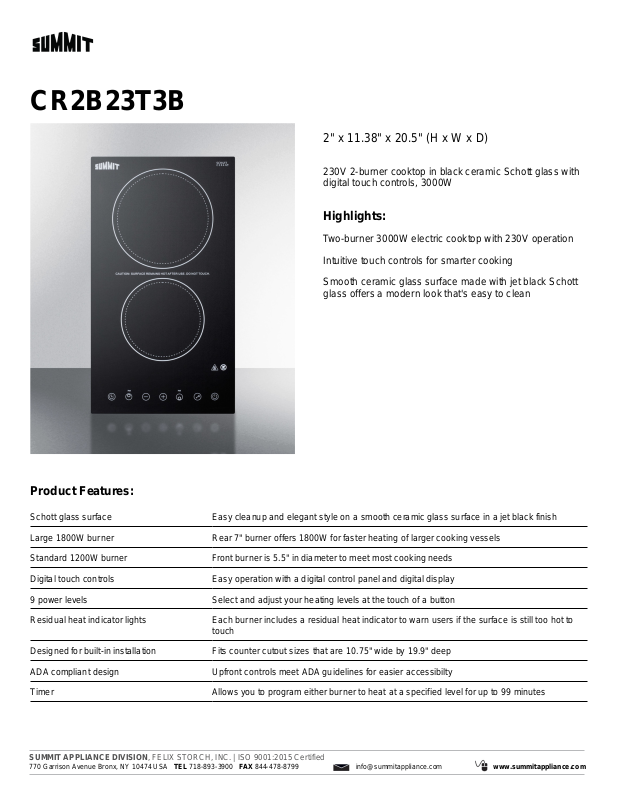

Summit CR2B23T3B Specifications

CR2B23T3B

2" x 11.38" x 20.5" (H x W x D)

230V 2-burner cooktop in black ceramic Schott glass with
digital touch controls, 3000W

Highlights:

Two-burner 3000W electric cooktop with 230V operation
Intuitive touch controls for smarter cooking
Smooth ceramic glass surface made with jet black Schott

glass offers a modern look that's easy to clean

Product Features:

Schott glass surface Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
Large 1800W burner Rear 7" burner offers 1800W for faster heating of larger cooking vessels
Standard 1200W burner Front burner is 5.5" in diameter to meet most cooking needs
Digital touch controls Easy operation with a digital control panel and digital display
9 power levels Select and adjust your heating levels at the touch of a button
Residual heat indicator lights Each burner includes a residual heat indicator to warn users if the surface is still too hot to

touch
Designed for built-in installation Fits counter cutout sizes that are 10.75" wide by 19.9" deep
ADA compliant design Upfront controls meet ADA guidelines for easier accessibilty
Timer Allows you to program either burner to heat at a specified level for up to 99 minutes

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

CR2B23T3B Specifications:

Overview

Height of Cabinet 2.0" (5 cm)
Width 11.38" (29 cm)
Depth 20.5" (52 cm)
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 15.0
Voltage/Frequency 230 V AC/60 Hz
Weight 10.0 lbs. (5 kg)
Shipping Weight 12.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year

Electric Cooktop

Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 2
controls Digital
Cooking Timer Yes
Countertop Cutout Height 5.9" (15 cm)
Countertop Cutout Width 10.75" (27 cm)
Countertop Cutout Depth 19.9" (51 cm)
Power Source 230V
Element #1 Size 7.0" (18 cm)
Element #1 Wattage 1800.0
Element #2 Size 5.5" (14 cm)
Element #2 Wattage 1200.0
