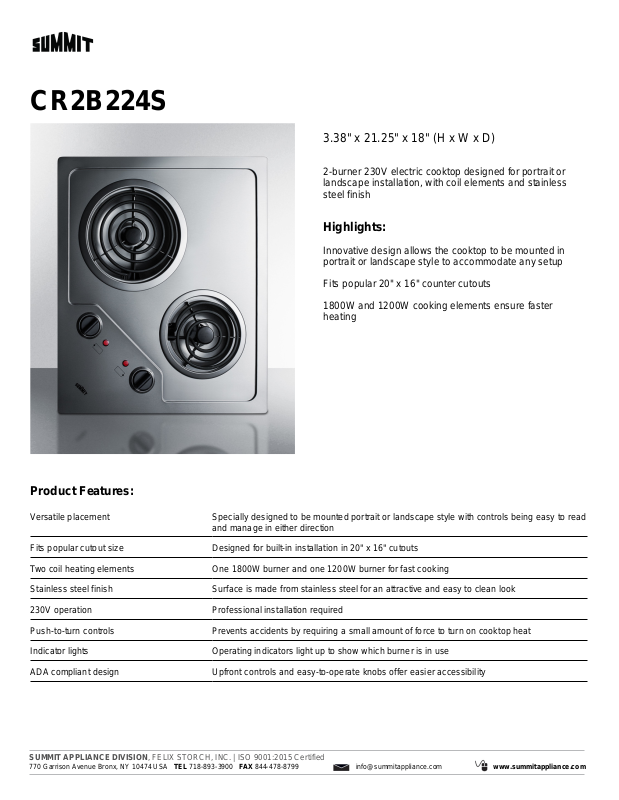

Summit CR2B224S Specifications

CR2B224S

3.38" x 21.25" x 18" (H x W x D)

2-burner 230V electric cooktop designed for portrait or
landscape installation, with coil elements and stainless
steel finish

Highlights:

Innovative design allows the cooktop to be mounted in
portrait or landscape style to accommodate any setup

Fits popular 20" x 16" counter cutouts
1800W and 1200W cooking elements ensure faster

heating

Product Features:

Versatile placement Specially designed to be mounted portrait or landscape style with controls being easy to read

and manage in either direction
Fits popular cutout size Designed for built-in installation in 20" x 16" cutouts
Two coil heating elements One 1800W burner and one 1200W burner for fast cooking
Stainless steel finish Surface is made from stainless steel for an attractive and easy to clean look
230V operation Professional installation required
Push-to-turn controls Prevents accidents by requiring a small amount of force to turn on cooktop heat
Indicator lights Operating indicators light up to show which burner is in use
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

CR2B224S Specifications:

Overview

Height of Cabinet 3.38" (9 cm)
Width 21.25" (54 cm)
Depth 18.0" (46 cm)
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 20.0
Voltage/Frequency 230 V AC/60 Hz
Weight 5.0 lbs. (2 kg)
Shipping Weight 7.0 lbs. (3 kg)
Parts & Labor Warranty 1 Year

Electric Cooktop

Heating Type Radiant
Surface Stainless Steel
Element Type Coils
Number of Elements 2
controls Dial
Countertop Cutout Height 3.0" (8 cm)
Countertop Cutout Width 20.0" (51 cm)
Countertop Cutout Depth 16.0" (41 cm)
Element #1 Size 5.5" (14 cm)
Element #1 Wattage 1200.0
Element #2 Size 7.0" (18 cm)
Element #2 Wattage 1800.0
