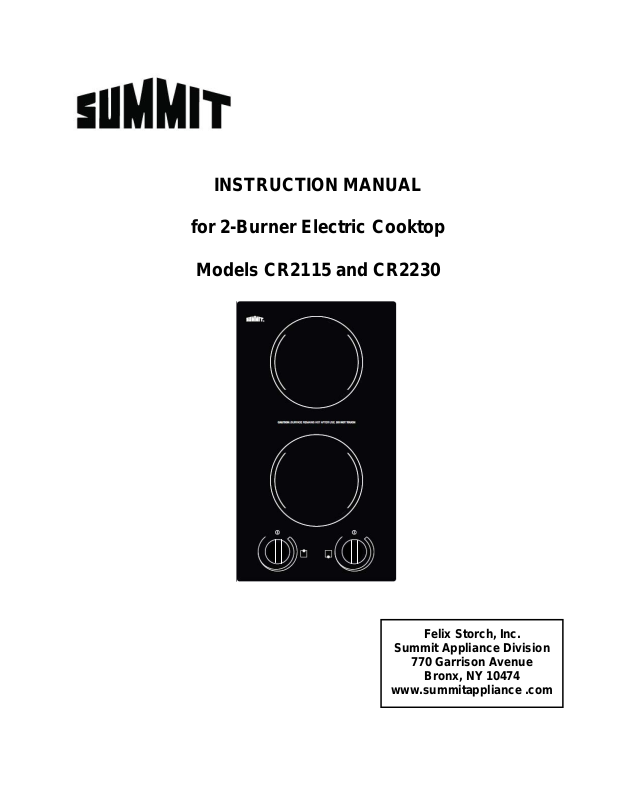

Summit CR2230 User Manual

INSTRUCTION M ANUAL

for 2-Burner Electric Cooktop

Models CR2115 and CR2230

Felix Storch, Inc.

Summit Appliance Division

770 Garrison Avenu e

Bronx, NY 10474

www.summitappliance .com

Page 1

Model Number

CR2115

CR2230

Description

2-burner ceramic glass electric cooktop

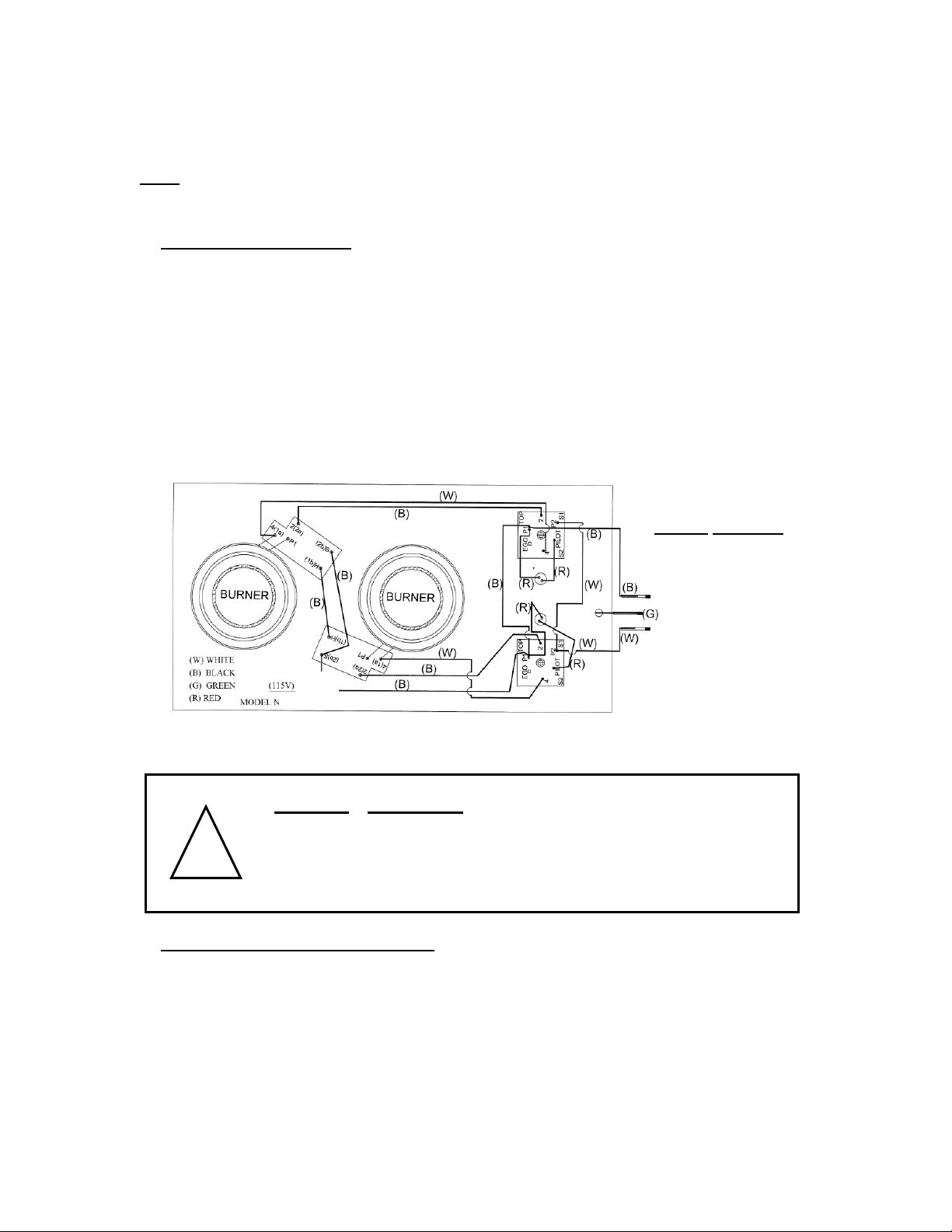

Electrical Requirements

120V AC, 60Hz

240V AC, 60Hz

Power Rating

1200 watts (each burner)

Diameter of each burner

6¼"

Overall Dimensions

3¼"H x 11⅜"W x 20⅛"D

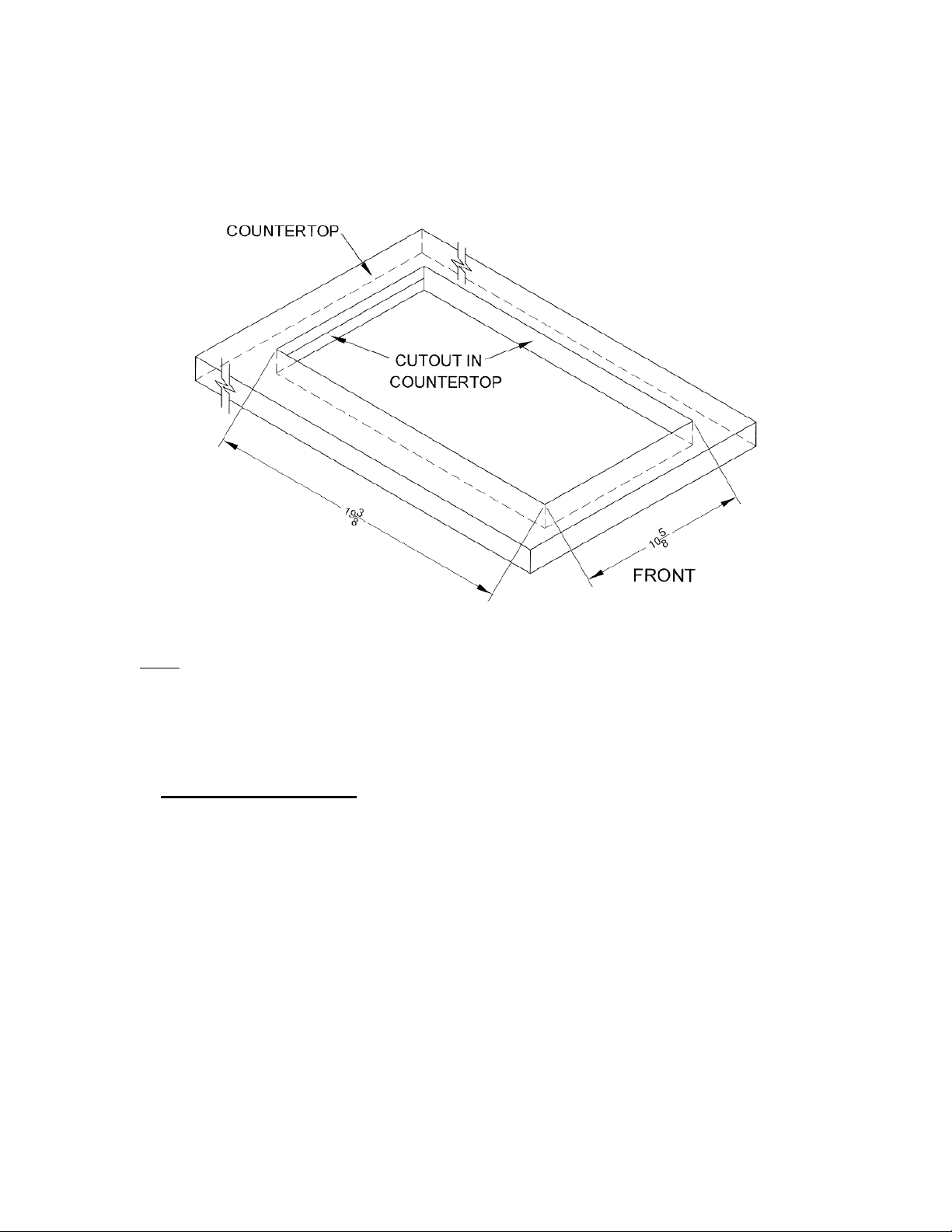

Cutout Dimensions

19⅜" x 10⅝" with ¼" radius

Please read these instructions in their entirety before installation and use of your
cook top. SAVE THIS MANUAL FOR FUTURE REFERENCE.

Table of Contents

Technical Information ........................................................................................ 1

Safety Instructions ......................................................................................... 2 - 3

Installation Instructions ................................................................................ 4 - 7

Unpacking the Cooktop ............................................................................. 4

Checking the Electrical Supply Requirements ........................................... 4

Preparing the Countertop ..................................................................... 5 - 6

Installing the Cooktop ........................................................................... 6 - 7

Electrical Connection ................................................................................ 7

Final Preparations Prior to Use ................................................................. 7

Operation ........................................................................................................ 8 - 9

Cookware ................................................................................................... 8

Heating Elements ....................................................................................... 8

Controls & Indicators .................................................................................. 9

Cleaning ..................................................................................................... 9

Warranty ............................................................................................................ 11

Technical Inf ormation

________________________________________

For future reference, please record the Serial Number

of your cooktop here:

Page 2

SAFETY INSTRUCTIONS

Read this section BEFORE operating the cookt op.

This cooktop, like all appliances, has the potential to create safety
problems through careless and improper use. Please observe all of
the following safety precautions.

• Proper Installation

Be sure your appliance is properly installed and grounded by a qualified
technician.

• Never use your appliance for warming or heating the room

• Do not leave children alone

Children should never be left alone or unattended in the area where the
appliance is in use. They should never be allowed to sit or stand on any part
of the appliance. Do not store items of interest to a child in cabinets above
cooktop. Children climbing on the cooktop to reach such items could be
seriously injured.

• Wear proper clothing/apparel

Loose-fitting or hanging garments should never be worn while using the
appliance.

• User Servicing

Do not repair or replace any part of the appliance. If service ever becomes
necessary, this appliance should be serviced by AUTHORIZED
PERSONNEL ONLY or ca ll SUMMIT Customer Service at 1-800-932-4267.

• Keep flammable materials away from the cooktop

• Do not store plastic material (such as plastic utensils) in storage areas

beneath cooktop

Plastic items with low melting temperatures should not be stored under, over
or near the cooktop.

• Do not soak removable heating element s

Heating elements should never be immersed in water.

• Do not use water on grease fires

Smother fire or flame or use dry chemical or foam-ty pe extinguisher.

• Use only dry potholders

Damp potholders on hot surfaces may result in burns from steam. Do not let
potholder touch the heating elements on the appliance. Do not use a towel
or other bulky cloth in place of a potholder.

Page 3

• Do not cook on a broken cooktop

If your cooktop should break, cleaning solutions and spillovers may pen etr ate
the broken cooktop and create a risk of electric shock. Immediately contact
an authorized service center or call the SUMMIT Customer Service at 1-800-
932-4267.

• Clean cooktop with caution

If a wet sponge or cloth is used to wipe spills on a hot cooking surface, be
careful to avoid steam burns. Some cleaners produce noxious fumes if
applied to a hot surface. Read the cleaner label for details prior to use.

• DO NOT TOUCH HEATING ELEMENTS

The heating elements on the cooktop may be hot even if they are dark in
color. These areas may be hot enough to cause burns. Never touch heating
elements until they have had sufficient time to cool. Likewise, never allow
clothing or flammable materials to come in contact with heating elements or
the cooktop surface until they have had sufficient time to cool. Other
surfaces of the appliance may become hot enough to cause burns.

• Use proper pan size

This appliance is equipped with two 6¼"-diameter sur f ace uni ts. Sel ect
utensils having flat bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a portion of the heating
element to direct contact and may result in ignition of clothing. Proper
relationship of utensil to burner will also improve efficiency.

• Never leave surface units unattended at high heat settings

Boil-over causes smoking and greasy spillovers that may ignite.

• Utensil handles should be turned inward and not extend over adjacent

surface units

To reduce the risk of burns, ignition of flammable materials, and spillage due
to unintentional contact with the utensil, the handle of a utensil should be
positioned so that it is turned inward, and does not extend over adjacent
surface units.

- SAVE THESE INSTRUCTIONS -
