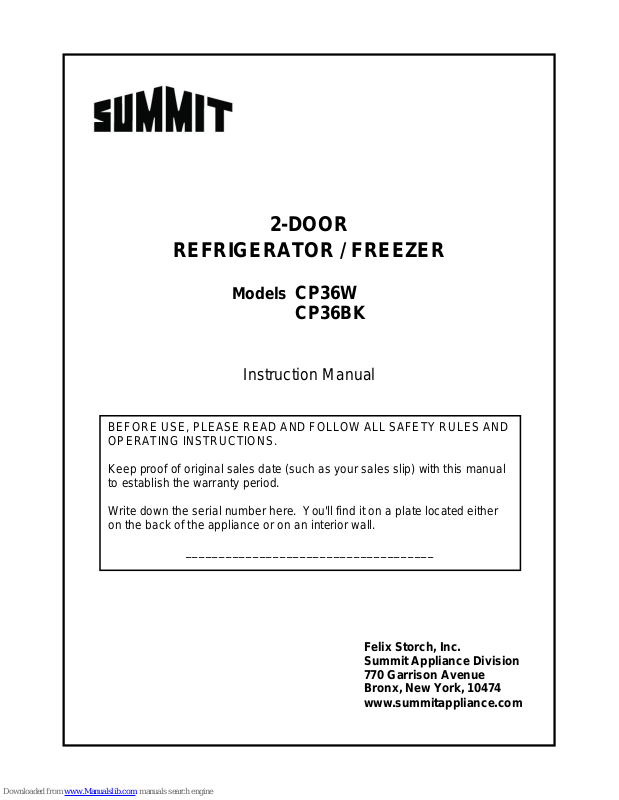

2-DOOR
REFRIGERATOR / FREEZER
Models CP36W
CP36BK
Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND
OPERATING INSTRUCTIONS.
Keep proof of original sales date (such as your sales slip) with this manual
to establish the warranty period.
Write down the serial number here. You'll find it on a plate located either
on the back of the appliance or on an interior wall.
_____________________________________
Felix Storch, Inc.
Summit Appliance Division
770 Garrison Avenue
Bronx, New York, 10474
www.summitappliance.com
TABLE OF CONTENTS
Important Safeguards ............................................................................. 2 - 3
Installation Instructions ......................................................................... 4 - 7
Before Using Your Appliance ...............................................................4
Installing Your Appliance ......................................................................4
Electrical Connection ..................................................................... 4 - 5

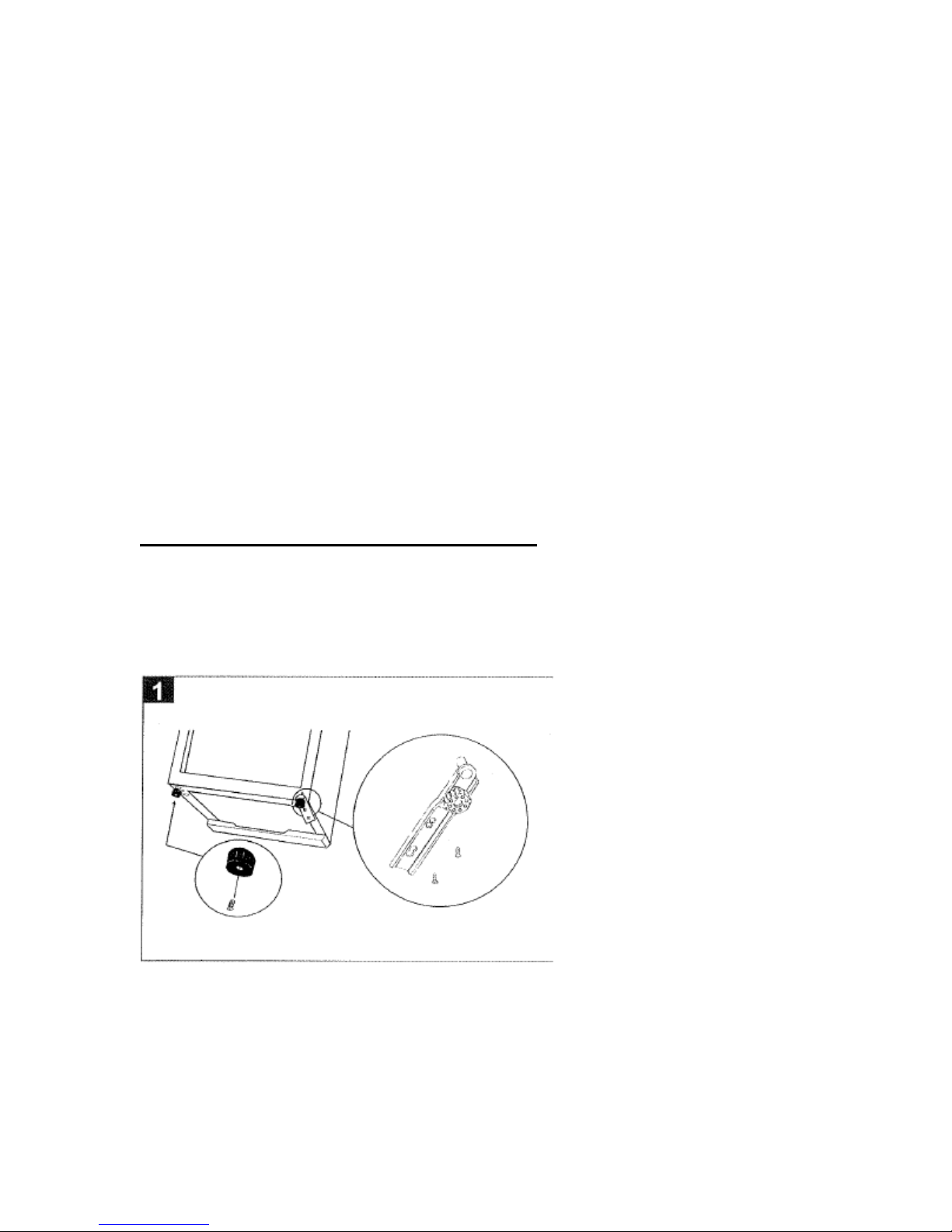

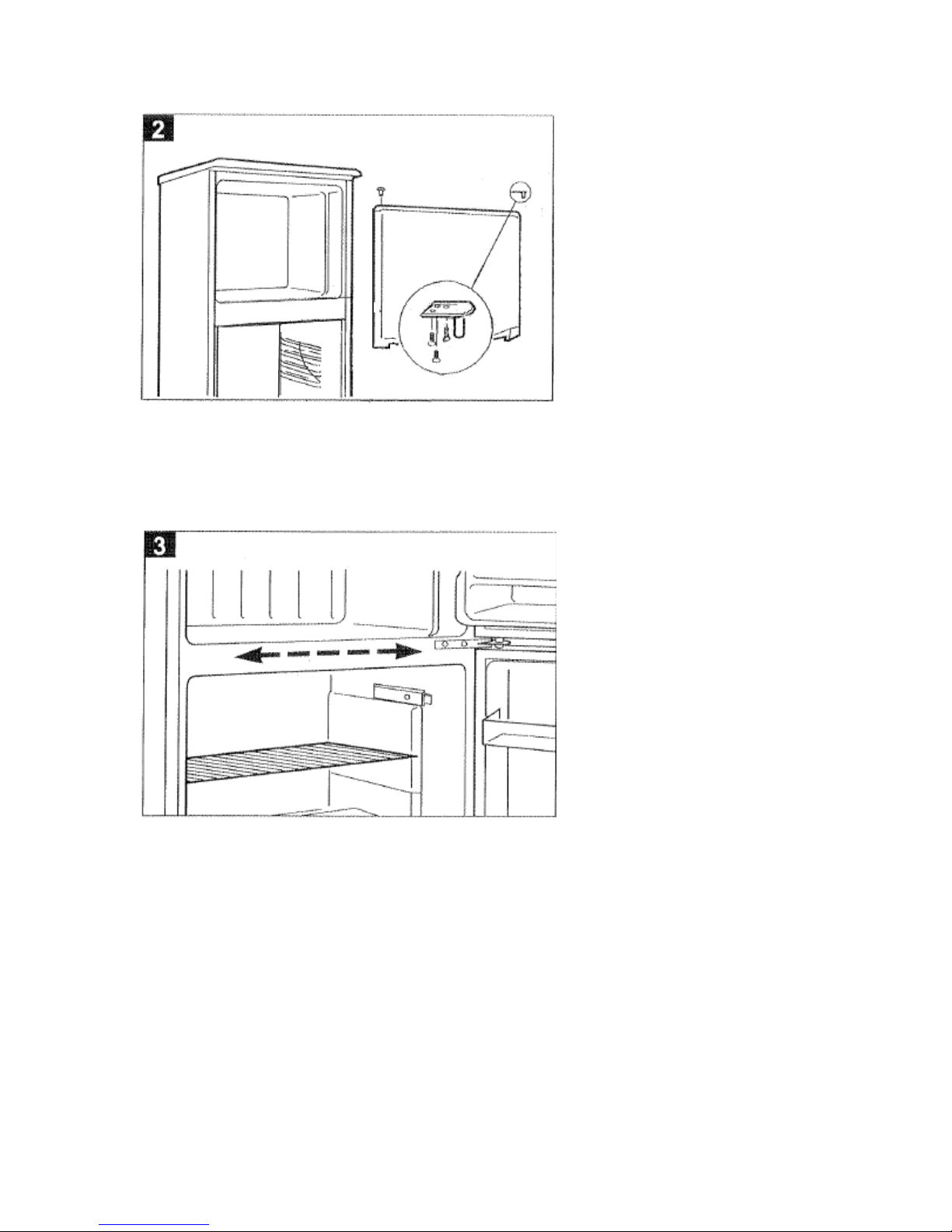

Reversing the Door Swing of Your Appliance ................................ 5 - 6
Leveling the Refrigerator ......................................................................7
Operating Your Appliance ...................................................................... 7 - 9
Temperature Control (Thermostat) .......................................................7
Interior Light .........................................................................................7
Fresh Food Storage .............................................................................8
Frozen Food Storage ..................................................................... 8 - 9
Defrosting Your Appliance ....................................................................9
. Using Your Ice Cube Tray ....................................................................9
Care and Maintenance ........................................................................ 10 - 11
Cleaning Your Refrigerator .................................................................10
Changing the Light Bulb .....................................................................10
Power Failure .....................................................................................10
Vacation Time ....................................................................................11
Moving Your Appliance ......................................................................11
Energy Saving Tips ............................................................................11
Troubleshooting Guide ...................................................................... 12 - 13
Limited Warranty .........................................................................................15
1
IMPORTANT SAFEGUARDS
Before the refrigerator/freezer is used, it must be properly positioned and
installed as described in this manual, so read the manual carefully. To reduce
the risk of fire, electrical shock or injury when using this appliance, follow basic
precautions, including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not
use an adaptor and do not use an extension cord.
It is recommended that a separate circuit, serving only your refrigerator, be
provided. Use receptacles that cannot be turned off by a switch or pull chain.
Never clean refrigerator parts with flammable fluids. These fumes can create
a fire hazard or explosion. Also, do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.
The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, unplug the
refrigerator or disconnect power. Failure to do so can result in electrical
shock or death.
Do not connect or disconnect the electric plug when your hands are wet.
Do not attempt to repair or replace any part of your refrigerator unless it is
specifically recommended in this manual. All other servicing should be
referred to a qualified technician.
DANGER: Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or
abandoned appliances are still dangerous, even if they will "just sit in the
garage a few days."
Before you throw away your old refrigerator or freezer, take off the doors.
Leave the shelves in place so that children may not easily climb inside.
Never allow children to operate, play with or crawl inside the refrigerator.
2
This unit is not designed to operate in enclosed spaces. When placing
your unit, make sure you allow at least 4” of clearance on all sides.
Use two or more people to move and install the refrigerator. Failure to do so
can result in back or other injury. When moving the appliance, do not tilt it
beyond 45° from the upright position.
To ensure proper ventilation for your refrigerator, the front of the unit must be
completely unobstructed. Choose a well-ventilated area with temperatures
above 60°F (16°C) and below 90°F (32°C). This unit must be installed in an
area protected from the elements such as wind, rain, water spray or drips.
The refrigerator should not be located next to ovens, grills or other sources of
high heat.
The refrigerator must be installed with an electrical connection in accordance
with state and local codes. A standard electrical supply (115-120V AC only,
60 Hz), properly grounded in accordance with the National Electrical Code
and local codes and ordinances is required.
Do not kink or pinch the power supply cord of the refrigerator.
The fuse (or circuit breaker) size should be 15 amps.
It is important for the refrigerator to be leveled in order to work properly. You
may need to make several adjustments to level it.
Do not use solvent-based cleaning agents or abrasives on the interior. These
cleaners may damage or discolor the interior.
This appliance is not intended for use by young children or infirm persons
without supervision.
Do not use this apparatus for other than its intended purpose.
CAUTION: THIS APPLIANCE IS NOT DESIGNED FOR THE STORAGE OF
MEDICINE OR OTHER MEDICAL PRODUCTS.
SAVE THESE INSTRUCTIONS
3
INSTALLATION INSTRUCTIONS
Before Using Your Appliance
1. Remove the exterior and interior packing. To remove any remaining tape or
glue, rub the area briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish soap over the
adhesive with your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol, flammable fluid or abrasive
cleaners to remove tape or glue. These products can damage the surface of
your refrigerator.
2. When moving the appliance, do not tilt it more than 45° from the upright position.
3. Before connecting the appliance to the power source, let it stand upright for
approximately 2 hours. This will reduce the possibility of a malfunction in the
cooling system from handling during transportation.
4. Clean the interior surfaces with lukewarm water using a soft cloth.
Installing Your Appliance
WARNING: Keep flammable materials and vapors such as gasoline away from
the refrigerator.
Place your appliance on a floor that is strong enough to support it when fully
loaded. To level your appliance, adjust the leg at the front of the appliance.
To ensure proper ventilation for your refrigerator, leave 8" of space on each
side, 4" between the back of the unit and the wall, and 12" above the unit.
If you are installing the refrigerator next to a fixed wall, leave sufficient space
on the hinge side to allow for the door to swing open.
Locate the appliance away from direct sunlight and sources of heat (stove,
heater, radiator, etc.). Direct sunlight can affect the refrigerator's coating and
heat sources can increase electrical consumption. Extremely cold ambient
temperatures may also cause the appliance to perform improperly.
Avoid locating the appliance in moist areas. Too much moisture in the air will
cause frost to form quickly on the evaporator, requiring more frequent
defrosting of the appliance.
Electrical Connection
Improper use of the grounded plug can result in the risk of electrical
shock. If the power cord is damaged, have it replaced by an authorized
Warning
service technician.
This appliance should be properly grounded for your safety. The power cord
of this appliance is equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of electrical shock.
4
