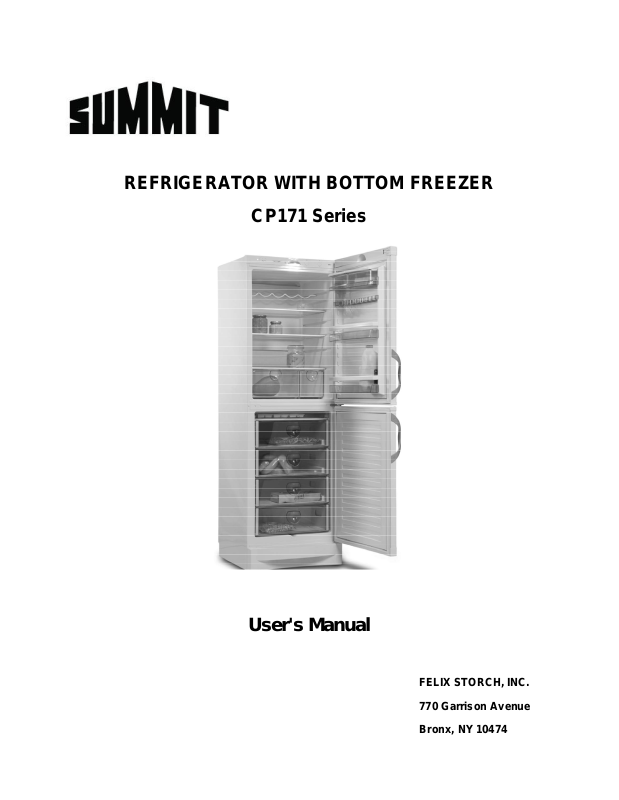

Summit CP171SS, CP171W User Manual

REFRIGERATOR WITH BOTTOM FREEZER

CP171 Series

B

User's Manual

FELIX STORCH, INC.
770 Garriso

n Avenue

Bronx, NY

10474

IMPORTANT SAFEGUARDS

WARNING: Keep ventilation openings in the appliance’s cabinet or in the built-in structure clear

of obstruction.

WARNING: Do not use other mechanical devices or other means to accelerate the defrosting

process than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant system.
WARNING: Do not use electrical appliances inside the refrigerated storage compartment

unless they are of a type recommended by the manufacturer.

WARNING: Do not expose the appliance to rain.
WARNING: This appliance is not intended for use by young children or infirm persons unless

they have been adequately supervised by a responsible person to ensure that they can use
the appliance safely. Young children should be supervised to ensure that they do not play
with the appliance.

WARNING: Risk of child entrapment.

Before you throw away your old refrigerator or freezer:

 Take off the doors.
 Leave the shelves in place so that children may not easily climb inside.

Always keep the keys in a separate place and out of reach of children.

Before servicing or cleaning the appliance, disconnect the electrical power supply.
If the power supply cord is damaged, it must be replaced by the manufacturer, its service

agent, or similarly qualified persons in order to avoid a hazard.
Frost formation on the interior evaporator wall and upper parts is a natural phenomenon.

Therefore, the appliance should be defrosted during normal cleaning or maintenance.
Directions for replacing the light bulb are included in the instructions.
Please note that changes to the appliance construction will cancel all warranty and product

liability.

2

Table of Contents

Important Safeguards ................................................................................................ 2

Before your first use ..................................................................................................3

Location of Parts .......................................................................................................4

Electrical Connection .................................................................................................5

Installation and Start-up .......................................................................................6 - 8

Reversing the Doors ..................................................................................................9

Operation and Function .................................................................................... 10 - 12

Defrosting ................................................................................................................ 13

Cleaning and Maintenance ......................................................................................14

Disposal ..................................................................................................................14

Troubleshooting ......................................................................................................15

Warranty ..................................................................................................................16

Before your first use

This appliance is for indoor use only.

On receipt, check to ensure that the appliance has not been damaged during transport.
Transport damage should be reported to the local distributor before the appliance is put
to use.

Wash the cabinet and inner lining with a mild unscented detergent and wipe it dry. Do
not use scouring powder, steel wool or similar abrasive material.

Before operating your new appliance, please read the following instructions carefully as
they contain important information on safety, installation, operation and maintenance.
Keep the instructions for future reference.

If during transport the appliance has been laid down, or if it has been stored in cold
surroundings (colder than 41°F, or 5°C), it must be allowed to stabilize in an upright
position for at least an hour before being switched on.

3

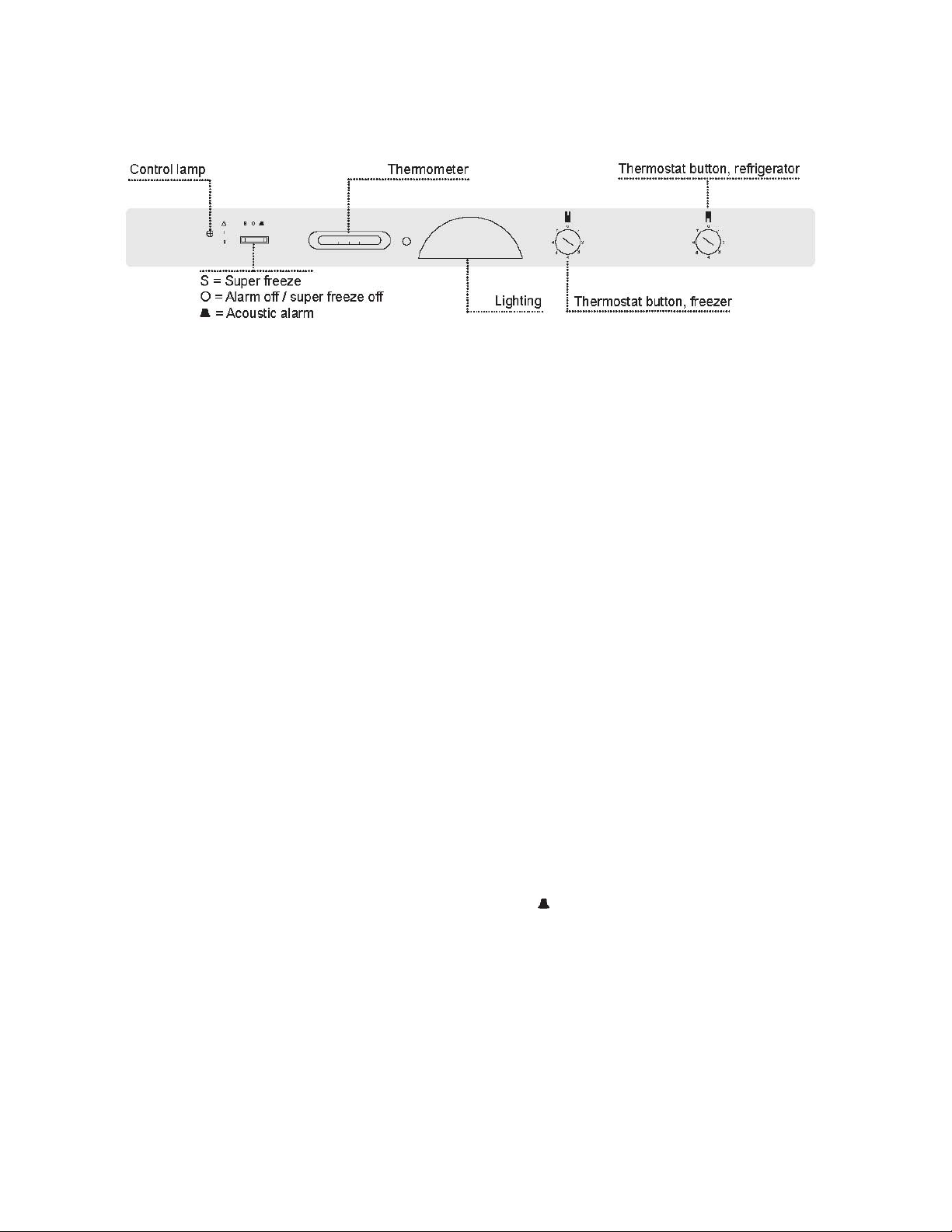

Control panel

Light

Shelf with storage boxes

Bottle rack

Glass shelf

Door shelf
Rating label
Crisper bins

Freezing tray

Sealing strip

Freezer drawers

Door handle

Defrost water drain

Kickplate

Adjustable feet

Location of Parts

fig. 1

4

Electrical Connection

The technical information for the appliance can be seen on the rating plate on the right
inner wall of the refrigerator compartment.

Important: Wiring and connections in power supply systems must be in accordance
with all applicable (local and national) electrical codes. Consult these code lengths and
sizes prior to cabinet installation.

Power supply: (Grounded through 3 wire power supply cord) 115V ac, 60 Hz single
phase

Maximum fuse size: 10 amps
This appliance is equipped with a three-prong (ANSI type 5-15P grounded) plug for your

protection against shock hazards. The appliance should be plugged into a properly
grounded three-prong receptacle

Do not under any circumstances cut or remove the round grounding prong from the
appliance plug.

Do not under any circumstances use extension cords.

5

Installation and Start-up

Placement

For safety and operational reasons, the appliance must not be installed outdoors. The
appliance should be placed on a level surface in a dry, well ventilated room (max. 75%
relative air humidity). Never place the appliance close to sources of heat such as ovens
or radiators, and avoid placing it in direct sunlight.

Installation
The surface on which the appliance is to be placed must be level.

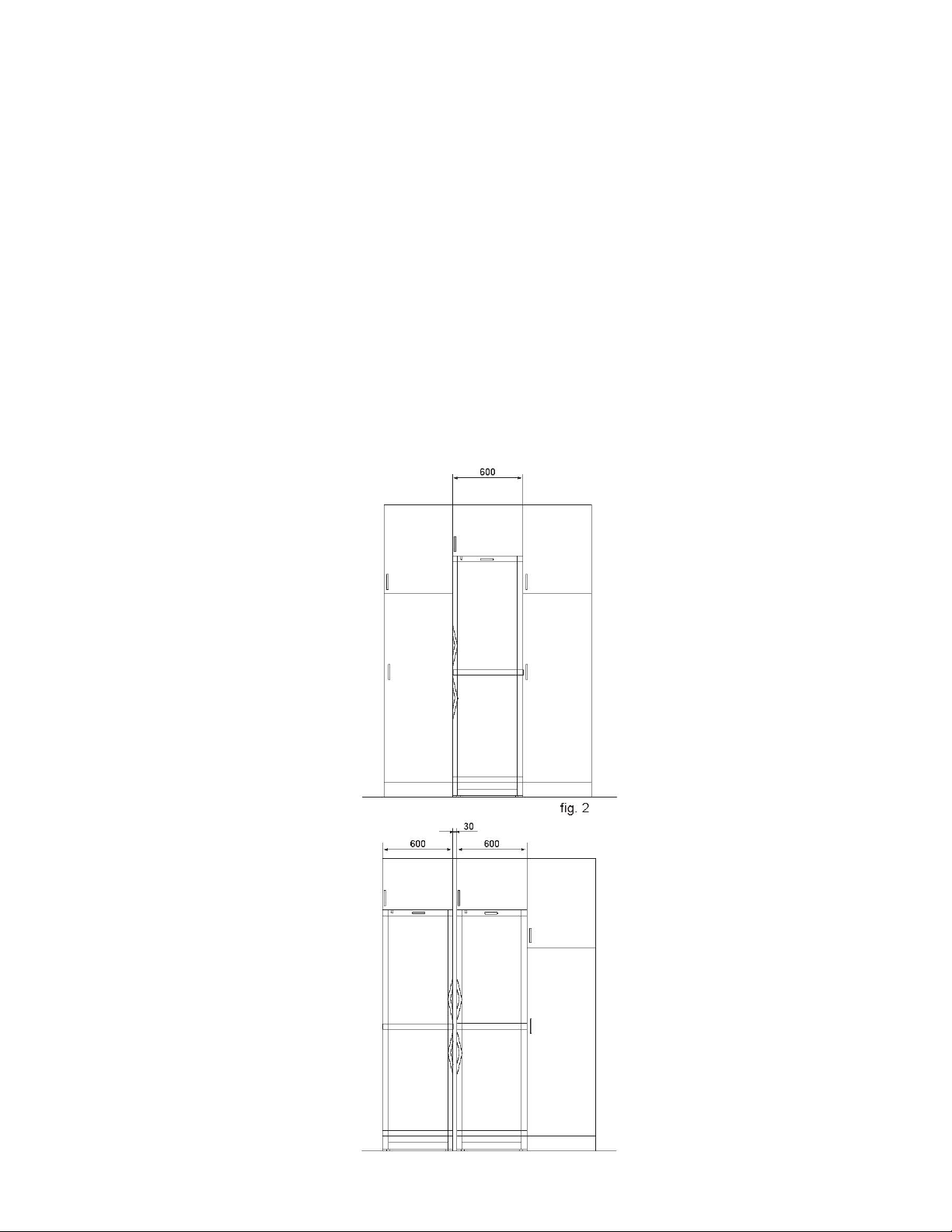

The appliance can be installed as a free-standing unit against a wall or built into a
kitchen element (fig. 2). If two appliances are placed side by side, there must be at least
30 mm (just over 1") clearance between them (fig. 3).

After installation, the plug should be accessible.

fig. 3

6

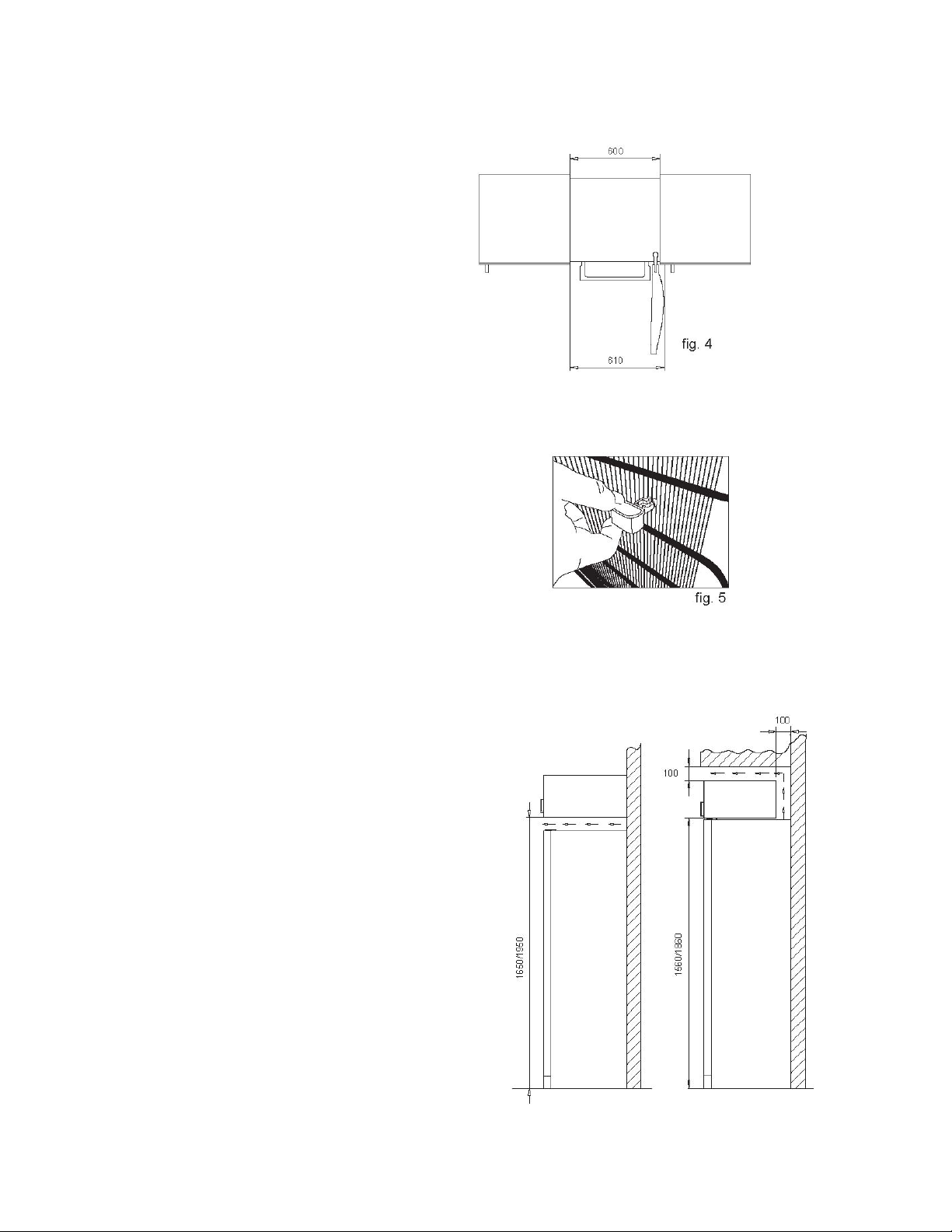

The appliance viewed from above
If the appliance is placed beside a wall,

there must be sufficient room for the
freezer door to be opened wide enough
to allow the drawers to be pulled out
(fig. 4).

Spacers

The spacers on the rear of the appliance
ensure sufficient air circulation. Fit the two
spacers supplied with the appliance as
shown in fig. 5.

Ventilation
It is important that the appliance be well

ventilated and that air can circulate unhindered
above, below and around it. The figures to the
right illustrate how the necessary air circulation
can be ensured (figs. 6 and 7).

fig. 6 fig.7

7

Setting up

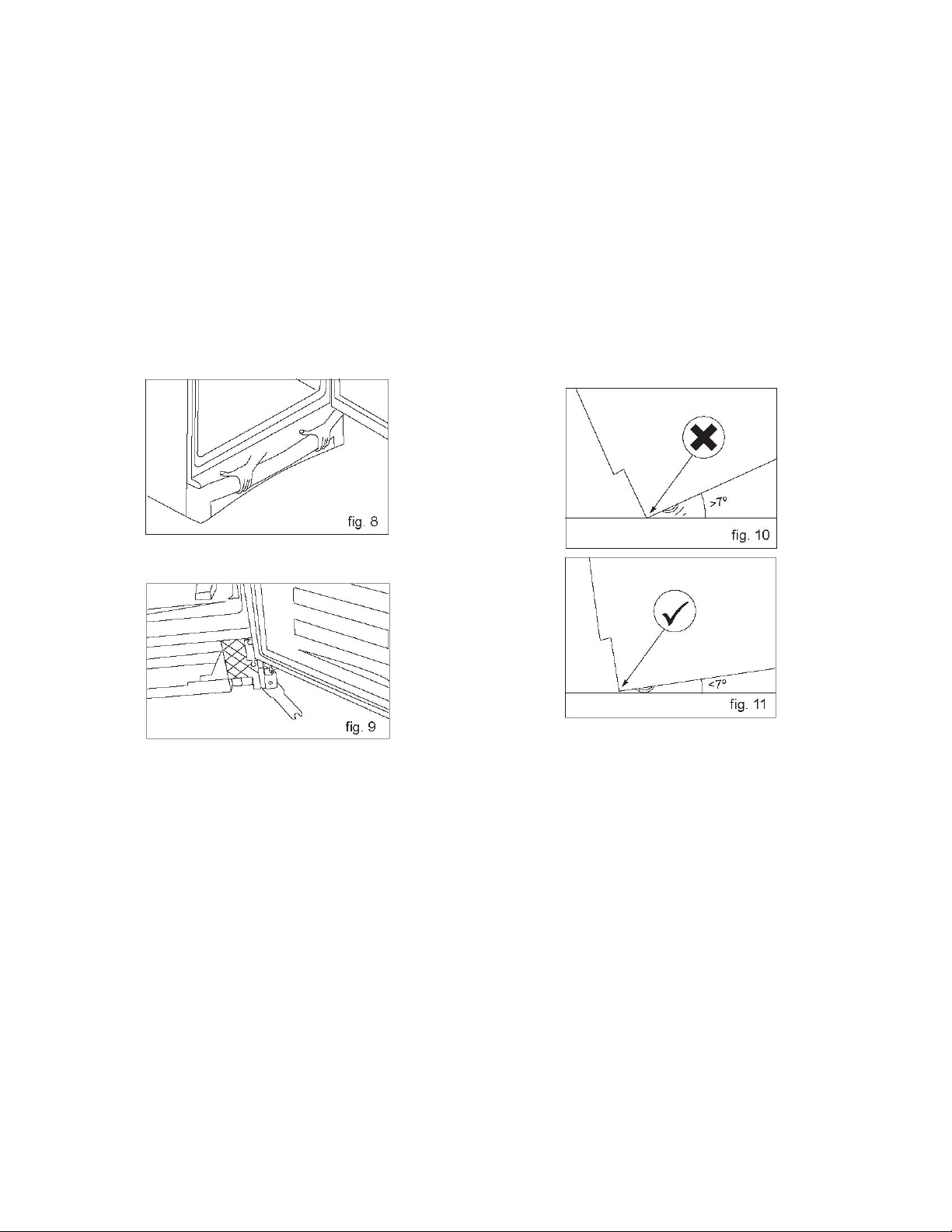

It is important that the appliance be absolutely level. To level the appliance, remove the
kick plate below the door and screw the adjustable feet up or down (figs. 8 and 9). If
necessary, it is possible to adjust the back feet before the upright is installed. Use a
spirit level to check that the appliance is absolutely level.

If the appliance is to be placed on a soft surface, e.g. floorboards or a carpet, it is best
to recheck whether the appliance is still level after a period of time as the underlying
surface may give under the weight of the appliance.

Do not tilt the upright more than 7 degrees to avoid damaging the floor (figs. 10 and 11).

8

Reversing the Doors

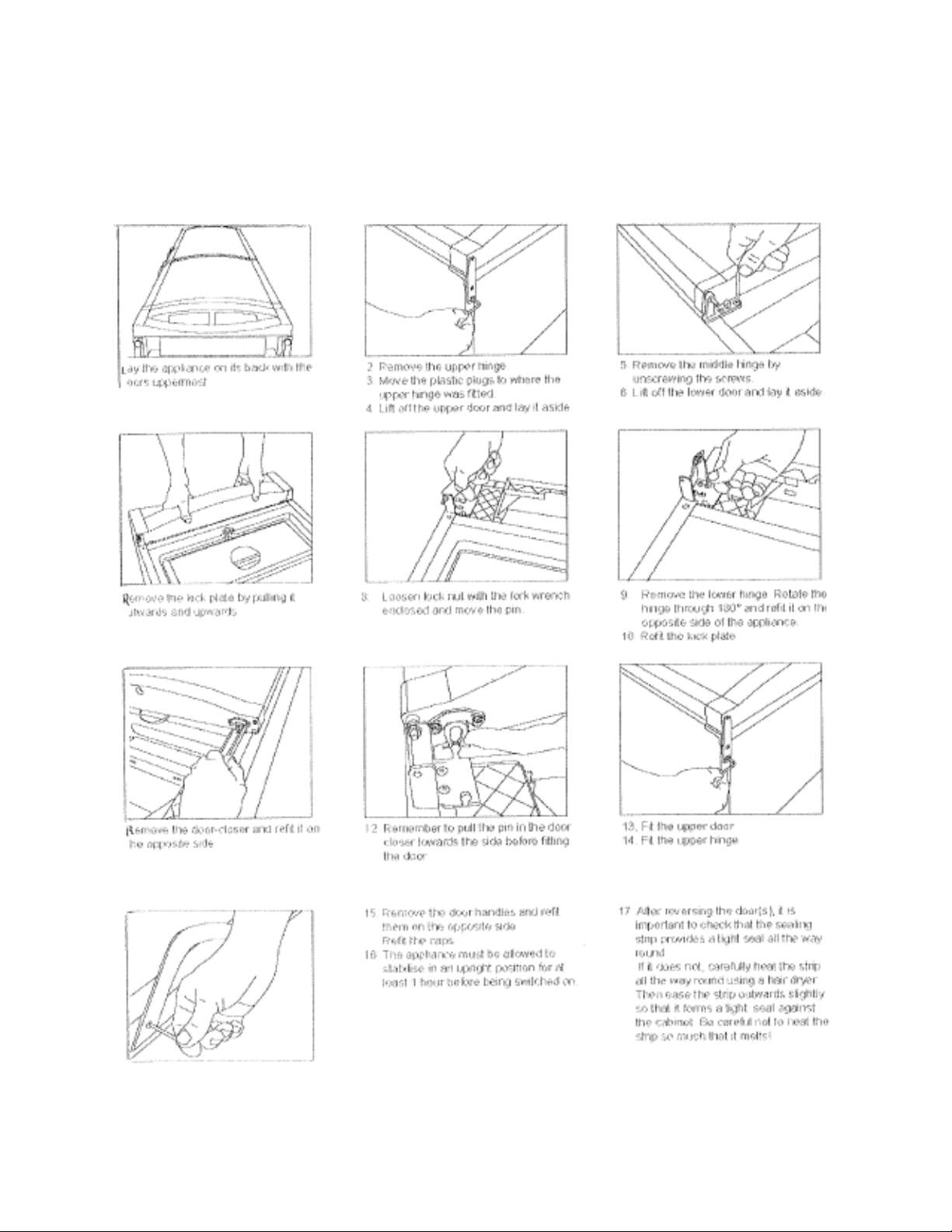

The doors can be changed from right-hinged to left-hinged and vice versa as follows:

1. Lay the
appliance on its
back with the
doors
uppermost.

2. Remove the

9.
R
emove the
lower
hinge.
Rotate the
hinge
through
180° and
refit it on
the

15. Remove the
door handles
and refit

them on the

opposite
side.

Refit the

caps.

16. The
appliance
must be
allowed to

stabilise in an

upright
position for at
least 1 hour
before being
switched on.

17. After
reversing the
door(s), it is
important to
check that the
sealing strip
provides a

upper hinge.

3. Move the plastic plugs to where the
upper hinge was fitted.

4. Lift off the upper door and lay it aside.

5. Remove the middle hinge by
unscrewing the screws.

opposite side of the appliance.

10. Refit the kick plate

7. Remove the kick plate by pulling it
outwards and upwards.

8. Loosen lock nut with the fork
wrench enclosed and move the
pin.

11. Remove the door-closer and refit

it on
the opposite side.

12. Remember to pull the pin in the

tight seal all
the way
round.
If it
does not,
carefully
heat the
strip all the
way round
using a hair
dryer. Then
ease the
strip
outwards
slightly so
that it forms
a tight seal
against the
cabinet. Be
careful not
to heat the
strip so
much that it
melts!

6. Lift off
the lower
door and
lay it aside.

door closer
towards
the side
before
fitting the
door.

13. Fit the
upper door.

14. Fit the
upper hinge.

9

Operation and Function

Refrigerator section

The thermostat button can be set from 1 (min.) to 7 (max.). A suitable setting must be
found by trial and error. Start by setting the button to 4. Check the temperature, then
adjust the setting upwards or downwards as required. Usually, a temperature of 41°F
(5°C) is recommended for items stored in a refrigerator. To check the temperature,
place a thermometer in a glass of water positioned in the center of the cabinet for 12
hours. An average temperature of 41°F should be found in the center of the cabinet.

Freezer section

Always maintain a correct storage temperature.

fig. 12

The thermostat button can be set from 1 (min.) to 7 (max.). A temperature of 0°F
(-18°C) is recommended for items stored in a freezer. (Maintaining a temperature lower
than this consumes additional energy.) The temperature in the freezer is displayed on
the thermometer.

 The control lamp lights green when the power supply is connected correctly.
 The control lamp lights yellow when Super Freeze is activated.
 The indicator lamp lights red and the acoustic alarm sounds if the temperature in the

freezer is too high. To switch off the acoustic alarm, set the freeze button to O (see
fig. 12). The indicator lamp continues to light red as long as the temperature in the
freezer remains too high.

When starting the freezer for the first time, switch off the acoustic alarm by setting the
freeze button to O. Once the recommended temperature (0°F, or -18°C) has been
achieved in the freezer, set the freeze button to the symbol. This will allow the

acoustic alarm to sound if the temperature in the freezer becomes too high.
It is normal that the indicator lamp lights red when the freezer is started for the first time.

It will also occasionally light red when large quantities of fresh material are put in the
freezer simultaneously.

10

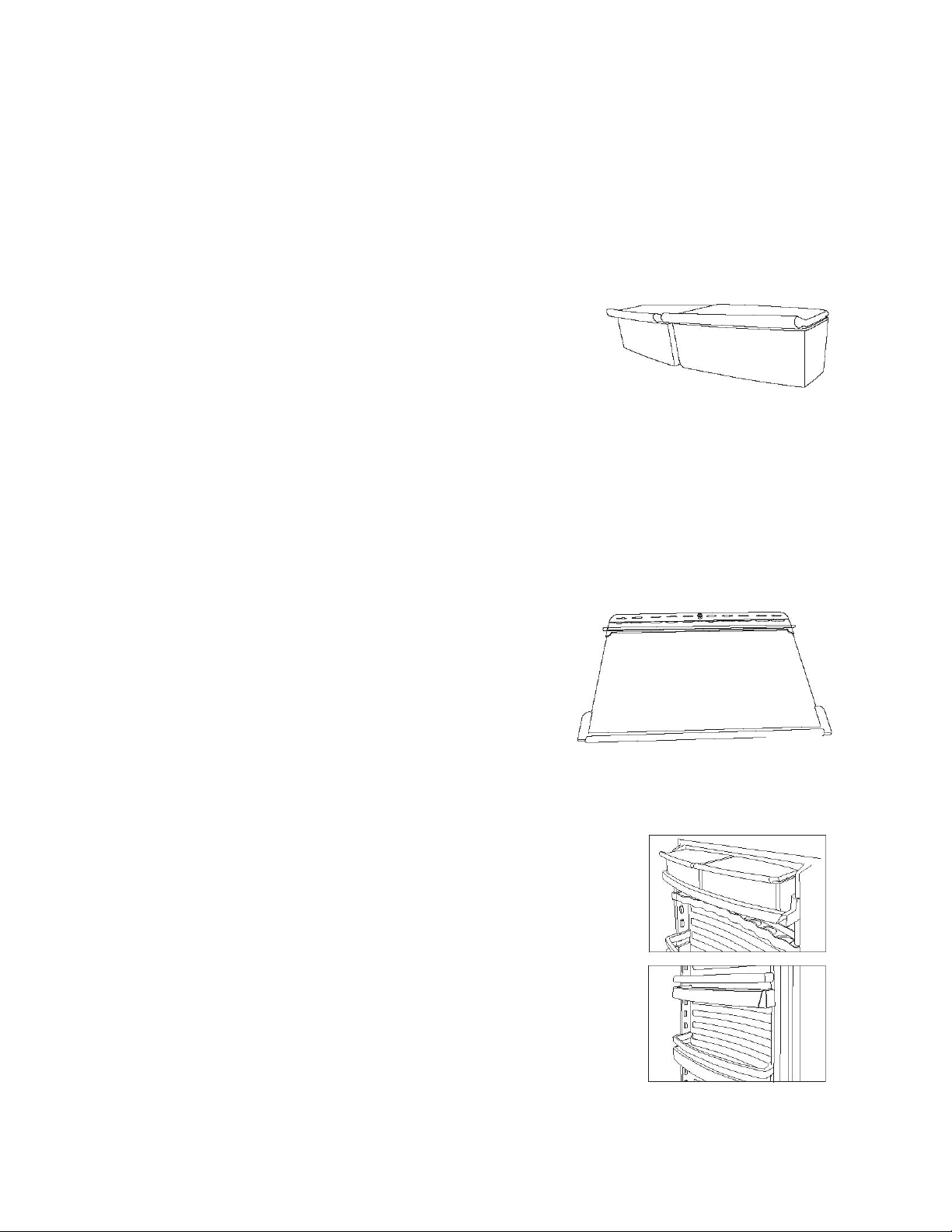

Glass shelves
The shelves are made of tempered glass and can be repositioned within the cabinet. To
move the shelves, the door must be opened 90°. To remove a shelf, pull it forwards and
lower it. The shelf can then be removed and placed in the desired position. From the top
and downwards, the shelves are suitable for storing bakery products, ready-made
meals, dairy products, meat products and sliced meat.

Storage boxes
The storage boxes can either be placed in the door
or on the glass shelves. Their tight-fitting lids
prevent the products stored in them from drying out
and saves the need for further packaging. The
boxes are ideal for storing items such as butter and
cheese.

fig.13

Bottle rack
The bottle rack is ideal for both large and small bottles.

Crisper bins
The crisper bins are ideal for storing fruit and vegetables. The shelf above the bins
functions as a lid, maintaining humidity and preventing the items stored in the bins from
drying out.

Glass shelf with slide damper
The slide damper above the crisper bins allows
the temperature and humidity in the bins to be
regulated.

 Opening the damper reduces the temperature

fig.14

and humidity.

 Closing the damper increases the temperature and humidity.

Shelves in the door
The shelves in the door are practically positioned with the
box shelf at the top, the egg holder in the middle and door
shelves at the bottom. They provide ample space for

storing large and small bottles, cartons, jars and tubs. All
shelves can be repositioned.

11

fig.15

Freezer section

The freezer section is a four-star freezer, approved for freezing and storing foodstuffs.
With the exception of no-frost models, the freezer is equipped with a practical tray for
freezing loose berries, ice cubes, etc.

Freezing
To keep food at its best, items must be frozen to 0°F (-18°C) as quickly as possible.
When the Super Freeze (S) button is pressed, the compressor runs continuously, thus

reducing the temperature as far as possible. If items weighing 6½ lbs or more are to be
frozen, the Super Freeze button should be activated about 24 hours in advance.

There is no need to use Super Freeze when pre-frozen items are placed in the freezer
or when small, single items are involved.

The control lamp lights yellow as long as the Super Freeze function is active.
Remember to switch the Super Freeze function off again approx. 24 hours after placing
items in the freezer. Otherwise, the appliance will use more electricity than necessary.

Only freeze fresh high-quality products. Meat, poultry, fish, vegetables, fruit, dairy
products and ready-made meals are suitable for freezing. Items with a high water
content, e.g. lettuce, radishes, grapes, apples, pears and cucumbers, are not suitable
for freezing.

Pack items to be frozen in airtight containers, freezer bags or the like. Freeze items in
suitable portions. Do not freeze vegetables in portions larger than 5½ lbs. Do not freeze
meat in portions larger than 5½ lbs. Keep packages dry to prevent them from freezing
together. To ensure rapid freezing, make sure, as far as possible, that items placed in
the freezer are not touching. Ensure that there is as little air in the packages as possible
to prevent the surfaces of the items from drying out.

Always remember to write the date, content and quantity on the packages before
placing them in the appliance. It is a good idea to group items within the freezer. Keep
vegetables in one drawer, meat in another, and so on.

Thawing
Frozen vegetables and fruit require no thawing before use and can be immersed in
boiling water direct from the freezer.

To thaw meat, it is advisable to take it out of the freezer the day before it is to be used
and place it in the refrigerator section to defrost. This ensures the best hygiene and
maintains meat quality as much as possible.

Refreezing
If purchased items of frozen food thaw before reaching home, they must not be refrozen

but should be consumed within 24 hours or cooked immediately and then frozen.
Frozen items that have been placed in the refrigerator for thawing may be refrozen

without risk if they have only just thawed.

Note: Glass bottles or cans containing carbonated (fizzy) drinks must never be

placed in the freezer as they may explode.

12

Defrosting

Automatic defrosting of refrigerator section

The refrigerator is defrosted automatically. Defrost water runs through a pipe and is
collected in a tray above the compressor where the heat generated by the compressor
causes it to evaporate. The defrost water tray should be cleaned at intervals.

Defrosting the freezer
The items stored and the humidity of the air gradually cause frost and ice to form in the
freezer. A thin layer of frost or ice does not affect freezer performance, but the thicker
the layer, the higher the energy consumption. Loose frost can be removed using a
plastic or wooden scraper.

Never use a knife or other sharp implement that might damage the inside of the freezer.

When the layer of frost and ice exceeds 1/4 inch, the freezer should be completely
defrosted.

Proceed as follows:

1. Press the Super Freeze button 4-5 hours before defrosting. This lowers the
temperature of the items stored to approx. -13°F (-25°C), thus prolonging the length
of time they remain frozen after having been removed from the freezer (see step 4
below).

2. Switch the freezer off by turning the freezer thermostat button to 0.

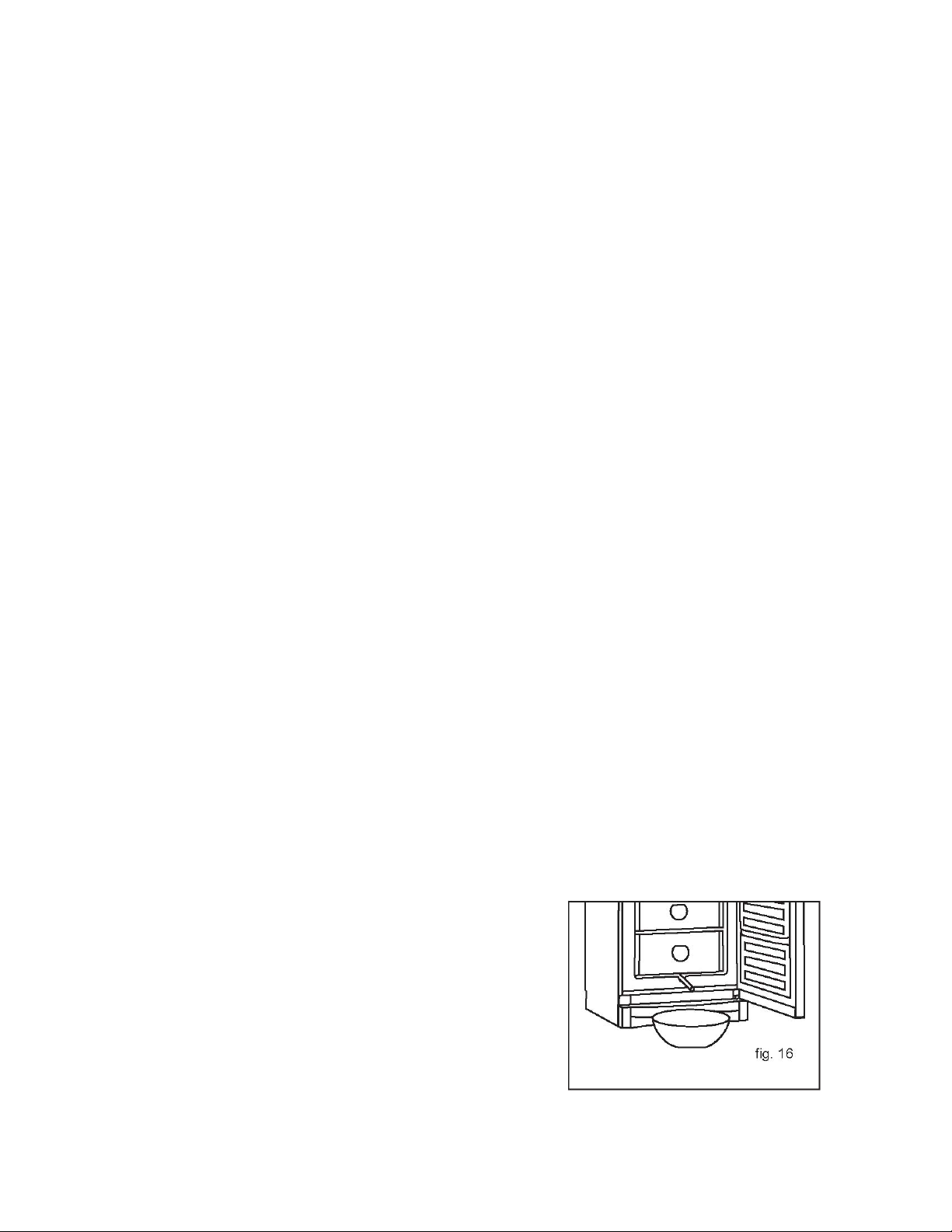

3. Pull out the drain spout at the bottom of the cabinet and place a bowl under it to
collect defrost water (fig. 16). If the spout is frozen in place, lay a cloth which has
been soaked in hot water over it for a few minutes.

4. Remove the items of food. Place them in the refrigerator or wrap them in newspaper
to keep them as cold as possible.

5. Place a bowl of hot (but not boiling) water in the freezer.

6. To prevent the floor from becoming wet during defrosting, check progress from time
to time and lay towels around the bowl on the floor to protect against ice and
splashes. When all the frost and ice have melted, clean the inside of the cabinet with
a mild detergent solution. Dry the freezer with a soft cloth.

7. Restart the freezer by turning the freezer thermostat button to the required setting. If
many items are to be returned to the freezer, activate the Super Freeze button.
Remember to switch Super Freeze off again.

8. Return items to the freezer approx. 5 minutes after having switched it on.

13

7.

Cleaning and Maintenance

Cleaning

Disconnect the power supply before cleaning the inside of the cabinet.
The cabinet is best cleaned using warm water (max. 150°F) with a little mild detergent.

Never use cleaning agents that scour. Use a soft cloth. Rinse with clean water and dry
thoroughly. It is important to prevent water from entering the control panel.

The defrost water channel, in which condensation from the evaporator runs, is located
on the rear wall of the cabinet and must be kept clean. Add a few drops of disinfectant
to the defrost water drain a couple of times a year, and clean the drain using a pipe
cleaner or the like. Never use sharp or pointed implements.

The sealing strip around the doors must be cleaned regularly to prevent discoloration
and prolong service life. Use clean water. After cleaning the sealing strip, check that it
continues to provide a tight seal.

Dust collecting on the compressor and in the compressor compartment is best removed
using a vacuum cleaner. It is possible to clean beneath the appliance by removing the
kick plate.

Stainless steel or aluminum doors are best cleaned using a soft cloth with a spray made
for cleaning metallic surfaces. Various suitable products are available from most house­hold appliance distributors.

If the appliance is not to be used for any length of time, switch it off, empty it, clean the
cabinet and fittings, and leave the doors slightly open to allow air circulation and prevent
smells.

Replacing the light bulb
Unscrew the bulb without removing the shade.

Bulbs with an output of more than 12 W must not
be used.

fig. 17

Save energy

 Cool hot food and beverages before placing them in the appliance.
 Thaw frozen items in the refrigerator section.
 Keep the doors closed as much as possible.
 Ensure that the doors are not prevented from closing tightly.

Disposal

Environmental regulations on disposal must also be observed. When disposing of the
appliance you should contact your local authority technical department who will inform
you of how collection and recycling of such units take place in your area. By ensuring
that this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. Disposal must be carried out in
accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product,
please contact your local city office, your household waste disposal service or the shop
where you purchased the product.

14

Troubleshooting

Problem Possible cause Remedy

The control lamp is not lit. . Power failure; the fuse is

Water collects on the glass
shelves.

Water collects in the bottom
of the refrigerator/freezer.

Vibration or bothersome
noise.

Compressor runs
continuously.

Temperature in freezer too
high.

Temperature in refrigerator
too high.

Check that power is
blown; the appliance is not
plugged in correctly.
Items of food at the back of
the shelves are in contact
with the rear wall of the
cabinet, thus causing
condensation to run onto
the shelf.
The defrost water pipe is
blocked.

The appliance is not level.

The appliance is resting
against other kitchen
elements.

Bins, containers or shelves
are not positioned correctly
or are jammed.

Containers or bottles inside
the cabinet are rattling
against one another.
Temperature setting too
low.

High room temperature.

Temperature setting too
high.

The quantity of fresh items
placed in the freezer at a
time is greater than the
capacity of the appliance.
Temperature setting too
high.

Many items have been
placed in the refrigerator
section at the same time.

often. Keep door closed.

connected. Reset the fuse.

Move the rearmost items

forward.

Clean the defrost water

channel and the drain hole

on the rear wall of the

cabinet.

Level the appliance using a

spirit level.

Move the appliance away

from the kitchen cabinets or

appliances it is in contact

with.

Check movable fittings and

adjust them if necessary.

Move containers and/or

bottles apart.

Raise the temperature

setting.

Ensure adequate

ventilation.
Lower the temperature
setting.

Wait a few hours and then
recheck the temperature.

Lower the temperature
setting.

Distribute items within the
cabinet to improve air
circulation.

The door is opened too

15

Warranty

g

Call customer service toll free in the U.S.A. @ 1-800-932-4267; Monday to Friday 9:00 am. - 5:00 p.m. (ET).

ONE-YEAR LIMITED WARRANTY

Within the 48 contiguous United States, for one y ear from the date of purchase, when t his appliance is oper ated and maintained according to
instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in
materials or workmanship. Service must be provid ed by a designated s ervice company. Outside the 48 s tates, all parts are warrante d for one
year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured t o commercial ly acceptabl e st andards,
and are not covered from damage during handling or breakage.

5-YEAR COMPRESSOR WARRANTY

The compressor is covered for 5 years.
Replacement does not include labor.

ITEMS WARRANTOR WILL NOT PAY FOR:

 Service calls to correct the installation of your app liance, to instruct y ou how to use your appli ance, to replac e or repair fuses or to correct

wiring or plumbing.

 Service calls to repair or replace appliance light bulb s or broken glass shelves. Consumable parts (such as filters) are excluded from

warranty coverage.

 Damage resulting from accident, alteration, misus e, ab use, fir e, flo od, ac ts of God, i mprope r instal lat ion, i nstal lation not in accordance with

electrical or plumbing codes, or use of products not approved by warrantor.

 Replacement parts or repair labor costs for units operated outside the United States.
 Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
 Expenses for travel and transportation for product service in remote locations.
 The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published

installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED
HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON
THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH
VARY FROM STATE TO STATE.

WARNING! This product may contain chemicals known to the state of California
to cause cancer or birth defects or other reproductive harm. For more information,
visit: www.summitappliance.com/prop65

Chemicals known by the manufacturer to be present in this product in concentrations

her than threshold limits: NONE.

hi

Felix Storch, Inc.

Summit Appliance Division

770 Garrison Avenue

Bronx, NY 10474

Phone: (7

Fax: [phone]

www.summit

18) 893-3900
appliance.com

For parts and accessory ordering, troubleshooting

and helpful hints, visit:

www

.summitappliance.com/support

16
