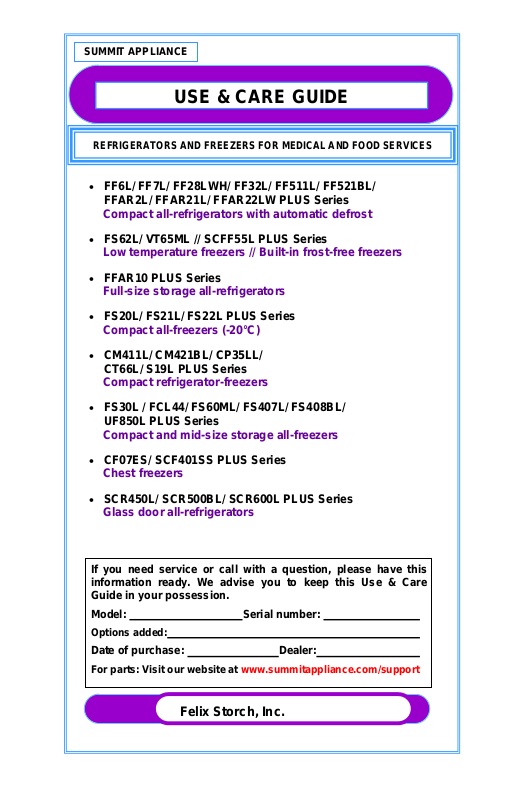

Summit CM411LPLUSADA User Manual

SUMMIT APPLIANCE

If you need service or call with a question, please have this

Use & Care

USE & CARE GUIDE

Felix Storch, Inc.

REFRIGERATORS AND FREEZERS FOR MEDICAL AND FOOD SERVICES

• FF6L/ FF7L/ FF28LWH/ FF32L/ FF511L/ FF521BL/

FFAR2L/ FFAR21L/ FFAR22LW PLUS Series

Compact all-refrigerators with automatic defrost

• FS62L/ VT65ML // SCFF55L PLUS Series

Low temperature freezers // Built-in frost-free freezers

• FFAR10 PLUS Series

Full-size storage all-refrigerators

• FS20L/ FS21L/ FS22L PLUS Series

Compact all-freezers (-20°C)

• CM411L/ CM421BL/ CP35LL/

CT66L/ S19L PLUS Series

Compact refrigerator-freezers

• FS30L / FCL44/ FS60ML/ FS407L/ FS408BL/

UF850L PLUS Series

Compact and mid-size storage all-freezers

• CF07ES/ SCF401SS PLUS Series

Chest freezers

• SCR450L/ SCR500BL/ SCR600L PLUS Series

Glass door all-refrigerators

information ready. We advise you to keep this
Guide in your possession.

Model: Serial number:

Options added:

Date of purchase: Dealer:

For parts: Visit our website at www.summitappliance.com/support

Your safety and the safety of others are very important to us.
We have provided many important safety messages in this manual and

Safety messages will tell you what the potential hazard is, how to reduce
the chance of injury, and what can happen if the instructions are not

If an old appliance contains refrigerants, it must be recycled by a licensed

IMPORTANT SAFETY INSTRUCTIONS

Felix Storch, Inc.

Page 2

APPLIANCE SAFETY

on your appliance. Always read and obey all safety messages.
You can be seriously injured or even killed if you don’t follow instructions.

followed.

WARNING: To reduce the risk of fire, electric shock, or injury

when using your refrigerator/freezer, follow these basic precautions:

• Plug into a grounded 3-pr ong outle t.

• Do not remove ground prong, nor use a 3/2 adapter.

• Do not use an extension cord.

• Use care not to plug into outlets controlled by wall switches.

• Disconnect power before servicing.

• After servicing, replace all parts and panels before operating.

• Use nonflammable cleaners.

• Keep flammable materials and vapors, such as gasoline, away from

appliances.

• Use two or more people to move and install appliance.

Drawer refrigerators are provided with anti-tip brackets. Always install
prior to use.

Proper Disposal of Your Old Appliance e

Old appliances can represent a suffocation hazard to children.

Remove doors from your old appliance.
Leave shelves in place.

service or disposal company.

Excessive Weight Hazard !

To lock or unlock the appliance, you must hold the key in the lock while

If the key is lost, contact your dealer or SUMMIT APPLIANCE for a
replacement. Always give the model and serial number of your appliance
when requesting a replacement key. Keys for most models can be

Felix Storch, Inc.

INSTALLATION INSTRUCTIONS

Use two or more people to move and install your appl iance.

Failure to do so can result in back or other injury.

ALLOW APPLIANCE TO SIT UPRIGHT FOR 24 HOURS BEFORE TURNING
ON, TO ALLOW THE COMPRESSOR LUBRICANT TO DRAIN.

1. Remove packaging materials.

2. Remove tape and glue residue from surfaces before turning on the
appliance. Rub a small amount of liquid dish soap over the adhesive
with your fingers. Rinse with warm water and dry.

3. Do not use sharp instruments, rubbing alcohol, flammable fluids, or
abrasive cleaners to remove tape or glue. These products can
damage the surface of your appliance.

4. When Moving Your Appliance:
Your appliance is heavy. When moving the appliance for cleaning or
service, be sure to protect the floor. Always pull the appliance straight
out when moving it. Do not wiggle or “walk” the appliance when trying
to move it, because floor damage can occur.

5. Clean Before Using
After you remove all of the packaging materials, clean the inside of
your appliance before using it. See cleaning instru ctio ns in Appliance
Care.

6. Some upright models have leveling legs. Level as neces sar y for best
operation.

7. If your appliance has casters, after moving into place, lock the brakes
on those casters supplied with brakes. Always unlock before moving
the appliance for cleaning.

Key Eject Lock (some models)

turning. The lock is spring loaded, so the key cannot be left in the lock.

ordered online at www.summitappliance.com/support

Page 3

Keep flammable materials and vapors, such as gasoline, away
from appliances. Failure to do so can result in fire, explosion or

Do not install the appliance near an oven, radiator, or

a location where the temperature will fall below

Check the strength of the floor before installing your appliance. It should
hold the weight of a fully loaded appliance. Allow at least 1” (2.5 cm) of

at the top and on both sides of the appliance and 1” (2.5 cm)
between the back of the appliance and the wall. If the appliance is going
to be placed against a wall, leave extra space on the hinge side so the

fire, electrical

Felix Storch, Inc.

LOCATION REQUIREME NTS

death.

IMPORTANT:

other heat source, nor in
40°F (5°C). Do not place in direct sunlight.

airspace

door can open wider than its width.
Note: This appliance may be installed side by side with another

appliance or appliances. Allow for a 3” (7.5 cm) clearance at the top
and sides and a ¼” (0.64 cm) clearance between the appliances. IF

YOUR MODEL HAS THE LETTERS “BI” IN THE SUFFIX, IT IS
DESIGNED FOR BUILT-IN USE, AND DOES NOT REQUIRE
CLEARANCE EXCEPT IN THE BACK.

Electrical Shock Hazard

• Plug into a grounded 3-prong outlet.

• Do not remove ground prong.

• Do not use an adapter.

• Do not use an extension cord.

Failure to follow these instructions can result in
shock or death.

Recommended grounding method

A 115 Volt (AC only) 60 Hz grounded electr ical supply with a 15­or 20- amp fuse or c ircuit breaker is required. It is recomm ended
that a separate circuit serving only your appliance be provided.
Use outlets that cann ot be t urned off by a switch or pull ch ain. Do
not use an extension cord.

Page 4

1. Locate the two front leveli ng legs that may be taped among the packing

APPLIANCE USE

In order to ensure pr oper temperature, you need to per mit proper airflow in

Felix Storch, Inc.

Level your appliance (some upright models)

materials. In many m odels these legs are already mounted int o the
underside of the appl iance.

2. Screw these legs into the front holes on the bottom of the appliance. The

back of the appliance rests on two fixed supports. (Built-in models also
have rear leveling legs that can provide more precise leveling).

3. Adjust the front legs just enough to lift the cabinet up off the floor.

Note: If your model is equipped with front rollers, the front legs should be

lowered enough to lift the rollers off of the floor to ensure the
appliance does not roll forward when th e door is opened.

4. Place a leveling tool on top of the appliance first side to side, then f ront to

back. Turn leg counter-clockwise to raise a corner. Turn leg clockwise to
lower a corner.

5. Repeat S tep 4 until appliance is level.

6. After appliance is fully loaded, recheck with level as in Step 4.

7. If your appliance is equipped with casters, the two front casters have

brakes to prevent rolling. Keep brakes locked, and unlock for moving only.

the appliance. Do not block of f any ai r vents . If t he vents are bl ocked, airflow
will be prevented, and temperature and moisture probl em s may occur. Always
position content s to allow some airf low between shelves or baskets.

Allow the applianc e to c ool at l east 6 to 8 hour s befor e adding c ont ents . All ow
24 hours for temperature to stabilize.

Note: When t he appliance is f irst started, t he compressor will run constantly

until the appliance is cooled. It may take 6 to 8 hours (or longer),
depending on room temperature and th e number of times the appliance
door is opened. Aft er the appl iance i s cool ed, the compr essor will turn on
and off as needed to keep the appliance at the proper temperatur e.

For optimum temperature perfor mance, it i s recommen ded that this unit
be at least 30% full during u se. If you are only using this unit to store
small loads, we r ecomme nd a dding s ome water b ottl es or freez er pac ks
to ensure temperature stability.

The outside of your appli a nce may feel warm. This i s nor mal . The ap pl ianc e’ s
design and main function is to remove heat from packages and air space
inside the appliance. The heat is transferred to the room air, making the
outside of the applianc e feel warm. ( In so me models t he condens er that g ets

warm is just inside the side walls, making these walls warm to t he touch.).

ENERGY SAVING TIPS

• The more airflow provided around an appliance, the less energy it will use.

• If your appliance requires manual defrosting, keep ice build-up to less than 1/2".

• Keep doors open a minimum of time, and shut securely.

Page 5

(Selected models)

Felix Storch, Inc.

Page 6

REVERSING THE DOOR SWING

If you find the direction of opening the door on your appliance inconvenient, you
can change it. Holes on the opposite side have already been prepared in the
factory.

For two-door units:

• Take off the upper hinge cover from the top door and
remove the screws that hold the top hinge.

• Lift the hinge straight up to free the hinge pin from the
socket in the top of the door.

• Lift the top door to free its bottom socket from the hinge
pin on the central hinge bracket.

• Remove the screws to the central hinge to free its pin
from the top of the lower door.

• Insert screws into the central hinge and plug the holes on the reverse side.

• Replace the upper door onto the central hinge pin.

• Insert screws into the top hinge and tighten.

For one-door units:

• Take off the upper hinge cover from the door
and remove the screws that hold the top hinge.

• Lift the hinge straight up to free the hinge pin
from the socket in the top of the door.

• Lift the door up and away to free its bottom
socket from the hinge pin.

• Remove the screws to the bottom hinge.

• Remove the decorative caps from the opposite side and plug the holes from the

original side with the decorative caps.

• Lift the door up away from the bottom hinge pin.

• Remove the screws to the bottom hinge.

• Remove the decorative caps from the opposite side

and install the bottom hinge. Plug the holes from
original side with the decorative caps.

• Replace door onto the pin on the bottom hinge, then
install the central hinge into lower door.

• Move the bottom hinge to the opposite side and
tighten the screws. Install any lock washers or nuts if
they were used in the original installation.

• Replace door onto the hinge pin on the bottom hinge.
Place top hinge pin into door. Insert screws into the
top hinge and tighten.

Cleaning Your Frost-Free Refrigerator

Felix Storch, Inc.

Page 7

APPLIANCE CARE

(including models beginning with SCFF, SCFR , SCUR, SCUF)

Frost-free means that you do not have to defrost your appliance. Frost is
removed by air moving and c ollecting any moistur e and depositing it on the
cooling coil. The cooling coil per iodically warms up enough to melt the f rost,
and the water the n f lows d own t o the dr ain pa n (l oc ated be hind t he b ase gr i ll )
where it is evaporated.

Complete cleaning should be done at leas t once a year.

1. Unplug appliance or disconnect power.

2. Remove al l substances.

3. Wash the inside walls wit h a solution of mild detergent in warm water or 2

tbs (26 g) baking soda to 1 qt (0.95 L) warm wat er.

• Do not use abrasive or harsh cleaners such as window sprays,

scouring cleansers, flammable fluids, cleaning waxes, concentrated
detergents, bleaches or cleansers containing petroleum products on
plastic parts , interior and door liners or gaskets. Do not use paper
towels, scouring pads, or other harsh cleaning tools. These can scratch
or damage surfac es.

4. Rinse wel l and wipe dry with a cl ean soft cloth.

5. Use the appropriate cleaning method for the exter ior finish.

Painted metal: W ash exteriors with a clean sponge or soft cloth and a

mild detergent in war m water. Do not use abras ive or harsh cleaner s,
or cleaners designed for stainless steel. Dry thoroughly with a soft
cloth. For additional protection against damage to painted metal
exteriors, appl y appliance wax (or auto paste wax) wit h a clean, soft
cloth. Do not wax plastic parts.

6. Plug in appl iance or reconnect power.

7. Replace all containers.

Use nonflammable cleaners.

Cleaning your cycle defrost or manual defrost refrigerator

Cycle defrost m odels utilize a system where ice builds up on t he rear wall an d
melts when the com pr ess or is off . M anual d efr os t models c ont inual ly b ui ld i ce
on inner walls.

NEVER USE A METAL OBJECT TO REMOVE ICE FROM THE REAR WALL.

IF NEEDED, USE A PLASTIC ICE-SCRAPER OR A HAIR DRYER.

Clean surfaces, using the same inst ructions as for frost-free models.

For CSS Models (completely stainless steel), only use cleaners
especially made for stainless steel.

Base Grill (some models only)

Open the appliance door and remove the base grill by pulling down

putting the clips in the openings in the

Not all appliance bulbs will fit your appliance. Be sure to replace

e, shape, base size and wattage. You

After the power is restored, unplug the appliance for 30 minutes to allow

Installation Instructions

sections for information on installation and

Felix Storch, Inc.

Page 8

APPLIANCE CARE (cont’d)

To Remove and Replace the Base Grill:

1.
and out from the top.

2. Replace the base grill by
appliance panel. Push in until the base grill snaps into place.

Changing the Light Bulb (some models only)

NOTE:

the bulb with one of the same siz
can purchase bulbs from www.summitappliance.com/support

1. Unplug appliance or disconnect power.

2. Remove the light shield. Most models do not require tools.

3. Replace the light bulb with an appliance bulb of the same wattage.

4. Replace the light shield.

5. Plug in appliance or reconnect power.

Loss of Power

the refrigeration system to equalize. During this time, keep the door
closed as much as possible.

Remember: A full appliance stays cold longer than a partially filled one.

Moving Care

1. Remove all containers.

2. Unplug the appliance.

3. Clean it thoroughly.

4. Tape the appliance shut and tape the electrical cord to the cabinet.

When you get to your new location, refer to the
and Temperature Selection
setting the controls.

YOUR AP P LIANC E MAY HAVE A MECHANICAL (DIAL) OR

Higher settings on the knob (higher numbers) mean lower

. The
temperature inside a refrigerator may even drop below 32°F. Use
higher thermostat settings only when required or recommended.
When the ambient temperature is normal, we recommend a medium

of the appliance, so keep this in mind when choosing the setting of the

position, the appliance does not operate (the cooling

system is switched off), yet the power supply is not interrupted (the

The temperature in the refrigerator and in the freezer compartment

Felix Storch, Inc.

TEMPERATURE SELECTION

DIGITAL THERMOSTAT. DIAL INSTRUCTIONS ARE BELOW.

Your refrigerator may be controlled with a thermostat knob located
inside the unit, towards the right-hand corner. Turn the knob
clockwise from the STOP (0) position toward the higher numbers
for colder temperatures.

Temperature Controls

•

temperatures (colder) in all compartments of the appliance

DIGITAL INSTRUCTIONS ARE ON PAGE 10.

HOW TO ADJUST THE THERMOSTAT

setting.

• Changes of the ambient temperature affect temperature in the interior

thermostat knob.

• In STOP (0)

light is on when you open the refrigerator door).

•

also depends on how often you open the door.

In all small refrigerators and freezers without interior fans, tempera­tures are coldest near the bottom, and occasionally near the rear.
Place contents accordingly.

For optimum temperature performance, it is recommended that thi s
unit be at least 30% full during use. If you ar e only using this unit to
store small loads, we recommend adding some water bottles or
freezer packs to ensur e temperatur e stability.

Page 9

thermostat controlled appliance, please refer to the following

DIGITAL THERMOSTAT INSTRUCTIONS

Resetting the Unit

ALARM INSTRUCTIONS (Selected Models)

snowflake

Felix Storch, Inc.

If you find that it is necessary to change the temperature setting for your
digital­instructions. The front panel of the thermostat is illustrated here:

To see the SET POINT:

Push and immediatel y release the SET k ey. The display will show the SET
POINT value. Wai t 5 seconds and the probe valu e w ill display again.

To change the SET POINT:

Push and hold th e SET key for mor e then 3 secon ds to chan ge the set poi nt
value. The value of t he set point will be dis played, and the “snowflake” LED
will start blinking.

To change the SET value:

Push the UP or DOW N arrow to the des ired setting. The new sett ing will be
memorized after 15 s econds, provided no ot her keys are pushed.

Note: The minimum and maximum range of your t hermostat is preset

and locked by us, so it cannot easily be accidentally moved
between freezer and refrigerator temperatures. To reset this range
lock, either call us or fi nd information on our website under
Troubleshooting.

melting

snowflake

UP & DOWN arrows

SET key

DISPLAYING °F or °C

To display the temperature readings in Fahrenheit (°F) or Celsius (°C),
slide the switch on the back of the unit to °F or °C.

Note: The unit must be reset after changing the temperature unit.
SELECTING THE SAMPLING RATE

To select normal sampling rate (60 seconds) or fast sampling rate (10
seconds), slide the switch on back of unit to NORMAL or FAST.
Note: The unit must be reset after changing the sampling rate. Using the

Use a pointed object to push the RESET button on the back
of the alarm unit. It is necessary to reset the unit whenever a
change is made to °C/°F temperature or FAST/NORMAL
sampling rate, or if the probe sensor is plugged in or removed.
Note: HI/LO temperature alarm settings and MIN/MAX
memories will be cleared after resetting the unit.

NORMAL sampling rate will extend battery life.

Page 10

the display in 1° increments, until the desired high temperature is display ed.

ALARM INSTRUCTIONS (cont’d)

Felix Storch, Inc.

Page 11

OPERATION MODES

SUMMIT alarms have t w o operating modes:
NORMAL DISPLAY MODE and ALARM
DISPLAY MODE. To change from one mode to
another, press the MODE button once.

NORMAL DISPLAY MODE - is indicated by the
display of current temperature and the M IN
(minimum) and MAX ( m aximum) temperatures.
These temperatur es relate to internal (probe)
temperature if the probe is plugged in, and to
ambient temp if the sensor probe is r em oved.
ALARM DISPLAY MODE - is indicated by the
display of current temperature and the HI and LO
alarm settings. These temperatures relate to
internal (probe) temperature if the probe is plugged in, and to ambient
temperature if the sensor probe is rem oved.

RESETTING MIN/MAX MEMORIES

There are two ways t o reset the memories:

1. To reset both minimum and m aximum memories - press the MEMORY
CLEAR button.

2. To reset individual minimum and maximum m emories - press either the
MIN or MAX button (on back of unit) once to reset the respective memory.
The other memory will remain unaffected.

Note: You must be in NORMAL Display Mode to reset the memories.

SETTING THE HIGH/LOW ALARM

1. Press the MODE button u ntil unit is in the A LAR M D ISPLAY MODE
indicated by the dis play of current tem perature and HI/LO al arm settings.

2. To set the HIGH temper ature alarm limit, press the HI button to advance
Press and hold the HI bu tton to advance the display rapidly in 5° increments.

3. To set the LOW temperat ure alarm limit , press the LO button to advance
the display in 1° increments, until the desired low temperature is displayed.
Press and hold the LO button to advance the display rapidly in 5° increments.

ALARM

The unit will sound t he alarm in both NORMAL DISPLAY MODE and ALARM
DISPLAY MODE. Slide t he ALARM ON/OFF switch to ON. When the current
temperature display rises above the H I set point, or fal ls below the LO set
point, the alarm will sound for 1 minute and i ssue a 3-second repeater beep
every minute thereafter, for up to 12 hours. The alarm wil l continue to sound
even if the current temperature display returns to an “in range” condition.

To temporarily silence the alarm, press either the HI or LO button on the back
of the unit. The unit is still active and the alarm will sound again if the
temperature goes out of range. To permanent ly silence the alarm, slide the
ALARM ON/OFF switch to the OFF position.

key, enter the

key, enter default

KEYPAD LOCK

OPERATION OF SPECIFIC MODELS

Felix Storch, Inc.

(Optional on most models)

Factory-set default password:

password is lost, press the
box) for 30 seconds, then wait for the warning sound which
signifies the factory-set default password has been restored.

To set the password: While door is open, press the key
(located inside the battery box) until it jingles, enter the 0123
password, then # within 10 seconds to confirm. Enter the
password (1-16 digits), then press # again to confirm. A total
of 10 passwords can be set.

Note: Each password start s with a num ber from 0 to 9 in order. T he f irs t password
starting with 0 is the default password. For exampl e, use 1xxx, then 2xxx etc.
for 10 users.

Changing password: While the door is open, press the key (located inside
the battery box) until it jingles, enter the old password and press # within 10
seconds to confirm. Enter the new password, then press # to confirm.

Note: The first digit cannot be changed.

To open the door: While the door is closed, press the

password, then press again to confirm.

To lock door manually: Press #.
Function setting of automatic lock: Setting of the auto-lock time: Press the

key (inside the battery box), enter a number (any num ber between 10-99),
then press # to confirm. The auto-lock tim e can be set between 10-99 seconds
after opening the door. If the time is set less than 10 seconds, the door will not l ock
automatically, only manually.

Deleting the door-opening passwords: Press the
password followed by 0000, then press # and all the door-opening passwords will
be deleted except for the default password.

Note: To access the battery box you need to remove only the two small screws on

the top and bottom of that cover. Do not remove the 4 screws holding the

keypad and cover to the appliance door.

The factory -set default password i s 0123. If the default

key (located inside the battery

SCFF55LPLUS Series

These are built-in, fr ost -fr ee units that do no t r equire defrosting. At the top of the
unit is a cooling syst em that uses a fan to prov ide cold air. For b est operation,
do not block the air flow with cont ents. The thermost at is locat ed at the top right
of the unit.

Page 12

All other

require 1 inch of airflow on the sides and above the units. All models

NEVER USE A METAL

freezers. The freezers in these

4°C) to keep ice frozen, and not for

Felix Storch, Inc.

Page 13

SPECIFIC MODELS (cont’d)

FF6L, FF7 L, FF28LWH, FF32L, FF511L , FF521BL, FFAR2L, FFAR10, FFAR21L,
FFAR22LW, SCR450L, SCR500BL, SCR600L PLUS Series

These models are all-refrigerator (no freezer com partment) with autom atic defrost.
All have cold plates on the rear wall, and the coldest spots in the refrigerator will be
in the rear and toward the bottom. All have interior fans to promote even cooling. In
the rear bottom above the step, there is a drain line to allow defro st water to exit
the refrigerator. Keep this drain line clear, or icing inside t he refrigerator will occur.
FF7, SCR600L, FF511L, FF521BL, SCR450L and SCR500BL series m odels have
lights that are not door-activated, and are controlled by a rocker switch on the top
right. The light generates a small amount of heat, so keep the light off for best
operation and energy savings. FF6 and FFAR10 models have door-activated
lights. Smaller models do not have interior lights.

NOTE: All models with BI in their model numbers are designed for built-in
operation and do not need clearance on t he sides or above the units.
models
operate best when 1 inch is provided between the rear wall and the back of the
unit.

CF07ESPLUS, FCL44PLUS, FS20LPLUS, FS21LPLUS, FS22LPLUS,
FS60MLPLUS, FS62LPLUS, FS407LPLUS, FS408BLPLUS, SCF401SSPLUS,
UF850LPLUS, VT65MLPLUS Series

These are manual defrost all-freezers. No int ernal fans are present, and ice will
build up along the cooling coils. Periodically defrost the ice (recommended when
the ice level reaches a thickness of 1/4 to 1/2 inch).
INSTRUMENT as you can damage the c ooling coils, which will void your warranty
and often cannot be repaired. To defrost, di sconnect from the power supply, empty
the contents, provide a tray in the bott om to collect water, and use a hairdryer or
other source of warm air to melt the ice (or leave the door open and the power off
for 24 to 48 hours). (Chest freezer CF07ESMED has a built-in drain outlet.)

For built-in (BI) models and clearance information, see Note above.

CP35LLPLUS, CT66LPLUS Series

These models are cycle defrost refrigerator-freezers. T he freezers are designed to
operate at 0°F (-18°C), suitable for medical or l aboratory uses. Both models have
dual evaporators to maintain separate temperat ures in t he freezer and refrigerat or.
Defrost the freezer carefully, as directed above for manual defrost. The refrigerator
section operates in the normal range (35 to 45°F, or 2 to 7°C) and defrosts
automatically.

For built-in (BI) models and clearance information, see Note above.

CM411LPLUS, CM421BLPLUS, S1 9LPLUS Series

These models are manual defrost refrigerator­models are designed to operate at 25°F (­medication or products needing colder temperatures. Defrost carefully, following
directions above for manual defrost. The refrigerator section will operate in the
normal range (35 to 45°F, or 2 to 7°C) and is suitable for most refrigerated
products.

For built-in (BI) models and clearance information, see Note above.

Try the solutions suggested here first to avoid the cost of an

Felix Storch, Inc.

TROUBLESHOOTING

unnecessary service call.

Your appliance will not operate:

• Has a household fuse bl o w n or circuit breaker tripped?

Replace the fuse or reset the circuit breaker.

• Is the freezer defrosting (on some models)?

Recheck to see whether the freezer is operating in 30 minutes. Your
freezer will r egularly run an automat ic defrost cycle.

There is water in the defrost drain pan (on some models):

• Is the freezer defrosting?

The water will evaporate. It is normal for water to drip i nto the defrost pan.

• Is it more humid than normal?

When it is humid, expect that the water in the defrost pan will take longer
to evaporate.

The motor seems to run too much:

• Is there excessive frost or a package preven ting the door fro m

closing?
Defrost and clean the freezer, or move the package so the door closes
properly.

• Is the room temperature hotter than normal?

The motor will run longer under warm c onditions. At norm al room
temperatures, the motor will run about 40% to 80% of the time. Under
warmer conditions, it will run even more.

• Has a large amount of food just been added to the freezer?

Adding a large amount of food warms the freezer. The motor normally will
run longer to cool t he freezer back down.

• Is the door closed com pletely?

Push the door firmly shut. If it will not shut all the way, see The door will
not close completely later in this section.

• Are the condenser coils dirty (on some models)?

This prevents heat transfer and makes the motor work harder . Clean the
condenser coils.

• Is the door gasket seal ed all the way around?

If not, contact a qualified technici an.

Note: If the probl em is not due to any of the abov e, remember that the

compressor on your new appliance will operate longer than you r old one
due to its high-efficiency motor.

Page 14

Before calling for assistance or service, please check Troubleshooting. It
may save you the cost of a service call. If you still need help, follow the

he purchase date and the complete model

and serial numbers of your appliance. This information will help us to

If you need to order replacement parts, we recommend that you only use

specified parts will fit right and work right

because they are made with the same precision used to build every new

Felix Storch, Inc.

TROUBLESHOOTING (cont’d)

Temperature is too warm:

• Are the air vents bloc ked?

This prevents cold air movement. Move objects away from the air vents.

• Is the door opened often?

Be aware that the freezer will warm when thi s occurs. In order to keep the
freezer cool, t ry to get everything you need out of the freezer at once,
keep food organized so it is easy to find, and close the door as soon as
the food is removed.

• Has a large amount of food just been added to the freezer?

Adding a large amount of food warms the freezer. It can take several
hours for the freezer to return to the nor m al temperature.

The door will not close complet ely or is difficult to open:

• Are food packages blocking the door ?

Rearrange containers so that they fit more tightly and take up less space.

• Are the shelves or drawers out of position (on some models)?

Put the shelves and drawers back into t heir correct positions.

ASSISTANCE OR SERVICE

instructions below.
When calling, please know t

respond better to your request.

If You Need Replacement Parts

factory-specified parts. Factory­SUMMIT® appliance.

Call customer service toll free in the USA:
1-800-287-8799 Monday to Friday 9:00 a.m. – 5:00 p.m. (ET)

Order parts online at www.summitappliance.com/support

Page 15

ONE YEAR LIMITED WARRANTY FOR APPLIANCE

, acts of God,

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE

AL DAMAGES, OR
FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS
RIGHTS, WHICH VARY FROM STATE TO STATE.

WARRANTY

For parts and accessory ordering,

www.summitappliance.com/support

Revised May 2014

FELIX STORCH, INC.

Within the 48 c ontiguous United State s, for one year from th e date of purchase, w hen this
appliance is operat ed and maintained according to instruct ions attached to o r furnished with
the product, warran tor will pay for fact ory-specifi ed parts and re pair labor to correct defect s in
materials or workmanship. Service must be provided by a designated service company.
Outside the 48 sta tes, all par ts a re war ranted for o ne year from man ufact urin g def ects. Plastic
parts, shelves and cabinets are warranted to be manufactured to commercially accept able
standards, and are not covered from damage during handling or breakage.

1. The compressor is covered for 5 years.

2. Replacement does not include labor.

ITEMS WARRANTOR WILL NOT PAY FOR:

1. Servic e calls to correct the i nstallation of your appliance, t o instruct you ho w to use your
appliance, to replace or repair fuses or to correct wiring or plumbing.

2. Service calls to repair or replace appliance light bulbs or broken glass shelves.
Consumable parts (such as fil te rs) ar e e xclu de d from wa rra nt y cov er ag e.

3. Damage resulting from accident, alteration, misuse, abuse, fire, flood
improper installat ion, installation not in accordance with electrical or plum bing codes, or
use of products not approve d by wa rr a nto r.

4. Replacement parts or repair labor costs for units operated outside the United States.

5. Repairs to parts or systems resulting from unauthorized modifications made to the
appliance.

6. Expenses for travel and transportation for product service in remote locations.

7. The remo val a nd rei nst allation of your appl i ance if it is install ed i n a n i na ccessible locatio n
or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES – LIMITATION OF REMEDIES

5-YEAR COMPRESSOR WARRANTY

SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES,

EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTI
LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR

WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER

WARNING! This product may contain chemicals known to the state of California
to cause cancer or birth defects or other reproductive harm. For more information,
visit : www.summitapp liance .com/prop65

Chemicals known by the manufacturer to be pres e nt in this product in conce ntra­tions higher than threshold limits : NONE.

770 Garrison Avenue

Phone: [phone]

Fax: [phone]

www.summitappliance.com

Bronx, NY 10474

troubleshooting and helpful hints, visit:
