Owner’s Manual
Outdoor Models
CL65ROS/CL68ROS: Refrigerator
CL63FDOS : Wine Cooler & Beverage Center
BEFORE USE, PLEASE READ AND FOLLOW
ALL SAFETY RULES AND OPERATING INSTRUCTIONS
Write the Serial Number here:
Felix Storch, Inc.
Summit Appliance Division
770 Garrison Avenue
Bronx, NY10474
www.summitappliance.com
Table of contents
Safety instruction and warnings ........................................................................... 2 - 3
Transporting and unpacking ...................................................................................... 4
Installation instructions .......................................................................................... 5 -7
Before installation of your appliance ................................................................... 5
Tools you will need ............................................................................................. 5
Built-in installation dimensions ............................................................................ 6
Replacing cabinet legs with casters .................................................................... 7
Electrical connection ........................................................................................... 7

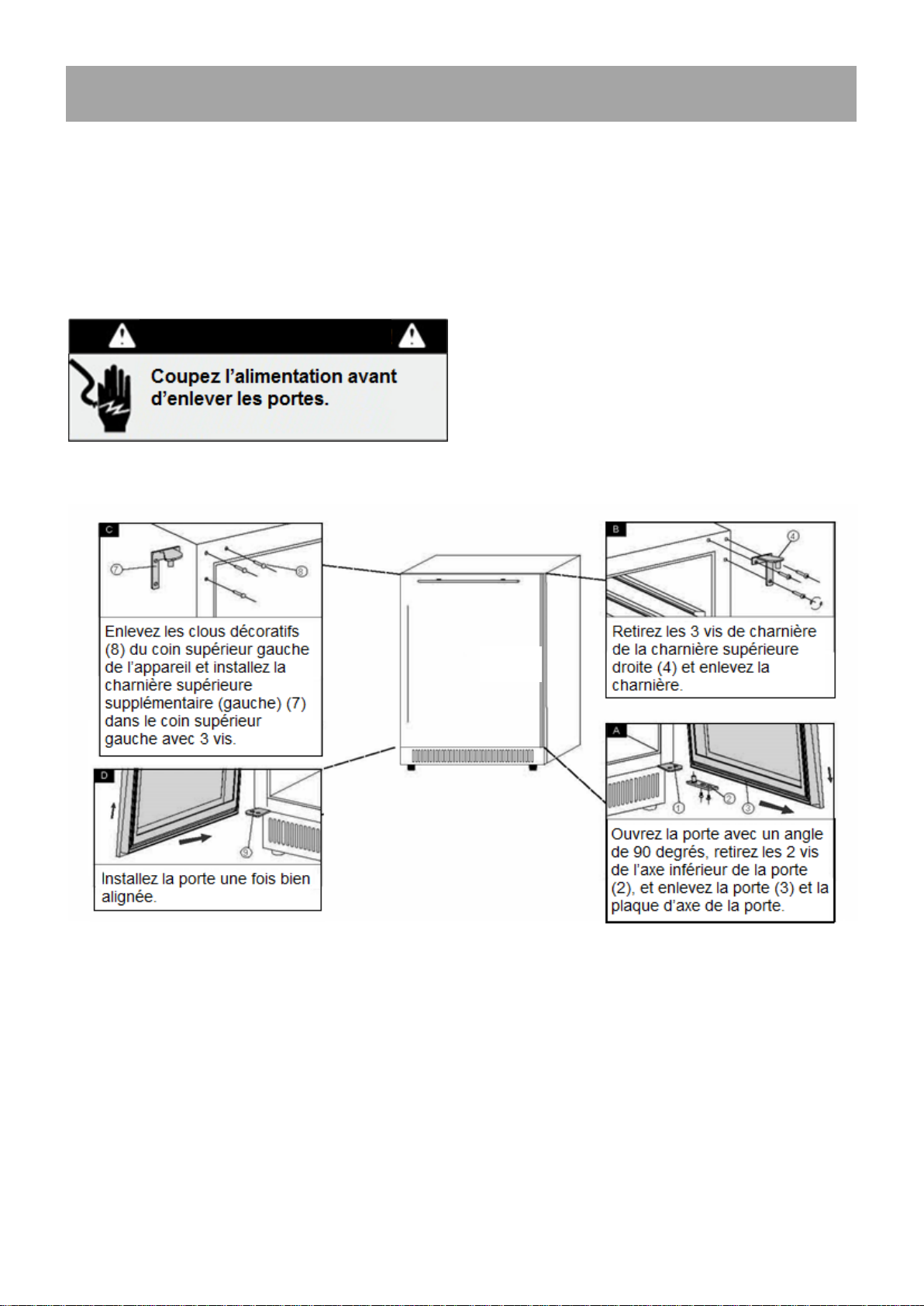

Reversing the door (model CL65ROS &CL68ROS) ................................................... 8
Operation .................................................................................................................. 9-10
Operating conditions ........................................................................................... 9

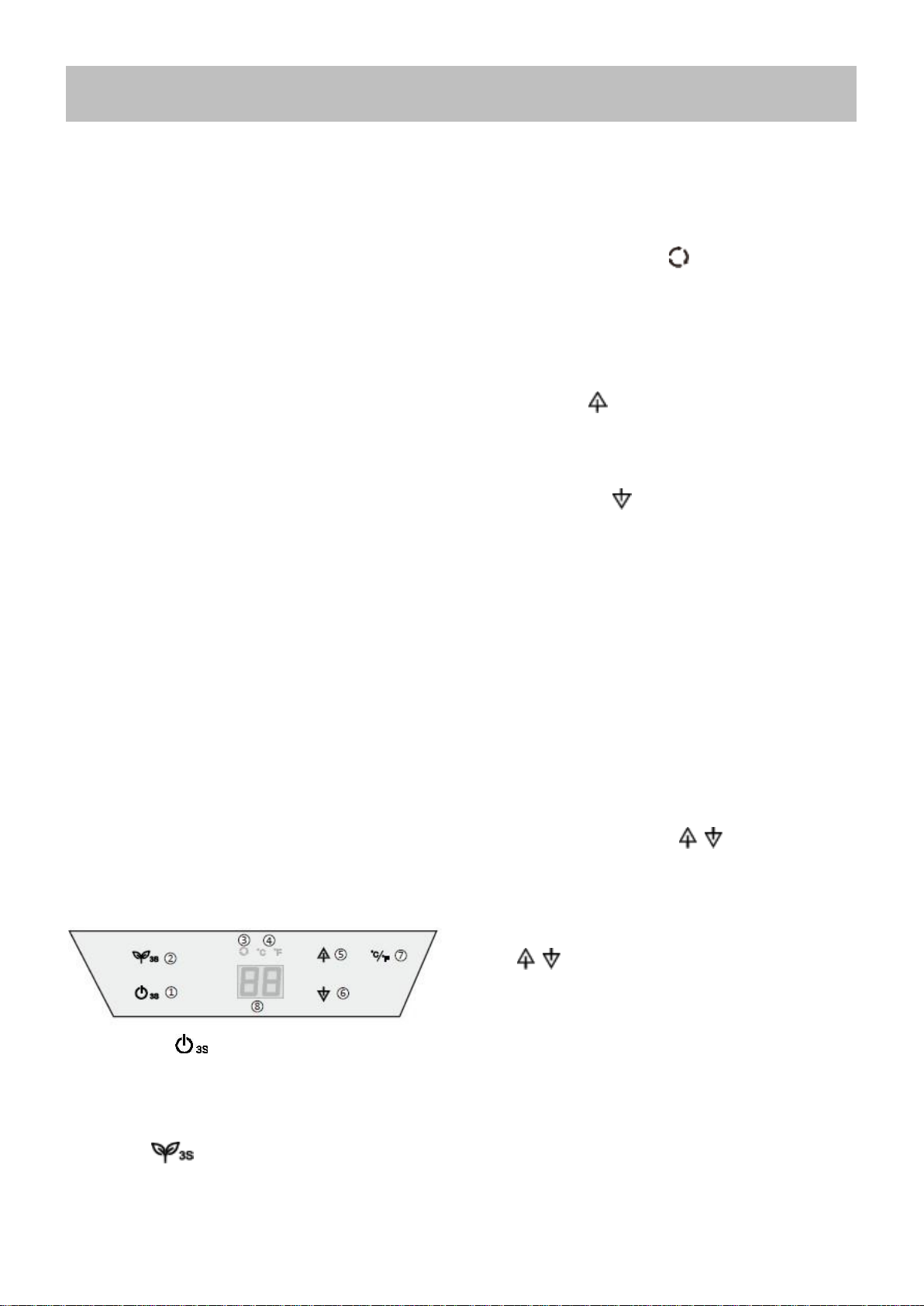

Control elements ................................................................................................. 9
Setting the temperature ....................................................................................... 9
Functions .......................................................................................................... 10
Defrosting .......................................................................................................... 10

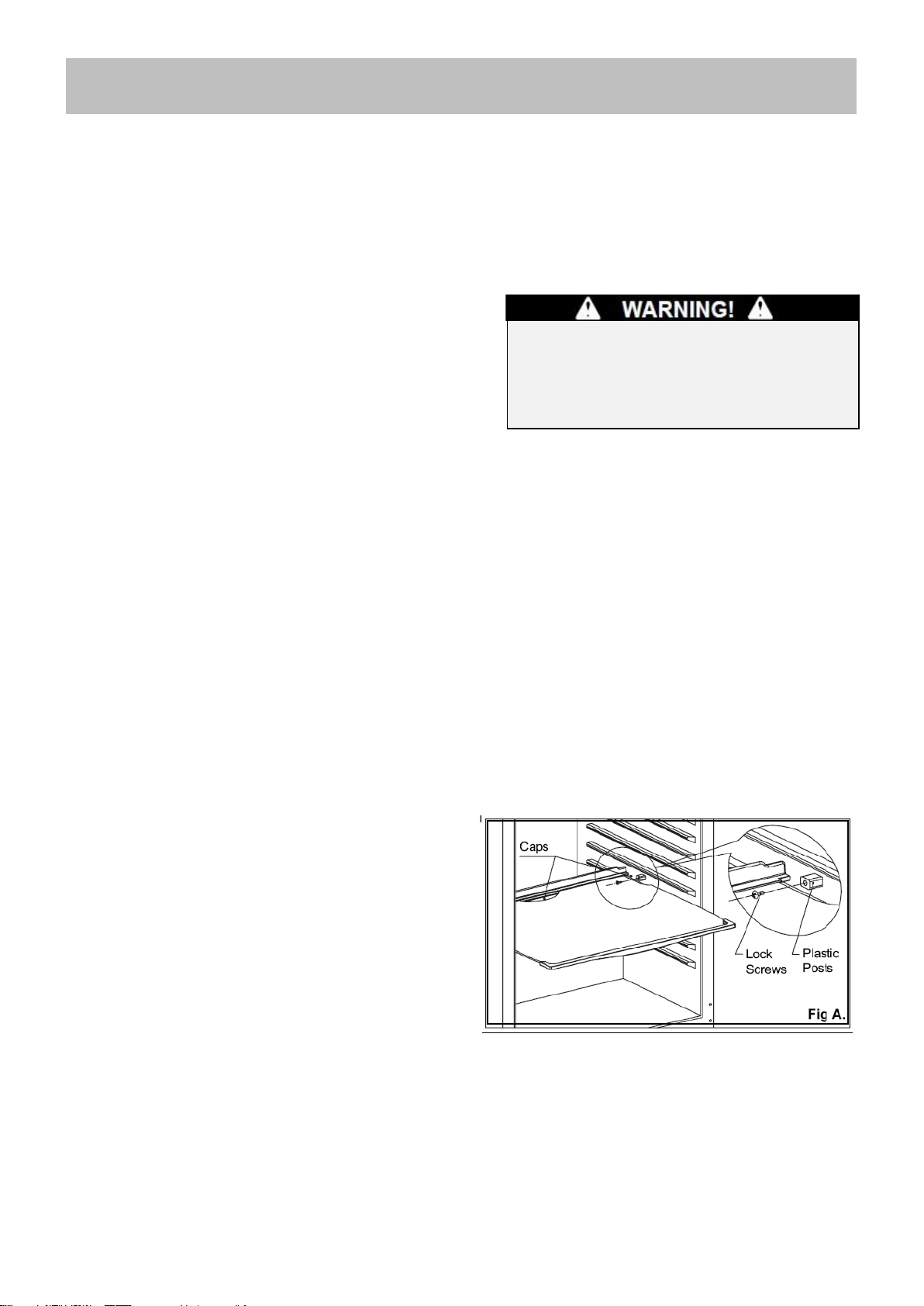

Shelves ................................................................................................ ............. 10
Beverage storage (model CL65ROS&CL68ROS) ...................................................... 11
Wine and beverage storage (model CL63FDOS) ..................................................... 11
Cleaning and care ................................................................................................ ...... 12
Cleaning the appliance ...................................................................................... 12
Moving .............................................................................................................. 12
Energy-saving tips ............................................................................................ 12
Problems with your appliance? ................................................................................ 13
Limited Warranty .................................................................................................. 14-15
Note on Models CL65ROS &CL68ROS&CL63FDOS
These appliances can be used both indoors and outdoors,
and may be installed either built into an enclosure or
free-standing. In any case, to ensure proper operation and
avoid unnecessary wasting of energy, leave enough
clearance around the unit when installing to allow air to
circulate freely.
For details on proper installation, see pages 5-6 .
1
Safety instructions and warnings
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Before the appliance is used, it must be properly positioned and installed as described in this manual.
Therefore, please read the manual carefully.To reduce the risk of fire, electric shock or injury when using the
appliance, follow basic precautions, including the following:
To prevent injury or damage to the
appliance, the appliance should be
unpacked and set up by two people.
In the event that the appliance is
damaged on delivery, contact the supplier
immediately before connecting to the
power line.
To guarantee safe operation, ensure that
the appliance is set up and connected as
described in these operating instructions.
Disconnect the appliance from the power
source if any fault occurs. Pull out the plug,
switch off or remove the fuse.
When disconnecting the appliance, pull on
the plug, not on the cable.
Any repairs and work on the appliance
should only be carried out by the
customer service department, as
unauthorized work could prove highly
dangerous for the user. The same applies
to changing the power cable.
Do not stand on the base, drawers or
doors or use them to support anything
else.
Do not allow flames or sources of ignition
to enter the appliance. When transporting
and cleaning the appliance, ensure that
the refrigerant circuit is not damaged. In
the event of damage, make sure that
there are no ignition sources nearby.Keep
the room well ventilated.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge unless
they have been given initial supervision or
instruction concerning use of the
appliance by a person responsible for
their safety. Children should be
supervised to ensure that they do not play
with the appliance.
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance.
Electrical components might cause
leaking gas to ignite. You may identify
such sprays by the printed contents
or a flame symbol.
Do not use any electrical devices inside
the appliance.
Before you throw away your old appliance:
Take off the door. Leave the shelves or
drawers in place so that children may not
easily climb inside.
When disposing of your appliance, please
choose an authorized disposal site.
2
Safety instructions and warnings
Children in the household
DANGER,RISK OF CHILD ENTRAPMENT!
Before you throw away your old appliances:
Take off the door.Leave the shelves in place
so that children may not easily climb inside.
Never leave packaging materials with
children. There is a danger of poisoning or
suffocation by the cardboard boxes and
plastic sheets!
This appliance is in no way a toy for
children!
If you will no longer be using the
appliance, remove the doors and gasket
seals and store in a safe place.In this way
you will avoid the danger of children
becoming trapped inside the appliance.
Never allow children to operate,play
with,or crawl inside the appliance.
Child entrapment and suffocation are not
problems of the past.Junked or
abandoned appliances are still
dangerous...even if they will “just sit in the
garage a few days”.
Grounding instructions
This appliance must be grounded.
If the power socket of the home system is
not grounded in accordance with the
current legal regulations,connect the
appliance to the grounding lead itself after
consulting a specialized technician.
Do not use an extension cord with this
appliance
This appliance is equipped with a power
cord having a grounding wire with a
grounding plug. The plug must be plugged
into an outlet that is properly installed and
grounded.
Consult a qualified electrician or service
technician if the grounding instructions are
not completely understood,or if doubt
exists as to whether the appliance is
properly grounded.
If the outlet is a standard 2-prong wall
outlet, it is your personal responsibility
and obligation to have it replaced with a
properly grounded 3-prong wall outlet.
For best operation, plug this appliance
into its own electrical outlet to prevent
flickering of lights, blowing of fuse or
tripping of circuit breaker.
Do not under any circumstances cut or
remove the third (ground) prong from the
power cord.
Do not use an adapter plug with this
appliance.
3
Transporting and unpacking
4
If the appliance is transported in a
horizontal position, the oil from the
compressor may leak into the cooling
circuit.For this reason,allow the appliance
to rest in a vertical position for 12 hours
before turning it on, so that the oil flows
back into the compressor.
Remove the external packaging, remove
the protective plastic film from the surface
of the appliance (if used) and clean the
external parts of the appliance with a
cleaner designed for this purpose. Do not
use steel wool or any coarse agents,
which could irreparably damage the
surface of the appliance. Carefully remove
all papers and adhesive tape from the
appliance, doors and other parts packed
in polystyrene. Remove documents and
accessories from inside the appliance.
The packaging material is recyclable and
is marked with a recycling symbol. For
disposal, follow the local regulations.
Packaging materials (plastic bags,
polystyrene parts,etc.) present a possible
source of danger and must be kept out of
the reach of children.
Carefully inspect the appliance. If you
discover any faults, stop the installation
and contact the vendor.
Installation instructions
NOTE: For free standing installation, allow at least 4” of clearance at the back, sides
Before installation of your appliance
The placement of the appliance must meet
Level the appliance using the adjustable
Check whether any coolant circulation
and top of the unit to permit the proper air circulation to cool the compressor and
condenser. Even for built-in installation, you should provide the following clearances
to ensure the best operation and proper ventilation: 3/16” on both sides, 2” at the
rear and 1/16” at the top.Take care that the air vent at the front of the appliance is
never covered or blocked in any way.
Use the appliance only for the purposes
the requirements in the section Operating
conditions on page 9 and must include a
stable floor with a load-bearing capacity
corresponding to the weight of the
appliance.
feet. Ensure there is a gap between the
bottom edge of the appliance and the
ground, so that there is sufficient
circulation of air. This will ensure the optimal
performance of the cooling system.
pipes have been damaged during
installation.
for which it has been designed.
The appliance must be located on a rigid
and even surface. In this way you will
ensure free circulation of the coolant and
effective operation of your appliance.
If possible, place the appliance in a cool,
well-ventilated and dry area.
Do not locate the appliance in direct
sunlight or in a room with a high ambient
temperature, or in the vicinity of any
sources of direct heat, such as a radiator or
oven. This would cause the compressor to
work harder, resulting in a substantially
higher power consumption level.
FOR YOUR SAFETY
While performing installations described in this section, gloves, safety glasses or
goggles should be worn.

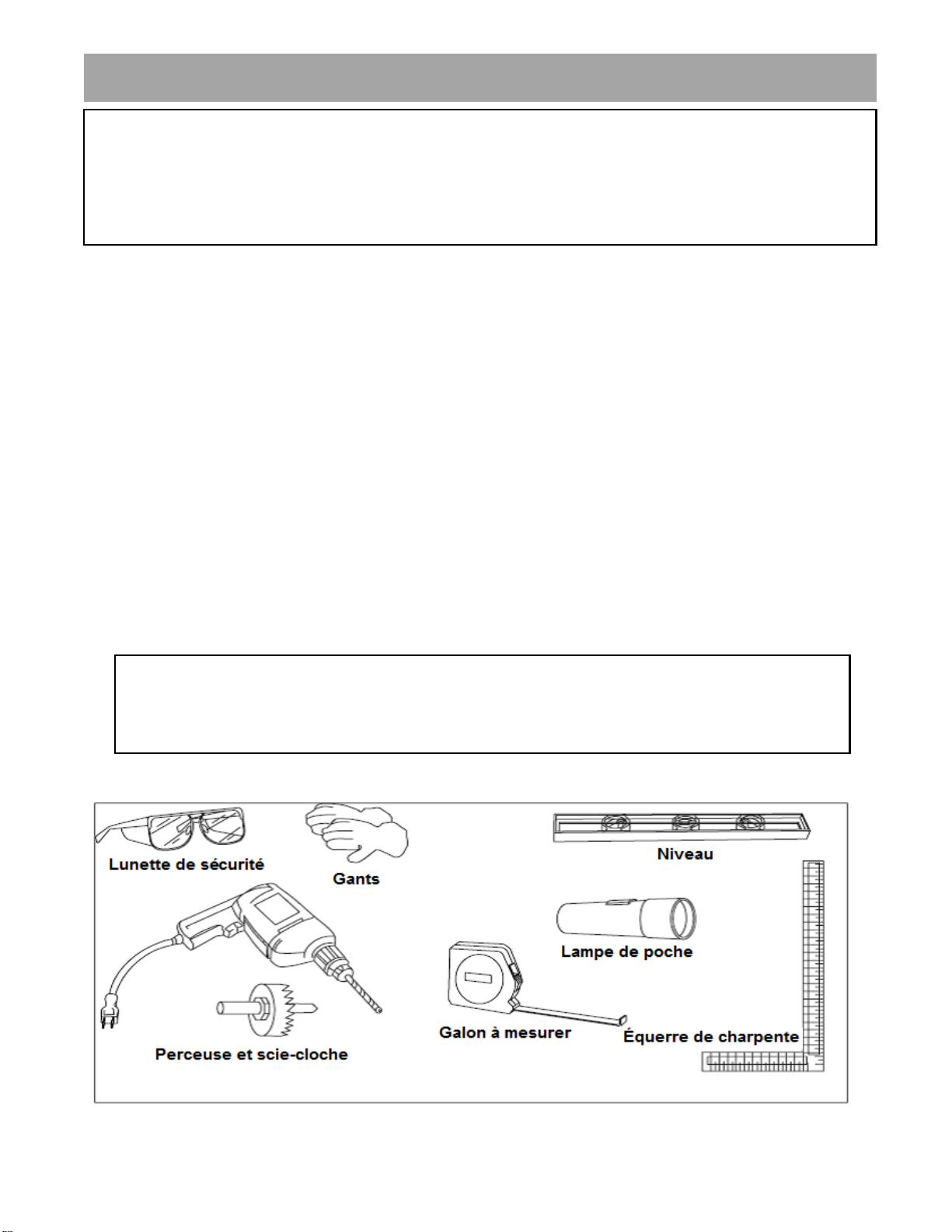

Tools you will need
5
Installation instructions

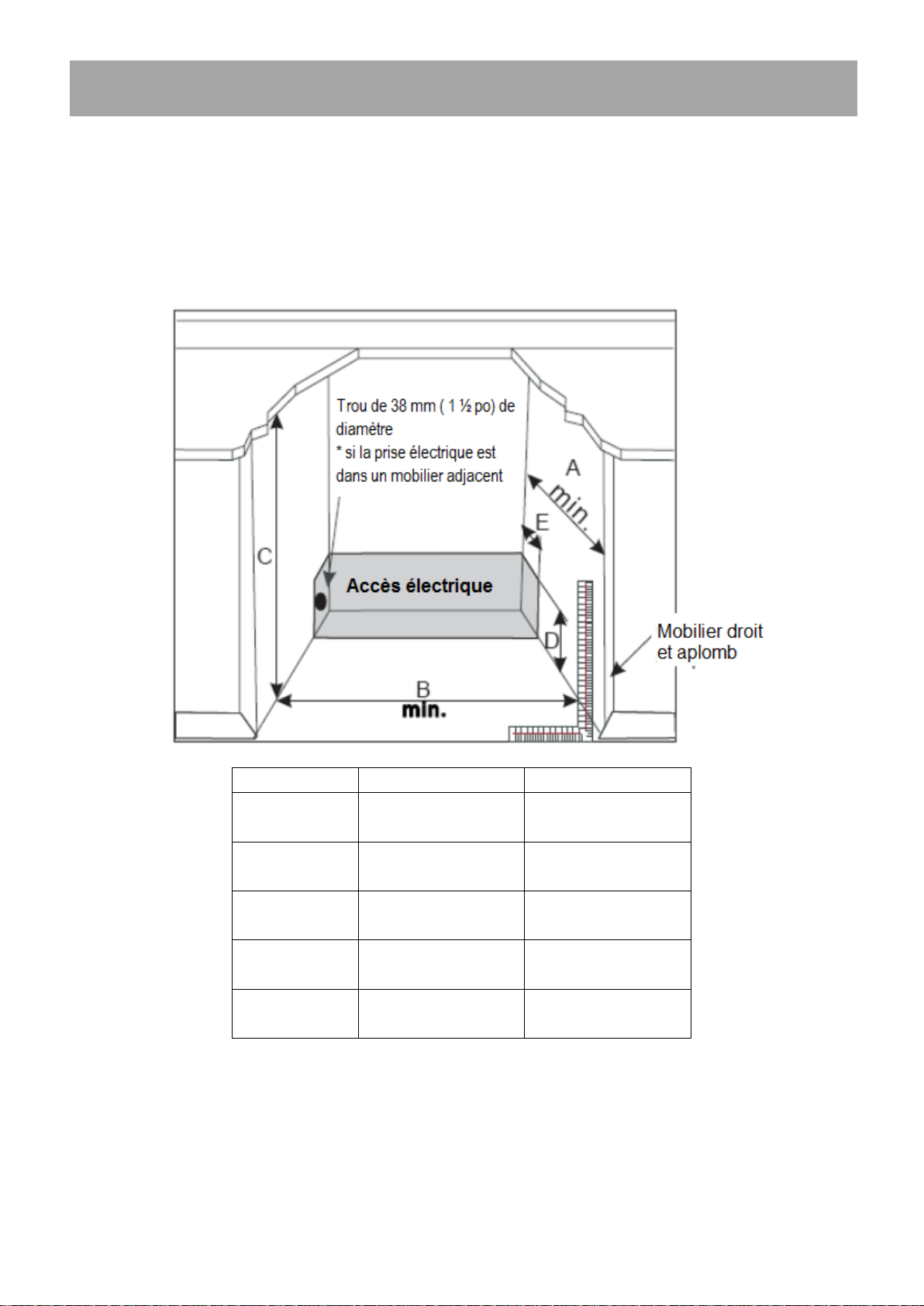

Built-in installation dimensions (mm/in)
If your appliance is to be built-in, use the dimensions in the diagram and chart below as a guide
when installing:
Model CL65ROS&CL68ROS CL63FDOS
A
B
C
D
E
660mm (26″)
610mm (24″)
883mm (34 ¾ ″)
152mm (6″)
51mm (2″)
6
660mm (26″)
610mm (24″)
883mm (34 ¾ ″)
152mm (6″)
51mm (2″)
Installation instructions
Notes:
Unplug the power cord and release the
brake before moving the cabinet.
Do not put any goods on top of the cabinet
and avoid slanting the cabinet when
moving it.
Push the cabinet from the rear making
sure the door does not open.
To avoid short circuits,please do not use
the cabinet in bad weather. Position the
cabinet under a canopy.
Do not let children climb on the cabinet or
move the cabinet to another location.
Keep the caster brake in “ON” position
while in desired location.
Cabinet must be placed on a level surface.
Cabinet will reach its cooling efficiency
after one hour.

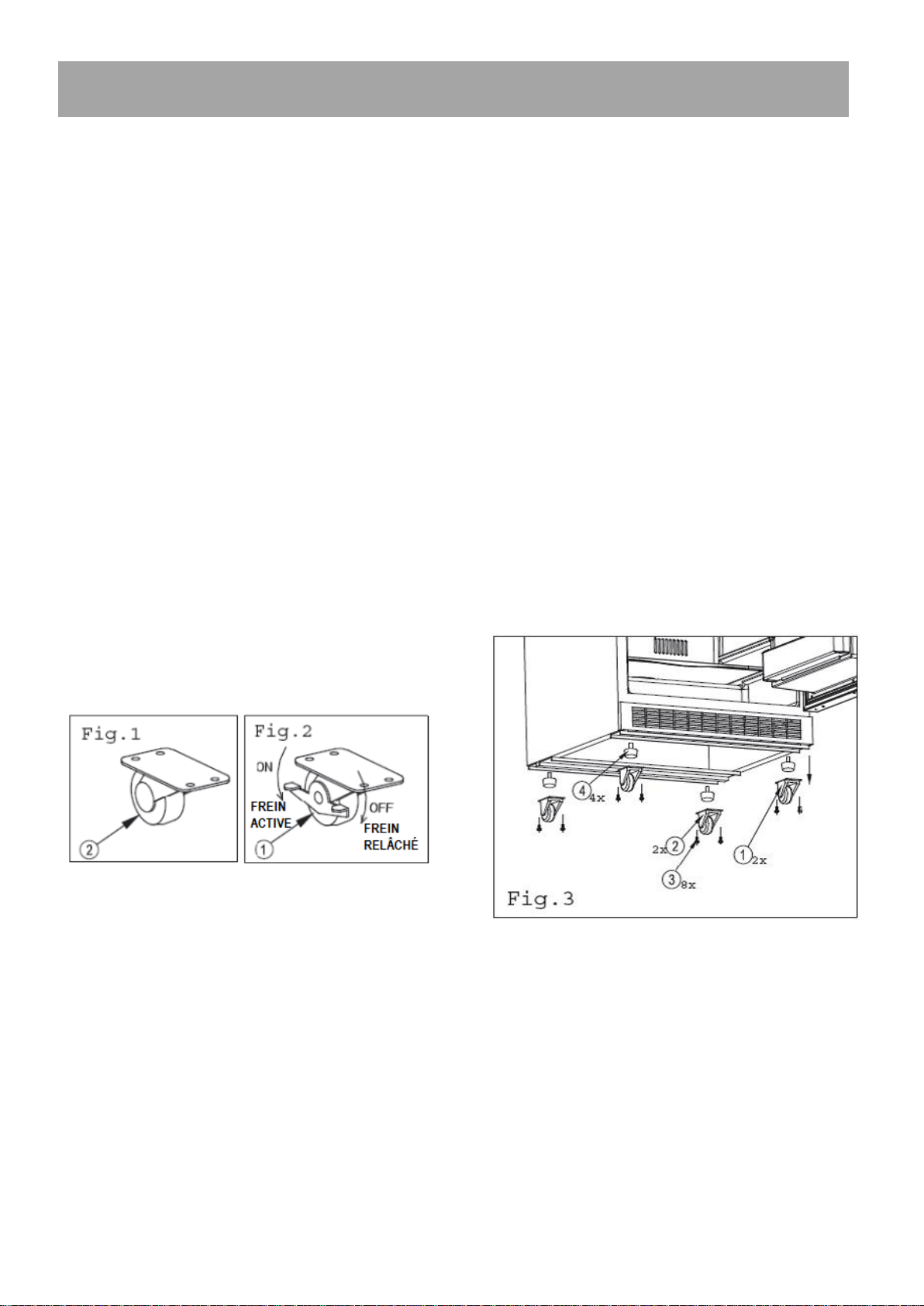

Replacing cabinet legs with casters
a) Tilt the unit on its back on a level surface
and remove the 4 cabinet legs (Fig.3
number 4).
Reserve the cabinet legs.
b) Assemble the casters with brake (Fig. 2)
on the cabinet front bottom and the other 2
casters (Fig. 1)at the cabinet rear bottom.
c) Assemble each caster to the bottom of the
unit with (2)M5x10 screws with a star or
Phillips screwdriver (Fig.3).
d) The caster brake (Fig.3 number 1) at the
front bottom of the cabinet comes with a
braking function. When the brake handle
is “ON” (Fig.2)’ unit wont roll; when brake
handle is “OFF”(released), it will roll.(Fig.2)
Electrical connection
A 115 Volt (AC only) 60 Hz grounded
electrical supply equipped with a 15- or 20amp fuse or circuit breaker is required. It is
recommended that a separate circuit serving
only your appliance be provided. Use outlets
that cannot be turned off by a switch or pull
chain. Connect this appliance to a 3-prong
power supply outlet that has a ground
terminal. If you only have a 2-prong outlet,
have it replaced by a qualified technician
with an outlet that meets the local codes. DO
NOT USE AN EXTENSION CORD.
Required nominal voltage and frequency are
indicated on the rating plate. The connection
to the power supply and grounding has to be
made according to current standards and
regulations.
7
Reversing the door (model CL65ROS/CL68ROS )
Model CL65ROS or
CL68ROS has a reversible door but is delivered to you with a right hinged
door. Should you wish to reverse the hinge on your unit, a left-hand hinge kit is included in the
box.
8
Operation
Operating conditions
Proper operation of the appliance
is guaranteed only if the following conditions
are met:
The temperature in the room where the
appliance is located conforms to the
climate class stated on the appliance’s
rating label.
Maximum ambient relative humidity:
RH75%.
The appliance must be placed at a
sufficient distance from heat sources ( e.g.,
ovens, central heating,direct
sunlight,etc.).
The appliance must be located in such a
place that it is protected against the
effects of weather.
Regular maintenance is performed
according to the instructions in this user’s
manual.
The ventilation openings in the cover of
the appliance must not be covered by
anything.
Correct installation ( e.g., leveling,the
capacity of the system corresponds to the
specifications on the rating label of the
appliance).
2) “ ” button
Energy conservation button:Pressing this
button for 3 seconds will turn the energy
conservation mode on or off. In this mode, the
LED light and display will turn off, and the
C/F light will be on.
3) “ “ indicator light
Shows that the compressor is in operation.
4) “°C/°F” indicator light
The temperature scale is changed by
pressing the C/F button.
5) “ ”button
Used to increase(warm) the temperature in
steps of 1F(or 1C).
6) “ ” button
Used to decrease(cool) the temperature in
steps of 1F(or 1C).
7) “°C/°F”button
Press this button to switch the indicator light
between C andF.
8) LED display
Shows the temperature of the internal cabinet.
Setting the temperature
Insert the power plug into a properly grounded
power socket.
Control elements
For Models :
CL65ROS/CL68ROS/CL63FDOS
1) “ ” button
To turn the unit ON and OFF, press and hold
this button for approximately 3 seconds.
Use the / buttons to set the desired
temperature of the appliance. Each time the
/ buttons are pressed,the temperature
will increase / decrease by 1F (or 1C).
CL65ROS&CL68ROS
You can set the temperature in the range of
36° F to 50° F (or 2° C to 10° C).
CL63FDOS
You can set the temperature in the range of 39° F
to 64° F (or 4° C to 18° C).
9
Loading...
