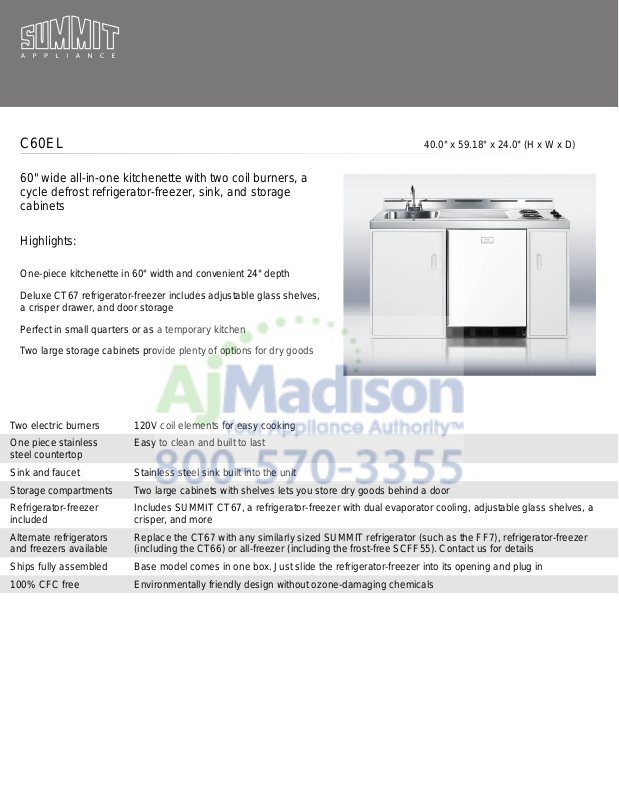

Summit C60EL Brochure

C60EL 40.0" x 59.18" x 24.0" (H x W x D)

60" wide all-in-one kitchenette with two coil burners, a
cycle defrost refrigerator-freezer, sink, and storage
cabinets

Highlights:

One-piece kitchenette in 60" width and convenient 24" depth
Deluxe CT67 refrigerator-freezer includes adjustable glass shelves,

a crisper drawer, and door storage
Perfect in small quarters or as a temporary kitchen
Two large storage cabinets provide plenty of options for dry goods

Two electric burners 120V coil elements for easy cooking
One piece stainless

steel countertop
Sink and faucet Stainless steel sink built into the unit
Storage compartments Two large cabinets with shelves lets you store dry goods behind a door
Refrigerator-freezer

included
Alternate refrigerators

and freezers available
Ships fully assembled Base model comes in one box. Just slide the refrigerator-freezer into its opening and plug in
100% CFC free Environmentally friendly design without ozone-damaging chemicals

Easy to clean and built to last

Includes SUMMIT CT67, a refrigerator-freezer with dual evaporator cooling, adjustable glass shelves, a
crisper, and more

Replace the CT67 with any similarly sized SUMMIT refrigerator (such as the FF7), refrigerator-freezer
(including the CT66) or all-freezer (including the frost-free SCFF55). Contact us for details

Specifications:

Height 40.0"
Width 59.18"
Depth 24.0"
Capacity 5.1 cu.ft.
Interior Height 1 19.5"
Interior Width 1 20.5"
Interior Depth 1 17.0"
Interior Height 2 5.0"
Interior Width 2 19.0"
Interior Depth 2 11.5"
Comp Step Height 7.0"
Comp Step Width 20.5"
Comp Step Depth 5.0"
Shipping Weight 320.0 lbs.
Weight 295.0 lbs.
Voltage/Frequency 115 V AC/60 Hz
Canadian Electrical Safety ETL-C
Amps 20.0
US Electrical Safety ETL
Reversible Yes
Door Swing RHD
Crisper Quantity 1
Shelf Quantity 3
Adjustable Shelf true
Shelf Type Glass
Crisper Cover Type Glass
Crisper Finish Transparent
Full Door Shelf Quantity 3
Defrost Type Cycle
Depth with door at 90° 44.25"
Burner Temperature Control Dial
Heating Type Radiant
Number of Burners 2
Light true
Thermostat Type Dial
Condensor Location Rear of Unit
Level Legs Quantity 2
High Side PSI 285.0
Freon Oz 2.6
Low Side PSI 70.0
Freon Type R134a
Parts/Labor Warranty 1 Year
Compressor Warranty 5 Years
