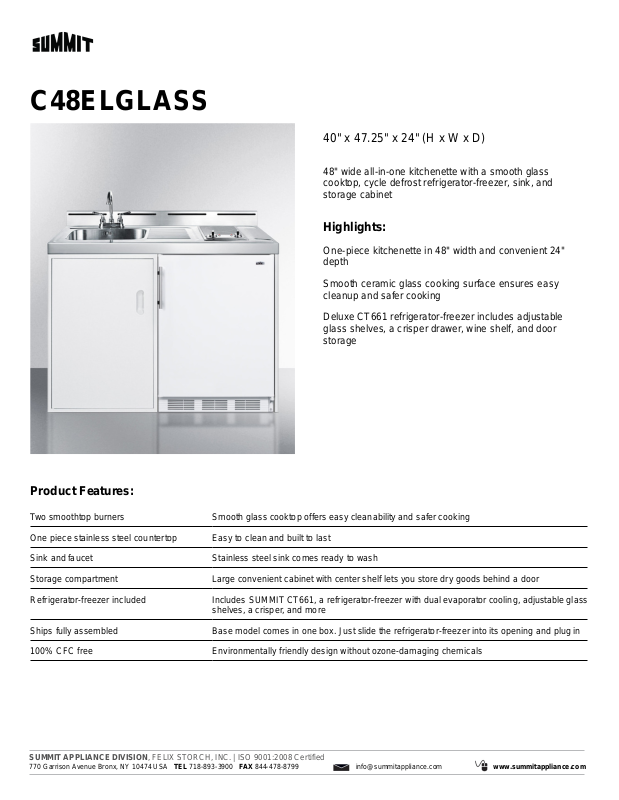

Summit C48ELGLASS Brochure

C48ELGLASS

40" x 47.25" x 24" (H x W x D)

48" wide all-in-one kitchenette with a smooth glass
cooktop, cycle defrost refrigerator-freezer, sink, and
storage cabinet

Highlights:

One-piece kitchenette in 48" width and convenient 24"
depth

Smooth ceramic glass cooking surface ensures easy
cleanup and safer cooking

Deluxe CT661 refrigerator-freezer includes adjustable
glass shelves, a crisper drawer, wine shelf, and door
storage

Product Features:

Two smoothtop burners Smooth glass cooktop offers easy cleanability and safer cooking
One piece stainless steel countertop Easy to clean and built to last
Sink and faucet Stainless steel sink comes ready to wash
Storage compartment Large convenient cabinet with center shelf lets you store dry goods behind a door
Refrigerator-freezer included Includes SUMMIT CT661, a refrigerator-freezer with dual evaporator cooling, adjustable glass

shelves, a crisper, and more
Ships fully assembled Base model comes in one box. Just slide the refrigerator-freezer into its opening and plug in
100% CFC free Environmentally friendly design without ozone-damaging chemicals

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

C48ELGLASS Specifications:

Overview

Height of Cabinet 40.0" (102 cm)
Width 47.25" (120 cm)
Depth 24.0" (61 cm)
Depth with door at 90° 44.25" (112 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Cabinet White
US Electrical Safety ETL
Canadian Electrical

Safety
Amps 15.0
Voltage/Frequency 115 V AC/60 Hz
Weight 280.0 lbs. (127

Shipping Weight 320.0 lbs. (145

Parts & Labor Warranty 1 Year

Kitchenette

Refrigerator Included CT661
Refrigerator Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Glass
Shelf Qty 3
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Full Door Shelves 3
Thermostat Type Dial
Interior Light Yes
Refrigerant Type R134a
Refrigerant Amount 2.6 oz.
High Side PSI 285.0
Low Side PSI 70.0
Cooktop Type Smoothtop
Number of Burners 2
Cooktop Controls Dial
Interior Height 1 19.5" (50 cm)
Interior Width 1 20.5" (52 cm)

ETL-C

kg)

kg)

Interior Depth 1 17.0" (43 cm)
Interior Height 2 5.0" (13 cm)
Interior Width 2 19.0" (48 cm)
Interior Depth 2 11.5" (29 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step With 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)
Sink Height 5.88" (15 cm)
Sink Width 16.75" (43 cm)
Sink Depth 14.88" (38 cm)
