Thank you for purchasing this SUMMIT Combination Kitchen. This product has been
manufactured to the high standards identified with the SUMMIT name, and assembled
in the U.S.A. We fully expect it to bring you many years of excellent service.
Please read this manual before installing and using the unit, and keep the manual in a
handy spot for future reference. There is a separate manual for the refrigerator in your
Combination Kitchen, so be sure to read and keep that manual also.
Table of Contents
Appliance Safety .............................................................................................. 2-3
Technical Information .......................................................................................... 3
Description of Models ........................................................................................... 4
Location of Parts; Operating Your Cooktop .......................................................... 5
Installation Instructions ........................................................................................ 6
Operating Tips ..................................................................................................... 7
Cleaning and Maintenance .................................................................................. 8
Dimensional Layouts ....................................................................................... 9-11
Accessories .................................................................................................. 12-14
Appliance Platform ................................................................................ 12-13
Power Allocator .......................................................................................... 13
Wall Cabinets ............................................................................................. 14
Warranty ............................................................................................................ 16
Felix Storch, Inc.
Appliance Safety
Your safety and the safety of others are very important to us. We have provided many
important safety messages in this manual and on your appliance. Always read and
obey all safety messages. Serious injury or even death can be the result if you do not
follow these instructions. All safety messages will tell you what the potential hazard is,
tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
WARNING! To reduce the risk of fire, electric shock or injury
when using your appliance, follow these basic precautions:
Plug into a grounded 3-prong outlet.
Do not remove grounding prong, nor use a 3/2 adaptor.
Do not use an extension cord.
Do not plug into outlets controlled by wall switches.
Disconnect power before servicing or cleaning.
After servicing, replace all parts and panels before operating.
Use nonflammable cleaners.
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
Keep flammable materials and vapors, such as gasoline, away from this product.
Use two or more people to move and install this product.
Use this product only for its intended purpose. This product is recommended for
Page 3
household use only. It should never be used as a space heater.
Since the appliance gets hot during use, avoid placing materials sensitive to high
temperatures anywhere near it.
Always unplug the cooktop when you are finished cooking and before you clean the
appliance.
Never leave the appliance unattended while the burners are on.
Do not spray cleaning solvents onto the glass cooktop when it is hot.
Keep children away from the controls and the burners.
Never use any electrical appliance if the cable or plug are damaged.
Proper Disposal of Your Old Appliance
Old appliances can represent
a suffocation hazard to children.
Remove doors from your old appliance.
Leave shelves in place.
If an old appliance contains refrigerants, it must be recycled by a licensed service or
disposal company.
Technical Information
Burners
Number of burners: 2
Construction: Smooth black glass cooktop
Size of burners: 7” diam., 900W max
5¾” diam., 500W max
Fuse (or circuit breaker): 20A
Thermostat type: Dial
Electrical Input: 120V-AC, 60Hz
Specifications are subject to change without notice.
WARNING: Keep vents clear.
Refrigerator
Refer to Owner’s Manual accompanying refrigerator.
Page 4
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
Description of Models
Model Width Height Depth Finish Defrost
C301
30” 40” 24” White Manual
GLASS
C301
AUTO
30” 40” 24” White Auto-
matic
GLASS
C39
39” 39” 24” White Manual
GLASS
C39
AUTO
39” 39” 24” White Auto-
matic
GLASS
C48
48” 39” 24” White Cycle
GLASS
Suffix
APSS
Suffix
Choice 18” 18” St.
N/A
Steel
Choice 18” 18” White N/A
APSW
Description
30” fully assembled combination kitchen incl. black glass
cooktop with 2 electric burners (110V). Refrigerator and full
one-piece stainless steel top with sink. Storage cabinet
with shelf. Faucet included; complete with line cord.
30” fully assembled combination kitchen incl. black glass
cooktop with 2 electric burners (110V). Auto defrost refrig-
erator and full one-piece stainless steel top with sink. Stor-
age cabinet with shelf. Faucet included; complete with line
cord.
39” fully assembled combination kitchen incl. black glass
cooktop with 2 electric burners (110V). Refrigerator and full
one-piece stainless steel top with sink. Storage cabinet
with shelf. Faucet included; complete with line cord.
39” fully assembled combination kitchen incl. black glass
cooktop with 2 electric burners (110V). Auto defrost refrig-
erator and full one-piece stainless steel top with sink. Stor-
age cabinet with shelf. Faucet included; complete with line
cord.
48” fully assembled combination kitchen incl. black glass
cooktop with 2 electric burners (110V). Refrigerator and full
one-piece stainless steel top with sink. Storage cabinet
with shelf. Faucet included; complete with line cord. Includes a larger 24 inch wide deluxe refrigerator-freezer
(Model CT67).
High shelf in stainless steel, with power allocator system to
regulate the refrigerator, a microwave and coffee maker.
All stainless steel construction. Some assembly required.
Same as above in a white finish.
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
Page 5
Location of Parts
Typical Top Surface
Sink Drain
Draining
grooves
7” burner
5¾” burner
Glass cooktop
Thermostat
knob
ON indicator
LEDs
Hot water
Cold water
FRONT
Stainless steel top
NOTES:
1. Model C301 has sink on right and cooktop on left.
2. All models include a storage compartment with shelf and are shipped fully assembled, including fau-
cet. Each model comes with a refrigerator that fits precisely into the slot in the assembly that has
been prepared for it.
Operating Your Cooktop
Either burner can be turned on by pushing the control knob down and turning it clockwise or counterclockwise to the desired setting. To adjust the setting, turn the knob without pressing down. The burner
is turned off by turning the control knob clockwise or counter-clockwise to "OFF".
OPERATING INDICATORS
When a burner is turned on, the corresponding LED indicator will light up regardless of the setting.
RESIDUAL HEAT INDICATOR
There is a Residual Heat Indicator on the left front corner of the cooktop surface that will light up
when some part of the glass ceramic cooktop is too hot to touch or place articles upon. Do not place
articles other than cookware on the cooking surface while this light is glowing.
Page 6
SUMMIT APPLIANCE DIV.
Installation Instructions
Unpacking
1. Remove packaging material.
2. Remove tape and glue residue from surfaces before using the appliance. Rub a
small amount of liquid dish detergent over the adhesive with your fingers. Rinse
with warm water and dry.
3. Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive cleansers to remove tape or glue. These products can damage the surface of the appliance.
4. When Moving Your Appliance:
Your appliance is heavy. When moving the appliance for cleaning or service, be
sure to protect the floor. Always pull the appliance straight out when moving it. Do
not wiggle or “walk” the appliance when trying to move it, because floor damage can
occur.
5. Clean Before Using:
After you remove all of the packaging materials, clean your appliance thoroughly before using it. See cleaning instructions in the Cleaning and Maintenance section of
this manual.
Location Requirements
Check the strength of the floor before installing the appliance. It should hold the weight
of a fully loaded appliance, including refrigerator.
Once your Combination Kitchen is in place, have a plumber connect the hot and cold
water feeds and drain line.
Keep flammable materials and vapors such as gasoline away from appliances. Failure
to do so can result in fire or explosion.
Recommended Grounding Method
A 120V, 60Hz AC-only, grounded electrical supply, including a 20-amp fuse or circuit
breaker, is required for the burners. (A 10-amp fuse or circuit breaker would be sufficient for the refrigerator.) It is recommended that separate circuits serving only your
appliance be provided. Use outlets that cannot be turned off by a switch or pull chain.
Connect the burners to a 3-prong power supply socket (which has a good ground terminal). If you only have a two-prong outlet, have it replaced by a qualified electrician
with an outlet that meets the local codes. DO NOT USE AN EXTENSION CORD. The
connection to the power supply and grounding has to be made according to current
standards and regulations.
Felix Storch, Inc.
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
Page 7
Operating Tips
Before using your cooktop for the first time, plug the appliance into the appropriate socket,
turn both controls to their highest setting, and allow the burners to heat up for three minutes
with no cooking utensils on them.
Keep the surface of the cooktop clean because dirt affects its efficiency.
You can use ordinary cooking utensils (saucepans, frying pans, etc.) as long as the base of
the utensil is smooth and flat and at least the same diameter as the burner (5¾” or 7”).
The bottoms of your pots and pans should be clean and dry when you place them on the
cooktop.
When cooking with large quantities of oil or fat, be sure to keep an eye on the pots and
pans at all times.
Don’t cook food in aluminum foil or plastic containers because these materials will melt.
The cooking surface
Your ceramic cooktop is made of an extremely hard and durable material. The surface is
scratch resistant, not scratch proof. Avoid using cookware with ridged bottoms. Ridged
pots with dirty or chipped enamel bottoms may scratch the cooktop if they are pulled
across the ceramic surface.
Make sure the cooktop and pot bottoms are clean before cooking. Certain items, particularly
sugar grains or crystallized liquids such as molasses or syrups are actually harder than ceramic and can scratch the surface if they are not cleaned off immediately. However, small
or light scratches will not affect the safety or performance of the cooktop.
Pots and pans
Special cookware is not required, but as is true with all types of cooking appliances, the better
the cookware, the better the performance.
For the most even and energy efficient cooking, the diameter of the pots should match the di-
ameter of the burners as closely as possible.
Use cookware with thick, flat, smooth bottoms. Slightly concave bottoms will also work ade-
quately. Pans with convex bottoms will not cook well.
Using a lid while cooking will minimize the loss of heat and decrease the cooking time.
Copper bottom and aluminum pans may leave a residue on the cooktop in the form of metallic
lines. This is normal. These lines can be removed using a non-abrasive ceramic cooktop
cleaner or a shielded scraper blade.
Cast iron, glass or stoneware should not be used because they have poor heat transfer and
may scratch the surface.
CAUTION: Be sure to clean the cooktop after each use. Each time the residue is allowed to
melt it becomes harder to remove and may mar the appearance of the cooktop. Let the
cooktop cool before cleaning.
Page 8
SUMMIT APPLIANCE DIV.
Cleaning and Maintenance
To help ensure that your cooktop stays clean, follow these easy-care tips:
Clean the cooktop before you use it for the first time. A thorough cleaning with a
recommended cooktop cleaner will provide a coating on the cooktop prior to its first
use.
Always remove food spills, grease spatters and metal rub-off from cookware. A ra-
zor blade scraper or the equivalent works well to remove spillovers.
Clean the cooktop with a paper towel or a clean, soft cloth and a recommended
cleaner. After cleaning, always wipe the cooktop with a clean, damp cloth to avoid
cooked-on cleaner residue. Wipe the cooktop dry.
Felix Storch, Inc.
Do not use a dish towel or sponge to wipe off the cooktop. A film may be left by the
detergent and may cause discoloration of the cooktop surface.
Avoid abrasive scouring cleaners of any kind. Also avoid using plastic, nylon or
metal cleaning pads. They may scratch or melt onto the cooktop.
Avoid chemical cleaners such as chlorine bleach, ammonia, hydrofluoric acid or
chemical oven cleaners. They can etch or discolor the surface.
Do not let anything that melts – plastic, aluminum foil, sugar, etc. – come into con-
tact with the cooktop surface when it is hot. Should something melt onto the surface, immediately move it to a cool area of the cooktop with a razor blade scraper
and then remove it from the cooktop as soon as possible.
Clean the stainless steel parts of the unit with any suitable commercial product.
If the power cord is damaged, have it repaired or replaced by a qualified electrician
rather than try to do it yourself.
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
Dimensional Layouts of the Three Basic Modelsl
Model C301GLASS
Page 9
Page 10
Model C39GLASS
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
Dimensional Layouts (cont’d)
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
Dimensional Layouts (cont’d)

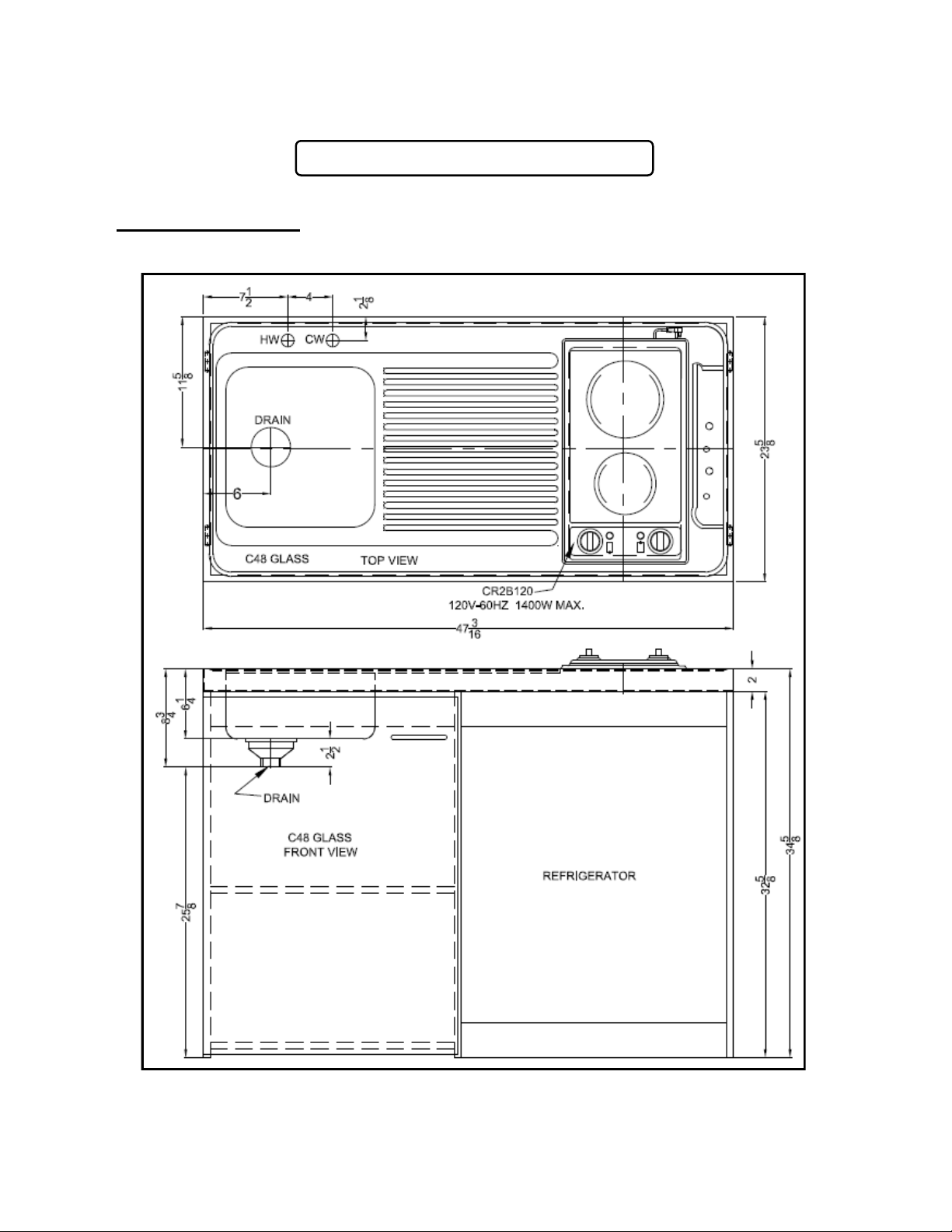

Model C48GLASS
Page 11
Page 12
SUMMIT APPLIANCE DIV.
Felix Storch, Inc.
Accessories
Appliance Platform
This is an 18-inch high mantel that you assemble and mount over the basic Combination Kitchen unit to provide a shelf for a microwave oven, coffee maker or other small
appliances. The width of the platform depends on the Combination Kitchen model you
choose. The finish is either Stainless Steel (suffix APSS) or White (suffix APSW).

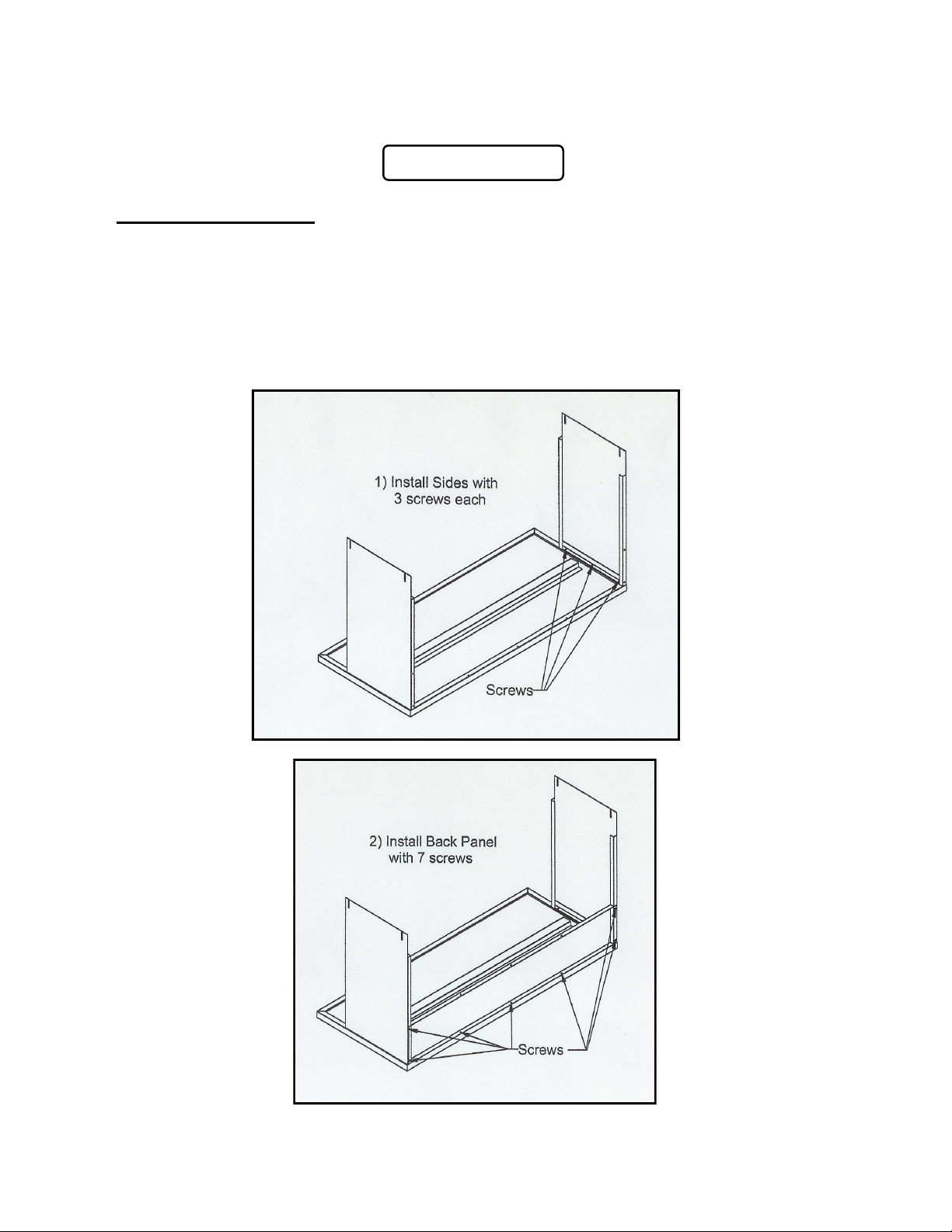

Follow the steps illustrated below to assemble and mount the platform. Screws are provided, but you’ll need a Phillips head screwdriver.
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
Page 13
Power Allocator

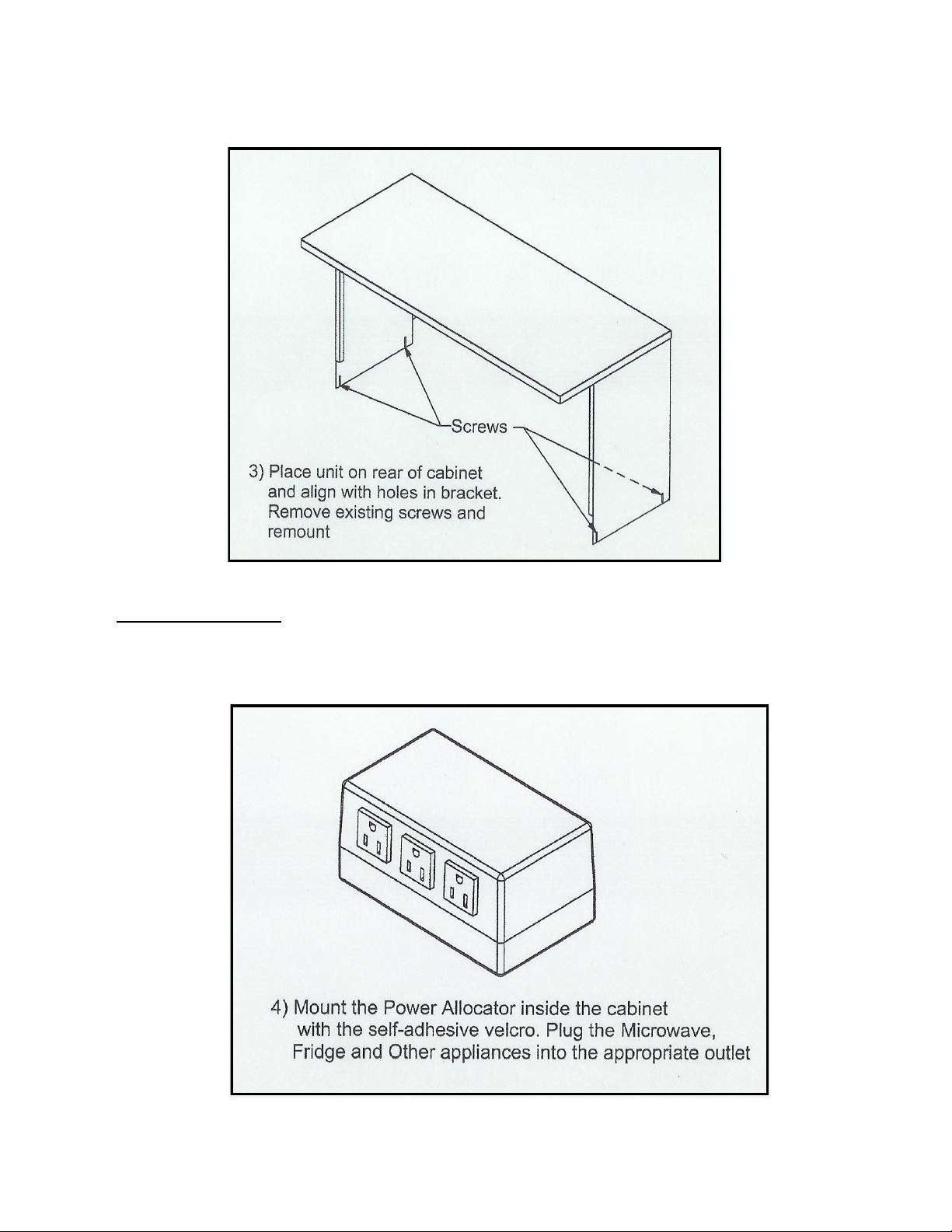

The Appliance Platform comes with a 3-socket Allocator box which regulates overall
power consumption to 10 amps. Use it to plug in the refrigerator, a microwave, or another small appliance.
Page 14
SUMMIT APPLIANCE DIV.
Felix Storch, Inc.
Accessories (cont’d)
Wall Cabinets
These optional hanging wall cabinets match the finish of your Combination Kitchen and
come in two widths. Model Cab2416 is 16” wide and Model Cab2420 is 20” wide. Both
cabinets are 24” high and 12” deep. An adjustable shelf along with all the necessary
hardware is included. Cabinets can be purchased either fully assembled or not.
Felix Storch, Inc.
SUMMIT APPLIANCE DIV.
Page 15
Notes
Page 16
SUMMIT APPLIANCE DIV.
WARRANTY
Felix Storch, Inc.
Call customer service toll-free in the U.S.A. @ 1-800-287-8799, Monday to Friday 9:00 a.m. - 5:00 p.m. (ET).
Order parts online at www.summitappliance.com/support
1-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and
repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets
are warranted to be manufactured to commercially acceptable standards, and are not covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair
fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken glass shelves. Consumable parts (such as filters) are
excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not
in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR
AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE.
Felix Storch, Inc.
770 Garrison Avenue
Bronx, NY 10474
Phone: (718) 893-3900
Fax: (718) 842-3093
www.summitappliance.com
Loading...
