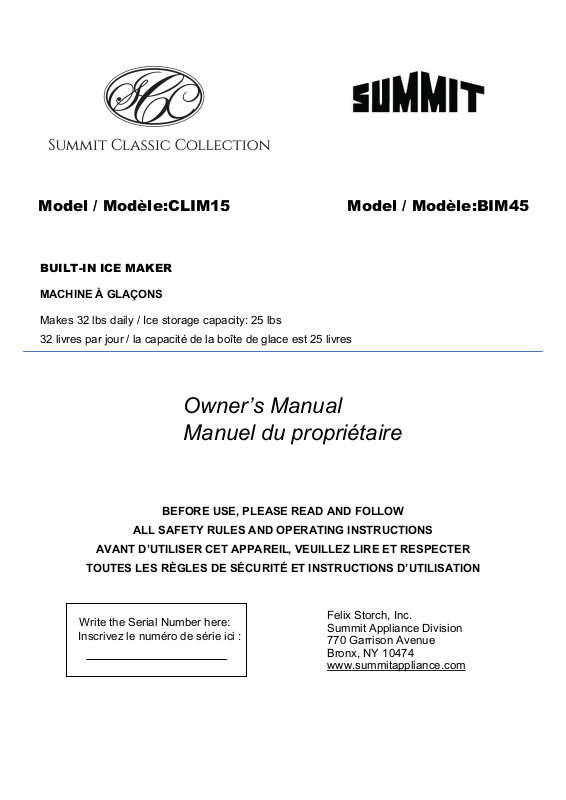

Summit BIM45 User Manual

Model / Modèle:CLIM15 Model / Modèle:BIM45

BUILT-IN ICE MAKER

MACHINE À GLAÇONS

Makes 32 lbs daily / Ice storage capacity: 25 lbs 32 livres par jour / la capacité de la boîte de glace est 25 livres

Owner’s Manual Manuel du propriétaire

BEFORE USE, PLEASE READ AND FOLLOW

ALL SAFETY RULES AND OPERATING INSTRUCTIONS

AVANT D’UTILISER CET APPAREIL, VEUILLEZ LIRE ET RESPECTER

TOUTES LES RÈGLES DE SÉCURITÉ ET INSTRUCTIONS D’UTILISATION

Write the Serial Number here:

Inscrivez le numéro de série ici :

Felix Storch, Inc. Summit Appliance Division 770 Garrison Avenue Bronx, NY 10474 www.summitappliance.com

TABLE OF CONTENTS

Important Safety Information ........................................................................... 2

Installation Instructions .............................................................................. 3 – 8

Before Using Your Ice Maker .................................................................... 3

Installation of Your Ice Maker .................................................................... 3

Installation Specifications (Built-In) ........................................................... 3

Connecting Ice Maker to Water Supply .............................................. 4 – 5

Door Reversal Instructions ....................................................................... 5

Ice Maker Performance Mode Instructions ......................................... 6 – 8

Operating Instructions .............................................................................. 8 – 10

Controls of the Ice Maker .................................................................... 8 – 9

Controlling the Size of Ice Cubes ........................................................... 10

Ice Bin ..................................................................................................... 10

Care and Maintenance ............................................................................ 11 – 12

Cleaning Your Ice Maker ........................................................................ 11

Power Failure ......................................................................................... 11

Moving Your Ice Maker ........................................................................... 11

Vacation Time ......................................................................................... 11

Cleaning the Inner Water Container ....................................................... 12

Troubleshooting .............................................................................................. 13

Limited Warranty ............................................................................................. 15

NOTES ON INSTALLATION OF ICE MAKER CLIM15 / BIM45

When installing the ice maker under a counter or other enclosed space, follow these spacing dimensions: Allow approximately 2" (50 mm) of clearance at rear, 1/16” (2 mm) at the top and 1" (25 mm) at sides for proper air circulation. The ventilation grille at the bottom should never be blocked. The installation should allow the ice maker to be pulled forward for servicing if necessary.

Even if the unit is to be installed free-standing, leave at least 4” of clearance at sides, top and back.

See pages 3-5 for more details on installation.

IMPORTANT SAFETY INFORMATION

READ ALL SAFETY INFORMATION BEFORE USING.

WARNING: RISK OF CHILD ENTRAPMENT

An empty ice maker is a very dangerous attraction to children. Remove either the gasket, latches, lock and/or doors from unused or discarded appliances, or take some other action to make sure it is harmless.

PRECAUTIONS

To avoid installa tion/operation difficulties, read these instructions thoroughly.

 This appliance must be grounded. Connect only to a

properly grounded outlet. See “Grounding Instructions” section.

 Do not operate this appliance if it has a damaged

power cord or plug, if it is not working properly, or if the appliance has been damaged or dropped.

 Never allow children to operate, play with, or crawl

inside the appliance.

 Never clean appliance parts with flammable fluids.

The fumes can create a fire hazard or explosion.

 Do not store or use gasoline or any other flammable

vapors or liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

 Do not splice the power cord that is equipped with this

appliance.

 Keep the power cord away from heated surfaces.  Do not immerse power cord plug or the appliance

itself in water.

 Do not use this product near water, for example, in a

wet basement, near a swimming pool or near a sink.

 Do not use corrosive chemicals or vapors in this

appliance.

 Use this appliance only for its intended use, as

described in this manual.

 See door surface cleaning instructions in the Care and

Cleaning section(s) of this manual.

 Do not cover or block any openings on the appliance.  This appliance is intended for household use only. Do

not attempt to operate or store this appliance outdoors.

 This appliance should be serviced only by qualified

service personnel. Contact the nearest authorized service facility for examination, repair or adjustment.

GROUNDING INSTRUCTIONS



WARNING：

Improper use of the grounding plug can result in a risk of electric shock.

 This appliance must be grounded. In the event of an

electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

 This appliance is equipped with a power cord having a

grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

 Consult a qualified electrician or service technician if

the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

 If the outlet is a standard 2-prong wall outlet, it is your

personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

 For best operation, plug this appliance into its own

electrical outlet to prevent flickering of lights, blowing of fuse or tripping of circuit breaker.

 Do not under any circumstances cut or remove the

third (ground) prong from the power cord.

 Do not use an adapter plug with this appliance.  Do not use an extension cord with this appliance. If

the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

DANGER! Risk of child entrapment

Before you throw away your old appliance:

 Take off the door.  Leave the shelves in place so that children

may not easily climb inside.

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR

BEFORE USING YOUR ICE MAKER

ICE MAKER

 Remove the exterior and interior packaging.  Before connecting the Ice Maker to the power source,

INSTALLATION

INSTALLATION SPECIFICATIONS (BUILT-IN)

SPECIFICATIONS (BUILT-IN)

TOOLS YOU WILL NEED

let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

 Clean the interior surface with lukewarm water using a

soft cloth.

 Attach the water inlet and outlet pipe, loosen the

FOR YOUR SAFETY:

While performing installations described in this section, gloves, safety glasses or goggles

should be worn.

SrewdriverPhillipsLevelCarpentersSquareFlashlightMeasu

screwnut, choose the function switch. (See Ice Maker Performance Mode instructions.)

 Before first use: Make two full batches of ice and

then discard to insure that future batches are clean and sanitary.

ATTENTION

 Do not open the door unless necessary.  If the Ice Maker will not be used for a long period, it is

suggested, after a careful cleaning, to leave the door ajar to allow air to circulate inside the cabinet. This will minimize the formation of condensation, mold and odors.

INSTALLATION OF YOUR

INSTALLATION OF YOUR ICE MAKER

ICE MAKER

 Place your Ice Maker on a floor that is strong enough

to support it when it is fully loaded. To level your Ice Maker, adjust the front leveling leg at the bottom of the unit.

 Locate the Ice Maker away from direct sunlight and

sources of heat (stove, heater, radiator, etc.). Direct sunlight and heat sources may increase electrical consumption. Extremely cold ambient temperatures may also cause the unit not to perform properly.

 Avoid locating the unit in moist areas.  Plug the unit into an exclusive, properly installed,

grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.



 It is recommended that you do not install the unit

directly beside a wall. This is to allow the door to have a greater than 90° opening swing. A limited door swing may lead to damaging the door gasket.

 The rough cabinet opening must be on a level floor

area at least 25" deep and 17 " wide. The opening should have a height of at least 35".

 The electrical outlet may be positioned from within

either side of the adjacent cabinetry, or the rear of the shaded area (as shown in Fig A).

 If the electrical outlet is located inside the adjacent

cabinetry, cut a 1-1/2” diameter hole to admit the power cord. If the cabinet wall is metal, the hole edge must be covered with a bushing or grommet.

17”

INSTALLATION INSTRUCTIONS

To avoid electric shock, which can cause death or severe personal injury, disconnect the Ice Maker from an electrical power outlet before connecting a water supply line to the Ice Maker

Copper tubing is recommended for the water supply line. Water supply tubing made of 1/4” plastic is not recommended since it greatly increases the potential for water leaks. Manufacturer will not be responsible for any damage if plastic tubing is used for the supply line.

DO NOT install water supply tubing in areas where temperatures fall below freezing.

Connect the ice maker to a drinkable water source

that is not tied into a water softening system. Chemicals from the softener may damage the ice maker, causing it to malfunction.

Ensure that your water supply line connections comply with all local plumbing codes.

Before Installing the Water Supply Line, You Will Need

1. Basic tools: adjustable wrench and standard, flat blade

screwdriver.

2. Access to a household cold water line with water pressure between 20 and 120 psi.

3. A water supply line made of 1/4 inch (6.4mm)OD, copper tubing, To determine the length of copper tubing needed, you will need to measure the distance from the ice maker inlet valve at the back of the Ice Maker to your cold water pipe. Then add approximately 7 feet (2.1 meters), so the Ice Maker can be moved out for cleaning.

4. A shutoff valve to connect the water supply line to your household water system. (DO NOT use a self-piercing type shutoff valve.)

5. A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.

To Connect Water Supply Line to Ice Maker Inlet Valve

1. Disconnect Ice Maker from electric power supply.

2. Place end of water supply line into sink or bucket. Turn

ON water supply and flush supply line until water is clear, turn OFF water supply at shut off valve. Unscrew plastic cap from water valve inlet and save.

3. Slide brass compression nut, then ferrule (sleeve), onto water supply line, as shown in Fig. A.

4. Push water supply line into water valve inlet as far as it will go (1/4 inch). Slide ferrule (sleeve) into valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over-tighten.

5. With steel clamp and screw, secure water supply line to rear panel of Ice Maker at location shown in Fig. A.

6. Coil excess water supply line (about 2½ turns) behind Ice Maker as shown in Fig. A and arrange coils so they do not vibrate or wear against any other surface.

7. Turn ON water supply at shut off valve and tighten any connections that leak.

8. Reconnect Ice Maker to electric power supply.

NOTE:

It takes approximately 24 hours for the ice maker to begin producing ice. Air in new plumbing lines may cause ice maker to cycle two or three times before making a full tray of ice. New plumbing may cause ice to be discolored or have poor flavor. Discard ice made during the first 24hours.

Although the unit has been tested and cleaned at the factory, due to long-term transit and storage, the first batch or two of cubes must be discarded.

 Never turn the water supply tap off when the ice

maker is working.

 Never touch evaporator when unit is running!  Except to take ice from the unit, keep the door closed

to reduce melting and insure proper ice formation.

Connecting Ice Maker To Water Supply (cont’d): Drain-pipe Connection (Drain hose not provided)

 If you choose direct drainage or force drainage mode,

you need to purchase an external drain pipe available at your local hardware store. The connection instructions are below: Connect one side of the external drain pipe linked to the outlet pipe of the ice maker; put the other side into the drain hole. (See Fig B.)

A - Is a pump-assisted drain B - Is a gravity-fed continuous drain

NOTE: When using pump-assisted drain “A”,

the switch (on back) must be turned to the “ON” position.

This appliance has the capability of the door opening from either the left or the right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow these instructions.

1. Remove 2 screws (1), then pull door (4) in direction of arrow.

2. Remove 3 screws of right upper hinge (5), then remove right upper hinge. (See Fig. C.)

3. Use the screws which you removed from the right side hinges to fix the left upper and bottom hinges (8).

(See Fig. D & Fig. E.)

4. Rotate the door 180°, then assemble the door on the opposite side in the same way it was removed.

INSTALLATION INSTRUCTIONS

Please disconnect unit from power. To avoid electric shock, make sure no water is near the ice maker or on floor board and follow the steps below.

Your ice maker has three different performance modes. You can choose the most suitable mode according to your requirements. Please see detailed instructions on following page.



1. Ice bin

2. Bottom board of ice bin

3. Drain nut (front)

4. Drain seal (front)

5. Water level indicator

6. Drain seal (back)

7. Drain nut (back)

8. Drain pump switch

9. Water inlet pipe connector

10. Drain pump outlet (pump-assisted)

11. Drain cap

12. Drain cap

13. Direct water outlet pipe connection (continuous)

14. Water tank

INSTALLATION INSTRUCTIONS

Ice Maker Performance Mode Instructions (cont’d)

Please read the following installation m ethods before using, and choose t he correct drain mode for your situation. Set up your ice maker accordingly.

Performance Mode Instructions Suitable situation Operation instruction

Direct drainage mode

(Recommended

mode)

Drain pump mode

(Recommended mode)

Excess water will be drained off by the outlet water pipe on the back of the unit

Excess water will be forced to drain out by the pump on back of the unit.

The height of drain hole in the room ≤100 mm (3-15/16”)

The height of drain hole in the room is between 101 mm~1500 mm (3-15/16”~59”)

Ref.: Fig. A, Fig. B & Fig. C

Screw Nut and Switch

screw nut(front) (3) + seal washer(front) (4)

screw nut(back) (7) + seal washer(back) (6)

screw nut for valve seal (11) screw nut for valve seal (12) force water outlet switch (8)

1. Please be sure the screw nut and switch are in the

above condition;

2. Use a certain length drain pipe,connect one side to

the direct water outlet pipe connection (13), the

other to the drain hole. Please be sure the

connection is tight to avoid water leakage.

Condition

lock open lock open OFF

Ref.: Fig. A, Fig. B & Fig. C

Screw Nut and Switch Condition

screw nut(front) (3) + seal washer(front)(4)

screw nut(back) (7) + seal washer(back) (6)

screw nut for valve seal (11) screw nut for valve seal (12) force water outlet switch (8)

1. Please be sure the screw nut and switch are in the

above condition;

2. Use a certain length drain pipe, connect one side to

the force water outlet pipe connector (10), the other

to the drain hole. Please be sure the connection is

tight to avoid water leakage.

lock open open lock ON

The lengthen of drainpipe is no more than 6000 mm

(236-4/16”) in order to prevent slops return.

INSTALLATION INSTRUCTIONS

Ice Maker Performance Mode Instructions (cont’d)

Performance Mode Instructions Suitable situation Operation instruction

Manual drainage system mode

(If you’re operating using the “Manual

drainage system mode”, ice water

will restrict drain water from flowing out.)

Manually drain the water from the ice bin.

There is no drain hole in the room.

Ref.: Fig. A, Fig. B & Fig. C

Screw Nut and Switch

screw nut (front) (3) + seal washer (front) (4)

screw nut (back) (7) + seal washer(back) (6)

screw nut for valve seal (11) screw nut for valve seal (12) force water outlet switch (8)

1. Please be sure the screw nut and switch are in the above condition to avoid wat er leakage.

2. Periodically check the ice bin (1), and w ater level indicator (5). If the water level exceeds the indicator water level, please drain off the excess water.

3. When draining off the water, you can remove the ice bin (1), screw nut (front) (3) and seal washer (front) (4). Remove the excess water, then tighten the above screw and seal washer.

Condition

lock lock lock lock OFF

OPERATING INSTRUCTIONS

CONTROLS OF THE ICE MAKER

The Ice Maker should be placed where the ambient temperature is between 10-32°C (50-90°F). If the ambient temperature is above or below this range, the performance of the unit may be affected.

+ 21 hidden pages
