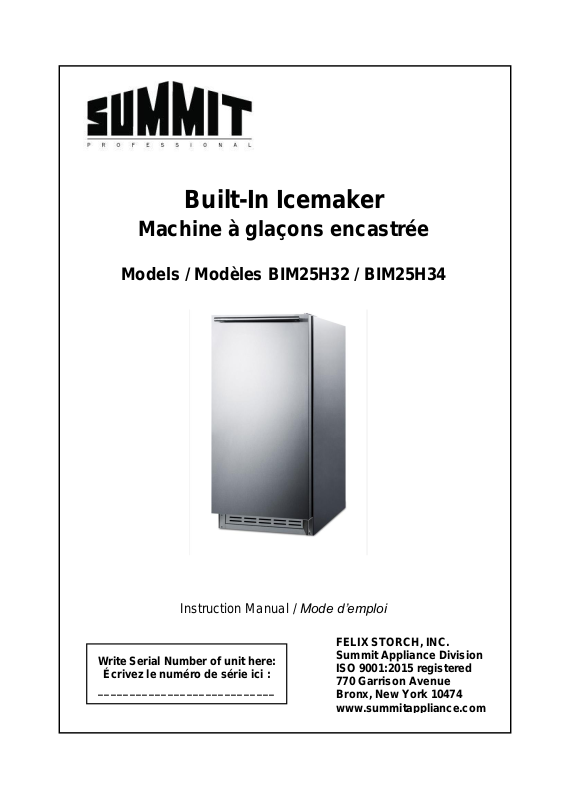

Summit BIM25H32IF User Manual

Built-In Icemaker

Machine à glaçons encastrée

Models / Modèles BIM25H32 / BIM25H34

Instruction Manual

Instruction

FELIX STORCH, INC. Summit Appliance Division ISO 9001:2015 registered 770 Garrison Avenue Bronx, New York 10474 www.summitappliance.com

Write Serial Number of unit here:

Écrivez le numéro de série ici :

____________________________

Instruction Manual / Mode d’emploi

IMPORTANT SAFETY INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK,

OR INJURY WHEN USING YOUR ICE MAKER, FOLLOW THESE BASIC PRECAUTIONS:

• READ ALL INSTRUCTIONS BEFORE USING THE ICE MAKER.

• NEVER CLEAN ICE MAKER PARTS WITH FLAMMABLE FLUIDS. THE FUMES CAN CREATE A FIRE HAZARD

OR EXPLOSION.

• DO NOT STORE OR USE GASOLINE OR ANY OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY

OF THIS OR ANY OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE HAZARD OR EXPLOSION.

•

DANGER: RISK OF CHILD ENTRAPMENT

CHILD ENTRAPMENT AND SUFFOCATION ARE NOT PROBLEMS OF THE PAST. JUNKED OR ABANDONED APPLIANCES ARE STILL DANGEROUS. . . EVEN IF THEY WILL “JUST SIT IN THE GARAGE A FEW DAYS.”

• BEFORE YOU THROW AWAY YOUR OLD ICE MAKER: TAKE OFF THE DOOR. LEAVE THE SHELVES IN

PLACE SO THAT CHILDREN MAY NOT EASILY CLIMB INSIDE.

• NEVER ALLOW CHILDREN TO OPERATE, PLAY WITH, OR CRAWL INSIDE THE APPLIANCE.

- SAVE THESE INSTRUCTIONS -

TABLE OF CONTENTS

Important Safety Instructions ...................................................................................................... 1

Installation Instructions ........................................................................................................... 2 - 3

Before Using Your Ice Maker .............................................................................................. 2

Installation of Your Ice Maker ............................................................................................ 2

Electrical Connection .................................................................................................... 2 - 3

Connecting the Water Supply ............................................................................................ 3

Reversing the Door Swing ................................................................................................. 3

Operating Your Ice Maker ............................................................................................................. 4

Initial Start-Up Operation

For Best Performance of Your Ice Maker On/Off Switch Storage Compartment

Care and Maintenance .................................................................................................................. 5

Cleaning Your Ice Maker

Power Failure Vacation Time/Storage Moving Your Ice Maker Energy-Saving Tip

Problems with Your Ice Maker ..................................................................................................... 6

Limited Warranty ........................................................................................................................... 7

French version of this manual .............................................................................................. 8 - 15

INSTALLATION INSTRUCTIONS

Before Using Your Ice Maker

• Remove the exterior and interior packing.

• Check to be sure you have all of the following parts:

1 removable ice bin 1 plastic scoop 25 ft. hose 1 instruction manual

• CAUTION: After unpacking you MUST allow this appliance to stand upright for at least 2 hours

to allow the lubricant and refrigerant to drain back into the compressor and stabilize. Failure to do so may adversely affect performance and the lifetime of the unit.

• Clean the interior surface with lukewarm water using a soft cloth.

Installation of Your Ice Maker

• This appliance is designed to be either free-standing or built-in (fully recessed). If it is built-in, leave

at least 3/16” at both sides, 1/16” at the top and 2” at the rear. Be sure that airflow under the

appliance is not blocked.

• Place your ice maker on a floor that is strong enough to support the ice maker when it is fully loaded. To level your ice maker, adjust the leg at the front of the unit.

• Locate the ice maker away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the outer surface of the unit and heat sources may increase electrical consumption.

• It is recommended that this appliance always be operated in an ambient temperature of at least 60°F and under 85°F. The appliance may be exposed to lower or higher temperatures, but only for short periods of time, and the temperature should never be below 45°F. Extremely cold ambient temperatures may cause the ice maker not to perform properly.

• Avoid locating the ice maker in moist areas. Too much moisture in the air will cause frost to form quickly on the evaporator, requiring more frequent defrosting of the ice maker.

• Plug the ice maker into an exclusive, properly-installed grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and or grounding should be directed toward a certified electrician or an authorized SUMMIT products service center.

Electrical Connection

• This ice maker should be properly grounded for your safety. The power cord of this ice maker is equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of electrical shock.

• Do not under any circumstances cut or remove the third ground prong from the power cord supplied.

• Never use a two-prong grounding adapter.

• Never use an extension cord to connect power to the unit. Failure to follow these instructions can

result in fire or electrical shock.

• When a two-prong wall receptacle is encountered, contact a qualified electrician to have it replaced with a 3-prong receptacle in accordance with applicable electrical codes.

• This ice maker requires a standard 115/120 volts AC, 60Hz electrical outlet with three-prong ground. The appliance can resist temporary voltage fluctuations from -15 to +10%.

 ELECTRICAL SHOCK HAZARD 

IMPROPER USE OF THE GROUNDED PLUG CAN RESULT IN THE RISK OF ELECTRICAL SHOCK. IF THE POWER

CORD IS DAMAGED, HAVE IT REPLACED THROUGH AN AUTHORIZED SUMMIT PRODUCTS SERVICE CENTER.

• To prevent accidental injury, the cord should be secured behind the ice maker and not left exposed or dangling.

Connecting the Water Supply

• Not all the necessary hardware is provided for installation so you should hire a professional licensed plumber to complete the installation.

• Connect tubing (supplied with unit) to the nearest cold water source. Connect sufficient tubing to the unit to allow the appliance to be moved freely for cleaning and service. Also make sure that the tubing is not pinched or damaged during transportation.

• Position the unit to allow free airflow through the front of the unit. Wipe out inside of unit and ice bin with a damp cloth.

Reversing the Door Swing

This unit can be opened from either the right side or the left. By default, the door hinge is on the right side. If you prefer it on the left, please follow these instructions:

NOTE: All of the parts (including the screws) that are removed must be kept for the reinstallation of the door.

Remove the three screws from the top hinge.

2. Remove the door from the lower hinge, and keep the padded surface upward to prevent

scratching.

3. Remove the two screws from the bottom hinge, then remove the bottom hinge.

4. Remove the three hole covers from the upper left side of the cabinet and use them to

cover the holes on the right side.

5. Unscrew the hinge pin from the top hinge, flip the hinge over, and reinstall the pin.

6. Reinstall the lower hinge on the opposite side.

7. Set the door on the lower door hinge. Reinstall the top hinge loosely and do not tighten.

8. Adjust the door so that it is straight. Once the door is in place correctly, tighten the

screws.

WARNING

IMPROPER WATER LINE CONNECTION MAY RESULT IN FLOODING. YOU MUST USE A LICENSED PLUMBER. REVIEW STATE AND LOCAL PLUMBING CODES BEFORE INSTALLATION.

OPERATING YOUR ICE MAKER

Initial Start-Up Operation

1. Plug the appliance into a 115/120V AC polarized and grounded wall electrical outlet.

2. Make sure the water supply is on. As soon as the inner mechanism reaches the proper temperature, the icemaker mechanism will fill the mold with water.

3. The first cubes may be small because of air in the water line. Later cubes will be of standard crescent- moon shape.

4. Approximate time for the first cycle is between 30-40 minutes.

5. Each cycle will take approximately 0.15 quarts of water so the ice bin should be full after 11 hours.

IMPORTANT: DISCARD ALL ICE CUBES MADE DURING THE FIRST 3 HOURS OF OPERATION.

• When the ice bin is full, the ice-making mechanism will automatically shut off. However the system will continue to cool and maintain the supply of cubes.

• Ice delivery may be interrupted by raising the metal arm into an upright position (see illustration).

• If the ice maker is not used regularly, it is recommended that the ice bin be emptied periodically to insure fresh ice.

• Sometimes the cubes may appear cloudy. This should not be a cause for concern and has nothing to do with the taste or chemical make-up of the water.

• This unit should be defrosted approximately every 4-6 weeks or when frost on the ice maker walls is excessive or ¼” thick. To defrost, disconnect power to the unit, remove cubes and keep door open at least two inches. There is a drain located in the rear.

• DO NOT SCRAPE OFF THE FROST WITH ANYTHING EXCEPT A PLASTIC SCRAPER.

For Best Performance of Your Ice Maker

• Keep appliance out of direct sunlight

• Allow for adequate air circulation

• Do not use an outlet operating on a switch

• Minimize door opening time

To Turn Your Unit On/Off

• When you open the door of your appliance, you will see a black dial thermostat located towards

the lower righthand side. To turn your unit off, use a flathead screwdriver to turn the dial counterclockwise until it stops. To turn back on, go in the reverse direction.

Storage Compartment

• This unit includes a small storage compartment located under the icemaker. Please note that this

compartment is not refrigerated.
