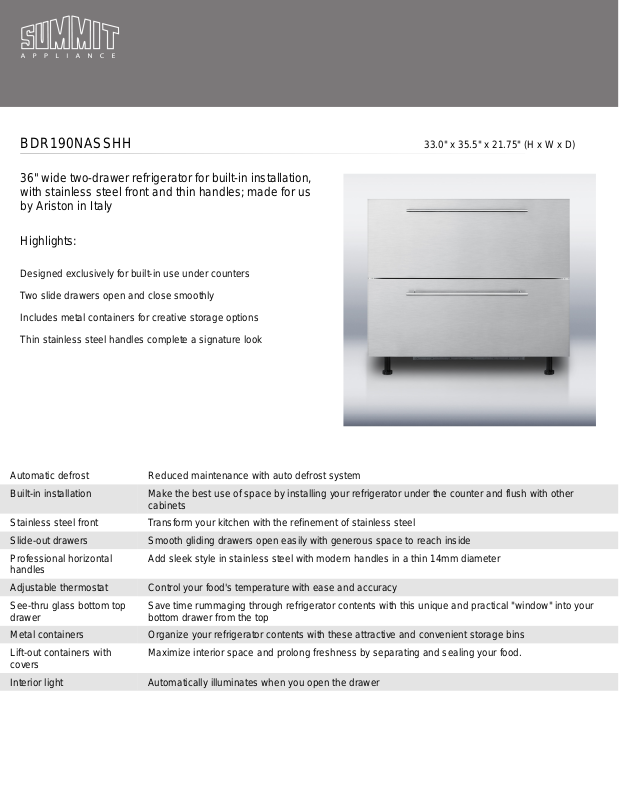

Summit BDR190NASSHH Specification Sheet

BDR190NASSHH 33.0" x 35.5" x 21.75" (H x W x D)

36" wide two-drawer refrigerator for built-in installation,
with stainless steel front and thin handles; made for us
by Ariston in Italy

Highlights:

Designed exclusively for built-in use under counters
Two slide drawers open and close smoothly
Includes metal containers for creative storage options
Thin stainless steel handles complete a signature look

Automatic defrost Reduced maintenance with auto defrost system
Built-in installation Make the best use of space by installing your refrigerator under the counter and flush with other

cabinets
Stainless steel front Transform your kitchen with the refinement of stainless steel
Slide-out drawers Smooth gliding drawers open easily with generous space to reach inside
Professional horizontal

handles
Adjustable thermostat Control your food's temperature with ease and accuracy
See-thru glass bottom top

drawer
Metal containers Organize your refrigerator contents with these attractive and convenient storage bins
Lift-out containers with

covers
Interior light Automatically illuminates when you open the drawer

Add sleek style in stainless steel with modern handles in a thin 14mm diameter

Save time rummaging through refrigerator contents with this unique and practical "window" into your

bottom drawer from the top

Maximize interior space and prolong freshness by separating and sealing your food.

Specifications:

Height 33.0 up to 34.5"
Width 35.5"
Depth 21.75"
Capacity 6.7 cu.ft.
Ext Depth with Handle 23.25"
Interior Height 1 24.0"
Interior Width 1 31.5"
Interior Depth 1 17.5"
Comp Step Height 4.0"
Comp Step Width 19.0"
Comp Step Depth 5.5"
Height Adjustable true
Shipping Weight 197.0 lbs.
Amps 1.0
Energy Usage/Year 392.0 kWh/year
US Electrical Safety UL
Voltage/Frequency 115 V AC/60 Hz
Drawers true
Drawer Quantity 2
Defrost Type Automatic
Depth with door at 90° 38.0"
Thermostat Type Dial
Fan Type Exterior
Light true
Freon Type R134a
Freon Oz 2.3
Level Legs Quantity 4
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
