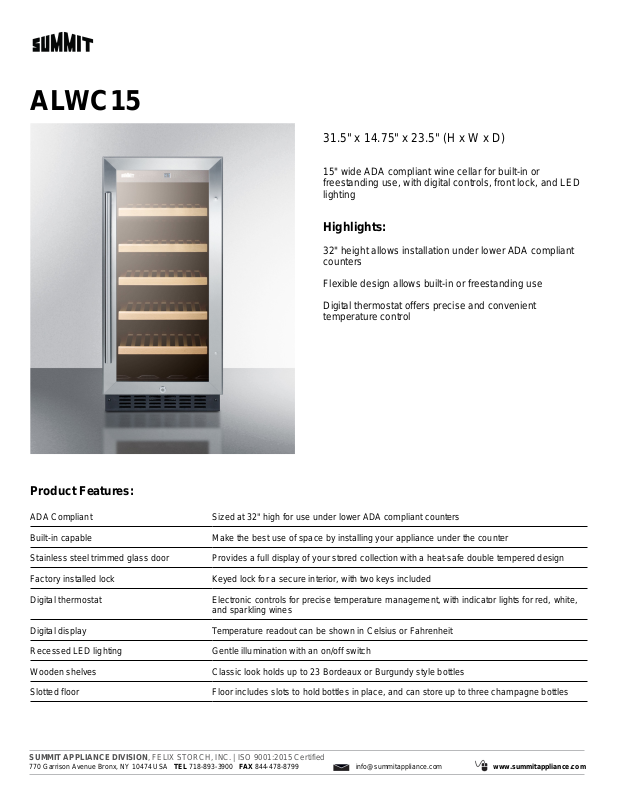

Summit ALWC15 Specifications

ALWC15

31.5" x 14.75" x 23.5" (H x W x D)

15" wide ADA compliant wine cellar for built-in or
freestanding use, with digital controls, front lock, and LED
lighting

Highlights:

32" height allows installation under lower ADA compliant
counters

Flexible design allows built-in or freestanding use
Digital thermostat offers precise and convenient

temperature control

Product Features:

ADA Compliant Sized at 32" high for use under lower ADA compliant counters
Built-in capable Make the best use of space by installing your appliance under the counter
Stainless steel trimmed glass door Provides a full display of your stored collection with a heat-safe double tempered design
Factory installed lock Keyed lock for a secure interior, with two keys included
Digital thermostat Electronic controls for precise temperature management, with indicator lights for red, white,

and sparkling wines
Digital display Temperature readout can be shown in Celsius or Fahrenheit
Recessed LED lighting Gentle illumination with an on/off switch
Wooden shelves Classic look holds up to 23 Bordeaux or Burgundy style bottles
Slotted floor Floor includes slots to hold bottles in place, and can store up to three champagne bottles

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

ALWC15 Specifications:

Overview

Height of Cabinet 31.5" (80 cm)
Width 14.75" (37 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 37.13" (94 cm)
Capacity 2.2 cu.ft. (62 L)
Bottles 23 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Shipping Weight 70.0 lbs. (32 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 0.78 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 21.25" (54 cm)
Interior Width 1 10.5" (27 cm)
Interior Depth 1 17.5" (44 cm)
Level Legs 4
Temperature Range 41º to 64ºF

ETL-C

Sabbath Mode Yes
