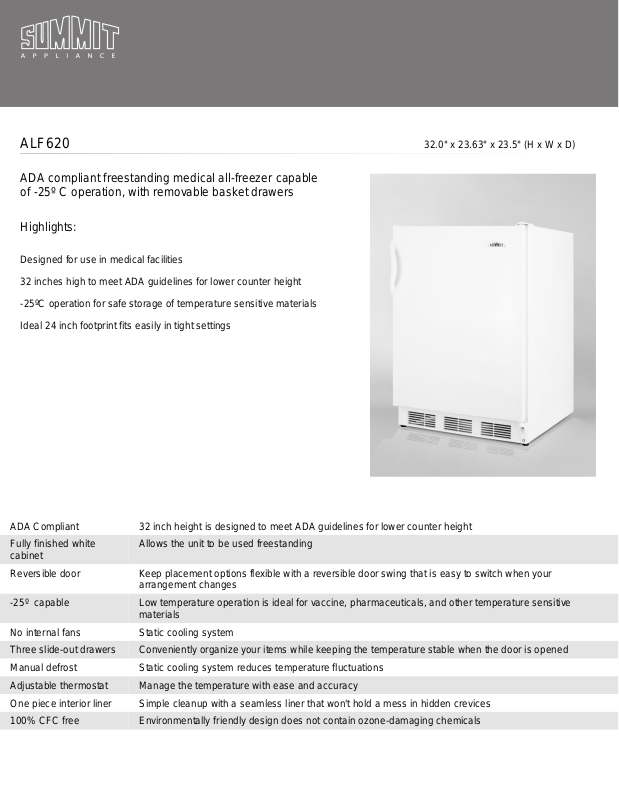

Summit ALF620 Specification Sheet

ALF620 32.0" x 23.63" x 23.5" (H x W x D)

ADA compliant freestanding medical all-freezer capable
of -25º C operation, with removable basket drawers

Highlights:

Designed for use in medical facilities
32 inches high to meet ADA guidelines for lower counter height

-25ºC operation for safe storage of temperature sensitive materials
Ideal 24 inch footprint fits easily in tight settings

ADA Compliant 32 inch height is designed to meet ADA guidelines for lower counter height
Fully finished white

cabinet
Reversible door Keep placement options flexible with a reversible door swing that is easy to switch when your

-25º capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive

No internal fans Static cooling system
Three slide-out drawers Conveniently organize your items while keeping the temperature stable when the door is opened
Manual defrost Static cooling system reduces temperature fluctuations
Adjustable thermostat Manage the temperature with ease and accuracy
One piece interior liner Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

Allows the unit to be used freestanding

arrangement changes

materials

Specifications:

Height 32.0"
Width 23.63"
Depth 23.5"
Capacity 3.2 cu.ft.
Ext Depth with Handle 24.25"
Interior Height 1 24.25"
Interior Width 1 17.75"
Interior Depth 1 16.5"
Comp Step Height 6.5"
Comp Step Width 17.5"
Comp Step Depth 5.5"
Shipping Weight 104.0 lbs.
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Canadian Electrical Safety ULC
US Electrical Safety UL
Reversible Yes
Door Swing RHD
Drawers true
Drawer Quantity 3
Defrost Type Manual
Height to Hinge Cap 32.25"
Depth with door at 90° 45.13"
Thermostat Type Dial
High Side PSI 235.0
Low Side PSI 70.0
Level Legs Quantity 4
Freon Type R134a
Freon Oz 2.7
Parts/Labor Warranty 1 Year
Compressor Warranty 5 Years
