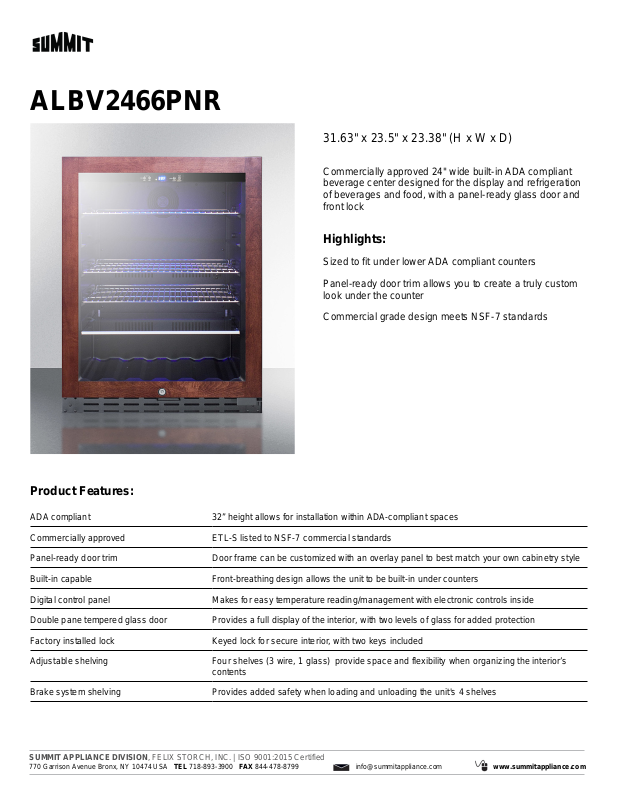

Summit ALBV2466PNR Specifications

ALBV2466PNR

31.63" x 23.5" x 23.38" (H x W x D)

Commercially approved 24" wide built-in ADA compliant
beverage center designed for the display and refrigeration
of beverages and food, with a panel-ready glass door and
front lock

Highlights:

Sized to fit under lower ADA compliant counters
Panel-ready door trim allows you to create a truly custom

look under the counter
Commercial grade design meets NSF-7 standards

Product Features:

ADA compliant 32” height allows for installation within ADA-compliant spaces
Commercially approved ETL-S listed to NSF-7 commercial standards
Panel-ready door trim Door frame can be customized with an overlay panel to best match your own cabinetry style
Built-in capable Front-breathing design allows the unit to be built-in under counters
Digital control panel Makes for easy temperature reading/management with electronic controls inside
Double pane tempered glass door Provides a full display of the interior, with two levels of glass for added protection
Factory installed lock Keyed lock for secure interior, with two keys included
Adjustable shelving Four shelves (3 wire, 1 glass) provide space and flexibility when organizing the interior’s

contents

Brake system shelving Provides added safety when loading and unloading the unit's 4 shelves

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

ALBV2466PNR Specifications:

Overview

Height of Cabinet 31.63" (80 cm)
Width 23.5" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at

90°
Capacity 4.2 cu.ft. (119 L)
Bottles 6 bottles
Defrost Type Automatic
Door Glass/Panel-Ready

Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Energy Usage/Year 295.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 112.0 lbs. (51 kg)
Shipping Weight 117.0 lbs. (53 kg)
Estimated Time to

Ship
Parts & Labor

Warranty
Compressor Warranty 5 Years

Refrigerator Features

Sabbath Mode Yes
Door Swing RHD
Reversible Factory Reversible
Height Adjustable No
Shelf Type Glass and Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 150.0
Low Side PSI 50.0

45.75" (116 cm)

Frame

ETL-C

2 to 4 days

1 Year

Level Legs Qty 2
Interior Light Yes
Temperature Range 34 to 65ºF

Dimensions

Interior Height 23.5" (60 cm)
Interior Width 19.0" (48 cm)
Interior Depth 17.0" (43 cm)
Compressor Step

Height
Compressor Step

Width
Compressor Step

Depth

5.5" (14 cm)

19.0" (48 cm)

5.0" (13 cm)
