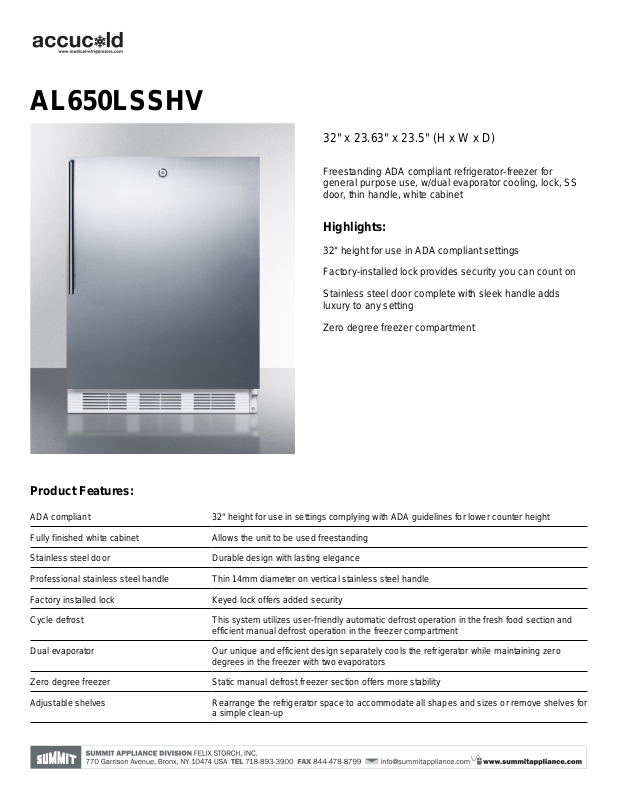

Summit AL650LSSHV Instruction Manual

AL650LSSHV

32" x 23.63" x 23.5" (H x W x D)

Freestanding ADA compliant refrigerator-freezer for
general purpose use, w/dual evaporator cooling, lock, SS
door, thin handle, white cabinet

Highlights:

32" height for use in ADA compliant settings
Factory-installed lock provides security you can count on
Stainless steel door complete with sleek handle adds

luxury to any setting
Zero degree freezer compartment

Product Features:

ADA compliant 32" height for use in settings complying with ADA guidelines for lower counter height
Fully finished white cabinet Allows the unit to be used freestanding
Stainless steel door Durable design with lasting elegance
Professional stainless steel handle Thin 14mm diameter on vertical stainless steel handle
Factory installed lock Keyed lock offers added security
Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and

efficient manual defrost operation in the freezer compartment

Dual evaporator Our unique and efficient design separately cools the refrigerator while maintaining zero

degrees in the freezer with two evaporators
Zero degree freezer Static manual defrost freezer section offers more stability
Adjustable shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for

a simple clean-up

AL650LSSHV Specifications:

Overview

Height 32.0"
Height to Hinge Cap 32.25"
Width 23.63"
Depth 23.5"
Depth with Handle 24.25"
Depth with door at 90° 45.0"
Capacity 5.1 cu.ft.
Defrost Type Cycle
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs.
Shipping Weight 113.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Factory

Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior

Height
Refrigerator - Interior

Width
Refrigerator - Interior

Depth
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Refrigerator - Full Door

Shelves
Freezer - Interior Height 5.0"
Freezer - Interior Width 19.0"
Freezer - Interior Depth 11.5"
Adjustable Shelves Yes

ULC

Reversible

19.5"

20.5"

17.0"

Interior Light Yes
Thermostat Type Dial
Freon R134a
Freon Amount 2.6
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 7.0"
Compressor Step Width 20.5"
Compressor Step Depth 5.0"

3
