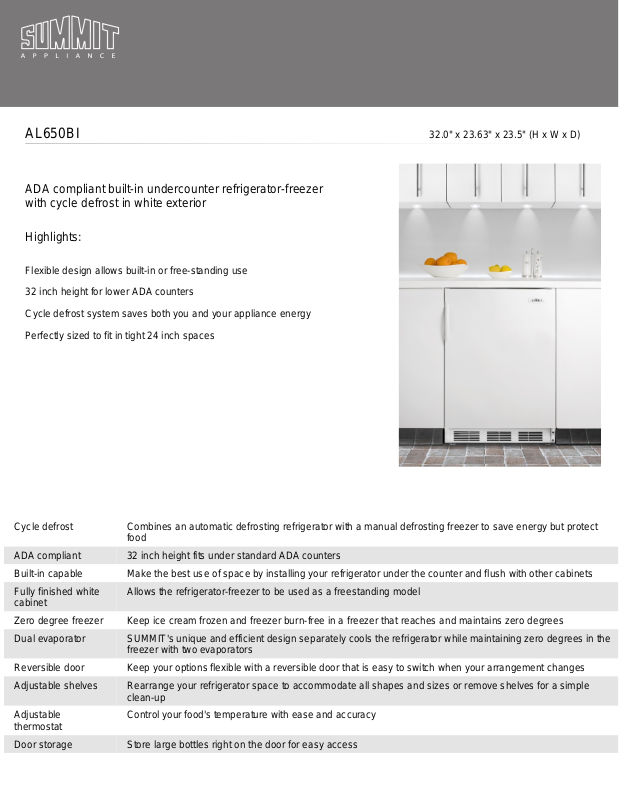

Summit AL650BI User Manual

AL650BI 32.0" x 23.63" x 23.5" (H x W x D)

ADA compliant built-in undercounter refrigerator-freezer
with cycle defrost in white exterior

Highlights:

Flexible design allows built-in or free-standing use
32 inch height for lower ADA counters
Cycle defrost system saves both you and your appliance energy
Perfectly sized to fit in tight 24 inch spaces

Cycle defrost Combines an automatic defrosting refrigerator with a manual defrosting freezer to save energy but protect

food
ADA compliant 32 inch height fits under standard ADA counters
Built-in capable Make the best use of space by installing your refrigerator under the counter and flush with other cabinets
Fully finished white

cabinet
Zero degree freezer Keep ice cream frozen and freezer burn-free in a freezer that reaches and maintains zero degrees
Dual evaporator SUMMIT's unique and efficient design separately cools the refrigerator while maintaining zero degrees in the

Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Adjustable shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple

Adjustable
thermostat

Door storage Store large bottles right on the door for easy access

Allows the refrigerator-freezer to be used as a freestanding model

freezer with two evaporators

clean-up

Control your food's temperature with ease and accuracy

Specifications:

Height 32.0"
Width 23.63"
Depth 23.5"
Capacity 5.1 cu.ft.
Ext Depth with Handle 24.75"
Interior Height 1 19.5"
Interior Width 1 20.5"
Interior Depth 1 17.0"
Interior Height 2 5.0"
Interior Width 2 19.0"
Interior Depth 2 11.5"
Comp Step Height 7.0"
Comp Step Width 20.5"
Comp Step Depth 5.0"
Shipping Weight 104.0 lbs.
Weight 100.0 lbs.
Canadian Electrical Safety ULC
US Electrical Safety UL
Voltage/Frequency 115 V AC/60 Hz
Energy Usage/Year 434.0 kWh/year
Amps 1.3
Door Swing RHD
Reversible Yes
Crisper Quantity 1
Shelf Quantity 3
Adjustable Shelf true
Shelf Type Wire
Crisper Cover Type Glass
Crisper Finish Transparent
Full Door Shelf Quantity 3
Defrost Type Cycle
Depth with door at 90° 45.63"
Height to Hinge Cap 32.25"
Fan Type Exterior
Thermostat Type Dial
Light true
Condensor Location Rear of Unit
High Side PSI 285.0
Level Legs Quantity 4
Freon Oz 2.6
Freon Type R134a
Low Side PSI 70.0
Parts/Labor Warranty 1 Year
Compressor Warranty 5 Years
